HP · Wide-Format Plotter
HP DesignJet 111 24-tumsskrivare med fack
technical / CAD plotter
- ModelCQ533A
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- A 24-inch four-cartridge color inkjet that prints up to A1 sheets from a media tray, not a roll.
- Line accuracy is rated at +/- 0.2%, keeping scaled drawings dimensionally trustworthy.
- The tray handles bond, coated, glossy and photo stock from 60 to 210 g/m² for both working plans and presentation sheets.
Not sure if the CQ533A is right for you?
Compare key specs and an AI analyst read-out against similar models.
Overview
Built for the work
HP Designjet 111 24-tumsskrivare med fack, Black, Cyan, Magenta, Yellow, A1 (594 x 841 mm), Bond paper, Coated paper, Glossy paper, Photo paper, A1, A2, A3, A4, B2, B3, B4, 64 MB
Expert analysis
What you should know
Key takeaways
- A 24-inch four-cartridge color inkjet that prints up to A1 sheets from a media tray, not a roll.
- Line accuracy is rated at +/- 0.2%, keeping scaled drawings dimensionally trustworthy.
- The tray handles bond, coated, glossy and photo stock from 60 to 210 g/m² for both working plans and presentation sheets.
- No roll feed means every large sheet is a manual load — practical for a few A1s a day, not for full plan sets.
- No Ethernet and support topping out at Windows 7 / Mac OS X 10.6 make office networking a real IT question.
- Quiet at 50 dB and ENERGY STAR listed at 45 W typical, so it suits an occupied studio.

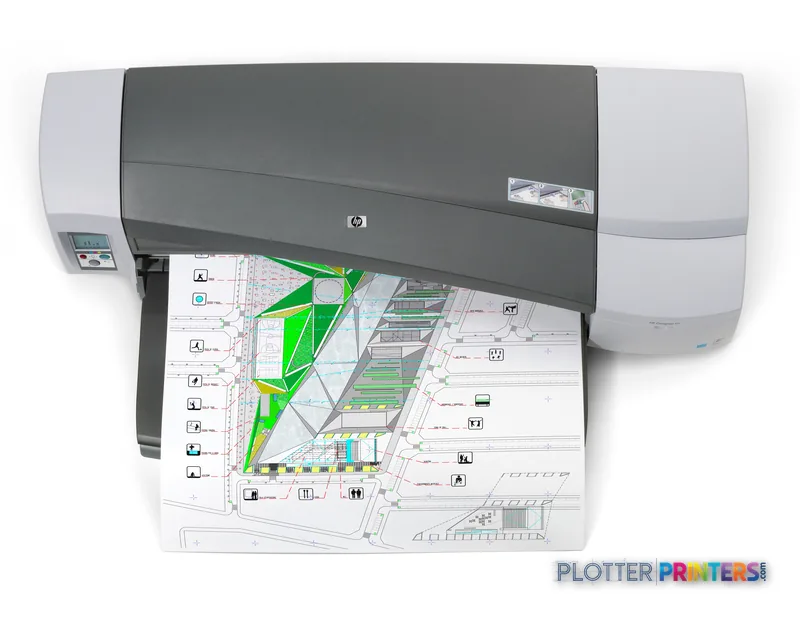

Picture the small studio at 4:45 on a Thursday. One person, one machine, one A1 site plan that needs to be in a client’s hands before they leave. That’s the job the HP Designjet 111 with tray was built to do — not run a bid room, not feed a reprographics counter, just print a clean drawing when a small office needs one.

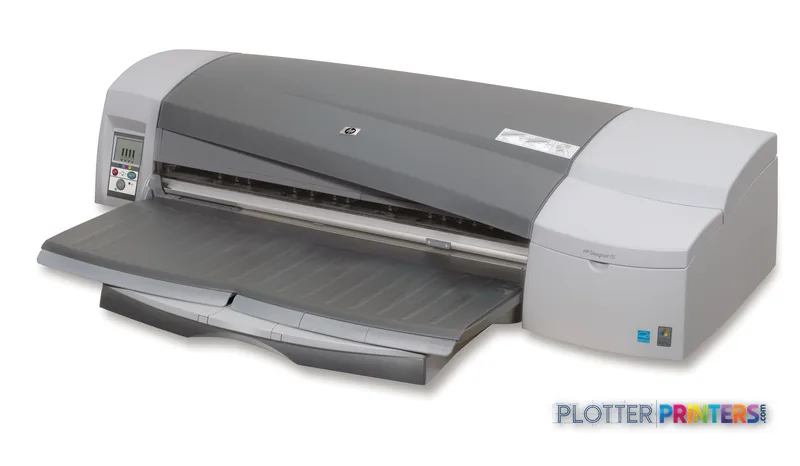

It’s a four-cartridge color inkjet, 24 inches wide, sheet-and-tray fed. No scanner. No roll deck. No Ethernet. Know that going in, and the rest of the picture makes sense.
61 cm (24")Print widthhandles up to A1 sheets
A1 (23" x 33" (594 x 841 mm))Max print size
+/- 0.2%Line accuracydimensional consistency for scaled drawings
48.5 lbs (22 kg)Weighta desk-adjacent machine, not a floor unit
What it actually does well
Line accuracy is rated at +/- 0.2%. For a small architecture or civil practice, that means a scaled detail measures out the way it should — close enough that nobody’s arguing over a dimension pulled off a printed sheet. Black text prints at up to 1200 x 600 DPI in best quality, which keeps 8-point callouts and hatch patterns legible instead of muddy.
The tray is the story here. It pulls bond, coated, glossy and photo stock from 60 to 210 g/m². So the same box that prints a working plan can also spit out a coated presentation sheet for a client meeting. Media loads flat, not off a roll, which sidesteps the curl and cutter problems that plague small roll-fed units.
At 45 W typical and ENERGY STAR listed, it won’t move your power bill. And at 50 dB it’s quiet enough to sit in an occupied studio without anyone glaring at it.
Where it isn't the right tool
Let me name the failure modes before you find them the hard way. No roll feed means every large sheet is a manual load — fine for a few A1s a day, painful for a permit set of thirty. No Ethernet either; connection is via the parallel port, so networking it for a whole office takes a print server and some patience. And the supported operating systems top out at Windows 7, Vista, XP and Mac OS X 10.6. On a current Windows 11 network, that’s a conversation to have with IT before you buy.
If your day involves rolls, collated plan sets, or a scanner for as-builts, you’ve outgrown this class entirely. That’s where a wider MFP like the HP DesignJet T918 36-in lived — a 36-inch machine with an integrated scanner, though it’s now discontinued. For a current 24-inch roll-fed alternative, the Canon GP-200 24-in or the Canon iPF600 line are worth a look. See how the 24-inch class stacks up before you commit.
Worth comparing before you decide
The read
The HP Designjet 111 with tray is a single-user, single-sheet machine for a small office that prints a handful of drawings a day and occasionally a coated presentation sheet. On that job it’s honest and quiet. The tray feeding four media types is its real advantage, and +/- 0.2% line accuracy keeps your dimensions trustworthy.
But the no-roll, no-Ethernet, older-OS reality is not a footnote — it’s the whole buying decision. If your work never leaves the drawing table in bulk, it fits. If your afternoons involve plan sets, rolls or a scanner, look past this class and don’t stay late fighting it.
Spec analysis
How the specs grade
Overall performance
—Not enough data for an overall score
Individual dimensions are shown where the specs support them.
- This printer
Verified specifications
The specs that decide it
| Number of print cartridges | 4 |
|---|---|
| Internal memory | 64 MB |
| Maximum print size | A1 (594 x 841 mm) |
| Ethernet | No |
| Power consumption | 45 W |
Specifications
Full technical detail
Use caseCAD / Technical
Printing
| Colour | Yes |
|---|---|
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head nozzles | 304 |
| Number of print cartridges | 4 |
Performance
| Internal memory | 64 MB |
|---|---|
| Processor frequency | 16 MHz |
Paper handling
| Maximum print size | A1 (594 x 841 mm) |
|---|---|
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Photo paper |
| Recommended media weight | 60 – 210 g/m² |
| ISO A-series sizes (A0…A9) | A1, A2, A3, A4 |
| ISO B-series sizes (B0…B9) | B2, B3, B4 |
Ports & interfaces
| USB port | No |
|---|---|
| Ethernet LAN | No |
| Parallel ports quantity | 1 |
Weight & dimensions
| Weight | 22 kg |
|---|---|
| Size (imperial) | 61 cm (24") |
| Dimensions (WxDxH) | 1042 x 495.3 x 220 mm |
Power
| Power consumption (off) | 0.1 W |
|---|---|
| Power consumption (standby) | 12 W |
| Power consumption (typical) | 45 W |
Operational conditions
| Storage temperature (T-T) | -20 – 55 °C |
|---|---|
| Operating temperature (T-T) | 59 – 86 °F |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Recommended operating temperature range (T-T) | 15 – 30 °C |
Other features
| Functions | |
|---|---|
| Line accuracy | +/- 0.2% |
| Proofing paper | Yes |
| Acoustic pressure emissions | 50 dB |
| Maximum media length (imperial) | 64" |
| Print quality (black, best quality) | 1200 x 600 DPI |
| Print quality (colour, best quality) | 1200 DPI |
Packaging data
| Package weight | 34 kg |
|---|---|
| Package dimensions (WxDxH) | 1192 x 545 x 493 mm |
| Package dimensions (W x D x H) | 1191.3 x 546.1 x 492.8 mm (46.9 x 21.5 x 19.4") |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Mac compatibility | Yes |
|---|---|
| Compatible operating systems | Windows 7 Ultimate/Professional/Home Premium; Windows Vista Ultimate/Business/Home Premium; Microsoft Windows XP (32-bit, 64-bit) Professional/Home, Server 2008 (32-bit, 64-bit), Server 2003 (32-bit, 64-bit); Novell NetWare 5.x, 6.x; Mac OS X v10.4, v10.5, v10.6; Citrix XenApp; Citrix XenServer |
Everything that fits the HP DesignJet 111
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
10 ink cartridges · 4 printheads · 76 paper & media items · 2 accessories
HP DesignJet 111 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet 111 24-tumsskrivare med fack — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 10
HP 1xx/5xx 24-in Stand and Bin Q1246B Black Printer Multimedia cart
HP Premium Gloss 610 mm x 15.2 m (24 in x 50 ft)
Greenman H11C Cyan Ink Cartridge
Greenman H11M Magenta Ink Cartridge
Greenman H11Y Yellow Ink Cartridge
HP 82 2-pack 69-ml Black Ink Cartridges print head Thermal inkjet
HP 82 69-ml Black Ink Cartridge
HP 11 Magenta Original Ink Cartridge
HP 11 Yellow Original Ink Cartridge
HP 11 Cyan Original Ink CartridgePrintheads 4
Paper & Media 76
Representative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative imageHP Universal Gloss Photo Paper
HP Universal Coated PaperRepresentative imageHP Universal Bond Paper, 4-packRepresentative imageHP Bright White Inkjet Paper, 4-packRepresentative imageMagic 36LB Heavyweight Coated Inkjet Paper (JS036)Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative imageMagic 4mil Inkjet Clear Film w/ Side Stripe (DMCF4HPS)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)
HP C6568B large format media 45.7 m
HP Q1408A plotter paper
HP Q1430A photo paper Brown, White
HP C3868A plotter paper 45.7 m 91.4 cm
HP C3869A plotter paper
HP Q1420A photo paper Brown, White
HP Matte Film 610 mm x 38.1 m (24 in x 125 ft)
HP C6570C large format media 30.5 mRepresentative imageHP Bright White Inkjet Paper, 36 in x 300 ft (C6810A)
HP C6035A large format media 45.7 m
HP C6036A printing paper Matte White
HP C6567B plotter paper
HP Universal Semi-gloss Photo Paper
HP Q1421A photo paper Brown, White
HP Q1416A large format media 30.5 mRepresentative imageHP Heavyweight Coated Paper, 42 in x 100 ft (C6569C)
HP Universal Semi-Gloss Photo Paper
HP Q1956A large format media 67.5 m
HP Heavyweight Coated 1524 mm x 68.5 m (60 in x 225 ft) large format media Matte
HP Q1961A large format media
HP Q1962A large format media
HP Q1967A printing paper A3+ (330×483 mm) Matte 100 sheets White
HP Q1968A large format media 30.5 m Matte
HP Q6579A photo paper Brown, White
HP Q6580A photo paper Matte
HP Q6581A photo paper
HP Q6583A photo paper Brown, White
HP Q6578A photo paper Brown, White
HP Q1441A large format media 45.7 m
HP Q1442A large format media 45.7 m
HP Q1444A printing paper Matte
HP Q1445A printing paper Matte
HP Q7897A large format media 45.7 m
HP Matte Proofing 458 mm x 30.5 m (18 in x 100 ft) printing paper
HP Q7971A printing paper Semi-gloss 1 sheets White
HP Q7970A printing paper A3+ (330×483 mm) Semi-gloss 50 sheets White
HP Universal Bond Paper 841 mm x 91.4 m large format media 3598.4" (91.4 m)
HP Q8004A large format media 91.4 m
HP Q8049A large format media 30.5 m
HP Q8664A printing paper High-gloss 1 sheets White
HP Q8662A printing paper A3+ (330×483 mm) High-gloss 50 sheets White
HP Q8663A large format media 30.5 m High-gloss
HP Q8910A printing paper Semi-gloss 1 sheets White
HP Prof Semi-gloss Contract Proofing Paper-914 mm x 30.5 m (36 in x 100 ft)
HP CG490A large format media 30.5 m Semi-gloss
HP Premium Semi-gloss Proofing Paper-50 sht/A3+/330 mm x 483 mm (13 x 19 in)
HP CG459A photo paper Matte
HP Premium Matte Photo Paper-914 mm x 30.5 m (36 in x 100 ft) large format media
HP CG463A large format media 30.5 m Semi-gloss
HP CG462A printing paper Semi-gloss White
HP Q1446A plotter paper 45 m 42 cm
HP Cockle-free Heavyweight Coated Paper-914 mm x 30.5 m (36 in x 100 ft)
HP Cockle-free Heavyweight Coated Paper-1067 mm x 30.5 m (42 in x 100 ft)
HP CG884A large format media 45.7 m Matte
HP CG885A large format media 45.7 m Matte
HP Cockle-free Heavyweight Coated Paper-610 mm x 30.5 m (24 in x 100 ft)
HP Cockle-free Coated Paper-610 mm x 45.7 m (24 in x 150 ft)
HP CG892A large format media
HP CG889A large format media 45.7 m
HP CG890A plotter paper
HP CG891A large format media 45 m
HP Premium Gloss 25 sht/A3+/330 x 483 mm (13 x 19 in) White
HP Premium Gloss 20 sht/A2+/458 x 610 mm (18 x 24 in)
HP Premium Satin 610 mm x 15.2 m (24 in x 50 ft) White
HP Premium Satin 25 sht/A3+/330 x 483 mm (13 x 19 in) White
HP Premium Satin 20 sht/A2+/458 x 610 mm (18 x 24 in) White
HP CG459B photo paper White Matte
Questions
Straight answers
Can this printer handle a full permit or bid set?
Not comfortably. It feeds from a tray with no roll, so every large sheet is a manual load. It’s built for one drawing at a time, not collated plan sets.
How do I connect it to my office network?
There’s no built-in Ethernet — connection is through a single parallel port. Networking it for multiple users requires a separate print server, and it isn’t a native fit on modern networks.
Will it run on current Windows?
The listed operating system support tops out at Windows 7, Vista and XP, plus Mac OS X up to 10.6. On Windows 11 you should confirm driver options with IT before buying.
What inks and printhead does it use?
It’s a four-cartridge system in black, cyan, magenta and yellow. Compatible inks include the HP 11 and HP 82 families, with several maintenance and media options available.
Is the line quality good enough for engineering detail?
Black prints at up to 1200 x 600 DPI in best quality with +/- 0.2% line accuracy, which keeps small text and scaled dimensions legible on a working sheet.
What should I look at if I need a roll or a scanner?
You’ve outgrown this class. For a current 24-inch roll-fed machine consider the Canon GP-200 24-in or Canon iPF600 24-in; for a scanner-equipped MFP, the discontinued HP DesignJet T918 36-in filled that role.
