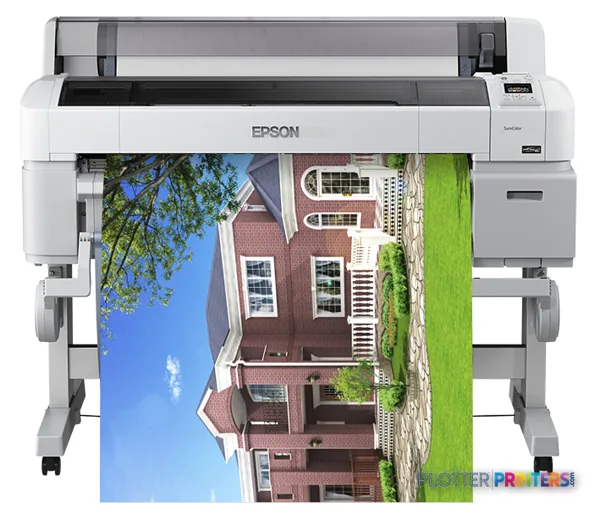

Epson T5200

AEC printing lives and dies on two things: fine-line reproduction and dimensional consistency. The T5200 handles both credibly. The variable-droplet printhead lays down clean vector lines and keeps small annotation text readable — the difference between a redline someone can act on and one they have to squint at. Epson rates dimensional accuracy at 0.2%, which is the figure that matters when a surveyor or structural engineer expects a plotted sheet to scale.

Media handling is flexible: it takes roll paper and cut sheets, with supported thickness from 0.003″ to 0.059″. That range covers everyday bond for bid sets through heavier presentation stock for a client board, without swapping machines. If you want to see how it stacks up in its class, the class ranking page puts the numbers side by side.

This is where the T5200 earns its keep in a managed environment, and where nobody else looks. It ships with Ethernet (RJ-45) and USB Type-A, 1 GB of internal memory, and a 320 GB internal HDD — enough to spool and reprint recurring plan sets without re-sending from the workstation. That last point is quiet money: a reprint pulled from the drive is operator seconds, not a four-minute round trip to the file server.

Language support covers HP-GL, HP-GL/2, HP-RTL, ESC P and PostScript 3, so legacy CAD drivers and modern PDF-based workflows both submit cleanly. At 50 dB while printing and a modest footprint for its class, it belongs in a shared office corner rather than a sealed print room. The optional Hard Disk Unit and dual-tension spindle round out the practical accessories.

Two honest limits. First, it does not copy or scan — there is a CIS/600 DPI scanning specification in the data, but treat wide-format scanning and archiving as a separate decision; a plotter alone won’t convert your legacy drawing library. Second, this is a single-roll machine. Shops running heavy mixed-size, mixed-media production all day — where automatic roll switching keeps an operator from babysitting the deck — will feel the constraint. For that duty, a dual-roll model in the same family is the more sensible node. Consumables are straightforward: the Epson C13S902007 maintenance box and the Epson 2-3 Inch Dual Tension Spindle 17″ handle the routine service and media loading.
