Home / Wide-Format Printers / Epson SureColor
Epson · Wide-Format Plotter
Epson SureColor T7270
technical / CAD plotter
- ModelT7270
- Score65/100
Authorized Epson dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson T7270 prints in color up to A0 (33" x 47") and accepts both roll paper and cut sheets.
- Epson lists 780 ft2/hr at normal quality and 120 ft2/hr at best quality; complete job time also includes file and media handling.
- Its five-cartridge ink system uses Epson UltraChrome XD consumables.
Not sure if the T7270 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Fine detail 2880 x 1440 DPI maximum resolution for crisp line work.
- Verified specs 3 specs checked against the manufacturer datasheet.
- Analyst score Scores 65/100 in our class-relative rating.
Overview
Built for the work
Epson SureColor T7270, Inkjet, 2880 x 1440 DPI, 120 ft2/hr, 780 ft2/hr, A0 (841 x 1189 mm), USB Type-A
- 780 ft²/hRated speed
- 5Ink channels
- 2,880 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The Epson T7270 prints in color up to A0 (33" x 47") and accepts both roll paper and cut sheets.
- Epson lists 780 ft2/hr at normal quality and 120 ft2/hr at best quality; complete job time also includes file and media handling.

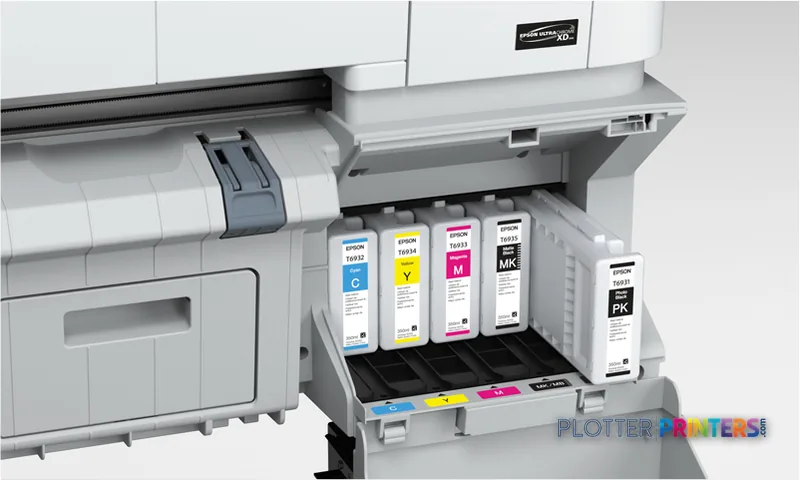

- Its five-cartridge ink system uses Epson UltraChrome XD consumables.
- The 63.9-inch width, 30-inch depth, and 45-inch height require a deliberate print-room location.
- The Epson SureColor T7270DR 47-in is the relevant in-family step-up when having two rolls available is the operational priority.
It is 4:45 p.m., the civil set changed, and somebody needs a readable A0 sheet before the meeting starts. The Epson T7270 is a color inkjet wide-format printer for that ordinary, deadline-led AEC work: CAD PDFs, coordination drawings, GIS maps, markups, and presentation output on cut sheets or roll paper.
It supports output up to A0 (33″ x 47″), uses five cartridges of Epson UltraChrome XD ink, and provides an LCD display plus USB Type-A connectivity. Epson lists normal-quality speed at 780 ft2/hr and best-quality speed at 120 ft2/hr. Those figures describe rated print speed, not the whole job: file processing, paper loading, trimming, and the inevitable last-minute PDF revision still own part of the afternoon.
A0 (33" x 47" (841 x 1189 mm))Maximum print sizeSuitable for full-size technical sheets within its specified maximum format.
2880 x 1440 DPIMaximum resolutionUseful where fine CAD linework and small annotations need careful reproduction.
780 ft2/hrNormal-quality print speedEpson’s stated normal-quality rating; actual set turnaround includes workflow and handling time.
64 WTypical power consumptionENERGY STAR certified.
Where it earns its floor space
This machine fits offices that need color technical output without turning every plan issue into a trip to a reprographics counter. The stated 2880 x 1440 DPI maximum resolution gives the operator room to prioritize detailed linework and small text when the drawing demands it. Roll-paper support suits recurring plan output. Cut-sheet support helps when a single board, map, or revised sheet lands between larger jobs.
The 50 dB printing sound-pressure rating and 64 W typical power consumption make it plausible for an office print area rather than a sealed-off production room. “Plausible” is doing honest work there. A busy team still needs space for loading paper, collecting sheets, and explaining why the plotter is never idle when the permit package is due.
Bottom line: The T7270 makes sense for AEC teams producing regular color and monochrome technical sheets up to its specified A0 maximum.
The workflow details that decide the day

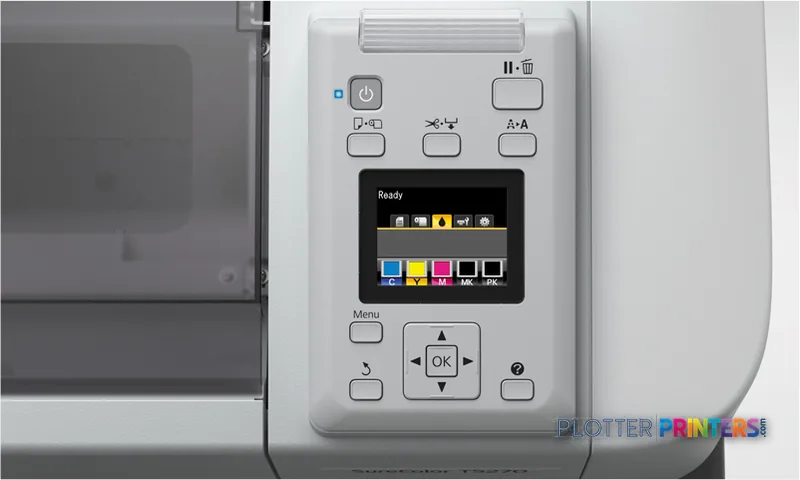

The T7270 has a built-in LCD and one USB 2.0 Type-A port. Those are useful at-the-machine controls, but they do not answer the wider IT questions. Before purchase, confirm the driver path for your CAD and PDF workflow, user permissions, job tracking, and how the device will sit on the firm’s network. A plotter can have clean output and still become unpopular if submitting a revised sheet requires a small ritual.
Its specified operating range is 10–35 °C with 20–80% relative humidity. That matters in construction trailers, warehouse-adjacent print rooms, and survey offices where environmental control is more hopeful than real. For consumables planning, this printer uses Epson UltraChrome XD ink. Keep media and ink replenishment tied to project deadlines, not to the moment the last sheet begins printing.
Bottom line: Treat network setup, paper staging, and consumables control as part of the printer decision, because they are.
Use the plot-time estimator to model rated output against your expected sheet mix, then add realistic time for loading, file processing, and pickup.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 780 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Where it sits in the Epson range
The closest catalog step-up for teams that need two rolls available is the Epson SureColor T7270DR 44-in, which is identified as a dual-roll model. That second roll matters when a department repeatedly changes between media types or keeps a common plan stock ready alongside another roll. It becomes more compelling when operators are losing time to roll changes rather than waiting on the engine.
If floor space or output width is the harder constraint, the Epson T5770DR 36-in is the smaller 36-inch dual-roll option in the listed family. For a broader comparison, the Epson T7770DR 44-in is a 44-inch dual-roll alternative with a listed maximum resolution of 2400 x 1200 DPI. Compare actual media habits and service support locally before assuming a newer or wider machine fixes the right problem.
Bottom line: Choose the step-up when roll switching is the bottleneck; choose smaller only when the work truly stays within its narrower format.
Compare the practical alternatives
The read
The Epson T7270 is a sensible fit for an AEC office that needs dependable-looking color technical output up to A0, accepts both roll and cut-sheet media, and has room for a 63.9-inch-wide floor-standing device. It is less appropriate when the real pain point is frequent roll swapping, high-touch finishing, scanning, or unattended set production; those are workflow requirements, not details to wish away. Review the T7270 and T7270DR side by side before deciding whether dual-roll capability will save enough deadline friction to matter. Bottom line: Buy this machine for its fit with the work in front of it, not because a spec sheet promised a quiet afternoon.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T5270DR
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Print technology | Inkjet |
|---|---|
| Maximum resolution | 2880×1440manufacturer-verified |
| Number of print cartridges | 5manufacturer-verified |
| Maximum print size | A0 (841 x 1189 mm) |
| Sound level (printing) | 50 dB |
| Power consumption | Approximately 64manufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution2880 x 1440 DPI
ConnectivityUSB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print technology | Inkjet |
| Maximum resolution | 2880 x 1440 DPI |
| Number of print cartridges | 5 |
| Print speed (best quality) | 120 ft2/hr |
| Print speed (normal quality) | 780 ft2/hr |
Performance
| Display | LCD |
|---|---|
| Certification | UL (MET), FCC (Class A), CSA, TCSA, CE, EMC |
| Product color | White |
| Built-in display | Yes |
| Sound pressure level (printing) | 50 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Maximum print size | A0 (841 x 1189 mm) |
Ports & interfaces
| USB port | Yes |
|---|---|
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Depth | 30" (762 mm) |
|---|---|
| Width | 63.9" (1624 mm) |
| Height | 45" (1143 mm) |
| Weight | 202.8 lbs (92 kg) |
Power
| Power consumption (off) | 0.5 W |
|---|---|
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 64 W |
Operational conditions
| Storage temperature (T-T) | -20 – 40 °C |
|---|---|
| Operating temperature (T-T) | 10 – 35 °C |
| Storage relative humidity (H-H) | 5 – 85% |
| Operating relative humidity (H-H) | 20 – 80% |
Packaging data
| Drivers included | Yes |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the Epson SureColor T7270
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
15 ink cartridges · 4 paper & media items · 2 accessories · 6 coverage plans
Epson SureColor T7270 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor T7270 44-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 15
Epson Singlepack UltraChrome XD Photo Black T692100 (110ml)
Epson Singlepack UltraChrome XD CyanT692200(110ml)
Epson Singlepack UltraChrome XD MagentaT692300(110ml)
Epson Singlepack UltraChrome XD YellowT692400(110ml)
Epson Singlepack UltraChrome XD Matte BlackT692500(110ml)
Epson Singlepack UltraChrome XD Photo BlackT693100(350ml)
Epson Singlepack UltraChrome XD CyanT693200(350ml)
Epson Singlepack UltraChrome XD MagentaT693300(350ml)
Epson Singlepack UltraChrome XD YellowT693400(350ml)
Epson Singlepack UltraChrome XD Matte BlackT693500(350ml)
Epson Singlepack UltraChrome XD Photo BlackT694100(700ml)
Epson Singlepack UltraChrome XD CyanT694200(700ml)
Epson Singlepack UltraChrome XD MagentaT694300(700ml)
Epson Singlepack UltraChrome XD YellowT694400(700ml)
Epson Singlepack UltraChrome XD Matte BlackT694500(700ml)Paper & Media 4
Coverage & Support Plans 6
Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7200S1)Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7200DRS1)
Epson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7200S2)Epson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7200DRS2)
Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7200S4)Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7200DRS4)Questions
Straight answers
What AEC work is the Epson T7270 suited to?
It suits color and monochrome technical output such as CAD PDFs, coordination drawings, GIS maps, marked-up sheets, and presentation output within its specified A0 maximum print size. Roll and cut-sheet support allow it to handle recurring plans as well as individual sheets.
What is the largest sheet the Epson T7270 can print?
Its specified maximum print size is A0 (33″ x 47″ (841 x 1189 mm)).
How fast is the Epson T7270?
Epson lists 780 ft2/hr at normal quality and 120 ft2/hr at best quality. Actual turnaround also depends on file processing, media loading, trimming, and operator handling.
What ink does the Epson T7270 use?
The compatible ink family listed for this model is Epson UltraChrome XD. The printer uses five print cartridges.
When should a buyer consider the Epson SureColor T7270DR 47-in instead?
Consider it when two rolls need to remain available for regular work, since the Epson SureColor T7270DR 47-in is identified as a dual-roll model. That is most relevant when changing rolls is delaying plot-set production.
Is the Epson T7270 appropriate for a normal office environment?
Its specified printing sound pressure level is 50 dB, typical power consumption is 64 W, and it is ENERGY STAR certified. It still needs physical room: the unit is 63.9 inches wide, 30 inches deep, and 45 inches high.
