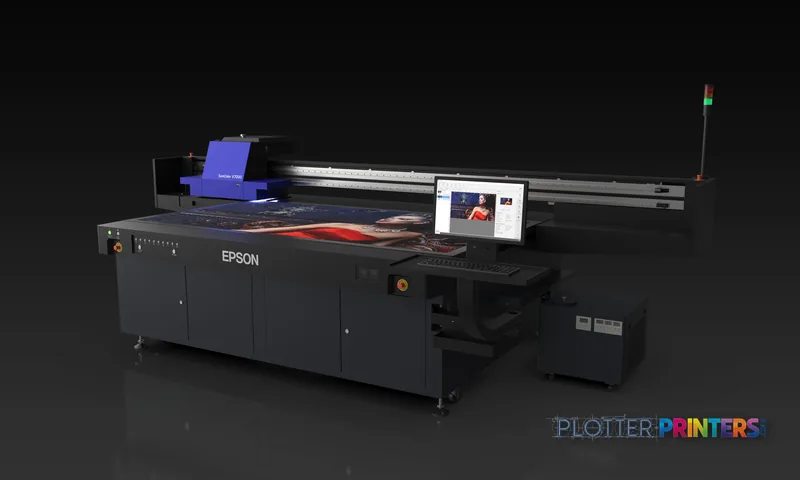

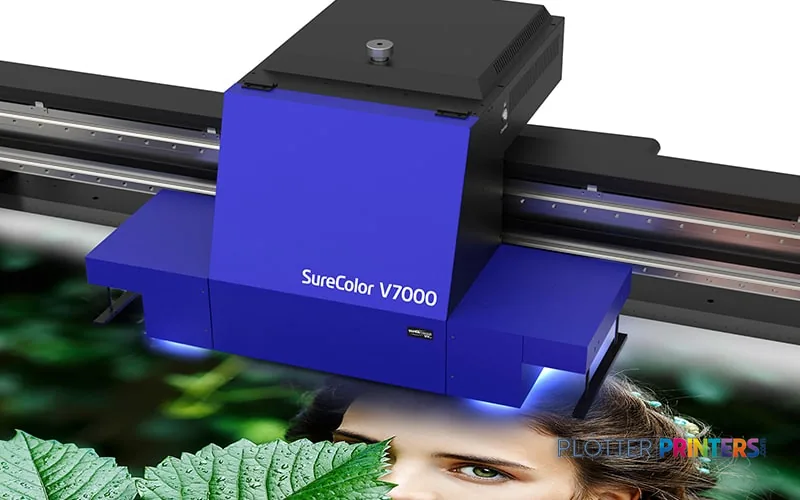

Epson SureColor SC-V7000
color graphics & photo printer
- ModelSC-V7000
- Score53/100
Authorized Epson dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson SC-V7000 is a color inkjet system with a maximum print size of 98" x 49" (2500 x 1250 mm).
- Its listed ink colors include Black, Gray, Light Cyan, Magenta, Red, White, and Yellow.
- No Wi-Fi or Ethernet LAN is listed, so connection and network-management planning should be explicit.
Not sure if the SC-V7000 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Fine detail 720 x 1440 DPI maximum resolution for crisp line work.
- Ink platform Black, Gray, Light Cyan, Magenta, Red, White, Yellow.
- Analyst score Scores 53/100 in our class-relative rating.
Overview
Built for the work
Epson SureColor SC-V7000, Inkjet, 720 x 1440 DPI, Black, Gray, Light Cyan, Magenta, Red, White, Yellow, 2500 x 1250 mm, Roll, USB Type-B
Spec Analysis
overall
overall
Where it performs best
Media Handling
100
Print Quality
46
Connections
33
Class best is 71. How we grade →
Expert analysis
What you should know
Key takeaways
- The Epson SC-V7000 is a color inkjet system with a maximum print size of 98" x 49" (2500 x 1250 mm).
- Its listed ink colors include Black, Gray, Light Cyan, Magenta, Red, White, and Yellow.
- No Wi-Fi or Ethernet LAN is listed, so connection and network-management planning should be explicit.
- The listed footprint and weight require a purpose-planned installation location.
- The catalog lists Roll as the paper-tray media type; confirm media support and loading workflow for your intended applications.
- No supplied measured gamut data supports a quantified color-fidelity claim for this machine.
On a coordination graphic, the test is not simply whether red, cyan, and yellow appear; it is whether the color-coded information remains distinct when a superintendent is reading it from across a table. The Epson SC-V7000 is a large-format color inkjet system with a maximum print size of 98" x 49" (2500 x 1250 mm), aimed at work that needs expansive visual output rather than routine office plotting.
Its listed ink set includes Black, Gray, Light Cyan, Magenta, Red, White, and Yellow. That is a useful starting point for presentation-oriented AEC material, such as rendered design boards, wayfinding concepts, exhibit graphics, and color-rich coordination documents. But color capability should be evaluated on the actual media and files your team uses; no measured ICC gamut or color-accuracy data is supplied here.
98" x 49" (2500 x 1250 mm)Maximum print size
720 x 1440 DPIMaximum resolution
182.5" (4635 mm)Footprint
3020.3 lbs (1370 kg)Weight
Where it fits in an AEC environment
This machine makes the most sense where large-format color is part of the project deliverable or review process, not an occasional exception. Architecture studios producing design-review graphics, contractor teams assembling visual site communications, and public-sector groups preparing large maps or exhibit material may value its unusually broad maximum output area. The listed seven-color configuration, including White and Gray, gives a broader color toolset than a basic four-color office device.
There is an important operational distinction: the catalog identifies Roll as the paper-tray media type. Buyers should therefore confirm the supported media range, loading method, finishing expectations, and any specialty-media workflow with the supplying dealer before treating it as a substitute for a conventional plan printer or a general-purpose board-production system. The visible result matters most in saturated zoning colors and fine photographic transitions, where a single merged color can obscure the story.
Workflow, installation, and support considerations
The Epson SC-V7000 has a USB Type-B connection and USB port, but no Wi-Fi or Ethernet LAN is listed. That deserves attention from IT teams. AEC offices commonly need authenticated network submission, shared queues, accounting, and controlled access to current drawing files; determine how this device will be connected and governed before it is placed in a centralized print room.
Installation is not an afterthought. At 182.5" wide, 109" deep, and 68.1" high, with a listed weight of 3020.3 lbs, it needs a deliberately planned location rather than an improvised corner of a studio. It also requires 200–240 V AC power at 50–60 Hz. Review the wide-format class ranking alongside your expected job mix, but keep the evaluation grounded in setup time, media changes, file preparation, and operator availability.
Supplies and the right alternative
The resolved supply list includes Epson UltraChrome UV inks, an Epson Waste ink bottle, specified Epson printhead assemblies, and Epson Coolant for SC-V Series. Those items should be included in the service conversation: ask who performs routine replacement work, what supplies are stocked locally, and how downtime is handled when a project deadline cannot move.
No named step-up, step-down, or rival model is available in the supplied catalog comparison set, so a model-to-model recommendation would be artificial. Instead, compare this system qualitatively with a smaller-format device if your work is mostly plan sets and routine PDFs, or with a more production-oriented alternative if sustained, unattended output and finishing are central requirements. For a fuller view of evaluation criteria, see how we assess wide-format equipment.
Useful evaluation tools
The read
The Epson SC-V7000 is a credible fit for AEC teams that genuinely need very large, color-forward output and can support a substantial installed device. Its maximum print size and listed ink configuration point toward visual communication work rather than ordinary day-to-day plotting. The trade-off is operational: validate media handling, connectivity architecture, room readiness, and local service support before committing. It may be less appropriate for firms whose primary requirement is compact, networked production of routine construction-document sets.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 3 compared
Class best 71 — Epson SureColor P20570
52% spec coverage
- This printer
- Epson SureColor P20570
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Print technology | Inkjet |
|---|---|
| Maximum resolution | 720 x 1440manufacturer-verified |
| Printing colors | Black, Gray, Light Cyan, Magenta, Red, White, Yellow |
| Maximum print size | 2500 x 1250manufacturer-verified |
| Wi-Fi | No |
| Ethernet | No |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution720 x 1440 DPI
ColorColor
ConnectivityUSB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Gray, Light Cyan, Magenta, Red, White, Yellow |
| Print technology | Inkjet |
| Maximum resolution | 720 x 1440 DPI |
Performance
| Product color | Black |
|---|---|
| Country of origin | China |
Paper handling
| Maximum print size | 2500 x 1250 mm |
|---|---|
| Paper tray media types | Roll |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | No |
| USB connector | USB Type-B |
Weight & dimensions
| Depth | 109" (2768 mm) |
|---|---|
| Width | 182.5" (4635 mm) |
| Height | 68.1" (1730 mm) |
| Weight | 3020.3 lbs (1370 kg) |
Power
| AC input voltage | 200 – 240 V |
|---|---|
| AC input frequency | 50 – 60 Hz |
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Package depth | 211" (5360 mm) |
|---|---|
| Package width | 88.6" (2250 mm) |
| Package height | 69.3" (1760 mm) |
| Package weight | 2645.5 lbs (1200 kg) |
Everything that fits the Epson SureColor SC-V7000
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
4 ink cartridges · 1 accessory
Epson SureColor SC-V7000 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor SC-V7000 — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 4
Accessories 1
Questions
Straight answers
What AEC work is the Epson SC-V7000 best suited to?
It is most relevant to teams that need very large color output for visual project communication, including design-review graphics, color-rich coordination material, maps, and exhibit-oriented work. Confirm the actual media workflow with the dealer.
Can it replace a routine office plan printer?
It may not be the most appropriate choice if your work is predominantly routine plan sets and PDFs. Its listed maximum print size and substantial installation requirements suggest evaluating it for applications where large color output is genuinely needed.
How does it connect to a workstation or network?
The supplied data lists a USB Type-B connector and USB port. Wi-Fi and Ethernet LAN are listed as unavailable, so IT should confirm the intended connection, queueing, security, and access approach.
What facility preparation does it require?
The listed dimensions are 182.5″ wide, 109″ deep, and 68.1″ high, and the listed weight is 3020.3 lbs. It requires 200–240 V AC at 50–60 Hz; access, floor planning, clearance, and power should be reviewed before delivery.
What consumables should buyers plan for?
Resolved supplies include Epson UltraChrome UV inks, an Epson Waste ink bottle, specified Epson printhead assemblies, and Epson Coolant for SC-V Series. Ask the service provider about stocking, replacement responsibilities, and downtime procedures.
