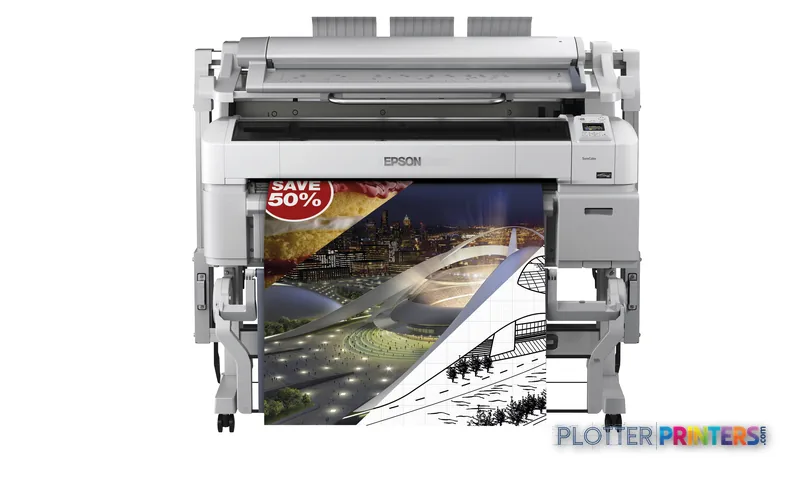

Epson SureColor SC-T5200 PS MFP

Every AEC office eventually confronts the same problem: a permit set is due, the deadline is real, and the drawings are scattered across CAD, Revit and a pile of marked-up PDFs. The plotter is the last node in that chain — and the one everyone blames when the workflow upstream falls apart. The Epson T5200 is a single-roll, color-capable wide-format printer built to sit quietly in that spot and turn A0 sheets around without drama.

It uses Epson’s PrecisionCore TFP printhead with variable-size droplet technology and auto head alignment. In plain terms: crisp lines, legible small text, and less fiddling with alignment routines. For most small-to-mid architecture, civil and MEP shops, that is the whole job description.

Line quality where it counts

AEC printing lives and dies on two things: fine-line reproduction and dimensional consistency. The T5200 handles both credibly. The variable-droplet printhead lays down clean vector lines and keeps small annotation text readable — the difference between a redline someone can act on and one they have to squint at. Epson rates dimensional accuracy at 0.2%, which is the figure that matters when a surveyor or structural engineer expects a plotted sheet to scale.

Media handling is flexible: it takes roll paper and cut sheets, with supported thickness from 0.003″ to 0.059″. That range covers everyday bond for bid sets through heavier presentation stock for a client board, without swapping machines. If you want to see how it stacks up in its class, the [[leaderboard|class ranking page]] puts the numbers side by side.

The IT and print-room reality

This is where the T5200 earns its keep in a managed environment, and where nobody else looks. It ships with Ethernet (RJ-45) and USB Type-A, 1 GB of internal memory, and a 320 GB internal HDD — enough to spool and reprint recurring plan sets without re-sending from the workstation. That last point is quiet money: a reprint pulled from the drive is operator seconds, not a four-minute round trip to the file server.

Language support covers HP-GL, HP-GL/2, HP-RTL, ESC P and PostScript 3, so legacy CAD drivers and modern PDF-based [[page:how-we-rate|workflows]] both submit cleanly. At 50 dB while printing and a modest footprint for its class, it belongs in a shared office corner rather than a sealed print room. The optional [[page:how-we-rate|Hard Disk Unit]] and dual-tension spindle round out the practical accessories.

Where it isn’t the right tool

Two honest limits. First, it does not copy or scan — there is a CIS/600 DPI scanning specification in the data, but treat wide-format scanning and archiving as a separate decision; a plotter alone won’t convert your legacy drawing library. Second, this is a single-roll machine. Shops running heavy mixed-size, mixed-media production all day — where automatic roll switching keeps an operator from babysitting the deck — will feel the constraint. For that duty, a dual-roll model in the same family is the more sensible node. Consumables are straightforward: the Epson C13S902007 maintenance box and the Epson 2-3 Inch Dual Tension Spindle 17″ handle the routine service and media loading.

The Epson T5200 is a sensible single-roll workhorse for firms whose volume is real but not relentless: it prints clean lines, holds scale, speaks every page language your drivers throw at it, and manages itself well on a network. The trade-offs are the missing copy/scan integration and the single roll. Choose the T5200 if you’re a small-to-mid architecture, civil or MEP practice printing daily plan sets and the occasional color board from one media source. Choose a dual-roll model in the same family if mixed-size, unattended production is your normal Tuesday. Buy the machine for the workflow you have, not the one the brochure imagines.
