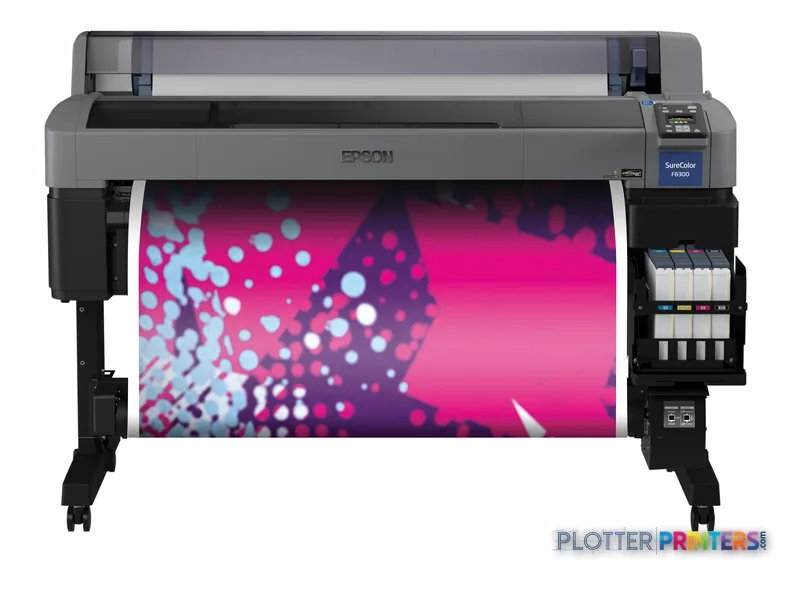

Epson SureColor SC-F6300

This machine becomes more compelling when an architecture practice, contractor, university facilities group, or public-sector communications team has a defined transfer-media application and wants that capability in-house. The compatible range includes Epson DS Transfer Multi-Purpose and Epson DS Transfer Production media, in widths up to 111.8 cm, alongside Epson UltraChrome DS inks. That is useful evidence of the intended consumable ecosystem.

For AEC, think of a specialist graphics lane rather than the main drawing queue: project-identification materials, team or event graphics, and other transfer-based applications where a transfer-media workflow is already established. The buyer should validate the complete downstream process, including the equipment and substrate required after transfer output, because those elements are not described in the supplied specification.

It connects by Ethernet LAN or USB Type-A and includes Epson Edge Print. Windows support is listed for Windows 7, Windows 8, Windows 8.1 and Windows 10, in 32-bit and 64-bit variants where applicable. IT teams with newer desktop standards should confirm deployment, driver support, authentication needs and job-accounting expectations before committing.

A 44-inch carriage can look like a natural fit for D-size and E-size AEC output. Yet width alone says little about fine-line consistency on bond, PDF processing, roll switching, stacking, collation, or the ability to copy marked-up drawings. The SC-F6300 44-in has no scanning and no copying capability, so it does not replace a multifunction device used for field redlines, record sets or legacy-plan capture.

The listed media-thickness range is 0.003–0.02 inches, and the maximum roll diameter is 5.91 inches. Those facts help define physical media compatibility, but they are not proof of productive CAD-plan handling. Firms whose priority is everyday construction documents should ask for a live test using their own PDFs, line weights, screened fills and ordinary production media before treating this model as a plan printer.

For a nearby family comparison, the Epson SC-F6200 shares the stated 720 x 1440 DPI maximum resolution in the catalog. The Epson SC-F6400 44-in and Epson SC-F6400H 44-in are also relevant transfer-oriented family comparisons, but their catalog specifications should be reviewed application by application rather than treated as automatic upgrades.

The printer has 512 MB of internal memory, a built-in display, one USB 2.0 port and Ethernet LAN. It is specified for operation from 15–25 °C and 40–60% relative humidity. Those are ordinary-looking details until a machine is placed in a hot construction-office back room or a variable warehouse environment; stable conditions matter to reliable media handling.

The specification lists seven print cartridges, a 1500 ml cartridge volume, and Black, Cyan, Yellow and Magenta printing colors. Because those entries do not on their own explain the configured ink set, request a written confirmation of the exact installed configuration, replacement consumables and maintenance routine. This is a sensible discipline for any specialist device, especially where downtime can interrupt a scheduled project event.

Compare the SC-F6300 and SC-F6400 44-in side by side, and use the class ranking as a starting point—not as a substitute for an application test.
