Home / Wide-Format Printers / Epson SureColor
Epson · Wide-Format Plotter

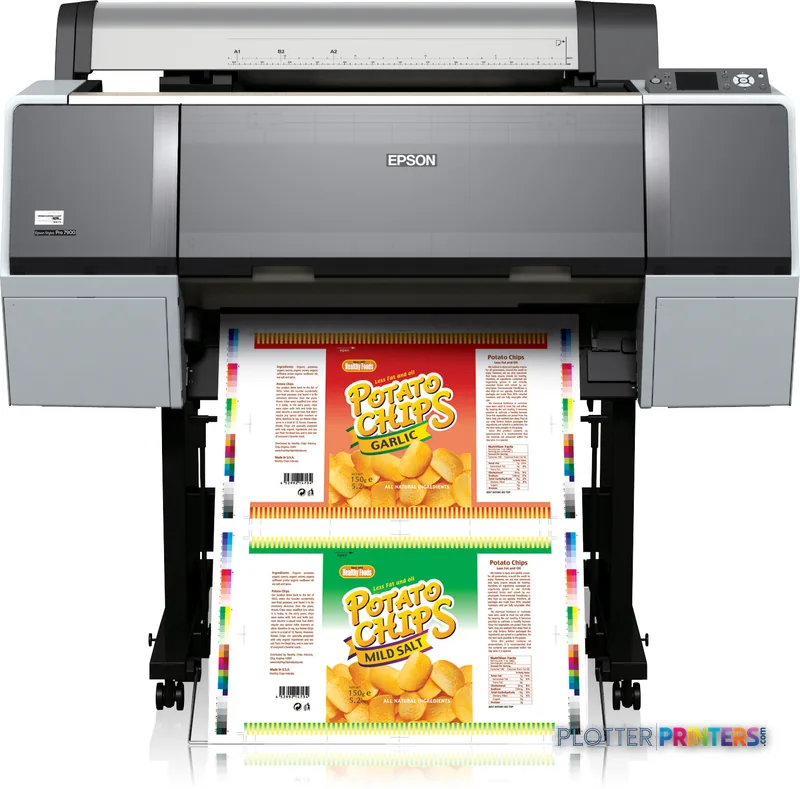

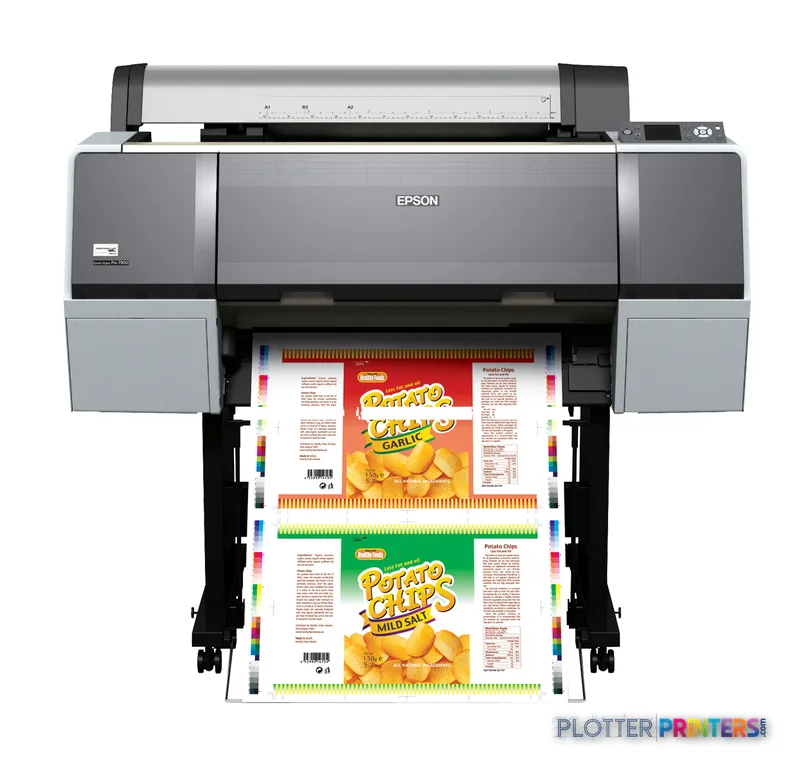

Epson Stylus Pro WT7900
24" color graphics & photo printer
- ModelWT7900
- Prints24" wide
- Score52/100
Authorized Epson dealerGenuine hardware & ink
1-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The WT7900 is a 24-inch color inkjet device with a maximum print size of A1 (23" x 33" (594 x 841 mm)).
- Its listed ink colors make it relevant to color-coded plans, GIS maps, exhibits, and presentation graphics.
- Ethernet LAN and USB are available, while Wi-Fi is not.
Not sure if the WT7900 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 1440 x 1440 DPI maximum resolution for crisp line work.
- Ink platform Epson UltraChrome HDR ink with White.
- Connectivity Ethernet for shared team printing.
- Verified specs 10 specs checked against the manufacturer datasheet.
- Analyst score Scores 52/100 in our class-relative rating.
Overview
Built for the work
Epson Stylus Pro WT7900, Inkjet, 1440 x 1440 DPI, ESC/P-R, Black, Cyan, Green, Light Cyan, Orange, Photo black, Vivid light magenta, Vivid magenta, White,…, A1 (594 x 841 mm), A1, A2, A3, A3+, A4
- 24″Max print width
- 9Ink channels
- 1,440 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The WT7900 is a 24-inch color inkjet device with a maximum print size of A1 (23" x 33" (594 x 841 mm)).
- Its listed ink colors make it relevant to color-coded plans, GIS maps, exhibits, and presentation graphics.
- Ethernet LAN and USB are available, while Wi-Fi is not.
- The supplied Windows support list ends with Windows 7, so modern desktop deployment should be validated.
- No scanning or copying capability is stated in the supplied product data.
- There is no supplied in-family model for a direct step-up or step-down comparison.
On a coordination drawing, the useful test is not whether color is merely present; it is whether a yellow revision cloud, a cyan utility route, and small black callouts remain distinct on ordinary viewing. The Epson Stylus Pro WT7900 is a 24-inch inkjet printer for teams that need color plans, presentation graphics, maps, and specialty-media output alongside AEC documents.
Its 1440 x 1440 DPI maximum resolution and listed color set give it a more color-oriented role than a conventional monochrome plan device. That makes it worth considering for architecture studios, design groups, survey and GIS teams, and construction offices where visual communication is part of the document set—not just an occasional cover sheet.
A1 (23" x 33" (594 x 841 mm))Maximum print sizeSuitable for 24-inch AEC output.
1440 x 1440 DPIMaximum resolutionResolution is only one part of CAD and image reproduction.
0.003"–0.059" (0.08 – 1.5 mm)Media thicknessSupports a broad range of listed media thicknesses.
53.4" (1356 mm)Printer dimensionsAllow for the 26.3" (667 mm) depth and working clearance.
Where it fits in an AEC print room
The WT7900 is most persuasive where a single device must render both technical graphics and more visual work. Think permit exhibits with color-coded disciplines, GIS maps, phasing diagrams, interior finish boards, and presentation panels. It accepts roll paper and sheets up to 24 inches wide, with support for A1, A2, A3, A3+, and A4 among its listed ISO sizes. The specified 0.118-inch roll top margin can also matter when a drawing template is built close to the printable edge.
Color capability deserves practical context. The listed inks include black, cyan, light cyan, green, orange, photo black, vivid light magenta, vivid magenta, white, and yellow. That palette suggests a device chosen for color expression and specialty applications rather than simply adding highlights to linework. We do not have measured ICC gamut data for this model, so there is no basis here to claim how faithfully it reproduces a firm’s branded colors or a particular GIS palette. A proof on the intended media remains the sensible check.
Workflow and operating considerations
For connected offices, the machine provides Ethernet LAN and USB Type-B connectivity, but no Wi-Fi. Its 2.48-inch built-in LCD gives the operator a local status point, while 256 MB of internal memory should be considered in the context of the PDFs, CAD exports, and raster-heavy presentation files your team actually submits. Listed Windows support covers Windows 2000, Windows XP, Windows Vista, and Windows 7, including 64-bit Windows 7; organizations using newer managed desktop environments should validate driver and submission workflow before committing it to a production role.
The physical footprint is substantial but office-manageable: 53.4 inches wide, 26.3 inches deep, 48 inches high, and 222.7 pounds. Printing sound pressure is specified at 50 dB. Consumable planning should include Epson UltraChrome HDR inks and the Epson Maintenance Tank, particularly where the printer is used intermittently for presentation output. Review the evaluation approach before treating resolution alone as a measure of drawing quality.
Comparison context and limits
There is no in-family step-up or step-down model in the supplied catalog for a direct family comparison. The closer catalog alternatives are 24-inch Canon devices, including the Canon GP-200 24-in and Canon GP-2000 24-in. Their listed maximum resolution is 2400 x 1200 DPI, versus 1440 x 1440 DPI for the WT7900, but resolution figures do not by themselves settle fine-line readability, color rendering, driver behavior, or media performance. Use the side-by-side comparison to frame the specification differences.
This is not the natural choice for teams needing wireless placement, a verified current operating-system workflow beyond the listed Windows versions, or a dedicated high-throughput plan-production platform. It also has no stated scanning or copying capability in the supplied information, so legacy drawing capture and walk-up copying require separate equipment.
Compare and evaluate
The read
The Epson Stylus Pro WT7900 fits AEC groups that value expressive color, 24-inch media handling, and specialty graphic output alongside technical documents. Its trade-off is clear: network connectivity is wired, the listed Windows support is legacy-oriented, and the supplied data does not establish scanning, copying, or production-plan throughput credentials. It is best assessed as a color-capable document and graphics printer for a defined workflow, with a media-and-file proof before deployment—not as an automatic replacement for every wide-format device in the print room.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 8 compared
Class best 81 — Epson SureColor T3770DR
84% spec coverage
- This printer
- Epson SureColor T3770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Media width (rolls) | 24 in (610 mm) |
|---|---|
| Maximum print size | 23.6 in (600 mm) |
| Maximum resolution | 1440 x 1440 dpi |
| Ink platform | Epson UltraChrome HDR ink with Whitemanufacturer-verified |
| Printing colors | white, photo black, cyan, light cyan, vivid magenta, vivid light magenta, yellow, green, orange |
| Droplet size | 3.5 plmanufacturer-verified |
| Ink cartridge capacity | 350/150 ml and 700/350 mlmanufacturer-verified |
| Media thickness | 0.08 mm to 1.50 mm |
| Connectivity | Hi-Speed USB 2.0; Ethernet 10 base-T / 100 base-TX (no Wi-Fi) |
| Internal memory | Printer: 256 MB, network: 64 MB |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution1440 x 1440 DPI
Max print width24"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Cyan, Green, Light Cyan, Orange, Photo black, Vivid light magenta, Vivid magenta, White, Yellow |
| Print technology | Inkjet |
| Maximum resolution | 1440 x 1440 DPI |
| Number of print cartridges | 9 |
| Page description languages | ESC/P-R |
Performance
| Display | LCD |
|---|---|
| Product color | Gray, Silver |
| Internal memory | 256 MB |
| Built-in display | Yes |
| Display diagonal | 2.48" |
| Country of origin | China |
| Sound pressure level (printing) | 50 dB |
Paper handling
| Roll paper | Yes |
|---|---|
| Media thickness | 0.08 – 1.5 mm |
| Roll top margin | 0.118" (3 mm) |
| Maximum print size | A1 (594 x 841 mm) |
| Media width (rolls) | 610 mm |
| Media width (sheets) | 610 mm |
| ISO A-series sizes (A0…A9) | A1, A2, A3, A3+, A4 |
| ISO B-series sizes (B0…B9) | B2, B3, B4 |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| USB connector | USB Type-B |
| USB 2.0 ports quantity | 2 |
Weight & dimensions
| Depth | 26.3" (667 mm) |
|---|---|
| Width | 53.4" (1356 mm) |
| Height | 48" (1218 mm) |
| Weight | 222.7 lbs (101 kg) |
Power
| Power consumption (standby) | 1 W |
|---|---|
| Power consumption (typical) | 60 W |
| Power consumption (PowerSave) | 14 W |
Logistics data
| Quantity per pack | 1 pc(s) |
|---|---|
| Quantity per pallet | 1 pc(s) |
Packaging data
| Manual | Yes |
|---|---|
| Package depth | 60.2" (1530 mm) |
| Package width | 42.5" (1080 mm) |
| Package height | 32.1" (815 mm) |
| Package weight | 343.9 lbs (156 kg) |
| Quick start guide | Yes |
System requirements
| Windows operating systems supported | Windows 2000, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP |
|---|
Everything that fits the Epson Stylus Pro WT7900
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
25 ink cartridges · 37 paper & media items · 5 accessories
Epson Stylus Pro WT7900 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson Stylus Pro WT7900 — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 25
Epson Singlepack Vivid Light Magenta T636600 UltraChrome HDR 700 ml
Epson Singlepack Vivid Magenta T636300 UltraChrome HDR 700 ml
Epson Singlepack Light Cyan T636500 UltraChrome HDR 700 ml
Epson Singlepack Yellow T596400 UltraChrome HDR 350 ml
Epson Singlepack Cyan T636200 UltraChrome HDR 700 ml
Epson Singlepack Green T636B00 UltraChrome HDR 700 ml
Epson Singlepack Vivid Magenta T596300 UltraChrome HDR 350 ml
Epson Singlepack Vivid Light Magenta T596600 UltraChrome HDR 350 ml
Epson Singlepack Photo Black T596100 UltraChrome HDR 350 ml
Epson Singlepack Orange T596A00 UltraChrome HDR 350 ml
Epson Singlepack Light Cyan T596500 UltraChrome HDR 350 ml
Epson Singlepack Yellow T636400 UltraChrome HDR 700 ml
Epson Singlepack Photo Black T636100 UltraChrome HDR 700 ml
Epson Singlepack Orange T636A00 UltraChrome HDR 700 ml
Epson Singlepack Green T596B00 UltraChrome HDR 350 ml
Epson Singlepack Cyan T596200 UltraChrome HDR 350 ml
Epson Singlepack T596C00 UltraChrome HDR White 350 ml
Epson T6421 Photo Black Ink Cartridge (150ml)
Epson T6424 Yellow Ink Cartridge (150ml)
Epson T6422 Cyan Ink Cartridge (150ml)
Epson T6423 Vivid Magenta Ink Cartridge (150ml)
Epson T6425 Light Cyan Ink Cartridge (150ml)
Epson T6426 Vivid Light Magenta Ink Cartridge (150ml)
Epson Singlepack T642C00 UltraChrome HDR White 150 ml
Epson Signature Worthy Sample pack, A4 size, 20 sheetsPaper & Media 37
Representative image18LB Inkjet Bond Paper (Translucent) (750)Representative image18LB Engineering Bond Paper (Translucent) (450)
Epson Premium Luster Photo Paper Roll, 24" x 30,5 m, 235g/m²
Epson Posterboard semigloss, DIN B2, 800g/m²
Epson Glossy Photo Paper Roll, 24" x 20,7 m, 190g/m²
Epson Semigloss Photo Paper Roll, 24" x 25 m, 180g/m²
Epson Premium Semimatte Photo Paper Roll, 24" x 30,5 m, 235g/m²
Epson Proofing Paper Semimatte Roll, 13" x 15,2 m, 155g/m²
Epson Premium Luster Photo Paper Roll, 300 mm x 30,5 m, 235g/m²
Epson Proofing Paper Semimatte Roll, 24" x 30,5 m, 155g/m²
Epson Premium Luster Photo Paper Roll, 16" x 30,5 m, 235g/m²
Epson Premium Semimatte Photo Paper Roll, 16" x 30,5 m, 235g/m²
Epson Proofing Paper Semimatte Roll, 17" x 30,5 m, 155g/m²
Epson Premium Luster Photo Paper Roll, 600 mm x 30,5 m, 235g/m²
Epson Glossy Photo Paper, DIN A4, 225g/m², 20 Sheets
Epson Proofing Paper White Semimatte, 24" x 30,5 m, 250g/m²
Epson Proofing Paper Publication, 24" x 30,5 m, 250g/m²
Epson Proofing Paper Publication, 17" x 30,5 m, 250g/m²
Epson Proofing Paper Publication, 13" x 30,5 m, 250g/m²
Epson Glossy Photo Paper BOGOF, DIN A4, 225g/m², 40 Sheets
Epson Glossy Photo Paper, DIN A4, 225g/m², 100 Sheets
Epson Glossy Photo Paper, DIN A4, 225g/m², 50 Sheets
Epson Commercial Proofing Paper Roll, 17" x 30,5 m, 250g/m²
Epson Standard Proofing Paper, 17" x 50m, 205g/m²
Epson Standard Proofing Paper, 24" x 50m, 205g/m²
Epson ClearProof® Film 17" x 30.5m (for SP WT7900)
Epson ClearProof® Film 24" x 30.5m (for SP WT7900)
Epson Crystal Clear Film for 17
Epson Crystal Clear Film for 24" x 30.5m (for SP WT7900)
Epson MetallicProof® Film 24" x 30.5m (for SP WT7900)
Epson MetallicProof® Film 17" x 30.5m (for SP WT7900)
Epson Commercial Proofing Paper Roll, 24" x 30,5 m, 250g/m²
Epson ClearProof® Adhesive Film 17" x 15.2m (for SP WT7900)
Epson ClearProof® Thin Film 17" x 30.5m (for SP WT7900)
Epson ClearProof® Thin Film 24" x 30.5m (for SP WT7900)
Epson Proofing Paper White Semimatte, DIN A3+, 100 Sheets
Epson Japanese Kozo Paper Thin 24" x 10m
Questions
Straight answers
Is the Epson Stylus Pro WT7900 suitable for AEC plan printing?
It can fit 24-inch color plan and exhibit workflows, including A1 output. Its strongest fit is where color conveys useful project information, rather than monochrome plan volume alone.
What media can it handle?
The printer supports roll paper and sheets up to 24 inches wide. Its listed media-thickness range is 0.003″–0.059″ (0.08 – 1.5 mm).
Does it support Wi-Fi printing?
No. The supplied specifications list Ethernet LAN and USB Type-B connectivity, but no Wi-Fi.
Can it scan existing drawings or make copies?
No scanner or copying function is stated in the supplied data. Firms needing drawing capture, archive scanning, or walk-up copying should plan for separate equipment.
What should IT verify before deployment?
Confirm driver and job-submission behavior in the organization’s current desktop environment. The listed Windows support includes Windows 2000, XP, Vista, and Windows 7, including Windows 7 x64.
Which consumables should a buyer plan for?
The resolved consumables include Epson UltraChrome HDR inks and the Epson Maintenance Tank, along with listed compatible media and accessories.
