Epson Stylus Pro 7700

This printer is most credible as a local color-output device for architects, engineers, surveyors, and construction teams working primarily at 24 inches wide. The supported 0.003–0.059 inch media-thickness range gives it latitude beyond light bond, while compatible Epson Bond Paper media provides an obvious starting point for routine drawings. Epson UltraChrome HDR consumables are also listed as compatible for this model.

The workflow fit is straightforward: issue a PDF, select the appropriate page size and media setting, and keep small-format-to-A1 output near the people reviewing it. That can reduce handoffs for a design studio producing color site plans or an engineering group checking discipline overlays. It is less persuasive for a department routinely issuing wide bid sets, requiring high-capacity finishing, or expecting one device to absorb a central reprographics workload. A plotter that saves thirty seconds a plot buys you nothing if the file spends four minutes finding it.

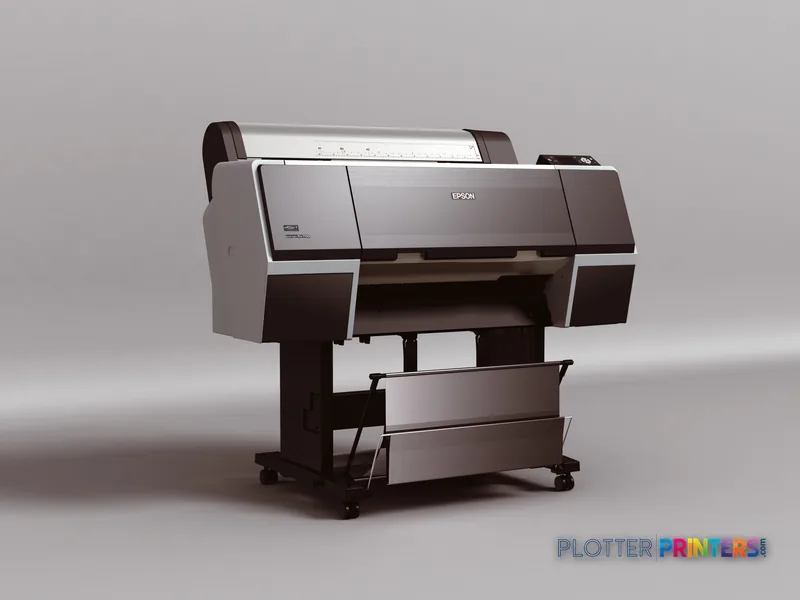

The Epson Stylus Pro 7700 handles both rolls and sheets, with a maximum roll diameter of 6.69 inches. That is useful for offices alternating between plan output and presentation-oriented media, but it also means operators should establish clear media-loading and driver presets. A wrong paper selection is still one of the most reliable ways to manufacture reprints.

Connectivity includes Ethernet LAN at 10/100 Base-TX and one USB 2.0 port, with Epson ESC/P2 listed as the page-description language and 256 MB of internal memory. For IT, this points to a conventional network-printer deployment rather than a modern cloud-workflow assumption. Confirm driver support for the organization’s PDF, CAD, and print-server environment before committing. Restrict printer access appropriately, document approved queues and presets, and decide who owns firmware, consumables, and fault escalation. The scanner is free. The person standing at it is not—though this printer is not specified here as a scanner-equipped system.

There is no listed in-family step-up or step-down model in this catalog, so a same-family ladder cannot be stated responsibly. In the broader 24-inch category, the Canon GP-200 24-in and Canon GP-2000 24-in are catalog-listed alternatives worth putting through the same files, media, and support questions. Compare the Epson Stylus Pro 7700 directly with the Canon GP-200 24-in rather than relying on resolution figures alone.

For any comparison, test a typical PDF set, a color coordination sheet, and the smallest text your reviewers must read. Then watch the whole sequence: submission, processing, first page, media change, recovery from an error, and the time required to get prints into a reviewer’s hands. Money is minutes.
