Epson Stylus Pro 7450 Photo Black Edition

technical / CAD plotter

ModelC11C700011A2
Score50/100

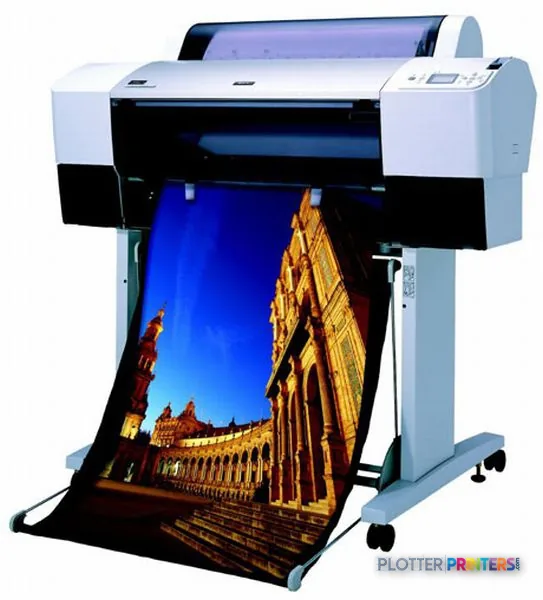

Epson Stylus Pro 7450 Photo Black Edition large-format printer with architectural photo output

Authorized Epson dealerGenuine hardware & ink

2-year warranty includedExtension plans available

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Analyst take

A single-roll aqueous color inkjet, not a monochrome plan-set workhorse.
Prints up to 1440 x 720 DPI, adequate for fine linework and small callout text on presentation media.
Epson rates it at 23.3 m²/Hr in best quality — treat that as a ceiling, not real throughput.

Not sure if the C11C700011A2 is right for you?

Compare key specs and an AI analyst read-out against similar models.

Compare printers →

Overview

Built for the work

Epson Stylus Pro 7450, 1440 x 720 DPI, 23.3 m²/Hr, Spain, 107.8 lbs (48.9 kg), 28" (710 mm), 52.8" (1340 mm)

251 ft²/hRated speed
4Ink channels
1,440 dpiMax resolution
24 moIncluded warranty

Spec Analysis
overall

Where it performs best

Size / Fit 93

Warranty 67

Print Quality 65

How we grade →

Expert analysis

What you should know

By Ray KowalczykSenior Technical Editor — CAD & Technical Printing

Key takeaways

A single-roll aqueous color inkjet, not a monochrome plan-set workhorse.
Prints up to 1440 x 720 DPI, adequate for fine linework and small callout text on presentation media.
Epson rates it at 23.3 m²/Hr in best quality — treat that as a ceiling, not real throughput.
No USB port, so job submission has to go through your network.
Runs Epson aqueous ink and Epson media including the Epson C13S041907 photo-grade stock.
Floor-standing at 107.8 lbs; the single roll means manual reloads on longer runs.

It’s 4:45 on a Thursday. The permit set is due tomorrow, and somebody needs a rendered site plan and a color coordination sheet off the same machine before they can leave. That’s the job the Epson Stylus Pro 7450 is standing there to do — a wide-format aqueous inkjet aimed at color output on a single roll.

This isn’t a plan-set workhorse for a busy engineering department. It’s a color device. Understand that going in and the rest of the decision gets simple.

1440 x 720 DPIMaximum resolutionEnough for fine linework and presentation color.

23.3 m²/HrPrint speed (best quality)Epson's rated figure at its top-quality setting.

107.8 lbs (48.9 kg)WeightA floor-standing footprint, not a desktop drop-in.

What it actually is

The 7450 is a single-roll color inkjet. That matters more than any spec on the sheet. One roll means one media choice loaded at a time — no automatic switch between bond and coated paper, no unattended flip when the roll runs dry mid-job. If you feed it a long color run, someone reloads it. Plan around that.

Resolution tops out at 1440 x 720 DPI. In plain terms, fine linework holds up and small callout text stays legible on the presentation media this machine is built for. Color renderings, GIS maps, coordination sheets shaded by trade — that’s where it earns its keep. Epson rates it at 23.3 m²/Hr in best quality; treat that as a ceiling, not a promise, because best-quality color slows down and drying time is real before you stack a sheet.

Media, ink and the single-roll reality

It runs Epson aqueous ink and Epson roll media — the Epson C13S041907 photo-grade stock is on the compatible list, alongside a full set of Epson cutter blades and accessories keyed to this frame. Aqueous is the point here: color that sits well on coated and presentation papers. The trade-off is that aqueous output wants to dry, and it doesn’t love a humid job site the way a toner print does.

The single roll is the honest limitation. On a color device that’s usually fine — you’re not pumping out 200 D-size checksets. But if your day is high-volume monochrome plan sets with roll changes you can’t babysit, this isn’t that machine, and you should look at a wider dual-roll model in the same family instead. See where it sits in its class ranking before you commit.

Feed it your sheet count and size — this estimator uses the verified rated speed, so read the result as a best-case floor, then add reload and drying time.

Sheets per set Sheet size Sets per week

One set: – · Weekly plotting time: –

Computed from the manufacturer's rated 251 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.

Where it fits, and where it doesn't

This is a color specialist. An architecture studio doing renderings and boards, a surveyor turning out color GIS maps, a firm that wants presentation-quality output without sending it out to a repro house — those are the right seats at the tray. Connectivity note for IT: there’s no USB port on this unit, so plan submission around your network stack from the start.

Where it doesn’t fit: it’s not your bid-set engine and it’s not built for unattended overnight monochrome runs. If that’s your bottleneck, a dual-roll production plotter is the tool, and it’s worth understanding how we rate throughput before you pick one. For color, though, the 7450 does its job without drama.

Keep reading

How the 7450 ranks in its classSee its standing against comparable wide-format color machines.How we rate speed and qualityWhy rated m²/Hr isn't the same as bid-set throughput.

The read

Buy the 7450 for color. Renderings, boards, coordination sheets, GIS maps — it handles them at 1440 x 720 DPI on the presentation media it’s designed for. The single roll and the missing USB port are limits, not dealbreakers, as long as color is the job. Ask it to be your plan-set workhorse and you’ll be reloading paper at 4:45 while everyone else goes home. Bottom line: right machine for the color seat, wrong machine for the monochrome grind.

Spec analysis

How the specs grade

Overall performance

within technical / CAD plotters

70% spec coverage

This printer

How it scores

Media Handling52

Print Quality65

Print CostNot enough spec data

Color16

Speed37

ConnectionsNot enough spec data

WorkflowNot enough spec data

Size / Fit93

Warranty67

Graded on a curve against the best published spec among the wide-format printers we track — 100 = the catalog’s gold standard for that metric (the finest droplet, the longest warranty, the fastest rated speed actually on the market). Every input is a manufacturer-published spec; rated speeds are shown as listed, not timed throughput. Ticks mark the class best. How we grade →

Verified specifications

The specs that decide it

Maximum resolution	1440 x 720 DPI

Specifications

Full technical detail

Max resolution1440 x 720 DPI

Use casePhoto / Fine Art

Printing

Color	Yes
Maximum resolution	1440 x 720 DPI
Print speed (best quality)	23.3 m²/Hr

Performance

Country of origin	Spain

Ports & interfaces

USB port	No

Weight & dimensions

Weight	107.8 lbs (48.9 kg)

Logistics data

Pallet width	47.2" (120 cm)
Pallet height	39.4" (100 cm)
Quantity per pack	1 pc(s)
Pallet length (UK)	48.8" (124 cm)
Quantity per pallet	1 pc(s)
Quantity per pallet (UK)	1 pc(s)
Quantity per pallet layer	1 pc(s)
Quantity per pallet layer (UK)	1 pc(s)

Packaging data

Package depth	52.8" (1340 mm)
Package width	28" (710 mm)
Package height	37" (940 mm)
Package weight	196.2 lbs (89 kg)

Everything that fits the Epson Stylus Pro 7450

The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.

10 ink cartridges · 46 paper & media items · 6 accessories

Epson Stylus Pro 7450 ink and paper →

Supplies

Compatible ink, printheads & media

Genuine consumables that fit the Epson Stylus Pro 7450 Photo Black Edition — only the cartridges, printheads and media compatible with this model.

Questions

Straight answers

Is the 7450 a good fit for high-volume monochrome bid sets?

No. It’s a single-roll color device. For unattended monochrome plan-set production you’d want a wider dual-roll model in the same family instead.

Does it have a USB port for direct connection?

No. This unit has no USB port, so plan on network-based job submission through your print stack.

What resolution does it print at?

Up to 1440 x 720 DPI, which holds fine linework and keeps small text legible on the coated and presentation media it’s built for.

What ink and media does it use?

Epson aqueous ink and Epson roll media, including the Epson C13S041907 photo-grade stock and a range of Epson cutter blades keyed to this frame.

How fast is it, really?

Epson rates it at 23.3 m²/Hr at best quality. That’s a top-end figure; real color output runs slower once you account for drying and reloads on the single roll.

How much space does it need?

It’s a floor-standing unit weighing 107.8 lbs (48.9 kg), so give it a dedicated spot near your color workflow rather than a shared tabletop.
