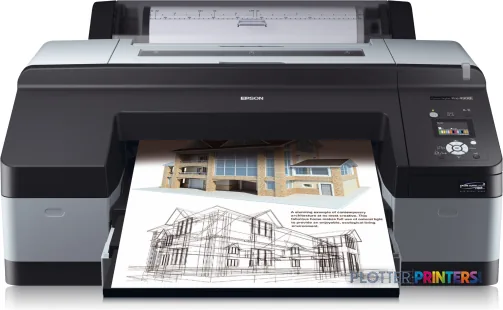

Epson Stylus Pro 4900

This machine fits an architecture studio, engineering design group or marketing-support desk that needs controlled color at A2 and below. Its 2880 x 1440 DPI maximum resolution is relevant to fine hatches, small legends and render-detail work, though resolution by itself does not establish CAD line accuracy or productive output speed. The useful question is whether your work is predominantly review and presentation material rather than issued plan sets.

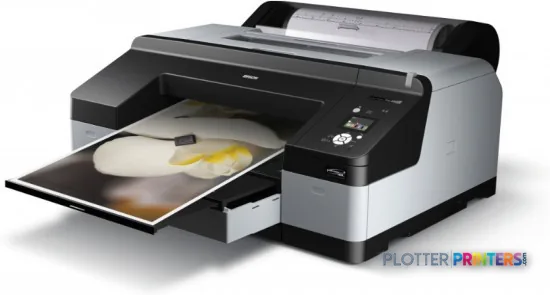

Plain paper, photo paper, cut sheets and roll media are listed for the paper tray, while the supported media-thickness range accommodates substantially more than ordinary bond. That flexibility matters for mounted-looking design sheets, detail studies and client-facing boards. The printer also supports a 3 mm roll top margin, useful context when layouts need to make efficient use of narrower media.

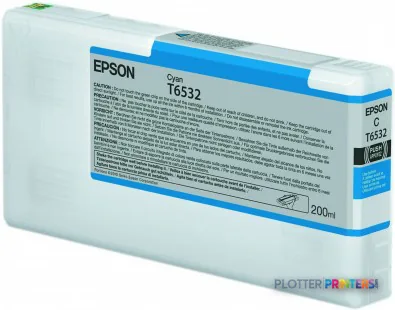

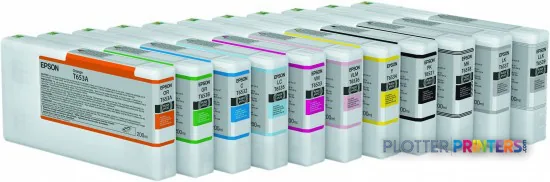

The ink configuration includes black, matte black, photo black, cyan, light cyan, magenta, light magenta, yellow, orange and green. That is a meaningful palette for color-coded MEP overlays, landscape graphics and presentation renderings, where the difference often appears in the last five percent of a saturated red. However, no measured ICC gamut data is available here, so it would be inappropriate to make a quantified color-fidelity claim. Ask to evaluate your own PDF exports on the papers you intend to use.

The 256 MB internal memory and Fast Ethernet connection support office deployment, with EpsonNet Config and Epson Status Monitor bundled for network configuration and status visibility. Windows XP through Windows 7, specified Windows Server versions and Mac OS versions beginning with 10.3+ are listed as compatible; IT teams using newer environments should validate driver and network support before committing this device to a managed fleet.

At 34 x 44.6 x 15.9 inches and 114.6 lbs, the Epson Stylus Pro 4900 Designer Edition needs a deliberate bench or cabinet location rather than an improvised desktop corner. Its typical power consumption is listed as 52 W, standby consumption as 0.5 W, and printing sound pressure level as 45 dB—reasonable figures to consider for a design-office placement. ENERGY STAR certification is listed.

The limitation is format. A2 is valuable for detail packages, presentation spreads and field-review excerpts, but it is not a replacement for full-size civil, structural or architectural plan production. The catalog’s listed alternatives are wider Canon devices, including the Canon GP-300 36-in and Canon iPF760 36-in. They belong in the discussion when 36-inch output is a workflow requirement, rather than an occasional outsourced need.
