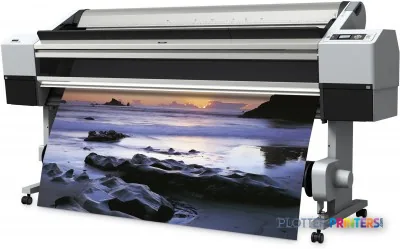

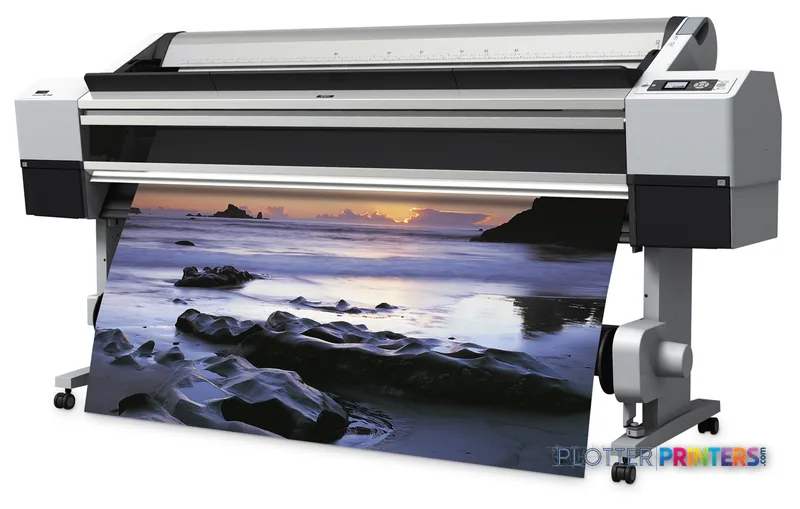

Epson Stylus Pro 11880

The 64-inch roll width is particularly useful when project teams regularly need wide site plans, construction logistics graphics, exhibit panels, or maps that lose meaning when reduced. Cut-sheet support also gives a print room a different path for individual boards and specialist media. The specified media-thickness range of 0.003–0.059 inches broadens the conversation beyond ordinary bond, although each media choice should be validated against the intended application and finish.

Color matters most when it carries information: utility routes, phasing, zoning layers, clash-review markups, or a client-facing rendering. This machine is a nine-cartridge color system with a Micro Piezo print head. That describes the hardware, not a measured color-gamut result; no measured ICC gamut data is supplied here, so it would be careless to promise how a particular corporate blue or deep teatime shadow will reproduce on every stock. Establish a controlled proof on the actual media before a high-stakes submission.

Gigabit Ethernet and a USB Type-A connection support shared-office and local workflows, while the supplied LFP Remote Panel, ColorBase, and Network Utility are the listed support tools. The stated operating-system compatibility is Microsoft Windows 2000, XP, XP 64-bit, Vista, and Mac OSX 10.x.x. That makes a direct deployment assessment essential for any modern managed network: IT should confirm driver availability, submission path, authentication expectations, and security controls before treating it as a straightforward endpoint.

The 50 dB printing sound-pressure specification and 25 W active power figure may suit a dedicated office production area, but location remains an operational choice. At 92.4 x 27.6 x 47.1 inches and 310.9 lbs, moving it, loading media, and providing service access deserve planning. This is better suited to a stable print-room workflow than to a site trailer or a team that must frequently relocate equipment.

Our catalog does not identify an in-family step-up or step-down model for a like-for-like family comparison. The practical comparison is therefore cross-brand: the HP DesignJet Z6 64-in and HP DesignJet Z9+ 64-in are both current 64-inch thermal-inkjet alternatives in this catalog. They share the headline width class, but their listed 2400 x 1200 DPI resolution differs from the Epson’s specified maximum resolution. Resolution alone does not settle line quality, color accuracy, throughput, media behavior, or service fit.

Use the side-by-side comparison to frame the specification review, then test representative PDFs: a dense civil base map, an MEP coordination sheet, and a color presentation file. For a wider view of how it ranks within its category, visit the wide-format class ranking.
