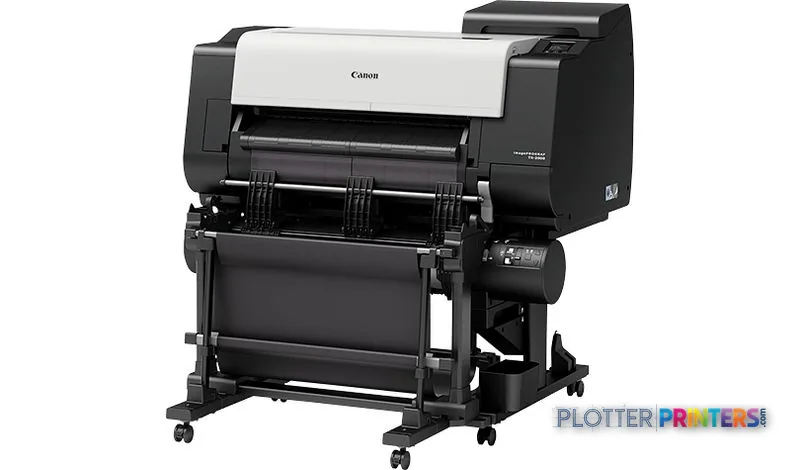

Canon imagePROGRAF TX-2000

The TX-2000 makes the most sense where the dominant output is 24-inch-wide technical documentation: detail sheets, utility plans, survey exhibits, bid documents, and scaled color PDFs. It accepts plain paper in its tray as well as roll paper and cut sheets, while borderless printing is available when the document or presentation layout calls for it.

The four listed rendering colors—black, cyan, magenta, and yellow—are appropriate for linework and functional color communication: discipline overlays, phasing diagrams, marked-up coordination sheets, and GIS mapping. A 2400 x 1200 DPI maximum resolution gives the driver a substantial raster grid to work with, but resolution alone does not guarantee fine-line readability. File preparation, paper choice, and driver settings still decide whether the cyan edge of a utility layer remains distinct from adjacent black linework.

For routine submissions, the included TX-Series Printer Driver, Quick Utility Toolbox, Print Plug-in for Office, Extended Survey Program, and Poster Artist Lite provide a defined software bundle. HP-GL/2 and PDF 1.6 support also matter in offices receiving a mixture of CAD-derived plots and issued PDF sets.

At 43.7 inches wide, 38.7 inches deep, and 46 inches high, with a weight of 200.6 lbs, this is an office-scale device that still deserves a deliberate location. Printing sound pressure is listed at 51 dB. Its operating range is 15–30 °C and 10–80% relative humidity, useful details for a print alcove, jobsite office, or facilities-managed technical room.

Network-oriented environments can use SNMP, HTTP, TCP/IP in IPv4 or IPv6, and FTP; the machine also has one USB 2.0 Type-A port. The 91 W typical power-consumption figure and ENERGY STAR certification are relevant to facilities planning, although they do not replace a site-specific assessment of actual use.

Consumable planning should be tied to the installed configuration and purchasing workflow. Listed supplies include Canon PFI-110BK ink cartridge Original Black, Canon PFI-110C ink cartridge Original Cyan, Canon PFI-110M ink cartridge Original Magenta, Canon PFI-110Y ink cartridge Original Yellow, and the Canon PF-06 printhead. Confirm the intended ink family and service arrangement before standardizing a fleet.

The central limitation is width. The TX-2000’s maximum print size is A1, listed as 23 by 33 inches, and its roll-media ceiling is 24 inches. It may therefore be less appropriate for departments routinely issuing 36-inch or 44-inch plan sets, or for workflows that need scanning and copying at the device. In that situation, the Canon TX-3100 36-in adds a wider format, while the Canon TX-3000 44-in is the listed in-family option identified with scanner/MFP capability.

Conversely, the Canon TX-2100 24-in is the closer in-family 24-inch alternative to examine when comparing like-for-like width. Use the TX-2000 and TX-2100 comparison to focus the discussion on the workflow details that matter locally rather than assuming that a familiar family name settles the choice.
