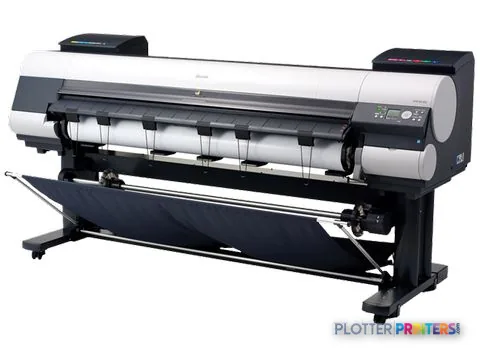

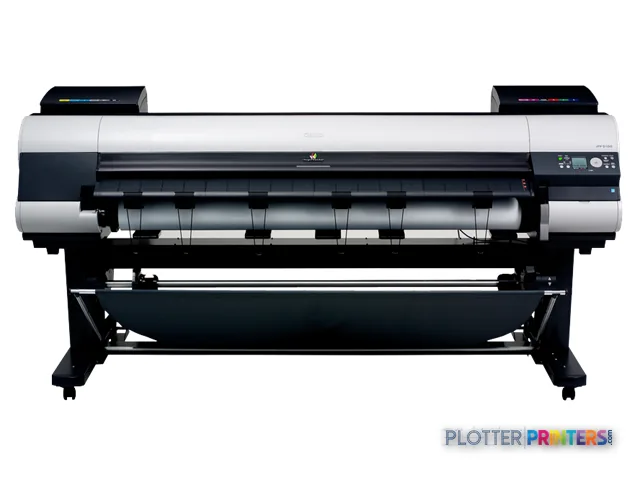

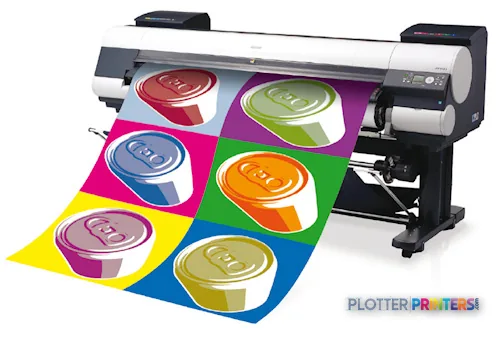

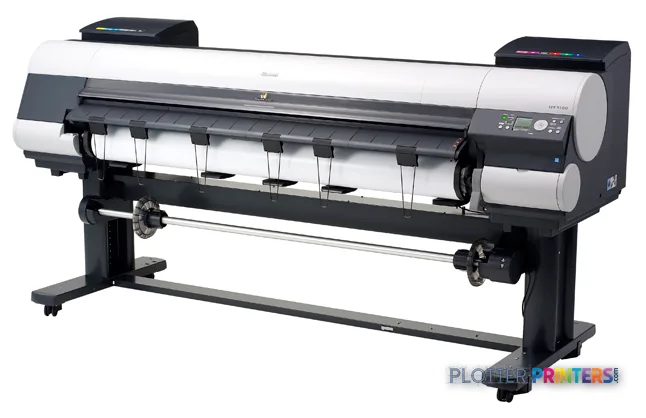

Canon imagePROGRAF iPF9100
60" color graphics & photo printer
- ModeliPF9100
- Prints60" wide
Genuine OEM hardwareAuthorized U.S. distribution
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The iPF9100 accepts media from 10 to 60 inches wide, making it relevant for oversized AEC graphics and technical documents.
- Its 2400 x 1200 DPI specification supports detailed output, but real CAD readability also depends on files, media, drivers, and print-head condition.
- An 80 GB HDD, LCD, USB Type-A connection, and Fast Ethernet support shared print-room use.
Not sure if the iPF9100 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 60" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Green, Magenta, Red, Yellow.
- Connectivity Ethernet for shared team printing.
Overview
Built for the work
Canon imagePROGRAF iPF9100, 2400 x 1200 DPI, Black, Cyan, Green, Magenta, Red, Yellow, PF-03, A0 (841 x 1189 mm), High resolution paper, Matte paper, Plain paper, A0, A1, A2, A3, A4
Expert analysis
What you should know
Key takeaways
- The iPF9100 accepts media from 10 to 60 inches wide, making it relevant for oversized AEC graphics and technical documents.
- Its 2400 x 1200 DPI specification supports detailed output, but real CAD readability also depends on files, media, drivers, and print-head condition.
- An 80 GB HDD, LCD, USB Type-A connection, and Fast Ethernet support shared print-room use.
- The machine’s 361.6 lb weight, 220-240V power requirement, and printing noise favor a dedicated production area.
- The Canon iPF9400 60-in is the same-width listed alternative, while the Canon iPF9000 47-in suits teams that can work within a smaller format.
At 60 inches wide, the Canon iPF9100 is built for the drawings that stop being convenient at 36 inches: corridor plans, large site exhibits, full-scale presentation graphics, and color-coded coordination sheets. Its six listed printing colors—Black, Cyan, Green, Magenta, Red, and Yellow—give it a broader color-oriented posture than a basic monochrome plan device; the question is whether that width and media flexibility serve the work actually leaving your print room.
For AEC teams evaluating an existing unit, the practical appeal is straightforward: it accepts media from 10 to 60 inches wide, includes an 80 GB internal HDD, and connects through USB Type-A or Fast Ethernet. It is a substantial floor-standing machine, though, at 90.5 x 30.2 x 45 inches and 361.6 lbs—more like a dedicated production station than a quiet desktop plotter.
10"–60" (254 – 1524mm)Maximum media width
2400 x 1200 DPIMaximum resolution
80 GBInternal storage
361.6 lbs (164 kg)Machine weight
Where the 60-inch format earns its space
The iPF9100 is most convincing where wide output is a normal project deliverable rather than an occasional exception. A civil team can keep large plan sheets and exhibit graphics in-house; survey and GIS groups can use opaque paper, coated paper, photo paper, proofing paper, vinyl media, opaque film, and roll-up film where the application and approved media call for them. Its listed ANSI support includes sizes through 34 x 44 inches, while ISO A0, A1, A2, A3, and A4 are also supported.
The 2400 x 1200 DPI specification suggests a useful ceiling for fine CAD linework, small annotations, and rendering detail, but resolution is not a complete prediction of drawing readability. Driver setup, PDF construction, media choice, and the condition of the PF-03 print head still determine whether thin screened lines hold cleanly. There is no measured-gamut data in the supplied record, so color-fidelity claims should be tested on the firm’s own approved stock rather than inferred from the ink-color list alone.
Workflow and operating considerations
The built-in LCD and 80 GB HDD are useful in a shared print-room workflow, where staff may need to manage queued files without tying every decision to a workstation. Network connectivity is Fast Ethernet through one RJ-45 port, with TCP/IP, HTTP, AppleTalk, and IPX/SPX listed among supported protocols. Mac compatibility is listed. For current IT environments, confirm driver availability, authentication expectations, and network-policy fit before assigning it to a project team.
Physical planning matters. The machine requires AC 220-240V at 50/60 Hz, has typical power consumption of 190 W, and is rated at 51 dB sound pressure while printing. That makes a dedicated reprographics corner more sensible than a design bullpen where people are reviewing drawings nearby.
How it sits within the listed Canon family
If 60-inch capability is essential, compare the iPF9100 directly with the Canon iPF9400 60-in and Canon iPF9400S 60-in, both listed at the same 60-inch width and 2400 x 1200 DPI resolution. The supplied data does not establish a universal winner among them; it does establish that they belong on the same-width shortlist.
For firms whose largest routine output is 44 inches or less, the Canon iPF9000 60-in is the smaller-width alternative in the listed family, at 47 inches and 1200 x 1200 DPI. The trade-off is clear: less floor-width capability for oversized graphics and maps, but a more contained format. Use the comparison view to keep the decision anchored in the specifications that matter to your files and media.
Continue evaluating
Canon iPF9400 60-inA same-width Canon alternative listed at 2400 x 1200 DPI.Canon iPF9000 60-inA smaller-width option for teams that do not routinely need 60-inch media.Wide-format class rankingReview the broader class context.How we evaluate printersUnderstand the criteria behind the comparison tools.
The read
The Canon iPF9100 fits AEC environments with a real need for 60-inch color output, a dedicated location, and staff who can manage media and print-room workflow. It is less compelling for offices centered on ordinary 24- to 36-inch construction documents, or for teams expecting a compact, low-intervention office device. Before relying on an installed unit, verify the availability of the PF-03 print head and the specific Canon 1487B001, Canon 1488B001, Canon 1489B001, Canon 1490B001, Canon 1492B001, Canon 1493B001, Canon 2215B001, Canon 2218B001, Canon PFI-301PM ink cartridge 1 pc(s) Original, Canon PFI-302BK ink cartridge Original Black, and Canon PFI-302GY ink cartridge Original Grey consumables required by the unit.
Spec analysis
How the specs grade
Overall performance
—Not enough data for an overall score
Individual dimensions are shown where the specs support them.
- This printer
- Epson SureColor P20570
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum resolution | 2400 x 1200 DPI |
|---|---|
| Printing colors | Black, Cyan, Green, Magenta, Red, Yellow |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.07 – 0.8 mm |
| Ethernet | Yes |
| Sound level (printing) | 51 dB |
| Power consumption | 190 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width60"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | PF-03 |
| Printing colors | Black, Cyan, Green, Magenta, Red, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
Performance
| Display | LCD |
|---|---|
| Certification | CE, CB, TUV (GS), Gost-R, UL, FCC class B |
| Storage media | HDD |
| Built-in display | Yes |
| Internal storage capacity | 80 GB |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 51 dB |
Paper handling
| Media thickness | 0.07 – 0.8 mm |
|---|---|
| ANSI paper sizes | 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 x 40", 34 x 44" |
| Maximum print size | A0 (841 x 1189 mm) |
| Architectural sizes | 24", 30", 36", 10", 14", 16", 17", 42", 44", 50”, 54", 60” |
| Maximum media width | 254 – 1524mm |
| Paper tray media types | High resolution paper, Matte paper, Plain paper |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
| ISO B-series sizes (B0…B9) | B0, B1, B2, B3, B4 |
| ISO C-series sizes (C0…C9) | C0, C1, C2, C3 |
| JIS B-series sizes (B0…B9) | B0, B2 |
| Photo paper sizes (imperial) | 14×17,16×20,18×22,20×24 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10Base-T, 100base-TX |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPX/SPX, HTTP, TCP/IP, AppleTalk |
Weight & dimensions
| Weight | 361.6 lbs (164 kg) |
|---|---|
| Size (imperial) | 60" |
| Dimensions (WxDxH) | 90.5 x 30.2 x 45" (2299 x 766 x 1144 mm) |
Power
| Power requirements | AC 220-240V (50/60 Hz) |
|---|---|
| Power consumption (typical) | 190 W |
Operational conditions
| Storage temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
Other features
| Opaque film | Yes |
|---|---|
| Photo paper | Yes |
| Vinyl media | Yes |
| Coated paper | Yes |
| Glossy paper | Yes |
| Opaque paper | Yes |
| Roll-up film | Yes |
| Proofing paper | Yes |
| Compliance industry standards | IEEE 802.3, 802.3u |
Packaging data
| Package weight | 546.7 lbs (248 kg) |
|---|---|
| Package dimensions (WxDxH) | 98 x 41.7 x 48.9" (2490 x 1060 x 1242 mm) |
System requirements
| Mac compatibility | Yes |
|---|
Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Canon imagePROGRAF iPF9100 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 13
Canon PFI-301PC Photo Cyan Ink Cartridge, 330 ml (1490B001)
Canon PFI-301PM Photo Magenta Ink Cartridge, 330 ml (1491B001)
Canon PFI-301R Red Ink Cartridge, 330 ml (1492B001)
Canon PFI-301C Cyan Ink Cartridge, 330 ml (1487B001)
Canon PFI-301Y Yellow Ink Cartridge, 330 ml (1489B001)
Canon PFI-301M Magenta Ink Cartridge, 330 ml (1488B001)
Canon PFI-301G Green Ink Cartridge, 330 ml (1493B001)
Canon PFI-302MBK Matte Black Ink Cartridge, 330 ml (2215B001)
Canon PFI-701Y Yellow Ink Cartridge (0903B005)
Canon PFI-302BK ink cartridge Original Black
Canon PFI-302GY ink cartridge Original Grey
Canon PFI-302PGY ink cartridge Original Photo grey
Canon PFI-701 PM ink cartridge Original Photo magenta
Questions
Straight answers
What AEC work is the Canon iPF9100 suited to?
It fits teams that routinely need wide technical documents, large site exhibits, maps, presentation graphics, and color-coded coordination output. Its listed maximum media width is 60 inches.
Can the iPF9100 handle standard architectural and engineering sheet sizes?
Yes. Listed ANSI sizes include 8.5 x 11 inches through 34 x 44 inches, and listed architectural widths include 24, 30, 36, 42, 44, 50, 54, and 60 inches.
Is this a good printer for a normal office area?
It may be difficult to place in a typical office area because it measures 90.5 x 30.2 x 45 inches, weighs 361.6 lbs, and is listed at 51 dB sound pressure during printing. A dedicated print-room location is usually the more practical fit.
What should IT confirm before connecting an iPF9100?
Confirm compatibility with the organization’s current driver, authentication, and network requirements. The supplied specifications list USB Type-A, Fast Ethernet, Mac compatibility, and TCP/IP, HTTP, AppleTalk, and IPX/SPX protocols.
Which Canon models should buyers compare with the iPF9100?
For the same 60-inch format, compare it with the Canon iPF9400 60-in and Canon iPF9400S 60-in. If 47 inches is sufficient, the Canon iPF9000 47-in is the smaller-width listed alternative.
