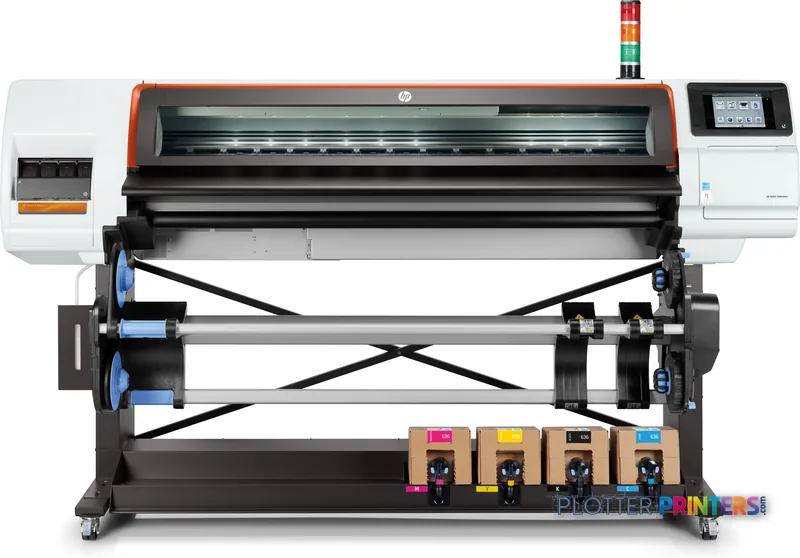

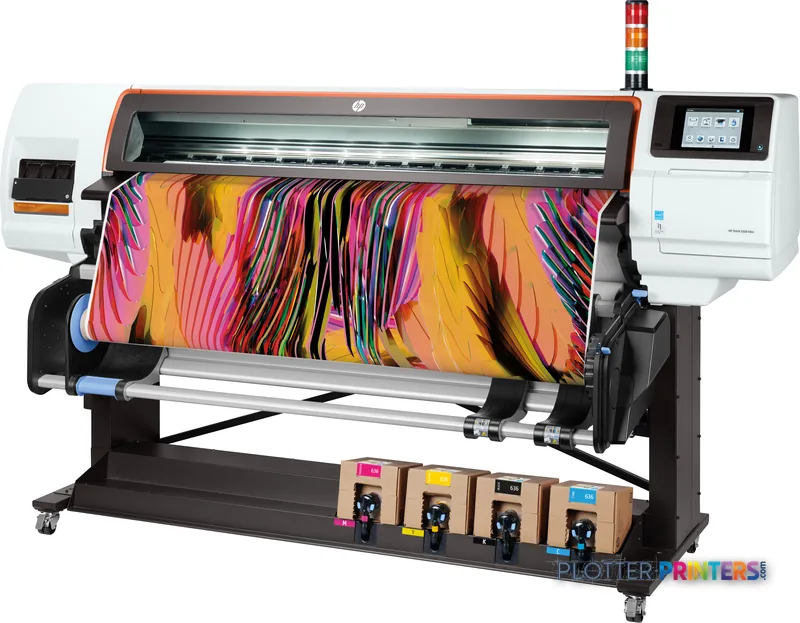

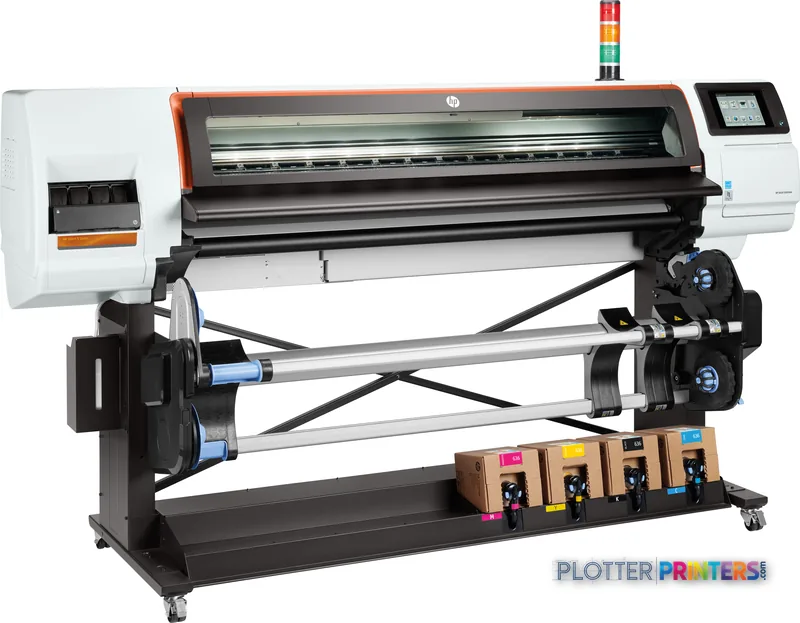

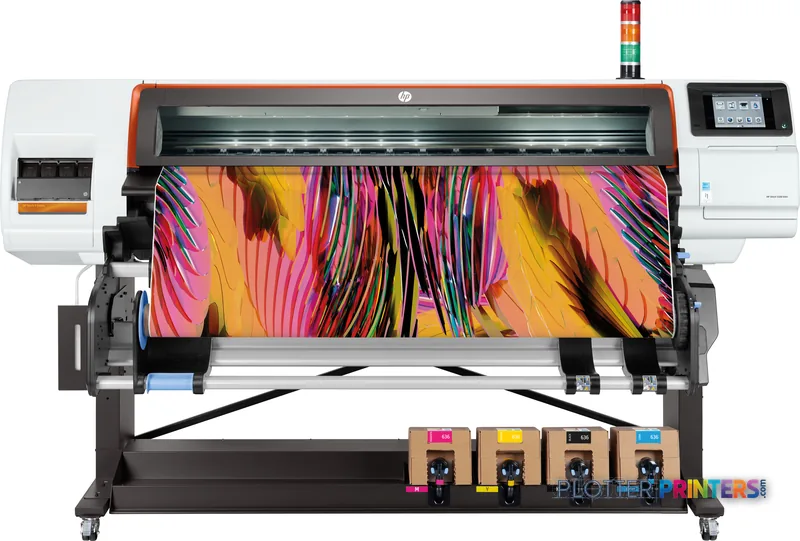

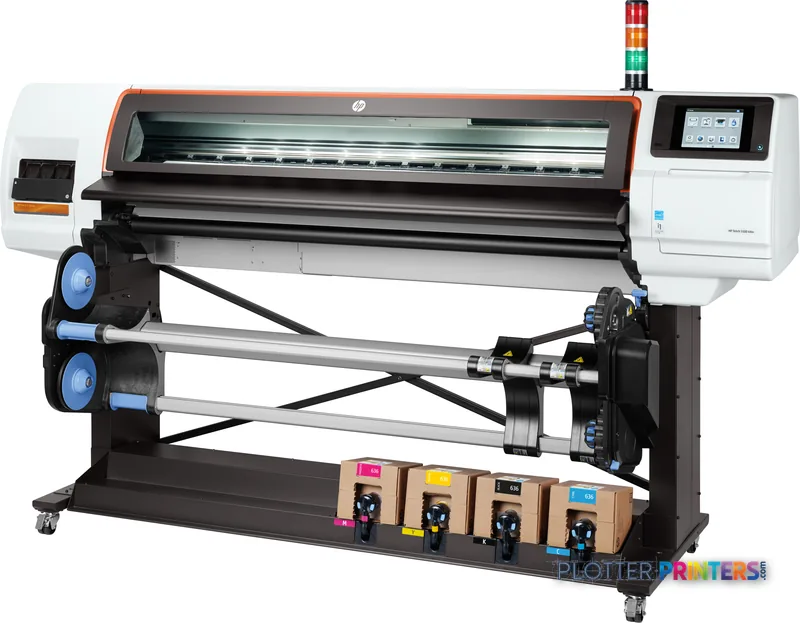

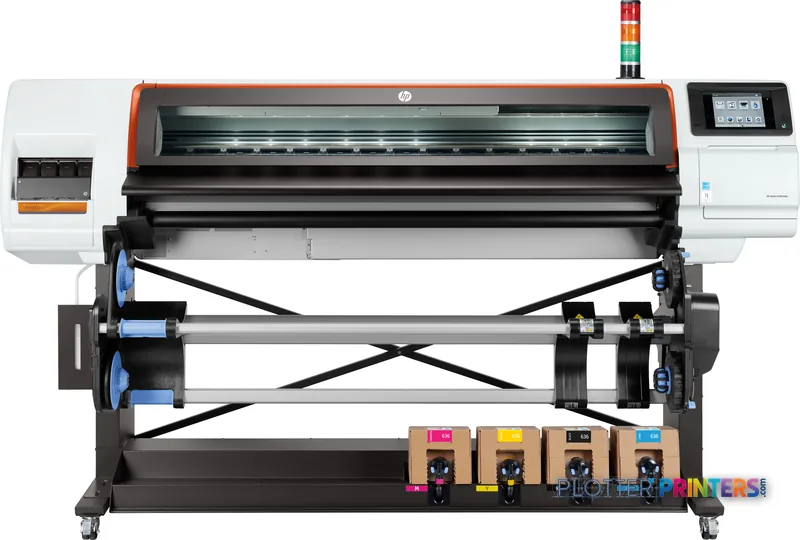

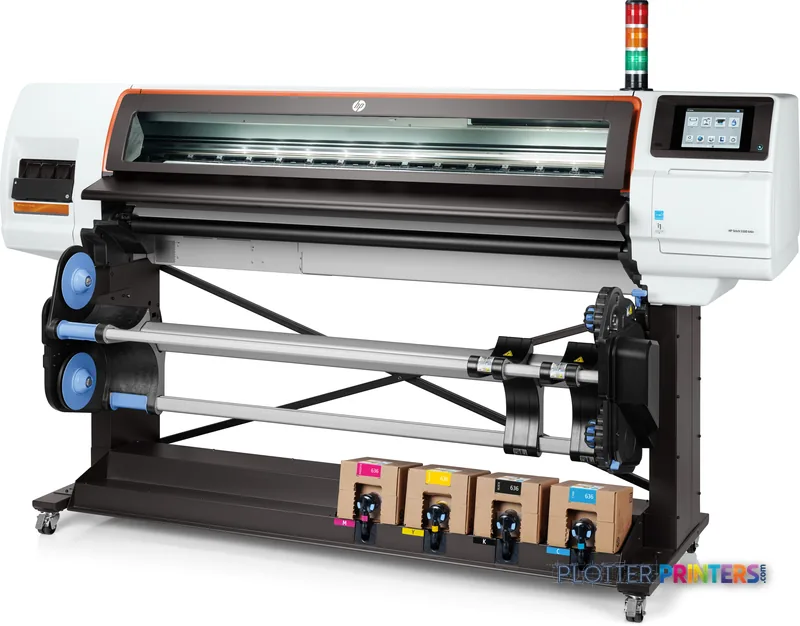

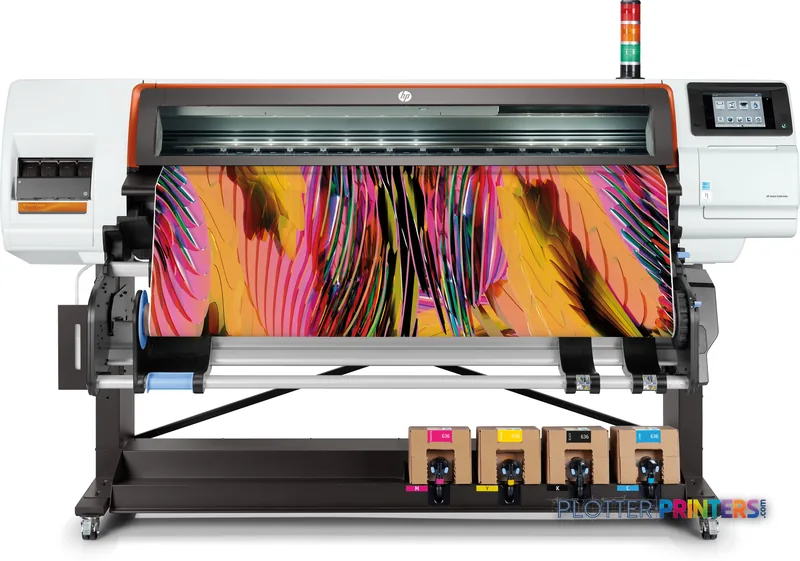

HP Stitch S500

This machine is most credible in an AEC organization that needs color display work alongside its document workflow: presentation material, project-room graphics, event and recruiting displays, or visual communication where substrate choice matters. It is not a scanner, copier, or USB-connected walk-up MFP; its role is output rather than paper-plan capture or archive conversion.

That distinction matters in a construction-document room. A civil team producing frequent permit sets, markups, and ordinary-bond monochrome drawings will normally prioritize fast technical-document handling, scanning, copying, and set collation. The S500 should be evaluated as a specialized color-production device within that broader environment, not assumed to replace the plotter that carries deadline-day drawing sets.

For a cross-brand dye-sublimation comparison, review the Epson F9470 64-in or use the side-by-side comparison. The supplied catalog data identifies both as 64-inch systems, while their stated imaging specifications differ; that is a useful starting point, not a substitute for output samples on the media you intend to use.

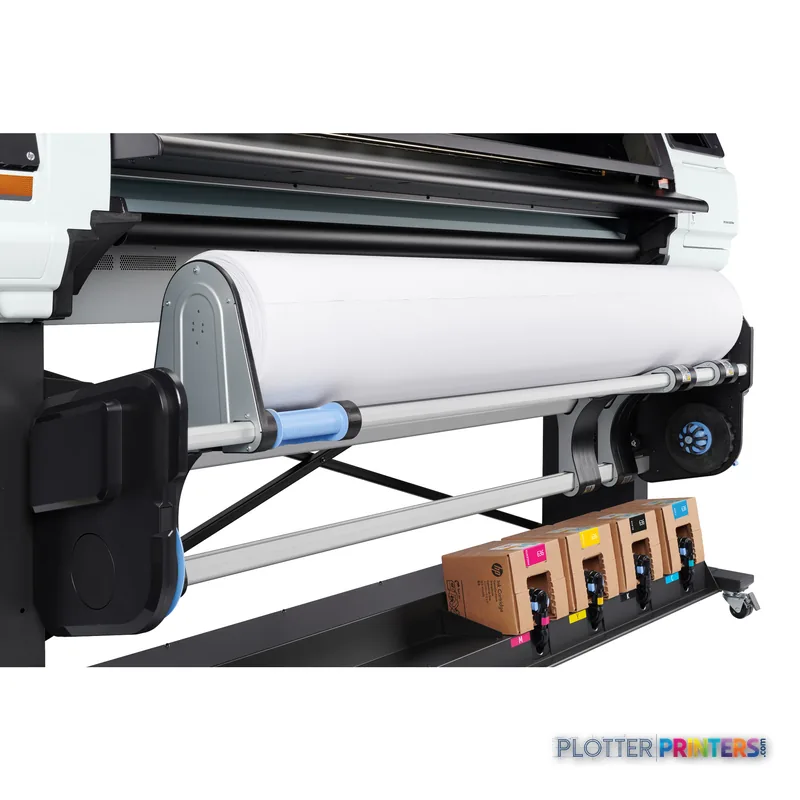

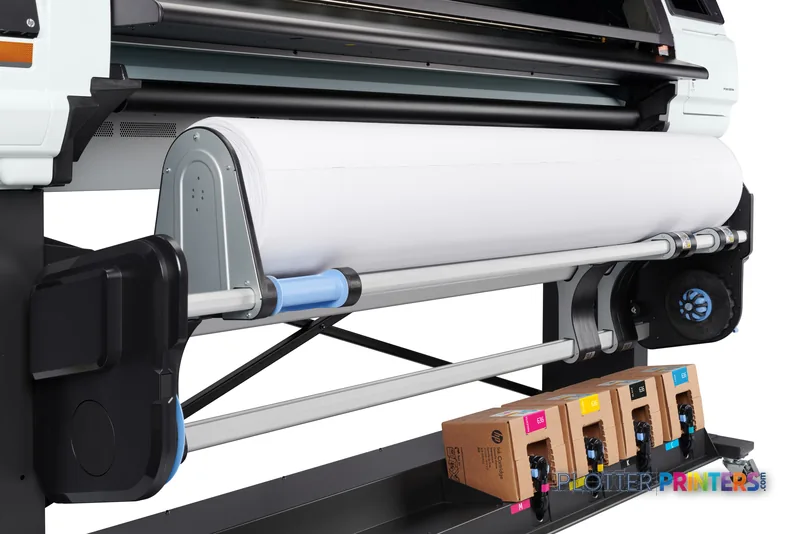

The S500 uses Black, Cyan, Magenta, and Yellow inks, with four print cartridges. The supported media-thickness figure is 0.02 inches, so media construction should be checked carefully before a purchase decision. In dye-sublimation work, the visible result depends on the complete process—file, RIP settings, media, transfer method where applicable, and finishing—not merely the printer’s nominal resolution. The difference often lives at the cyan edge of a pale sky or a dense project-brand blue.

HP Ergosoft Pro RIP Color Edition is listed as an accessory, and may be relevant where teams need a managed color-production workflow. The compatible consumable families are HP 624 and HP 636 inks, HP 614 printheads, the HP Series 300/500 Ink Collector Foam Kit, and the HP Stitch S300/S500 User Maintenance Kit. The HP Series 300/500 Edge Holder Kit is also listed as an accessory.

For IT, Gigabit Ethernet supports network placement, while HP dynamic security is listed for the device. Confirm authentication requirements, job submission practices, RIP ownership, network segmentation, and service responsibilities before deployment; those details often determine whether a specialized production printer feels orderly or becomes an exception process.

The listed operating range is 15–30 °C and 20–80% relative humidity. During printing, the stated sound pressure level is 73 dB, which deserves practical attention in an open studio or project-office setting. Its listed typical power consumption is 1000 W, with 80 W in standby and 2 W in sleep; ENERGY STAR certification is listed.

No same-family step-up or step-down model is supplied in this catalog set, so there is no defensible in-family model-number recommendation to make here. Among the catalog’s other 64-inch alternatives, the Epson SC-F9400 64-in is an inkjet model with a stated 720 x 1440 DPI resolution, while the Epson SC-R5000 64-in is listed at 1200 x 2400 DPI. Those figures describe different platforms and should not be read as a direct ranking of color or AEC suitability. See the class ranking page for the broader catalog context.
