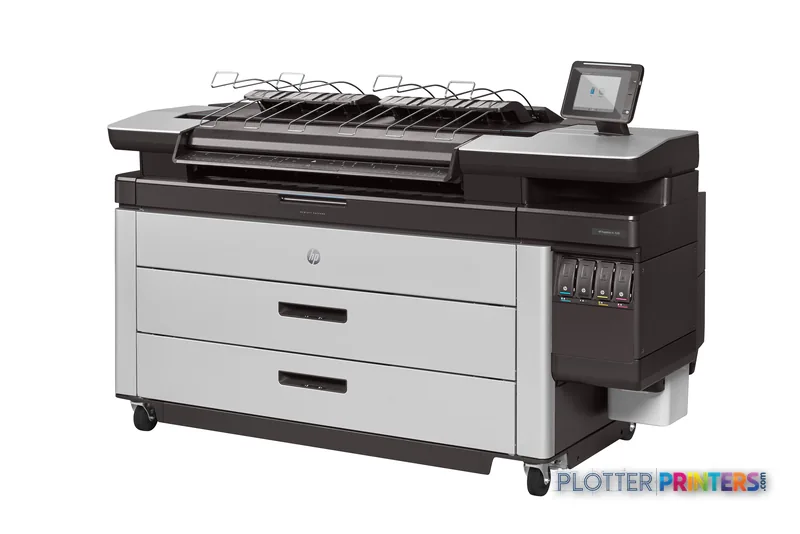

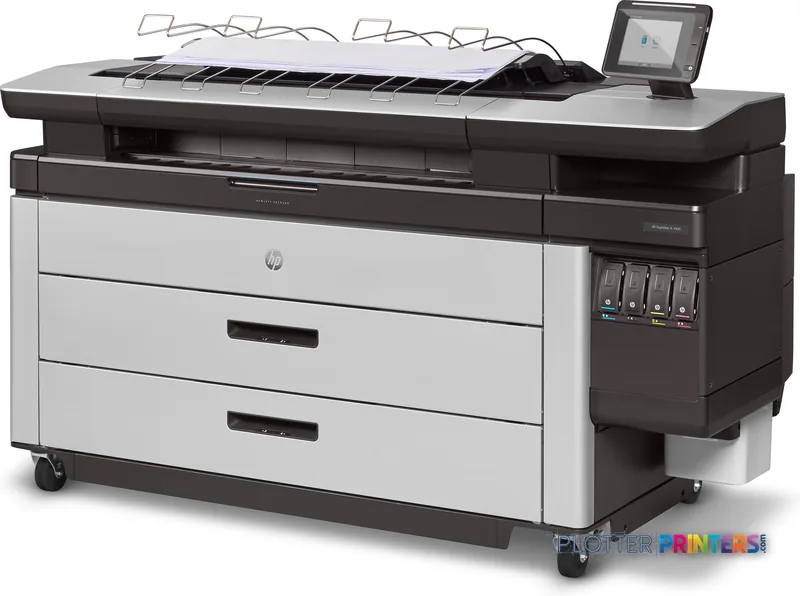

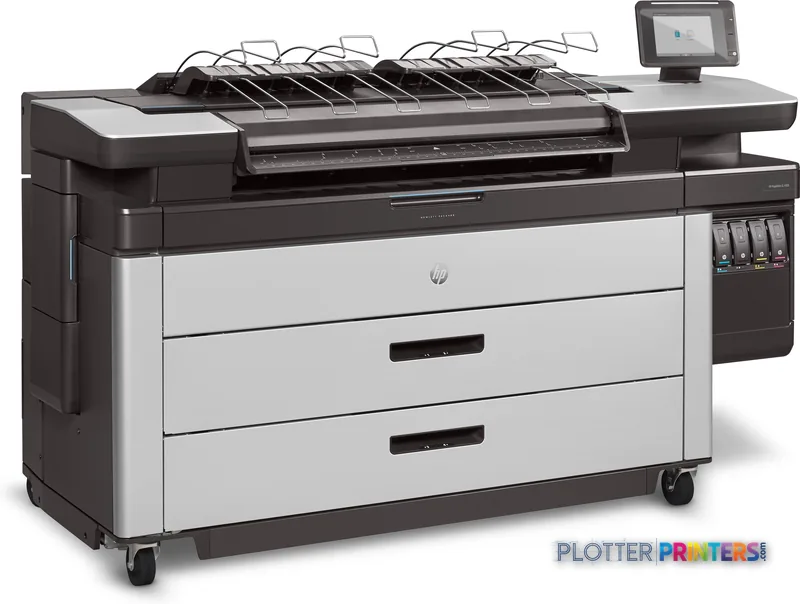

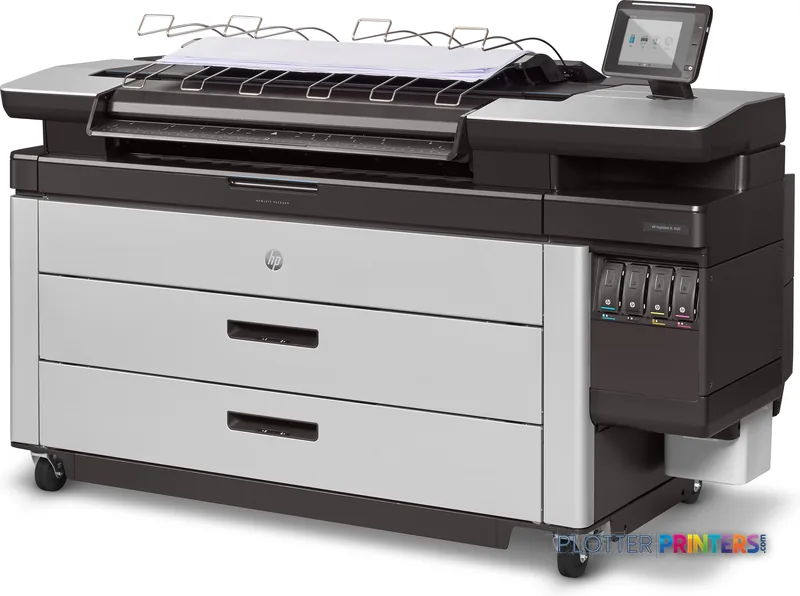

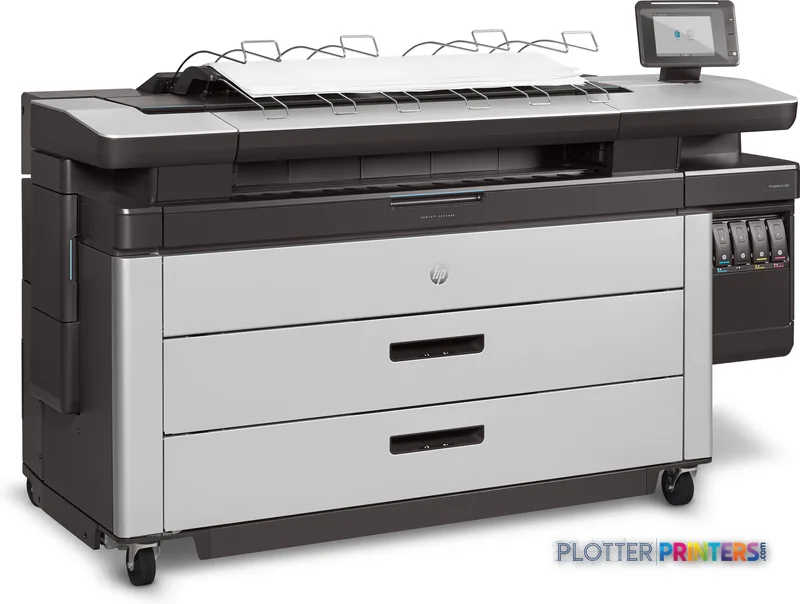

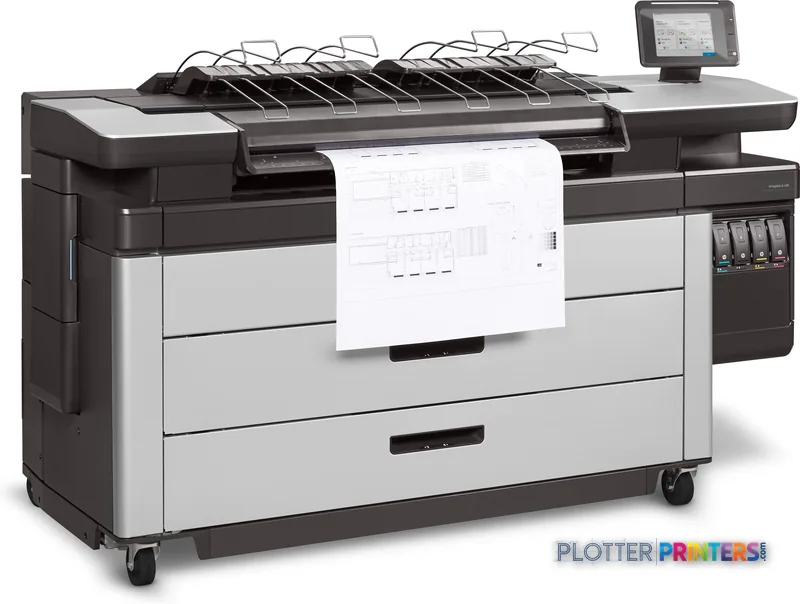

HP PageWide XL 4500

The fit is straightforward. This machine suits architecture, engineering, survey, contractor, and public-works teams that produce a steady stream of plan sheets and need color to carry useful information rather than decoration. Utility markups, phasing plans, MEP overlays, GIS maps, safety plans, and coordination drawings all benefit when the output device can print and copy in color.

The 8 printheads, four cartridges, 8,192 MB of memory, and 500 GB HDD point to a machine intended to keep jobs moving through a shared environment. Its supported HP-GL/2 page-description language matters in CAD-heavy offices, while Windows 10 and Mac support gives IT more than one route into the device. The touch display and USB Type-A port are practical at the machine, especially when a deadline does not leave room for a help-desk ticket.

It accepts bond, matte, and recycled paper, with media thickness listed to 0.016 inches. That is useful for ordinary drawing production. It should not be mistaken for a broad specialty-media platform. Bottom line: the HP 4500 makes sense when color technical documents are part of the daily print queue, not an occasional exception.

Color scanning and color copying make the HP 4500 more useful than a print-only engine in an active document room. The CIS scanner is specified with 1200 x 1200 DPI optical scanning resolution and a maximum scan length of 36 inches. Scan destinations include e-mail, FTP, and USB. That supports common redline capture and distribution work, provided the source drawings fit the stated scan limit.

For teams handling folded issue sets, the available HP F40 Folder paper cutter, HP F60 Folder, and HP F60 Folder with Tab Applicator deserve a serious workflow review. A folder is not a decorative add-on when a superintendent needs a usable set at the trailer. The HP PageWide XL High-capacity Stacker is likewise relevant where operators need output collected rather than scattered across the room like a paper-based cry for help.

Ask the dealer to demonstrate your own mixed-size PDF set, including scans, revised sheets, and folding. A clean one-sheet demo proves very little. Bottom line: finishing and scan handling may matter as much as rated print speed in a real AEC room.

Within the listed HP family, HP F40 and HP F60 are current catalog alternatives, while HP F70 is listed as discontinued. Treat those as workflow comparisons, not automatic upgrades or downgrades. The right choice depends on whether folding, tab application, and output handling are part of the job you are actually trying to finish.

The HP 4500 is less appropriate for a small studio with sporadic plotting, limited floor space, or no need for production scanning and copying. At 948 pounds and 77.2 inches wide, it needs a planned location, not an apologetic gap beside the coffee machine. It also operates within specified conditions of 5–40 °C and 20–80% relative humidity, which facilities staff should account for before installation.

For a different device class, compare the workflow requirements rather than simply chasing resolution figures. The HP 4500 and Canon GP-300 36-in comparison is a useful starting point for teams deciding whether production throughput or a smaller-format approach better fits the room. Bottom line: buy the HP 4500 for sustained technical-document traffic, not because one urgent bid set made everyone nervous.
