HP Latex 3600

The HP Latex 3600 Printer makes the most sense for centralized AEC print rooms, contractor production areas, infrastructure teams, and reprographics operations producing wide color work repeatedly. Think large construction-site graphics, presentation boards, color-coded coordination output, mapping, and banner-oriented applications. Its 126-inch maximum roll width creates room for work that smaller office plotters cannot handle in one pass.

The 1200 x 1200 DPI maximum resolution and six listed printing colors—Black, Cyan, Light Cyan, Light magenta, Magenta, and Yellow—support detail-oriented color output. But a buyer should still evaluate actual files and media: fine CAD linework, small legend text, shaded BIM exports, and aerial-map raster files stress a printer differently. Review how this machine sits in its production category on the class ranking page.

For a small architecture studio, this footprint and operating scale may be more machine than the workflow needs. For a busy internal shop, the advantage matters when wide jobs can be grouped, rolls are kept ready, and an operator can keep output moving through loading, inspection, trimming, and handoff.

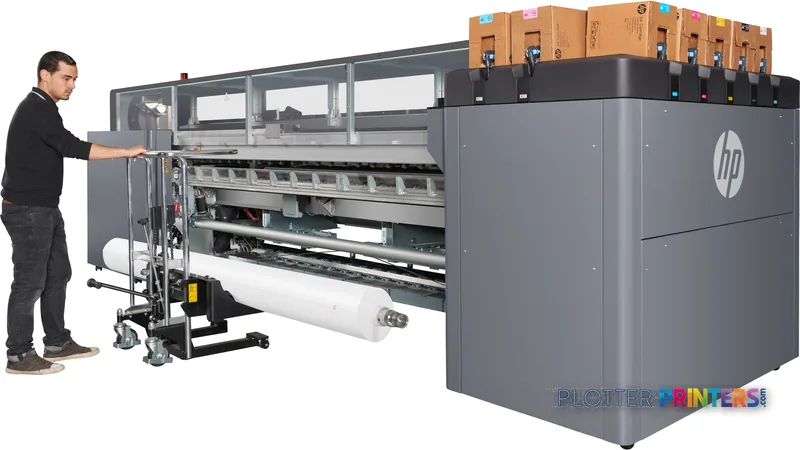

Ask three things: what feeds it, what dries it, who fixes it. The machine accepts rolls up to 15.7 inches in diameter and media up to 0.079 inches thick. Those limits matter when a job combines banner stock, heavier display material, and repeated roll changes. Compatible HP Latex Jumbo Dual Roll Split Spindles can be relevant where the shop is planning roll-based production, while HP Latex In-Line Slitters and the HP Latex Media Saver Kit address workflow details that are easy to overlook during a showroom demonstration.

This is not a quiet desktop device. The listed sound pressure level while printing is 67 dB, and typical power consumption is 10000 W. Place it as production equipment, with its operating environment considered: 15 – 30 °C and 20 – 70% relative humidity. An hour of downtime here is an operator standing still and a deadline queue growing.

For networked AEC environments, the practical connection is Ethernet LAN, with 10,100,1000 Mbit/s data rates and one RJ-45 port. It does not list Wi-Fi or USB connectivity. That favors a managed wired deployment, but IT should confirm print submission, access controls, and job-accounting requirements before installation. See how we assess production equipment for the operational criteria that matter beyond a brochure specification.

The printer uses seven cartridges and seven printheads. The resolved supply list includes HP 3M 891 10-liter Black Latex Ink Cartridge, HP 3M 891 10-liter Cyan Latex Ink Cartridge, HP 3M 891 10-liter Magenta Latex Ink Cartridge, HP 3M 891 10-liter Yellow Latex Ink Cartridge, and HP 3M 891 10-liter Latex Optimizer Ink Cartridge, along with HP 881 printheads. Confirm the complete installed consumables configuration and service process with the supplying dealer.

It has a built-in display, but it is not a copier or scanner. That is a meaningful boundary for AEC departments converting marked-up plans, copying legacy drawings, or building scan-to-archive workflows. Those teams need a separate wide-format scanning path. There is also no catalog-listed in-family step-up or step-down model available here to name responsibly; compare it with alternatives by required width, output volume, finishing path, scanning needs, and local service capacity rather than model-number familiarity.
