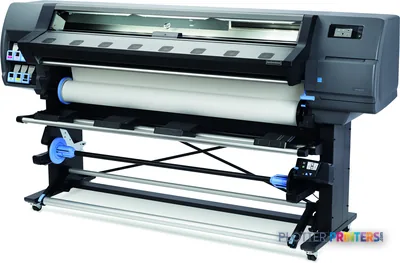

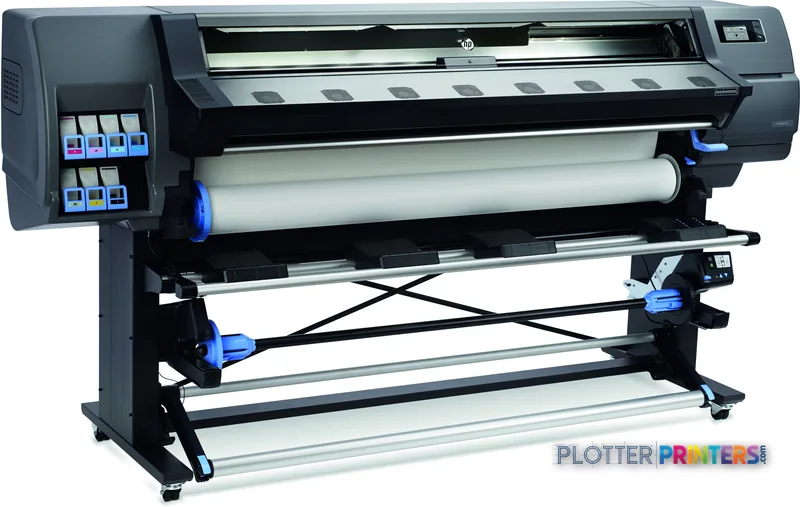

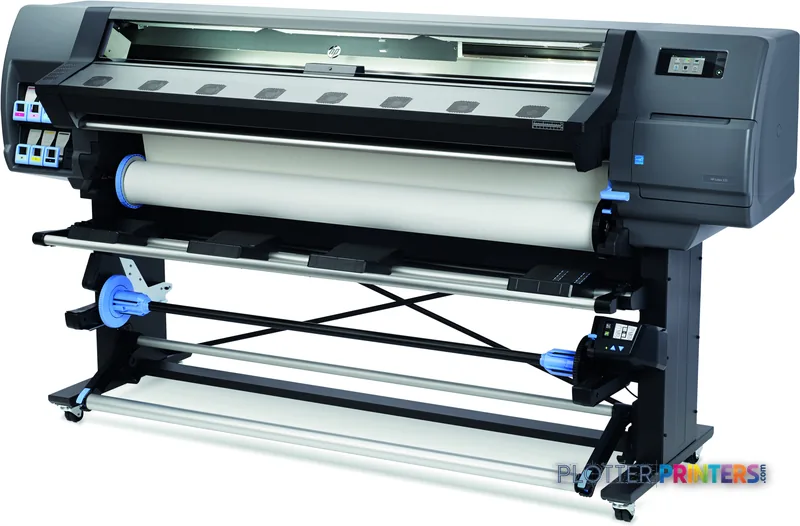

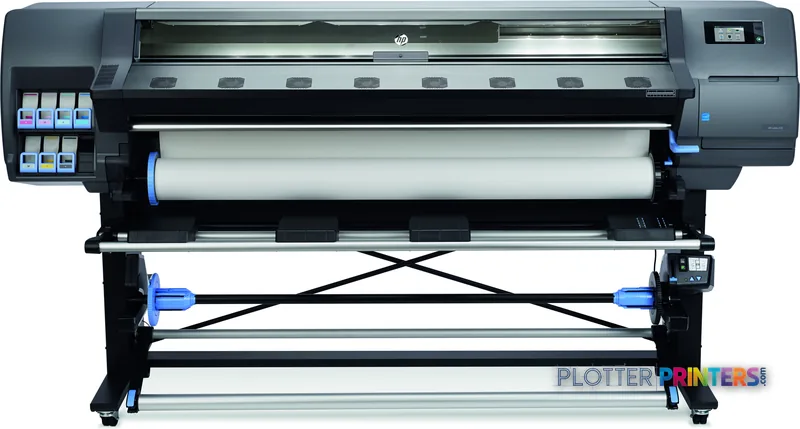

HP Latex 335

Latex ink is water-based and cures with heat, so prints come off the roll dry, low-odor and ready to handle. For a construction office that hangs graphics in occupied lobbies or client spaces, that matters — no solvent smell, no long off-gassing wait. HP rates the machine at 91 m²/hr in normal quality, but that’s a rated pace, not a finished-job number. Add roll loading, cure time on the takeoff, and cutting, and your real throughput per shift lands well below the headline.

Six inks — black, cyan, light cyan, light magenta, magenta and yellow — give you the light colors that keep gradients and rendered skies smooth. That’s a graphics color set, tuned for photographic and presentation output, not the crisp monochrome linework of a technical plot.

On a wide-format graphics machine, the printer is the easy part. The roll workflow is where a shift is won or lost. The 335 takes rolls up to 9.84 inches in diameter and media up to 0.02 inches thick, on 2-inch or 3-inch cores via the HP Series 300 64-in spindles. Watch three things on the shop floor: how fast an operator swaps a spent roll, how flat the media lands after curing, and edge quality on cut. HP offers a HP Latex 54 Cutting Solution and HP Latex 64 Cutting Solution if you want to add cutting to the line, plus the HP Series 300/500 Edge Holder Kit for media that wants to curl at the edges.

Consumables are straightforward: HP 831 Latex inks in 775-ml cartridges and the HP 831 printheads, with the HP Latex User Maintenance Kit for scheduled upkeep. Big cartridges mean fewer interruptions on long runs — good for a small shop that can’t staff a full-time operator.

This machine fits AEC firms that produce their own presentation and site graphics and want to stop outsourcing banners and boards. It’s the front-of-house color engine, not the technical plotter. If your daily reality is bid sets, redlines and as-builts on bond, this is the wrong tool — you want a dedicated plan plotter for that linework, and you’d keep the 335 alongside it, not instead of it.

Shopping the same 64-inch graphics class, the obvious cross-brand comparisons are Epson’s resin and dye-sub lines. Weigh it against the Epson SC-R5000 64-in resin printer or, on the eco-solvent-alternative side, the Epson F9470 64-in. Run a side-by-side on ink chemistry and media handling before you commit — and check the full 64-inch class ranking to see where each lands.
