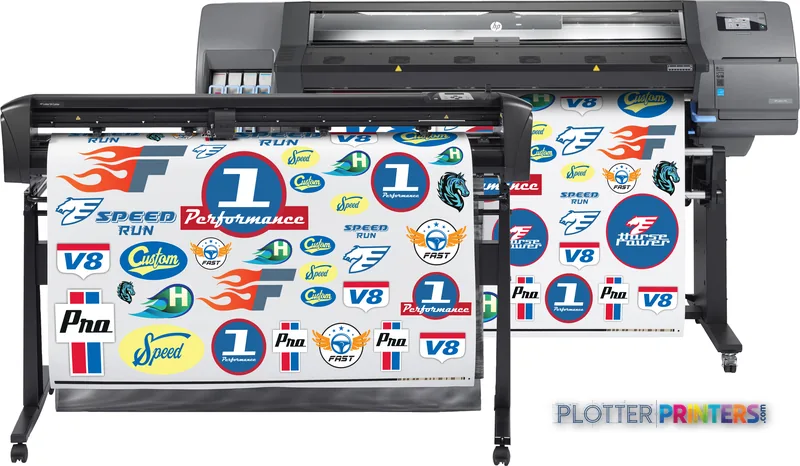

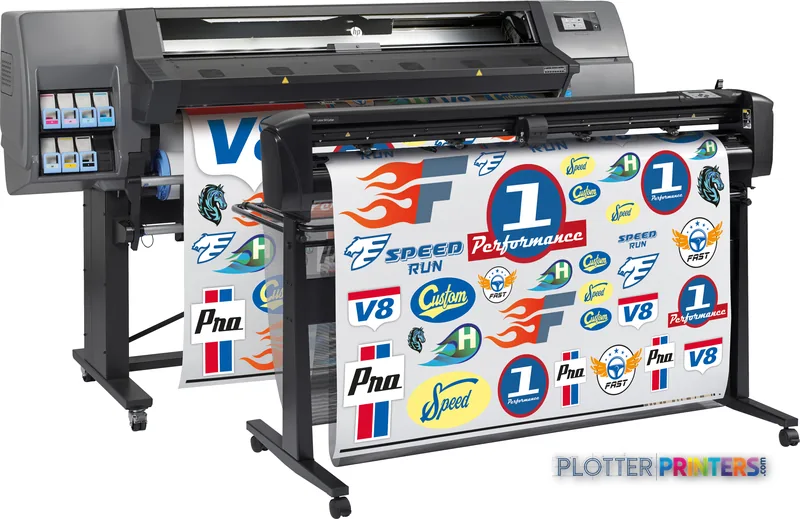

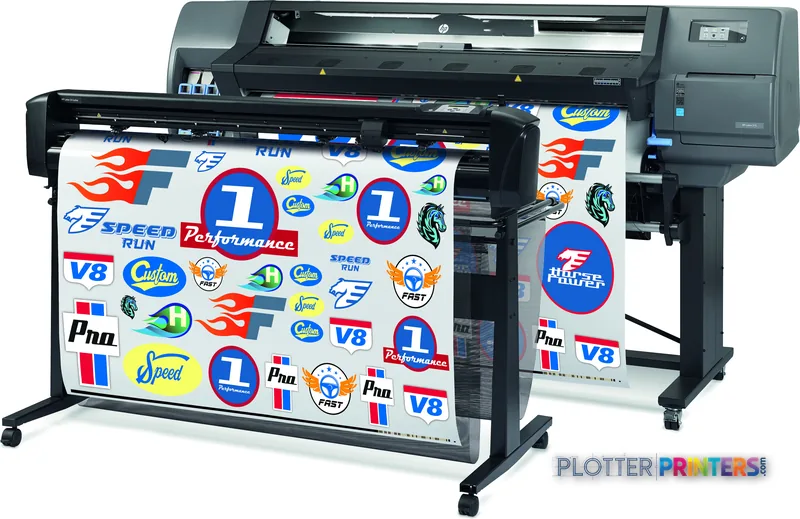

HP Latex 315

This machine fits small and mid-sized AEC groups that produce more than drawings: jobsite identification, temporary directional graphics, safety communication, fleet or tool labels, project-room visuals, and marked-up map panels. The bundled HP FlexiPrint and Cut RIP gives the workflow a dedicated print-and-cut starting point rather than leaving staff to assemble the process from unrelated applications.

The six-color ink set and listed 1200 x 1200 DPI resolution make it a sensible candidate where color hierarchy matters—think utility-marking maps, phased logistics boards, and coordination graphics. It has Ethernet LAN, not Wi-Fi or USB, so IT should plan a wired network location and define who submits jobs, maintains files, and manages access. Review the wide-format class ranking alongside your actual media and finishing workflow, not as a substitute for a live media test.

The 54-inch width is a useful ceiling for common graphics and boards, but the machine supports rolls only up to a 7.1-inch diameter. That matters when a site-office deadline calls for repeated runs: roll changes, alignment checks, and cut-job handling become part of the shift. The optional HP Latex 54-in Take-up Reel can be relevant for longer unattended print runs; it does not remove the need to plan take-down and cut-stage labor.

There is no scanning or copying function. That is the correct trade-off for a graphics-focused device, but it means legacy plan capture, field redlines, and scan-to-network work remain another device’s job. For teams assessing output quality and evaluation criteria, see how we evaluate wide-format equipment.

Plan consumables around the HP 831 ink family, HP 831 printheads, and the HP Latex User Maintenance Kit. Keep the operator routine simple: check media condition, watch edge behavior, confirm cut-ready files, and avoid treating a late-afternoon roll swap as a minor detail. An hour of downtime is an operator standing still and a truck waiting.

Its 91-inch width, 33-inch depth, 54-inch height, and 383.6 lbs call for a measured installation plan rather than an improvised corner of the studio. Printing sound pressure is listed at 54 dB, while typical power consumption is listed at 2200 W. The small-shop angle is straightforward: this can consolidate occasional graphics work, but it is less appropriate when the team also needs high-volume plan production, integrated scanning, or broad unattended roll capacity. For color-management context, visit ICC profile guidance.
