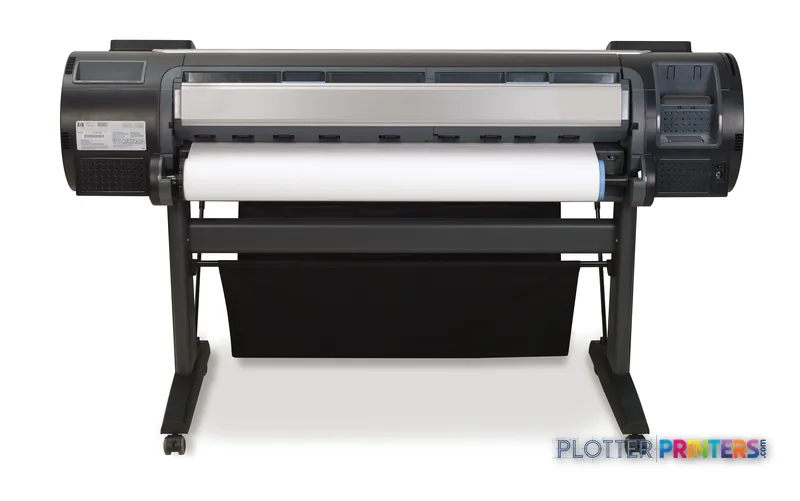

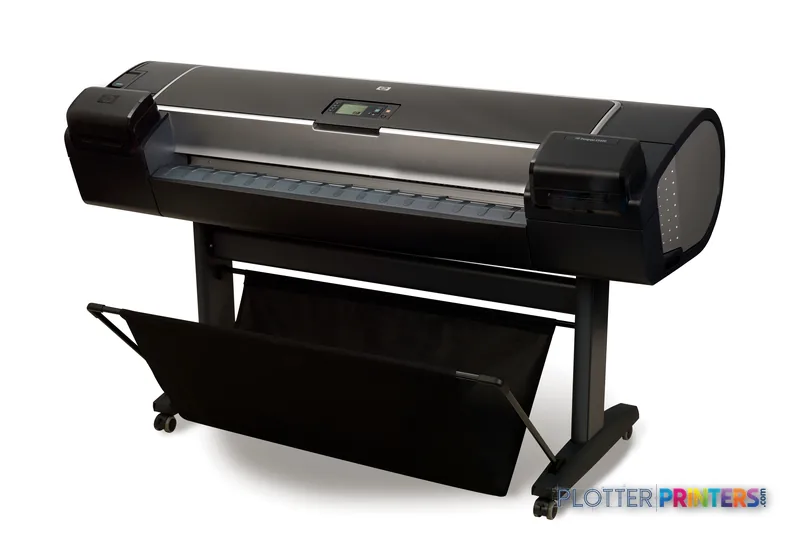

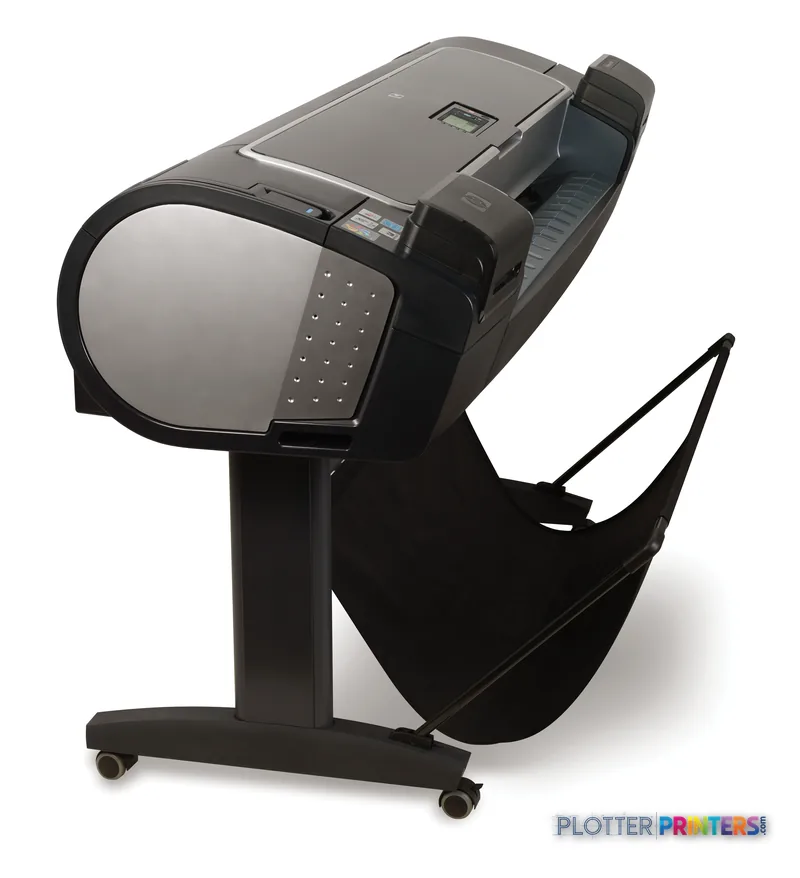

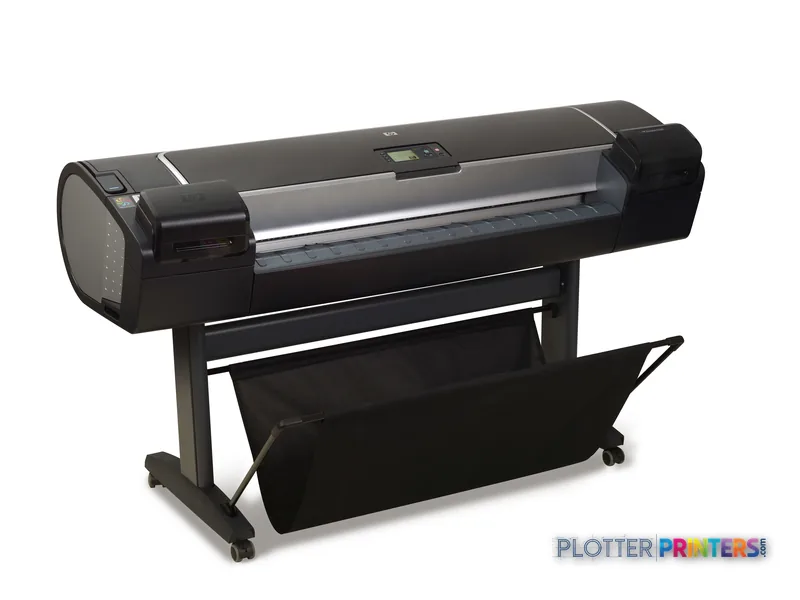

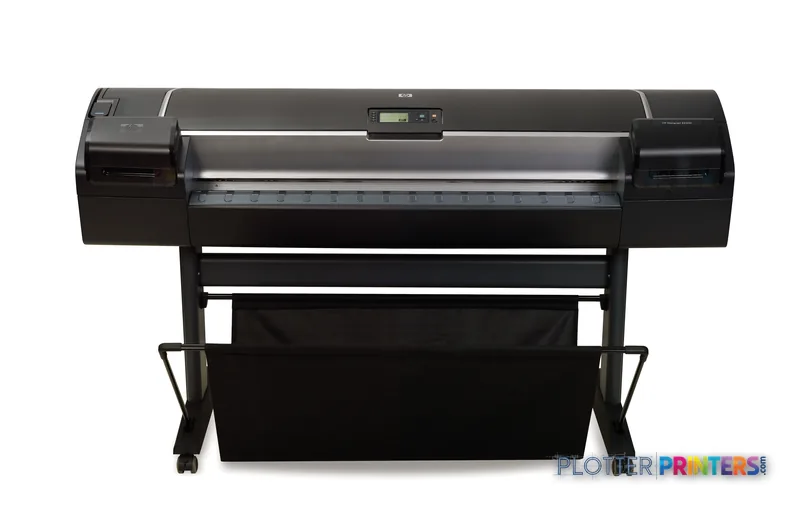

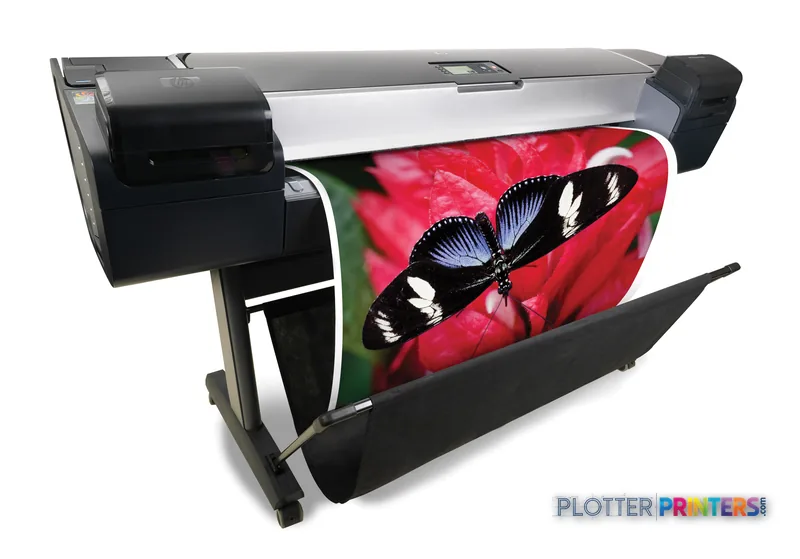

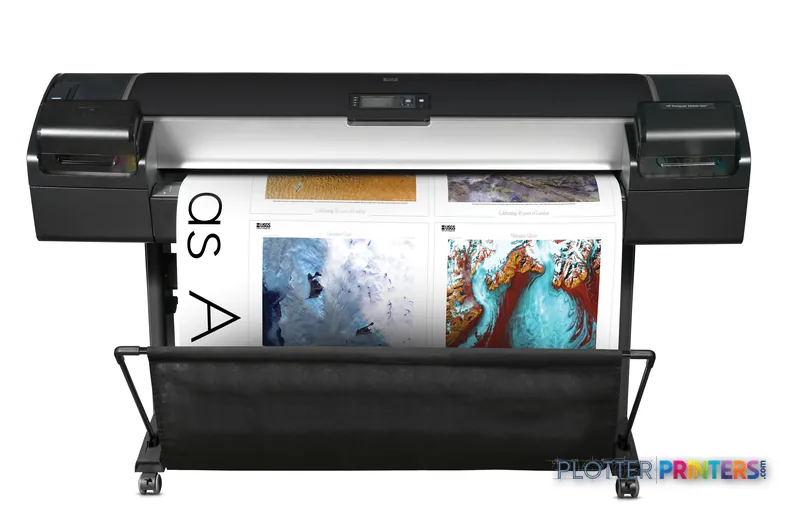

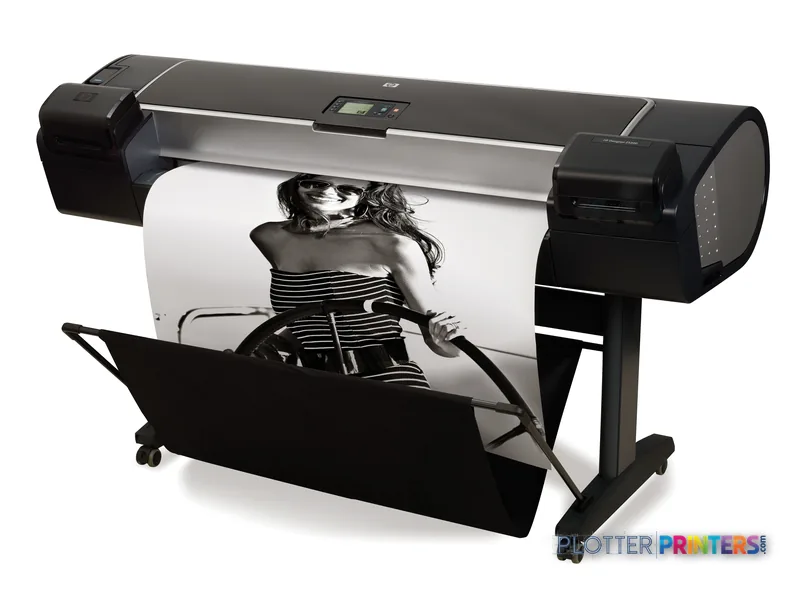

HP DesignJet Z5200

The Z5200 is particularly well suited to small and mid-sized architecture, engineering and construction teams that need color without separating every technical sheet from every graphic job. Its stated minimum line width of 0.00315″ (0.0800 mm) and +/- 0.2% line accuracy speak directly to the disciplines that live in tight details: structural connections, MEP overlays, survey control drawings and dense bid-set annotations.

It supports A4 through A0 media and accepts material up to 0.031″ (0.8 mm) thick. That gives a print room flexibility for ordinary plan output as well as proofing paper and heavier presentation media. The machine uses eight cartridges and supports HP 70 inks and HP 70 printheads. Color capability matters for phasing plans, GIS layers and coordination drawings, but no measured gamut or ΔE data is provided here; it would be unwise to turn the resolution figure into a claim about color fidelity.

For established environments, the combination of Gigabit Ethernet, USB Type-A, a 160 GB internal drive and 32768 MB of memory supports shared submission and holding substantial job data locally. HP-GL/2 and TIFF are listed page-description languages, which is relevant to CAD-originated plotting and raster map output. The named operating-system support, however, is rooted in Windows XP through Windows 7, older Mac OS X releases, Novell NetWare and Citrix platforms. IT teams should validate driver deployment and security controls against their present network before treating it as a straightforward fleet addition.

The practical constraint is media capacity: maximum roll input is 1. A single roll is manageable for recurring plain-paper plan sets, but it is less comfortable when a team shifts repeatedly between bond, proofing media and presentation stock. A larger in-family alternative such as the HP Z5600 44-in may be worth reviewing when wider output is required. For output that remains within A0 and is predominantly technical, the Z5200’s narrower format can be the more disciplined fit.

This is not the right tool for a print room that needs long unattended runs across several media types, frequent rapid switching between rolls, or output wider than A0. Nor is the rated 41 m²/hr normal-quality speed a promise of completed, collated construction sets per hour. In a real queue, PDF complexity, first-sheet processing, roll loading and operator intervention matter.

Firms needing a broader-format production path can compare the Z5200 with the HP Z6600 44-in or use the Z5200 and Z5600 comparison to focus the discussion on width and workflow. A color-critical presentation team should also request output on its own specified media, with its own rendered files, before setting expectations for renderings or branded boards.
