Home / Wide-Format Printers / HP DesignJet
HP · Wide-Format Plotter

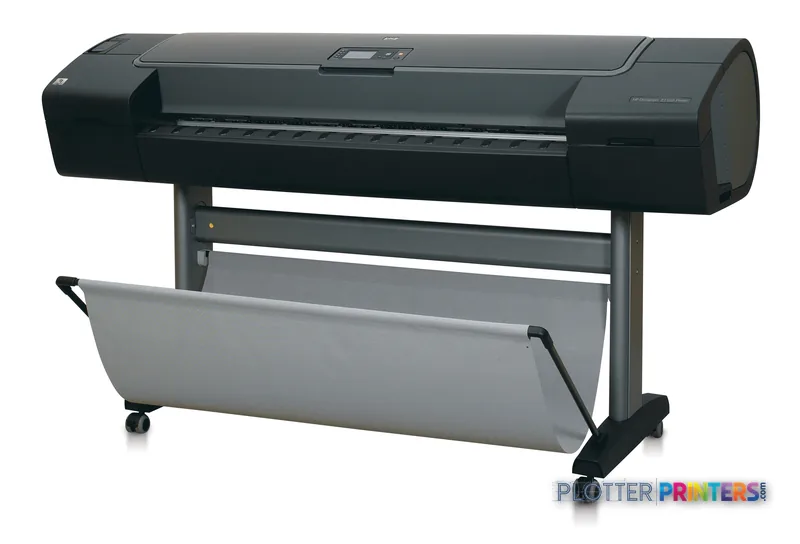

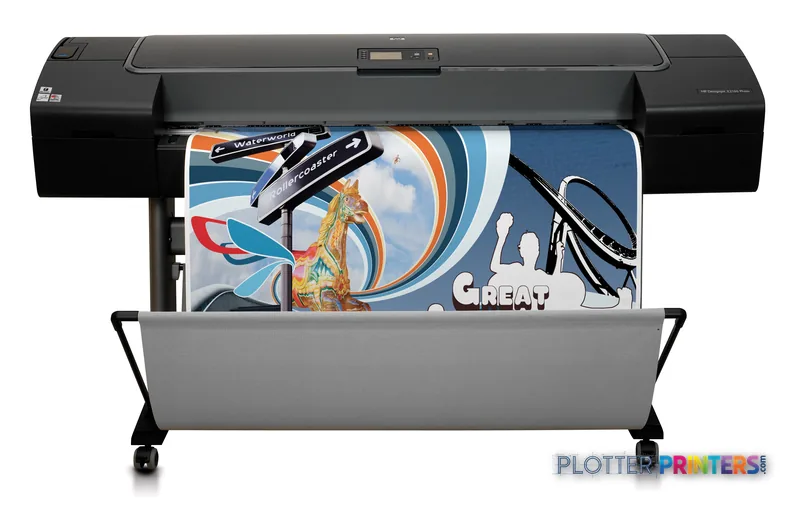

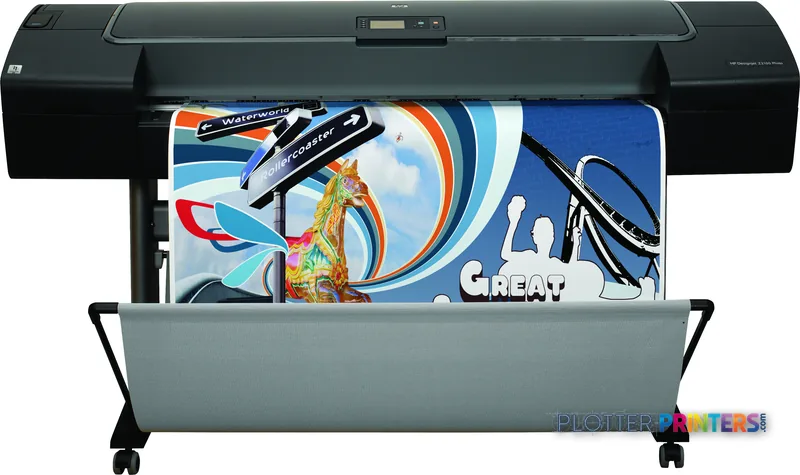

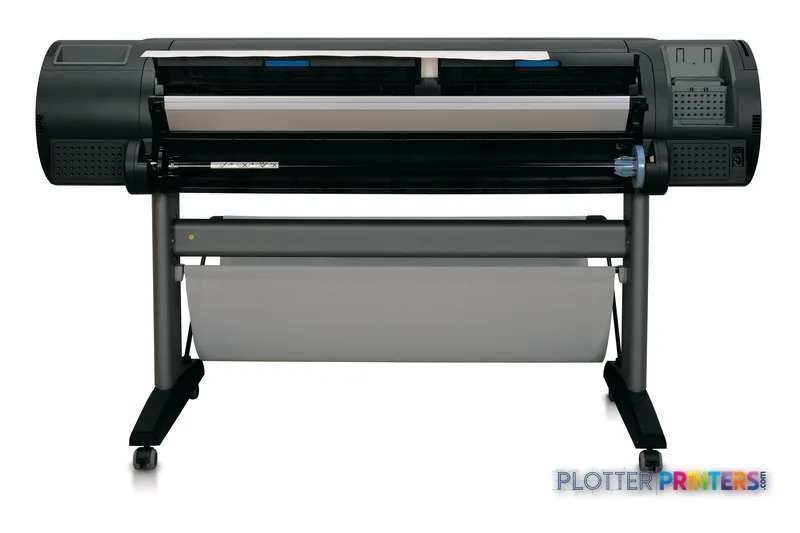

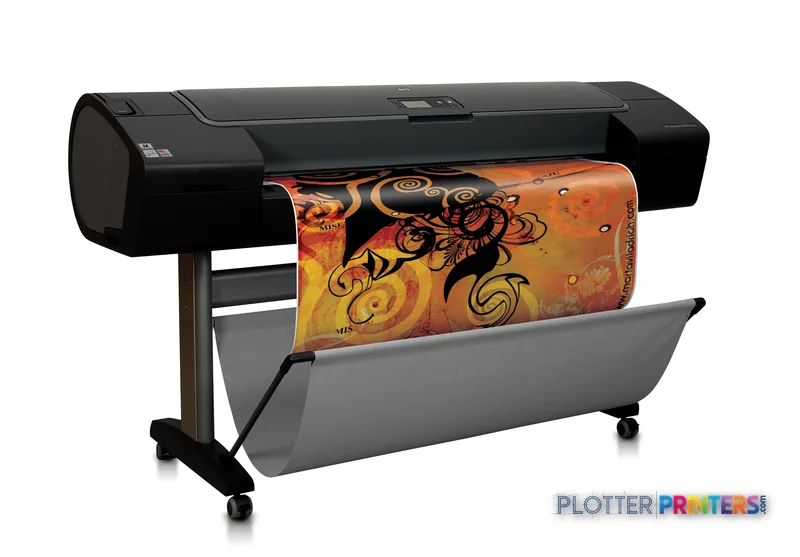

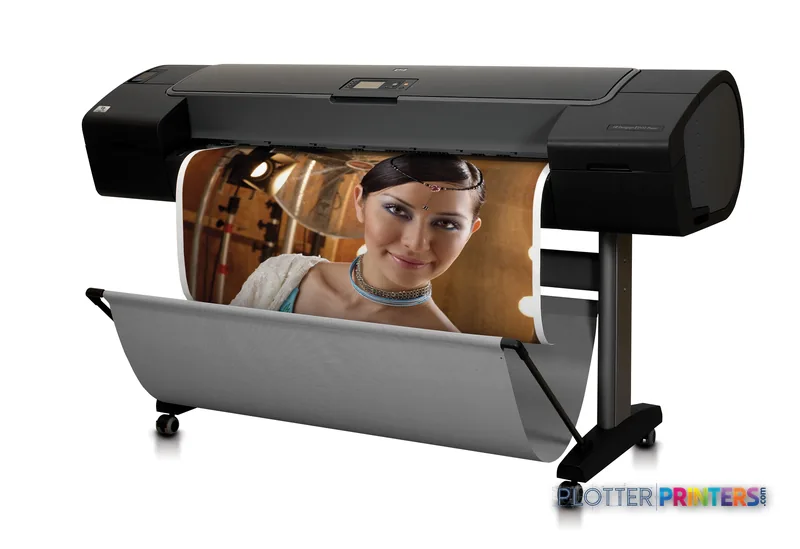

HP DesignJet Z2100
44" color graphics & photo printer
- ModelZ2100
- Prints44" wide
- Score54/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The 44-inch HP Z2100 combines eight-color output with specifications aimed at detailed CAD and presentation documents.
- Its stated minimum line width of 0.00200 in and line accuracy of +/- 0.2% are relevant to fine AEC annotation and technical graphics.
- A single roll input makes it less convenient for frequent alternation among common plan sizes and media types.
Not sure if the Z2100 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 44" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 54/100 in our class-relative rating.
Overview
Built for the work
HP Designjet Z2100 44", 2400 x 1200 DPI, Cyan, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Yellow, 15 min/page, 7.9 min/page, A0 (841 x 1189 mm), A0, A1, A2, A3, A4
- 44″Max print width
- 150 ft²/hRated speed
- 8Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The 44-inch HP Z2100 combines eight-color output with specifications aimed at detailed CAD and presentation documents.
- Its stated minimum line width of 0.00200 in and line accuracy of +/- 0.2% are relevant to fine AEC annotation and technical graphics.
- A single roll input makes it less convenient for frequent alternation among common plan sizes and media types.
- Rated normal-quality output of 7.9 min/page calls for realistic planning around issue-set deadlines.
- The published legacy operating-system support should be reviewed carefully by IT teams managing current Windows and macOS environments.
On a coordination drawing, the test is not whether color is merely present; it is whether the cyan edge of a utility overlay stays distinct from structural markups, and whether fine notes remain calm and readable at full size. The HP Z2100 44-in is a color wide-format printer for that more considered side of AEC output: presentation boards, GIS maps, color-coded PDFs, renderings, proofing and plan sheets where linework and image content share the page.

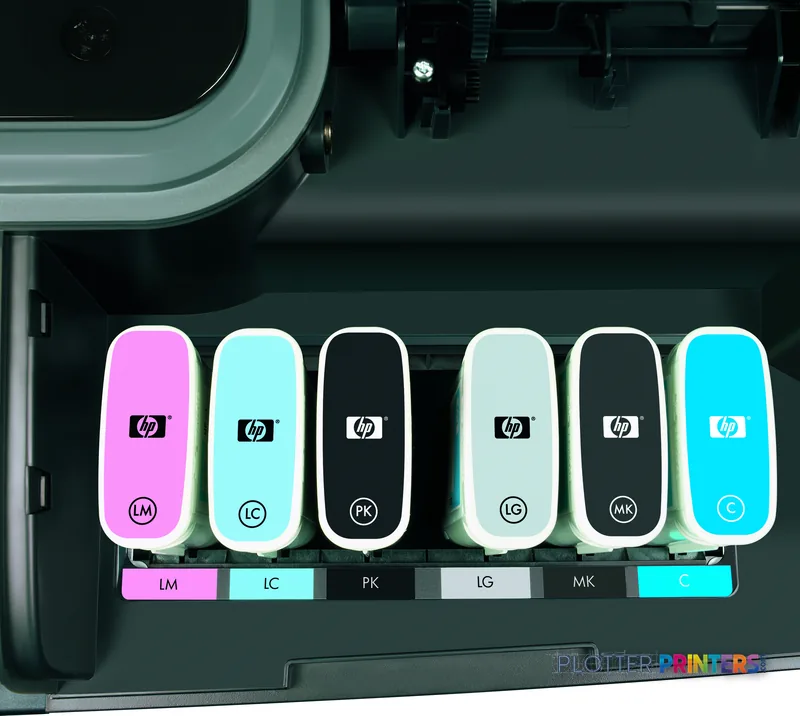

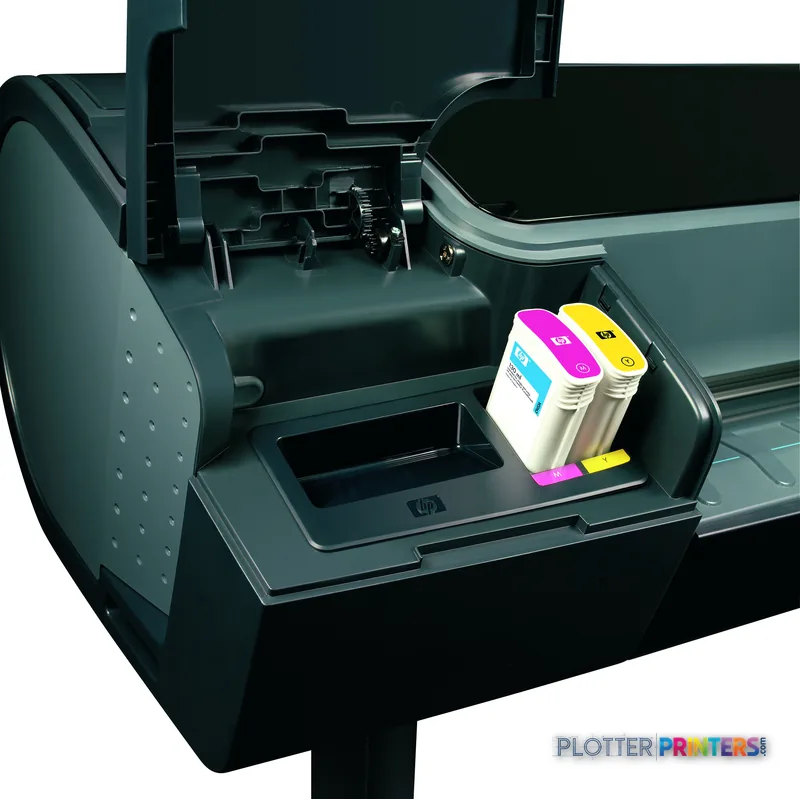

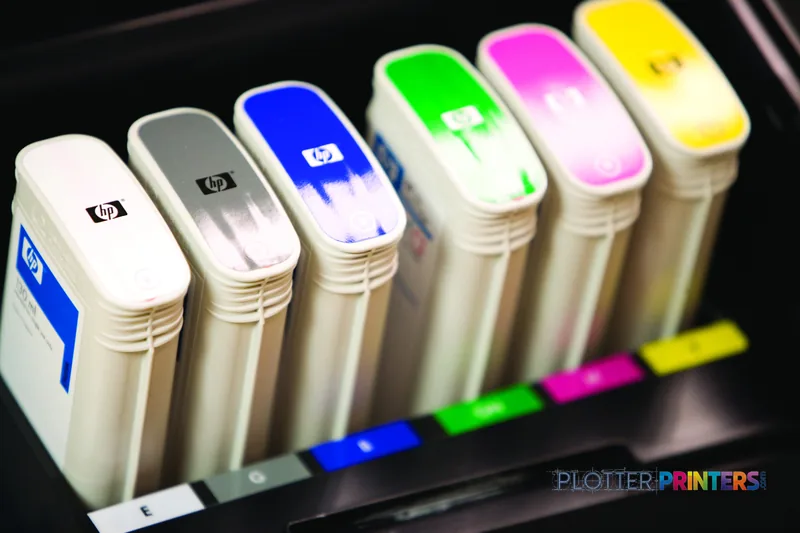

Its eight-ink system includes matte black, photo black, light gray, light cyan and light magenta alongside CMY inks. With 2400 x 1200 DPI maximum resolution, a stated minimum line width of 0.00200 in, and +/- 0.2% line accuracy, it has the relevant specifications for detailed CAD and visual-document work. Those figures deserve workflow context: this is a single-roll device, so it favors deliberate jobs over a print-room stream of mixed-width sets.
44"Print widthRoll-paper capable
2400 x 1200 DPIMaximum resolutionMaximum specified resolution
+/- 0.2%Line accuracySpecified line accuracy
7.9 min/pageNormal-quality speedRated normal-quality speed
Where it fits in an AEC workflow
This machine is particularly well suited to an architecture studio or engineering group that needs color to carry meaning—not just decorate a drawing. It accepts roll, coated, glossy, photo and proofing papers, with media thickness up to 0.031 in. That makes it a credible common device for a planning exhibit one hour and a detailed design review sheet the next, provided the team can work within a one-roll-at-a-time workflow.
The 80 GB internal storage, embedded web server, Ethernet LAN and USB Type-A connection are useful practical provisions for a shared office device. For teams maintaining older workstations or controlled environments, the published operating-system list includes Windows XP through Windows 7, Windows Server 2003 and 2008, Mac OS X v10.4 and v10.5, Novell NetWare, and Citrix environments. IT should treat that list as a compatibility starting point, rather than an assurance for a modern managed endpoint estate.
Color and linework: what the specifications support
The ink configuration suggests a machine designed to render both neutral detail and photographic material with more tonal control than a basic four-color plotter. Light gray and the two black inks matter most where grayscale elevations, shaded GIS layers and presentation imagery need to coexist. We do not have measured ICC gamut-volume data for this model, so there is no responsible basis for claiming a quantified color advantage over another printer. Paper choice, driver settings and calibration remain decisive.
For technical documents, the stated 1200 DPI black quality in normal and draft modes, 2,112 printhead nozzles, and +/- 0.2% line-accuracy specification point toward careful line reproduction. That becomes meaningful on structural details, MEP overlays and survey drawings with dense annotation. It does not, by itself, guarantee dimensional acceptance for every regulated or contractual application; firms should validate a representative drawing and their required scale checks on the intended media.
Estimate rated plotting time for your likely page count, then allow additional time for loading, file preparation and collecting output.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 150 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Capacity trade-offs and nearby choices
The Z2100’s limitation is straightforward: it has one roll input. A team repeatedly alternating between 24-inch check plots and 36- or 44-inch issue sheets will need to schedule media changes. Its rated best-quality speed of 15 min/page and normal-quality rating of 7.9 min/page also place it better with composed graphics, proofs and occasional color plan output than with a deadline-driven batch of construction sets.
If 44-inch output is more capacity-sensitive, review the HP Z5400 44-in or HP Z5600 44-in as in-family alternatives. If the real constraint is floor space and output width rather than image work, the HP DesignJet Z2100 24-in is the direct narrower-format counterpart. For a side-by-side specification review, use the Z2100 and Z5400 comparison rather than assuming that a higher-positioned model resolves every workflow issue.
Compare and evaluate
HP Z5400 44-inA same-width in-family alternative for buyers assessing the next step up.HP Z5600 44-inAnother 44-inch in-family option to examine for a busier output environment.HP DesignJet Z2100 24-inThe narrower-format counterpart for teams with smaller-sheet requirements.Wide-format class rankingSee this machine in the context of its product class.
The read
The HP Z2100 44-in makes sense when a shared AEC printer must handle detailed color plans and presentation-oriented media without becoming a dedicated production line. Its specifications support fine-line and image-led work, and its Ethernet, USB and embedded management features suit a controlled office installation. The trade-off is single-roll operation and rated page times that demand realistic scheduling. Choose it for measured, color-conscious output; move toward the HP Z5400 44-in or HP Z5600 44-in when throughput and media switching carry more weight than deliberate presentation printing.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 10 compared
Class best 79 — Epson SureColor T7770DR
74% spec coverage
- This printer
- Epson SureColor T7770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 44 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Yellow |
| Number of print cartridges | 8 |
| Internal memory | 128 MB |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.8 mm |
| Maximum roll diameter | 5.35" (13.6 cm) |
| Ethernet | Yes |
| Power consumption | 200 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width44"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Printing colors | Cyan, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Print head nozzles | 2112 |
| Number of print cartridges | 8 |
| Print speed (best quality) | 15 min/page |
| Print speed (normal quality) | 7.9 min/page |
Performance
| Storage media | HDD |
|---|---|
| Internal memory | 128 MB |
| Processor frequency | 600 MHz |
| Internal storage capacity | 80 GB |
Paper handling
| Roll paper | Yes |
|---|---|
| Media thickness | 0.8 mm |
| Maximum print size | A0 (841 x 1189 mm) |
| Maximum roll length | 3598.4" (91.4 m) |
| Maximum roll diameter | 5.35" (13.6 cm) |
| Recommended media weight | 500 g/m² |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Weight | 189.6 lbs (86 kg) |
|---|---|
| Size (imperial) | 44" |
| Dimensions (WxDxH) | 69.7 x 27.2 x 41.2" (1770 x 690 x 1047 mm) |
| Maximum dimensions (W x D x H) | 69.7 x 27.2 x 41.2" (1770 x 690 x 1047 mm) |
| Product dimensions when open (LxWxD) | 69.7" |
Power
| Power consumption (typical) | 200 W |
|---|
Operational conditions
| Operating temperature (T-T) | 41 – 104 °F |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Photo paper | Yes |
|---|---|
| Coated paper | Yes |
| Glossy paper | Yes |
| Line accuracy | +/- 0.2% |
| Proofing paper | Yes |
| Minimum line width | 0.00200" (0.0508 mm) |
| Roll maximum input | 1 |
| Embedded web server | Yes |
| JetDirect Compatible Products | Y |
| Maximum media length (imperial) | 66" |
| Print quality (black, draft quality) | 1200 DPI |
| Print quality (black, normal quality) | 1200 DPI |
Logistics data
| Pallet weight | 271.2 lbs (123 kg) |
|---|---|
| Quantity per pallet | 1 pc(s) |
Packaging data
| Package weight | 271.2 lbs (123 kg) |
|---|---|
| Package dimensions (WxDxH) | 77.4 x 30.7 x 30.7" (1965 x 780 x 780 mm) |
| Package dimensions (W x D x H) | 77.3 x 30.7 x 30.7" |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Compatible operating systems | Windows 7, Windows Vista (32, 64-bit); Windows Server 2008 (32, 64-bit); Windows XP Home / Professional (32, 64-bit); Windows Server 2003 (32/64 bit); Mac OS X v 10.4; Mac OS X v 10.5; Novell NetWare 5.x, 6.x; Citrix XenApp; Citrix XenServer |
|---|
