HP · Wide-Format Plotter

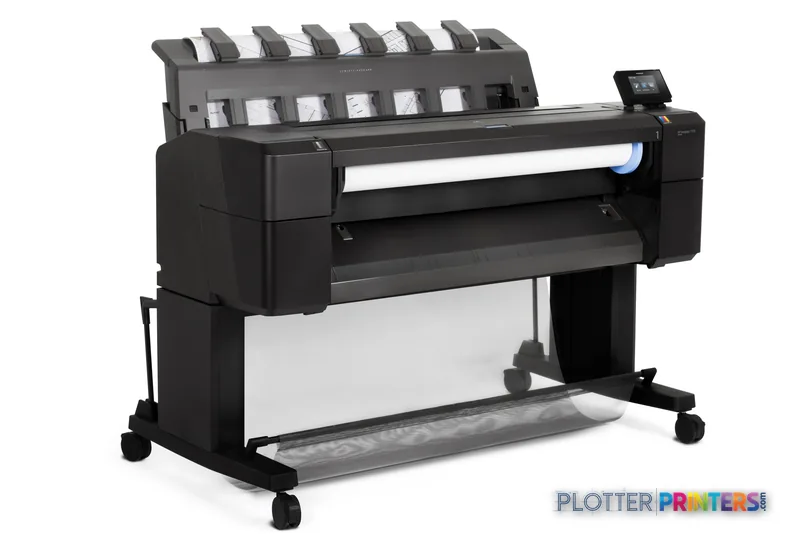

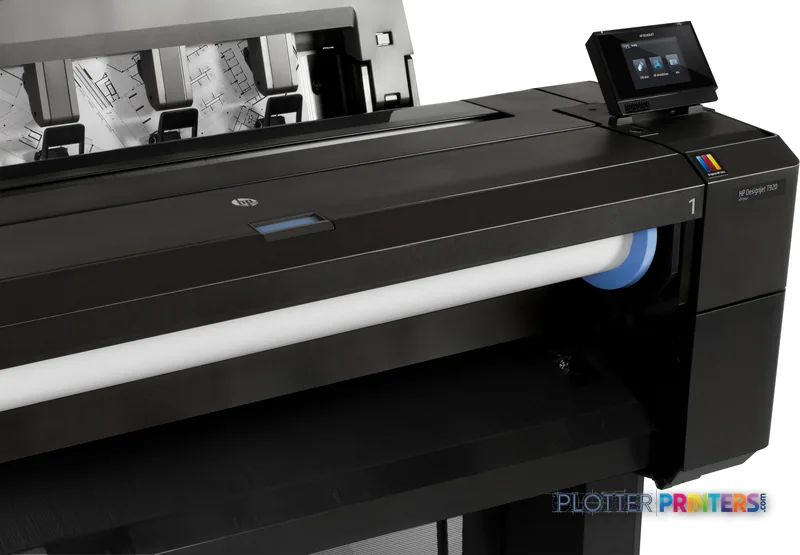

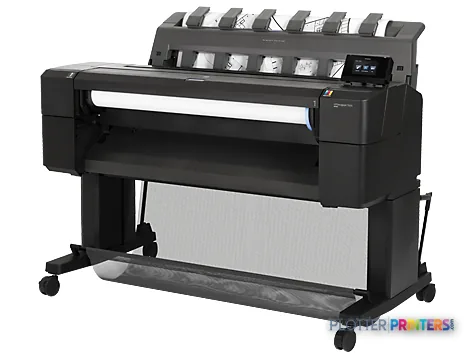

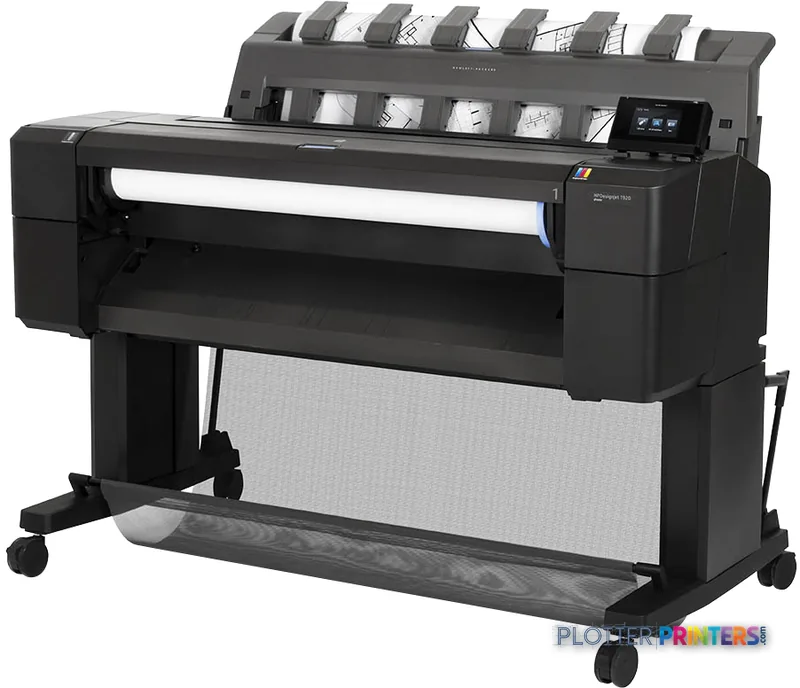

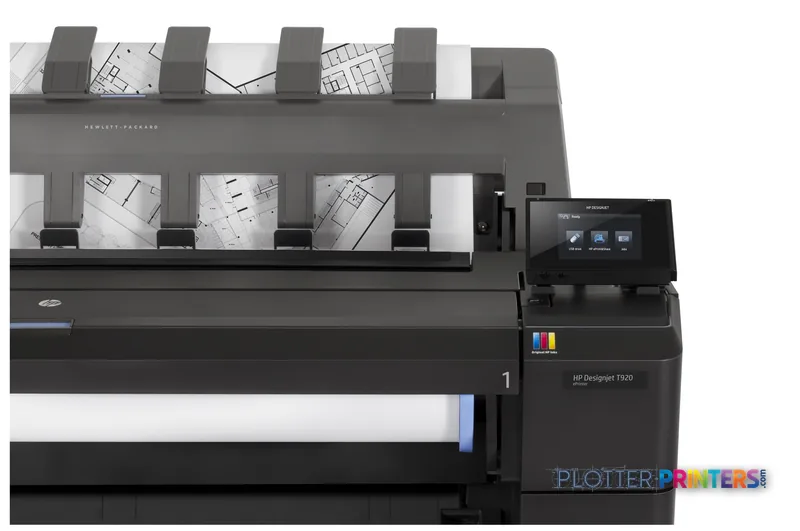

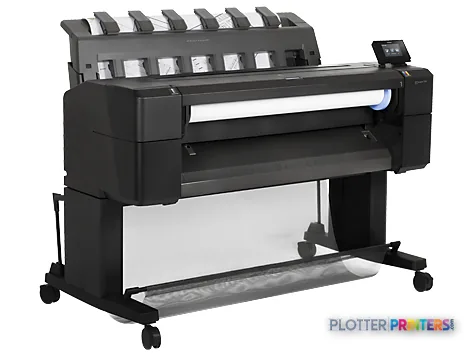

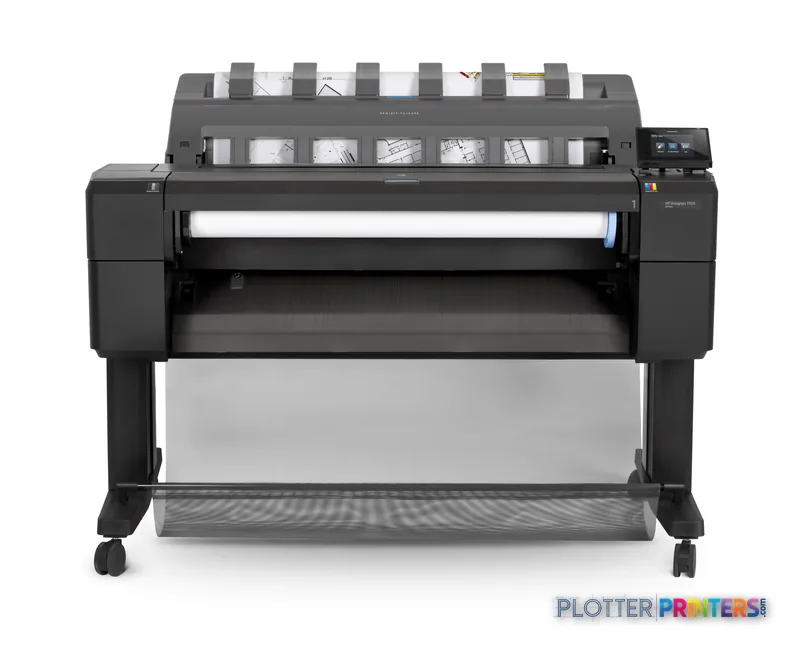

HP DesignJet T920 PS ePrinter
36" color graphics & photo printer
- ModelCR355A
- Prints36" wide
- Score72/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Not sure if the CR355A is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Gray, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 72/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T920 914 mm PS ePrinter, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, PDF 1.7, PostScript 3, TIFF, Cyan, Gray, Magenta, Matte black, Photo black, Yellow, 120 pph, A1 (594 x 841 mm)
- 808 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers
70% spec coverage
- This printer
Verified specifications
The specs that decide it
| Print technology | Thermal inkjet |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PDF 1.7, PostScript 3, TIFF |
| Internal memory | 32 MB |
| Maximum print size | A1 (594 x 841 mm) |
| Media thickness | 0.3 mm |
| Maximum roll diameter | 5.51" (14 cm) |
| Ethernet | Yes |
| Power consumption | 120 W |
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PDF 1.7, PostScript 3, TIFF |
| Print speed (line, black, economy mode, A1) | 120 pph |
Performance
| Storage media | HDD |
|---|---|
| Internal memory | 32 MB |
| Internal storage capacity | 320 GB |
Paper handling
| Roll paper | Yes |
|---|---|
| Media thickness | 0.3 mm |
| Maximum print size | A1 (594 x 841 mm) |
| Maximum roll length | 3582.7" (91 m) |
| Maximum roll diameter | 5.51" (14 cm) |
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Roll |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Depth | 27.3" (693 mm) |
|---|---|
| Width | 55.1" (1399 mm) |
| Height | 37.4" (950 mm) |
| Weight | 191.8 lbs (87 kg) |
Power
| Power consumption (typical) | 120 W |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the HP DesignJet T920
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
21 ink cartridges · 1 printhead · 44 paper & media items · 3 accessories
HP DesignJet T920 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T920 PS ePrinter 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 21
HP Premium Gloss 610 mm x 15.2 m (24 in x 50 ft)
HP Premium Gloss 914 mm x 22.9 m (36 in x 75 ft)
HP Premium Matte White
HP 727 Cyan Ink Cartridge, 40 ml (B3P13A)
HP 727 Photo Black Ink Cartridge, 40 ml (B3P17A)
HP 727 Yellow Ink Cartridge, 40 ml (B3P15A)
HP 727 Gray Ink Cartridge, 40 ml (B3P18A)
HP 727 Magenta Ink Cartridge, 40 ml (B3P14A)
HP 727 300-ml Matte Black Ink Cartridge
HP 727 130-ml Cyan Ink Cartridge
HP 727 130-ml Gray Ink Cartridge
HP 727 130-ml Yellow Ink Cartridge
HP 727 130-ml Photo Black Ink Cartridge
HP 727 130-ml Magenta Ink Cartridge
HP 727 300-ml Photo Black Ink Cartridge
HP 727 300-ml Yellow Ink Cartridge
HP 727 300-ml Magenta Ink Cartridge
HP 727 300-ml Gray Ink Cartridge
HP 727 300-ml Cyan Ink Cartridge
HP 727 130-ml Matte Black Ink Cartridge
HP 727 Matte Black Ink Cartridge, 69 ml (C1Q11A)Printheads 1
Paper & Media 44
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image230gsm Special Matte Photo PaperRepresentative image200gsm Special Matte Photo PaperRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)
HP Q1420A photo paper Brown, White
HP Matte Film 610 mm x 38.1 m (24 in x 125 ft)Representative imageHP Bright White Inkjet Paper, 36 in x 300 ft (C6810A)
HP C6035A large format media 45.7 m
HP C6036A printing paper Matte White
HP Clear Film 174 gsm-610 mm x 22.9 m (24 in x 75 ft)
HP Q1421A photo paper Brown, White
HP Q6579A photo paper Brown, White
HP Q6580A photo paper Matte
HP Q1441A large format media 45.7 m
HP Q1442A large format media 45.7 m
HP Q1444A printing paper Matte
HP Q1445A printing paper Matte
HP Universal Bond Paper 841 mm x 91.4 m large format media 3598.4" (91.4 m)
HP Q8004A large format media 91.4 m
HP Q7991A photo paper
HP Q1446A plotter paper 45 m 42 cm
HP CH022A printing film
HP CH024A printing film
HP CH023A printing film Polypropylene (PP)
HP Premium Satin 610 mm x 15.2 m (24 in x 50 ft) White
HP Premium Satin 914 mm x 22.9 m (36 in x 75 ft) White
HP CG459B photo paper White Matte
HP Q6626B large format media 30.5 m Matte
HP Q6627B large format media 30.5 m Matte
HP C0F08A printing film
HP C0F12A large format media 22.9 m Matte
HP 2-pack Everyday Adhesive Matte Polypropylene-610 mm x 22.9 m (24 in x 75 ft)
HP C0F19A printing film
HP C0F28A printing film
HP C2T51A printing film
HP C2T53A printing film
Questions
Straight answers
What AEC documents is the HP T920 36-in suited to?
It is suited to color CAD linework, PDF drawing sets, coordination drawings, GIS sheets, and presentation-oriented output up to 36 inches wide. It supports A through E media sizes and lists bond, coated, technical, film, photographic, backlit, and selected self-adhesive media.
How fast is it for D-size/A1 drawings?
HP rates draft color line drawings on A1 plain paper at 120 A1 prints per hour, or 21 seconds per page. Actual completed-set timing also depends on file processing, media handling, and operator workflow.
Can the HP T920 scan and copy drawings?
No. Its listed function is print only. A firm that needs routine scan/copy capability should evaluate a listed scanner/MFP alternative such as the HP DesignJet T950 36-in or HP DesignJet T850 36-in.
Does it handle more than one roll at a time?
No. The maximum roll input is one. That is appropriate for a stable media routine, but less attractive when jobs frequently switch between roll widths or media types.

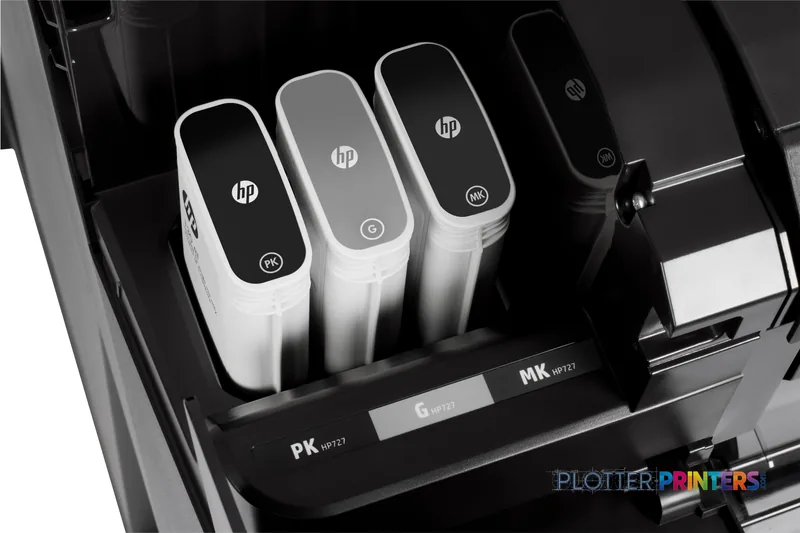

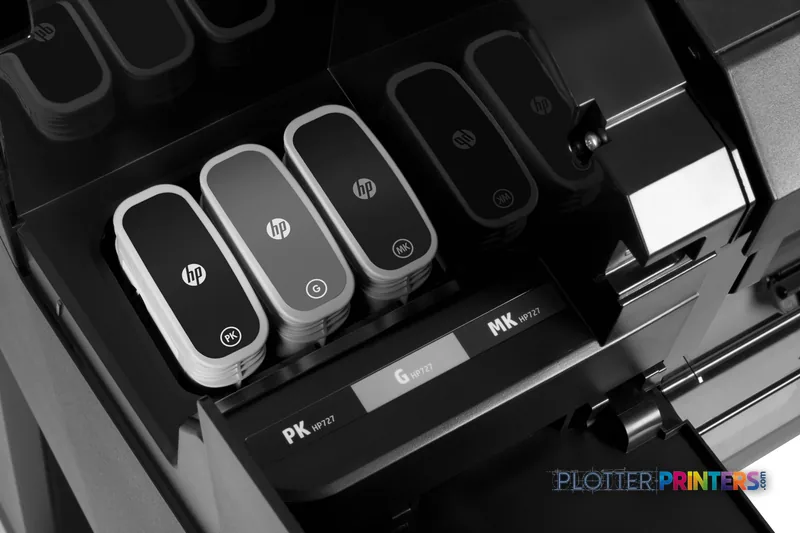

What inks does the HP T920 use?
It uses six HP 727 ink cartridges: cyan, gray, magenta, matte black, photo black, and yellow. The supplied data identifies dye-based cyan, gray, magenta, photo black, and yellow inks, with pigment-based matte black.
What should IT test before deployment?
Test representative HP-GL/2, HP-RTL, PDF, PostScript, and TIFF files through the firm’s intended submission path. Confirm Ethernet or USB use, driver/software compatibility, and how complex drawing files behave before standardizing the workflow.
