HP · Wide-Format Plotter

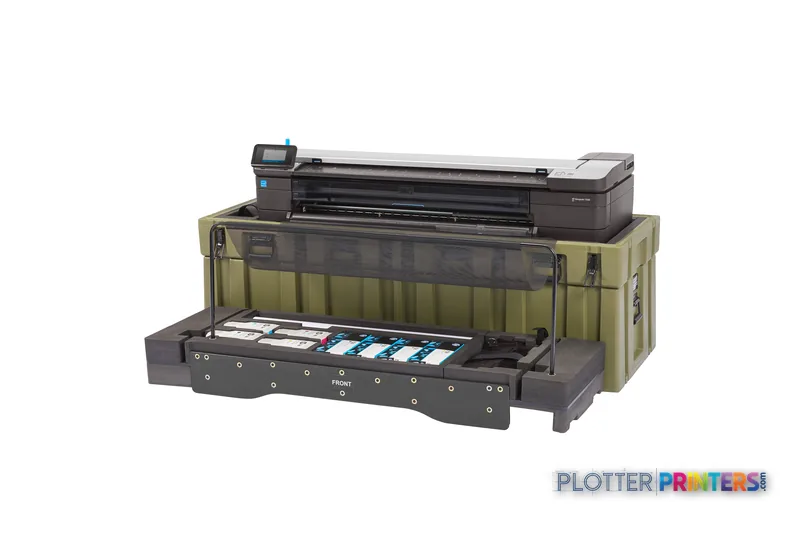

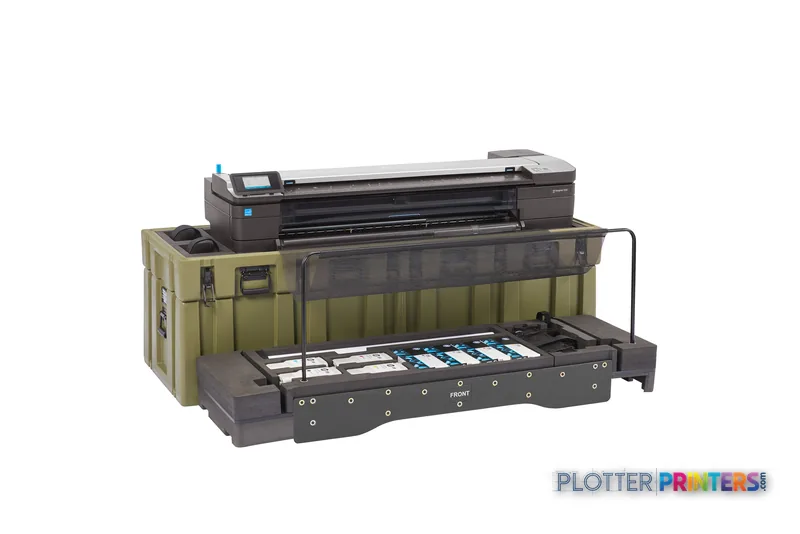

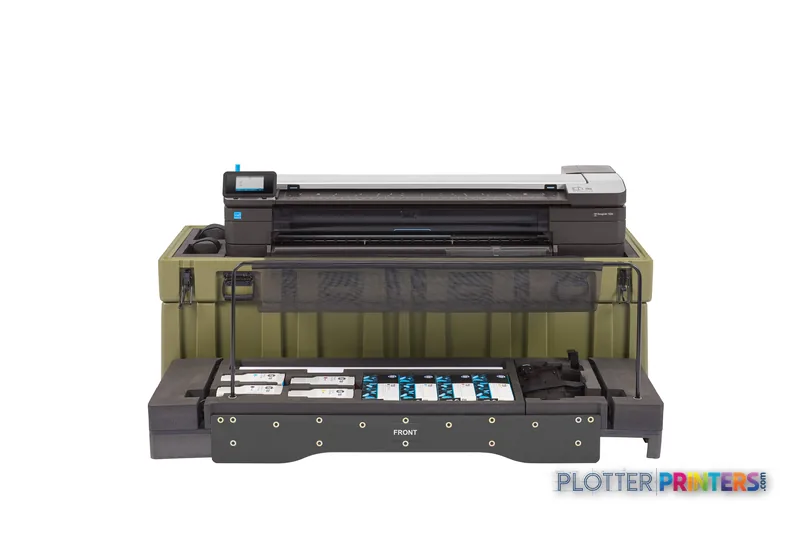

HP DesignJet T830 MFP
36" wide-format MFPs
- ModelT830 MFP
- Prints36" wide
- Score53/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The 36-inch print and scan width suits full-size AEC drawings, color markups, and field-document capture.
- Its integrated color scanner, copier, and scan-to-e-mail or USB functions reduce handoffs for small technical teams.
- A single-roll configuration is practical for planned media changes but less suited to constant mixed-media production.
Not sure if the T830 MFP is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Scan & copy Integrated scanner for digitizing and sharing sets.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 9 specs checked against the manufacturer datasheet.
- Analyst score Scores 53/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T830 MFP with armor case (without Wi-Fi), Inkjet, 2400 x 1200 DPI, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF, Cyan, Matte black, Magenta, Yellow, 2400 x 1200 DPI, Colour copying
- 36″Max print width
- 552 ft²/hRated speed
- 4Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Where it performs best
Connections
100
Size / Fit
92
Print Quality
76
Class best is 73. How we grade →
Expert analysis
What you should know
Key takeaways
- The 36-inch print and scan width suits full-size AEC drawings, color markups, and field-document capture.
- Its integrated color scanner, copier, and scan-to-e-mail or USB functions reduce handoffs for small technical teams.
- A single-roll configuration is practical for planned media changes but less suited to constant mixed-media production.
- HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, and URF support cover several common technical-document formats.
- The supplied data lists Ethernet, Wi-Fi, and Wi-Fi Direct, so the “without Wi-Fi” description should be confirmed before purchase.
- HP 728 inks and the HP 729 printhead are the resolved consumable families for this configuration.
A permit revision arrives at 4:40, the superintendent wants a marked-up sheet at 4:55, and somebody needs the old drawing scanned before it disappears beneath a coffee cup. The HP DesignJet T830 MFP with armor case is built for that compact AEC reality: a 36-inch color inkjet printer, copier, and scanner in one device.
Its value is not merely that it prints plans. It keeps print, color copying, and scan-to-e-mail or USB work at one workstation, handling roll media up to 36 inches wide and print lengths up to 75 inches. For a site office, survey team, or small technical department, that can remove a surprising number of handoffs. Money is minutes; the scanner is free, but the person walking drawings across the building is not.
36" x 75" (914 x 1897 mm)Maximum print size
36" (91.4 cm)Maximum scan width
2400 x 1200 DPIMaximum resolution
0.1%Accuracy
Where it earns its floor space
This machine fits teams producing ordinary plan sets, field markups, color-coded coordination drawings, GIS maps, and presentation-oriented sheets on bond, plain, coated, matte, glossy, or recycled media. HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, and URF support covers several common technical-document paths, while the supplied HP Click App, HP Click Driver for Windows 11, HP Print Preview for Windows, and HP DesignJet Utility for macOS and Windows give users more than one submission route.
The integrated CIS scanner supports color scanning at up to 600 x 600 DPI, with scan-to-e-mail and scan-to-USB destinations. Color copying includes resize settings from 50 to 400 percent and up to 99 copies. That is useful for a revised plan, a marked-up as-built, or a reduced sheet for a coordination meeting; it is less attractive when a document-control group needs a highly automated archive workflow.
For organizations that need the same general MFP concept but mostly work below full-size drawings, the HP DesignJet T830 24-in is the more compact in-family alternative.
Use the plot-time estimator to test a realistic batch of drawings, then allow time for job preparation, roll handling, and collecting completed sheets.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 552 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
The operational trade-offs to check first
The T830 is a single-roll, 36-inch device, so it suits an office or field location that can plan its media changes rather than a centralized room continuously switching between common sheet sizes. Its physical footprint is 67 inches wide by 55 inches deep and 31 inches high, with a weight of 187.4 pounds. Measure the route to the room as well as the room itself; equipment rarely objects to the doorway until delivery day.
For a department needing more continuous media flexibility, the HP DesignJet T1600dr 36-in is the in-family step-up worth evaluating because it is a dual-roll model. The trade-off is that the T830’s integrated scanning and copying are central to its proposition. A printer-only replacement can solve one bottleneck while preserving the walk to a separate scanner.
Consumables for this configuration are HP 728 inks and the HP 729 printhead. The supplied configuration also lists an armor case, printhead, ink cartridges, spindle, refeed preventers, setup materials, and power cord.
Network and IT fit deserves a proper look
The device includes Gigabit-capable Ethernet, Wi-Fi, Wi-Fi Direct, HP ePrint, and Apple AirPrint. Although this listing is described as “without Wi-Fi,” the supplied product data explicitly lists Wi-Fi and Wi-Fi Direct; confirm the exact shipped regional configuration with the seller before standardizing a fleet. It also lists HP Dynamic security, so IT should validate approved HP 728 ink procurement and firmware policy before deployment.
There is one RJ-45 port, 1 GB of internal memory, and a built-in display. Those facts support a practical small-workgroup installation, but they do not replace a site’s authentication, segmentation, logging, or mobile-printing review. The machine is one node in the workflow of people, files, networks, and deadlines. Review the comparison with the HP DesignJet T850 36-in if a current same-width MFP alternative is under consideration.
Related tools
HP DesignJet T850 36-inCompare another current 36-inch HP multifunction option.HP DesignJet T1600dr 36-inReview the dual-roll in-family step-up for broader media availability.Wide-format AEC class rankingPlace this device within its catalog class.How we assess wide-format devicesReview the workflow criteria behind the comparisons.
The read
Choose the HP DesignJet T830 MFP with armor case when a small AEC team needs 36-inch color printing, color copying, and scan capture in one location, and can work comfortably with a single-roll workflow. Choose the HP DesignJet T1600dr 36-in when keeping more than one media roll ready is the larger operational priority. Buy the machine for the workflow you have, not the one the brochure imagines.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP DesignJet T2600dr MFP
Verified specifications
The specs that decide it
| Print technology | HP Thermal Inkjet, 4 colors (C, M, Y, mK) |
|---|---|
| Maximum resolution | Up to 2400 x 1200 dpi optimized |
| Print speed (HP rated) | 26 sec/A1 page; up to 81 A1 prints/hourmanufacturer-verified |
| Roll width | 11 in to 36 in (279 to 914 mm)manufacturer-verified |
| Maximum print length | 610 x 1897 mm (approx. 74.6 in long)manufacturer-verified |
| Network | Gigabit Ethernet (1000Base-T), wired |
| Internal memory | 1 GB |
| Page description languages | HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF |
| Scan technology / resolution | CIS, 600 x 600 dpi optical, up to 36 in wide |
| Noise (printing) | 48 dB(A) sound pressuremanufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution2400 x 1200 DPI
Max print width36"
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Colour | Yes |
|---|---|
| Print head | 1 |
| Print technology | Inkjet |
| Printing colours | Cyan, Matte black, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
Performance
| HP segment | Business |
|---|---|
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Product colour | Black, Grey |
| Internal memory | 1024 MB |

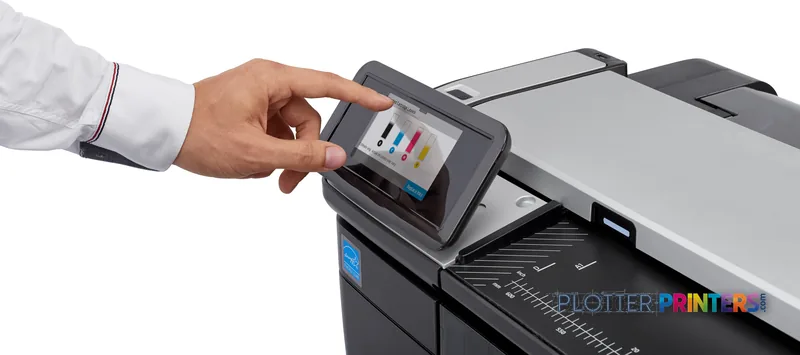

| Built-in display | Yes |
| Country of origin | Singapore |
| Maximum internal memory | 1024 MB |
Paper handling
| Media thickness | 0.8 mm |
|---|---|
| Custom media sizes | Input tray: 210 x 279 to 330 x 482 mm; manual feed: 330 x 482 to 914 x 1897 mm; roll: 279 to 914 mm |
| Maximum print size | 914 x 1897 mm |
| Maximum roll width | 91.4 cm |
| Media width (rolls) | 914 mm |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Recycled paper, Matte paper, Heavy paper, Satin paper |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | No |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| RJ-45 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile printing technologies | HP ePrint, Apple AirPrint |
Technical details
| Box contents | HP DesignJet T830 36-in MFP; armor case; printhead; ink cartridges; spindle; quick reference guide; setup poster; startup software; power cord; refeed preventers |
|---|
Weight & dimensions
| Depth | 1400 mm |
|---|---|
| Width | 1690 mm |
| Height | 790 mm |
| Weight | 85 kg |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 3.5 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (typical) | 35 W |
| Power consumption (PowerSave) | 3.5 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212104 |
|---|---|
| All-In-One-multitasking | Yes |
| Maximum internal memory | 1 GB |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
Copying
| Copying | Colour copying |
|---|---|
| Copier resize | 50 – 400% |
| Maximum number of copies | 99 copies |
Scanning
| Scan to | E-mail, USB |
|---|---|
| Accuracy | 0.1% |
| Scanning | Colour scanning |
| Scan technology | CIS |
| Maximum scan width | 91.4 cm |
| Maximum scan length | 2.77 m |
| Maximum scan resolution | 600 x 600 DPI |
| Optical scanning resolution | 600 x 600 DPI |
Packaging data
| Package depth | 620 mm |
|---|---|
| Package width | 1690 mm |
| Package height | 676 mm |
| Package weight | 121 kg |
| Bundled software | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows |
| Quick start guide | Yes |
| Cartridge(s) included | Yes |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) |
| Sustainable technologies and materials | Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR certified; EPEAT registered |
Brand-specific features
| HP ePrint | Yes |
|---|---|
| HP Dynamic security | Yes |
Everything that fits the HP DesignJet T830 MFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
12 ink cartridges · 27 paper & media items · 3 accessories · 13 coverage plans
HP DesignJet T830 MFP ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T830 MFP 36-in Armor Case — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 12
HP 728 300-ml Yellow Ink Cartridge
HP 728 300-ml Magenta Ink Cartridge
HP 728 300-ml Cyan Ink Cartridge
HP 728 40-ml Yellow Ink Cartridge
HP 728 40-ml Magenta Ink Cartridge
HP 728 40-ml Cyan Ink Cartridge
HP 728 69-ml Matte Black Ink Cartridge
HP 728 300-ml Matte Black Ink Cartridge
HP 728 130-ml Magenta Ink Cartridge
HP 728 130-ml Yellow Ink Cartridge
HP 728 130-ml Cyan Ink Cartridge
HP 728 130-ml Matte Black Ink CartridgePaper & Media 12
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image20LB Inkjet Bond Paper (Tinted) (732)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Accessories 1
Questions
Straight answers
What AEC work is this machine suited to?
It is suited to 36-inch technical drawings, plan revisions, color-coded coordination sheets, GIS maps, field markups, and scanned legacy documents. Its integrated color copying and scanning are especially relevant where one office needs to produce and capture documents locally.
What is the largest drawing it can print and scan?
Maximum print size is 36 x 75 inches. Maximum scan width is 36 inches, and maximum scan length is 2.77 m.
Can it scan directly into project workflows?
The supplied data lists color scanning with scan-to-e-mail and scan-to-USB. Teams requiring automated routing to a document-management platform should confirm their preferred workflow during evaluation.
Does this configuration have wireless connectivity?
The supplied data lists Wi-Fi, Wi-Fi Direct, HP ePrint, and Apple AirPrint, despite the product description saying “without Wi-Fi.” Confirm the exact shipped configuration before ordering or setting network policy.
When should we consider the HP DesignJet T1600dr 36-in instead?
Consider the HP DesignJet T1600dr 36-in when dual-roll capability is more important than the T830’s integrated scan-and-copy role. That distinction matters where operators frequently need different media loaded and ready.
Which inks and printhead does it use?
This configuration uses HP 728 inks and the HP 729 printhead.
