HP · Wide-Format Plotter
36" wide-format MFPs
Analyst take
Not sure if the T5D67A#B19 is right for you?
Compare key specs and an AI analyst read-out against similar models.
Overview
HP Designjet T830, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, URF, Cyan, Magenta, Matte black, Yellow, Color copying, 600 x 600 DPI
Expert analysis
Key takeaways
Every AEC office eventually meets the same problem: a small team needs to print a set, scan a marked-up as-built, and get back to work — without dedicating a room or a full-time operator to the machine. The HP DesignJet T830 36-in was built for exactly that gap, a compact wide-format multifunction that plots, copies and scans up to 36 inches from a single footprint.
It is a workhorse for the mid-sized site trailer and the two-person studio alike. The question isn’t whether it prints well — it does — but whether its single-roll, entry-MFP design matches the volume and finishing your workflow actually demands.

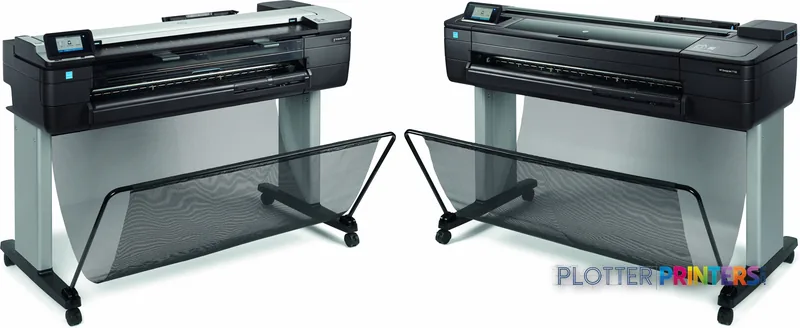

The T830 is a four-cartridge thermal inkjet plotter — Cyan, Magenta, Matte black and Yellow — feeding from a single 36-inch roll up to 3.94″ diameter, plus an integrated CIS scanner. It runs HP-GL/2, HP-RTL and URF, so AutoCAD and Bluebeam jobs land without translation gymnastics, and it carries Wi-Fi, Gigabit Ethernet and a front USB Type-A port for scan-to-USB and walk-up jobs.

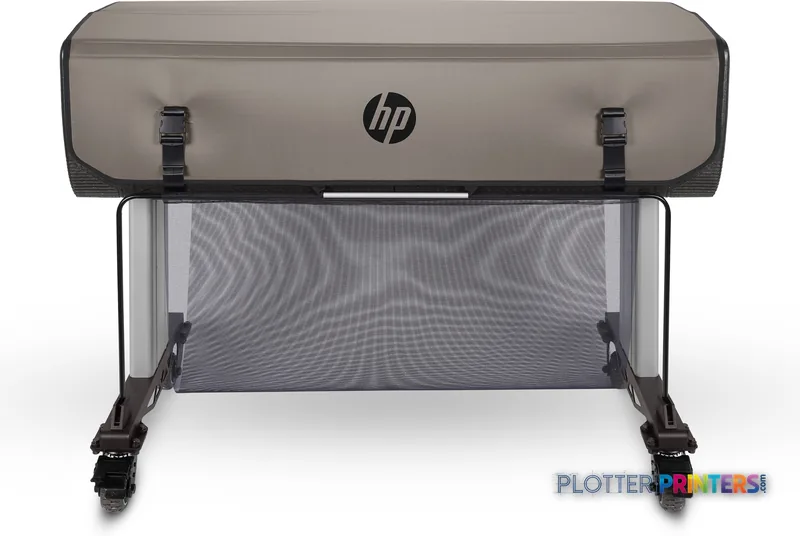

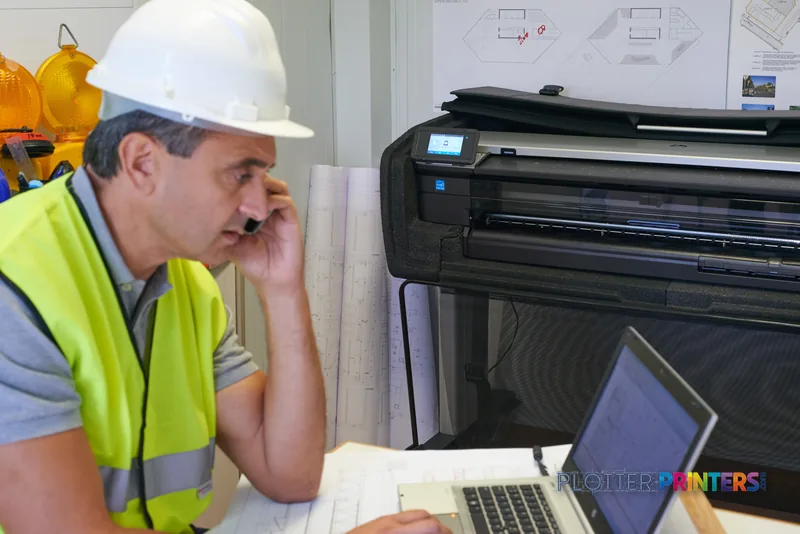

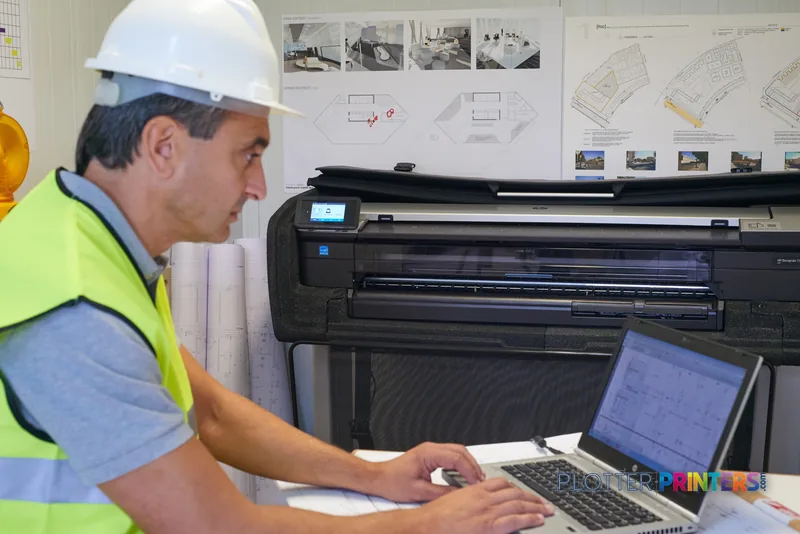

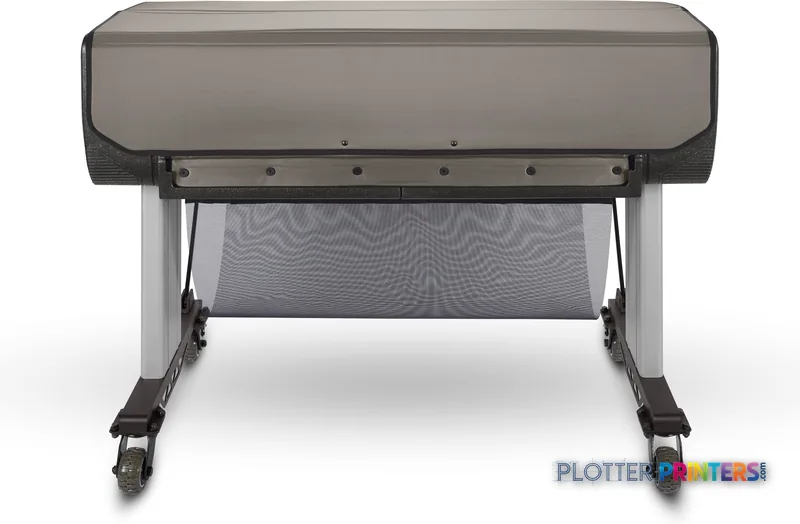

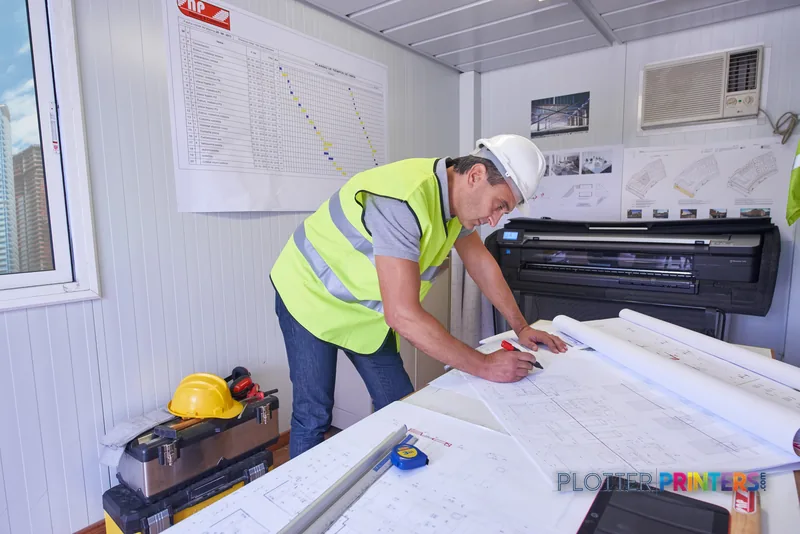

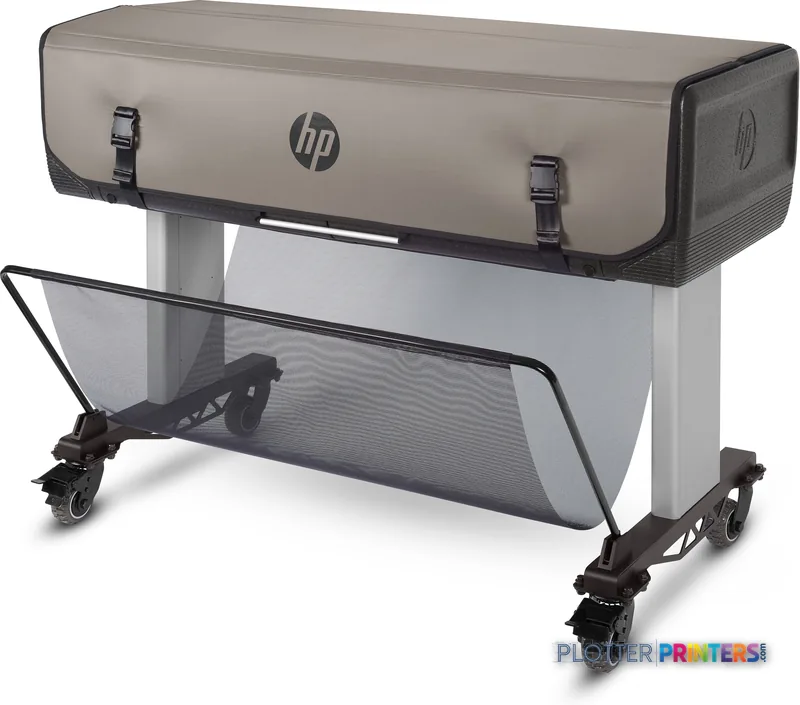

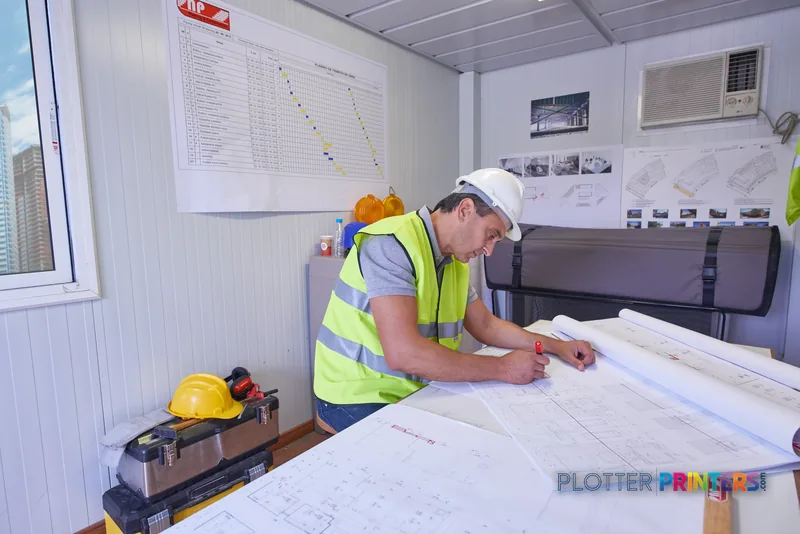

At 204.8 lbs and roughly 55 inches wide, it fits a print corner rather than a print room. HP also offers the HP DesignJet Rugged Case, which tells you where a lot of these units actually live: job trailers and field offices, where portability matters as much as line quality.
Matte black on bond gives you crisp civil and architectural line work, and the built-in scanner handles the daily reality of AEC document flow: redlines come back on paper, and someone has to digitize them. Scan-to-email and scan-to-USB keep that loop short. Money is minutes, and the minutes here are the ones you don’t spend walking a markup to a separate scanner.
Consider it when your monochrome-to-color mix is CAD-heavy, your set sizes are moderate, and you value one device that does three jobs. Compare it directly against a Canon MFP peer in the T830 vs Canon iPF770 view if scanning is central to your decision.
Three limitations matter. First, it is single-roll: every media or size change is a manual swap, which quietly taxes anyone producing mixed-size sets all day. Second, it’s an entry MFP — its 600 x 600 DPI copy resolution and CIS scanner are fine for redlines and record copies, not fine-art reproduction. Third, sustained-volume shops will outrun it.
If you need unattended dual-roll switching for long production runs, step up to the HP DesignJet T1600dr 36-in. If you want the same 36-inch format without the scanner, the HP T920 36-in is the leaner plotter-only option. And within HP’s current lineup, the HP DesignJet T850 36-in is the closest MFP successor to look at. Browse the full 36-inch class ranking before you commit.
Estimate how long a typical set takes on the T830 — then remember to add roll-swap and collation time, because a single-roll machine does both by hand.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 552 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Compare before you commit
The read
The T830 earns its place as a compact, do-everything 36-inch machine for small and mid-sized AEC teams whose scanning needs are real but modest. Its ceiling is the single roll and the entry-level MFP scanner — neither is a flaw, both are the price of the footprint. Choose the T830 if you’re a small studio or field office that needs plot, copy and scan in one box; choose the T1600dr if mixed-size, high-volume sets have you standing at the machine swapping rolls; choose the T920 if you already have a scanner and just want the plotter. Buy the machine for the workflow you have, not the one the brochure imagines.
Spec analysis
Overall performance
within wide-format MFPs
100% spec coverage
Verified specifications
| Print technology | Thermal inkjet |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Magenta, Matte black, Yellow |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL, URF |
| Internal memory | 1024 MB |
| Media thickness | 0.3 mm |
| Maximum roll diameter | 3.94" (10 cm) |
| Scanning | Color scanning |
| Wi-Fi | Yes |
| Ethernet | Yes |
| Power consumption | 35 W |
Specifications
| Color | Yes |
|---|---|
| Printing colors | Cyan, Magenta, Matte black, Yellow |
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL, URF |
| Product color | Black |
|---|---|
| Internal memory | 1024 MB |
| Built-in display | Yes |
| Maximum internal memory | 1024 MB |
| Media thickness | 0.3 mm |
|---|---|
| Maximum roll width | 36" (91.4 cm) |
| Maximum roll diameter | 3.94" (10 cm) |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Depth | 24.8" (629 mm) |
|---|---|
| Width | 55.2" (1403 mm) |
| Height | 45.5" (1155 mm) |
| Weight | 204.8 lbs (92.9 kg) |
| Power consumption (typical) | 35 W |
|---|
| Operating temperature (T-T) | 5 – 40 °C |
|---|
| Copying | Color copying |
|---|---|
| Maximum copy resolution | 600 x 600 DPI |
| Scan to | E-mail, USB |
|---|---|
| Scanning | Color scanning |
| Scan technology | CIS |
| Maximum scan length | 109.1" (2.77 m) |
| Optical scanning resolution | 600 x 600 DPI |
| Harmonized System (HS) code | 84433210 |
|---|
| Package depth | 22.4" (570 mm) |
|---|---|
| Package width | 62.1" (1578 mm) |
| Package height | 50.4" (1279 mm) |
| Package weight | 271.2 lbs (123 kg) |
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the HP DesignJet T830 MFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
12 ink cartridges · 27 paper & media items · 3 accessories · 13 coverage plans
HP DesignJet T830 MFP ink and paper →Supplies
Genuine consumables that fit the HP DesignJet T830 36-in — only the cartridges, printheads and media compatible with this model.
HP 728 300-ml Yellow Ink Cartridge
HP 728 300-ml Magenta Ink Cartridge
HP 728 300-ml Cyan Ink Cartridge
HP 728 40-ml Yellow Ink Cartridge
HP 728 40-ml Magenta Ink Cartridge
HP 728 40-ml Cyan Ink Cartridge
HP 728 69-ml Matte Black Ink Cartridge
HP 728 300-ml Matte Black Ink Cartridge
HP 728 130-ml Magenta Ink Cartridge
HP 728 130-ml Yellow Ink Cartridge
HP 728 130-ml Cyan Ink Cartridge
HP 728 130-ml Matte Black Ink Cartridge
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image20LB Inkjet Bond Paper (Tinted) (732)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)
Hp 2 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS8E)
Hp 3 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS5E)
Hp 5 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS6E)Hp 2Y Nbd T830 Mfp Hw Support (U8TY8E)Hp 3Y Nbd T830 Mfp Hw Support (U8PH3E)
Hp 4Y Nbd T830 Mfp Hw Support (U8TY9E)Hp 5Y Nbd T830 Mfp Hw Support (U8PH4E)Questions
It uses HP 728 inks across four cartridges (Cyan, Magenta, Matte black, Yellow) and the HP 729 printhead. Matte black on bond gives clean CAD line work.
Only within limits. It is a single-roll machine, so any media or size change requires a manual swap. For unattended, mixed-size production runs, the dual-roll HP DesignJet T1600dr 36-in is the better fit.
Its CIS scanner offers color scanning at 600 x 600 DPI optical resolution, with scan-to-email and scan-to-USB. That’s well suited to digitizing markups and record copies, less so to reproduction-grade imagery.
Yes. At 55.2 inches wide, 24.8 inches deep and 204.8 lbs, it fits a print corner. The optional HP DesignJet Rugged Case supports field and trailer use.
It offers Wi-Fi, Gigabit Ethernet and a front USB Type-A port for walk-up jobs. Typical power consumption is 35 W, and the unit is ENERGY STAR certified.
For the same 36-inch format with an integrated scanner, look at the HP DesignJet T850 36-in. For high-volume dual-roll production, step up to the HP DesignJet T1600dr 36-in; for plotter-only, consider the HP T920 36-in.
