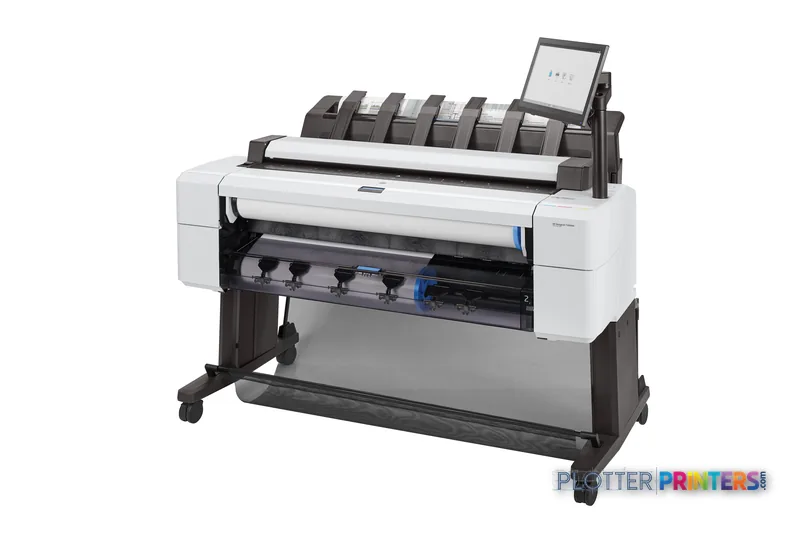

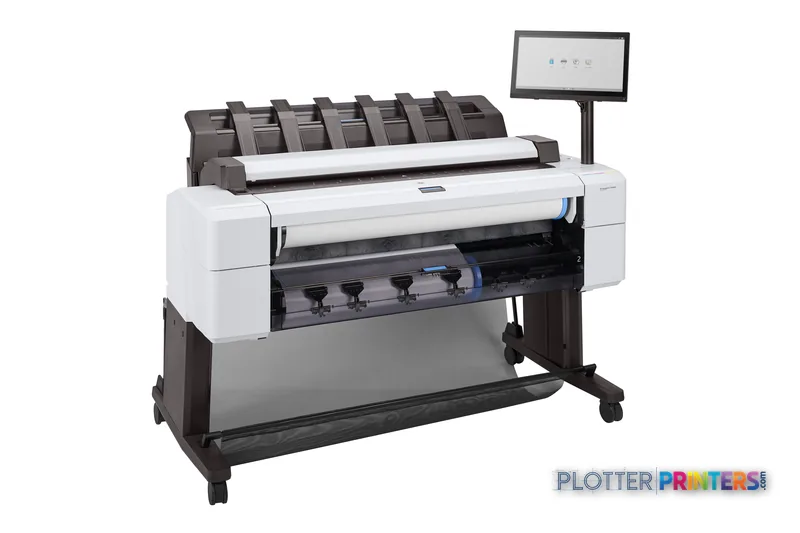

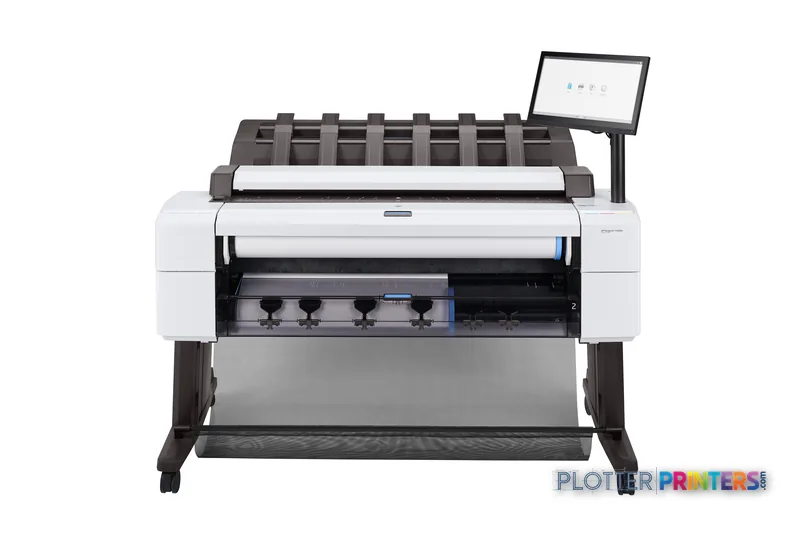

HP DesignJet T2600dr MFP

The T2600dr is particularly well suited to architecture, engineering and construction teams that need both routine drawing output and an accessible walk-up scan/copy point. The dual-roll configuration matters when ordinary bond plans, color coordination sheets and presentation-oriented media must coexist without making an operator stop to reload for every change in job type.

• Architectural and engineering teams producing PDF, HP-GL/2 and PostScript drawing sets.
• Construction offices copying marked-up sheets and issuing revised field documents.
• Survey and infrastructure groups handling CALS G4, TIFF, JPEG and technical map files.
• Print rooms that benefit from a single 36-inch print, copy and scan station.

The six-color set—cyan, photo black, matte black, magenta, yellow and gray—gives the device a more considered color toolset than a basic monochrome plan workflow requires. Its 2400 x 1200 DPI maximum resolution is relevant for fine annotation, linework and color-coded coordination drawings, provided the originating PDF or CAD output is prepared properly. Resolution cannot rescue an underfed viewport or a poorly managed plot style. It has tried.

For document intake, the integrated scanner and direct-print capability are more consequential than a headline specification. A team can copy an existing plan, resize it from 25 – 400%, or scan a sheet into its document process without treating the plotter as a one-way output device. HP Click App, HP App, HP Click Driver for Windows 11 and HP Build Workspace are bundled; HP SmartTracker and HP SmartStream are listed as optional. Those are workflow choices, not decoration around the hardware.

IT should review this model as a managed network endpoint. It supports Wi-Fi Direct and HP ePrint, and the supplied software list includes HP Web Jetadmin and HP Security Manager. HP dynamic security is also specified. That combination makes centralized oversight worth discussing before deployment, especially where project files, mobile submission and departmental accountability meet. The scanner is free. The person standing at it is not.

For supplies planning, this machine uses HP 730 inks and the HP 727 printhead. Confirm the supported consumable configuration, replenishment process and service response with the supplying organization before committing the device to deadline-critical production.

Within the listed family, the HP DesignJet T2600dr 36-in is the closest configuration reference: it is also a current 36-inch dual-roll scanner/MFP with 2400 x 1200 DPI resolution. The HP DesignJet T2600 36-in is the relevant comparison when the multifunction role remains important but dual-roll operation is not the deciding requirement. Firms needing a wider output format should examine the HP DesignJet T1700dr 44-in rather than forcing 44-inch work into a 36-inch workflow.

This is less appropriate for teams that only occasionally print wide-format sheets and have no recurring scan/copy need, or for a central production environment whose requirements extend beyond 36-inch media. Its physical footprint also deserves a real floor-plan check: it is 54.7 inches wide, 29.9 inches deep, 48.8 inches high and weighs 240.3 lbs. Office suitability is a systems decision, not a furniture afterthought.
