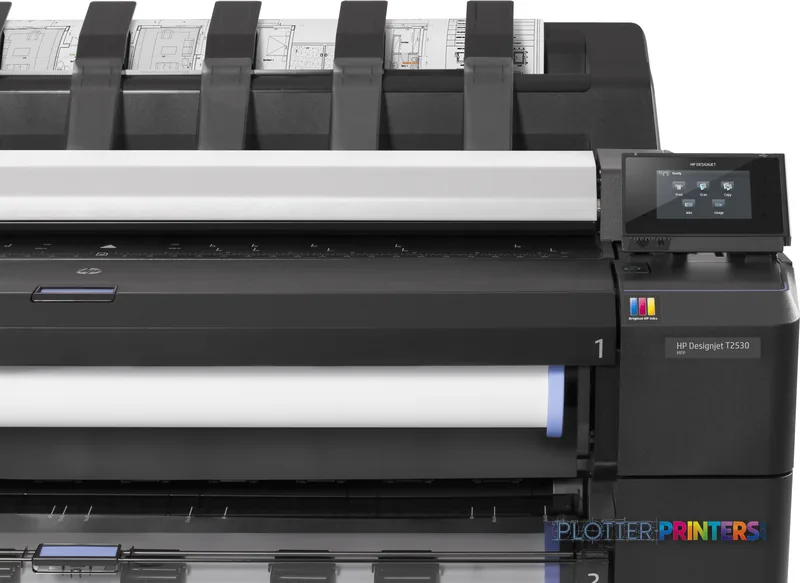

HP DesignJet T2530
color graphics & photo printer
- ModelT2530
- Score60/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The HP T2530 is a color thermal-inkjet AEC device supporting A0 output, roll paper and cut sheets.
- HP rates black A1 line output at 120 pph in Economy mode; real set throughput will depend on workflow conditions.
- Its six inks include gray, matte black and photo black, useful for grayscale drawings and color coordination documents.
Not sure if the T2530 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Gray, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 60/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T2530, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, PCL 3, PDF 1.7, TIFF, URF, Cyan, Gray, Magenta, Matte black, Photo black, Yellow, 120 pph, 2.5 ips
- 808 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The HP T2530 is a color thermal-inkjet AEC device supporting A0 output, roll paper and cut sheets.
- HP rates black A1 line output at 120 pph in Economy mode; real set throughput will depend on workflow conditions.
- Its six inks include gray, matte black and photo black, useful for grayscale drawings and color coordination documents.
- HP-GL/2, HP-RTL, PDF 1.7 and TIFF support make it relevant to common CAD and PDF document flows.
- The HP DesignJet T2600dr 36-in is the more relevant in-family alternative when dual-roll handling and scanner/MFP capability matter.
- No measured ICC gamut information is supplied, so color-critical work should be evaluated with the firm’s own files and media.
At 3 p.m., when a permit revision lands and the site team needs a clean, readable set before the day closes, the important thing is not a dramatic color claim. It is whether fine dimensions, gray screening, redlines and a disciplined cyan annotation remain distinct on ordinary plan media. The HP T2530 is a color thermal-inkjet wide-format system for that practical AEC rhythm: CAD drawings, PDF plan sets, coordination sheets, GIS maps and presentation-oriented output up to A0.
HP rates the T2530 at 120 pph for black A1 line drawings in Economy mode. That figure is useful as a reference point, but productive set output also depends on file processing, media changes, page mix and the operator’s finishing routine. Its six-ink configuration includes cyan, magenta, yellow, gray, matte black and photo black, giving technical documents a more considered grayscale and color-document capability than a basic black-line plotter.
A0 (33" x 47" (841 x 1189 mm))Maximum print size
120 pphRated line speed
2400 x 1200 DPIMaximum resolution
2.5 ipsScan speed, color
Where it fits in an AEC workflow
The T2530 suits teams that need both roll and cut-sheet media handling, direct printing, and familiar AEC file languages. Its support for HP-GL/2, HP-RTL, PDF 1.7 and TIFF is relevant when drawings originate in CAD or arrive as issued PDFs; PCL 3 and URF broaden the device’s document-handling context. Gigabit Ethernet and a USB Type-A connection provide straightforward shared-network and walk-up submission paths, while the 500 GB internal storage can help support a busy shared device.

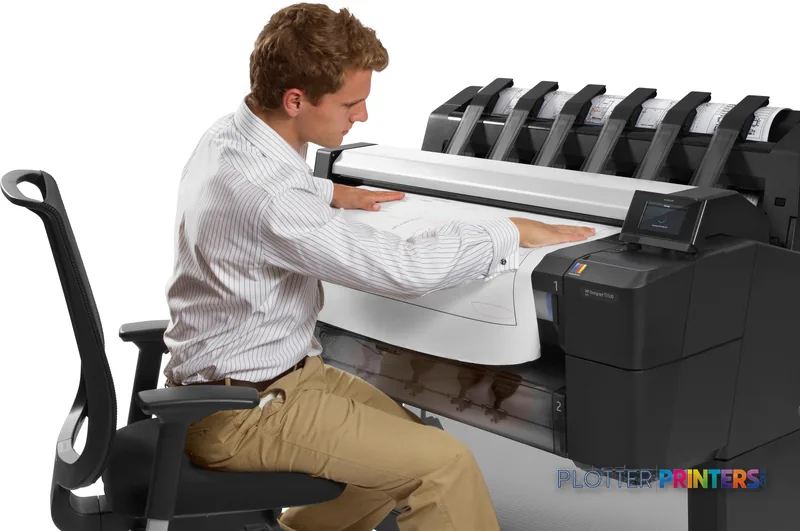

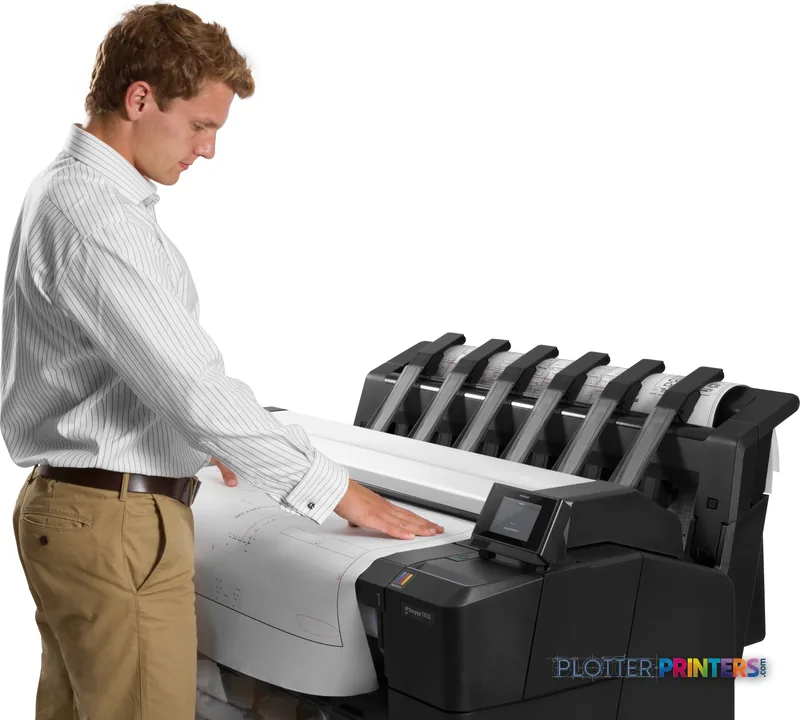

For markups and legacy drawings, the specified color scan speed of 2.5 ips makes scanning part of the conversation, not an afterthought. The trade-off is that a scanner specification alone does not describe the complete scan-to-file workflow, naming convention, destination control or user authentication an IT team may require. Those should be demonstrated with the actual project files and network policies before deployment.
Linework, color and media: the useful middle ground
The 2400 x 1200 DPI maximum resolution and six-color thermal-inkjet system are well aligned with drawings where thin line separation, small notes and colored discipline layers must remain legible. It accepts bond, coated, glossy, matte, satin and semi-glossy papers in the tray, along with roll media and vinyl media. The specified maximum media thickness is 0.02″ (0.5 mm), so confirm any specialty stock against that limit rather than assuming every board-like substrate will feed reliably.
Color capability here is best understood as a document-production tool. There is no desk-measured ICC gamut data supplied for this machine, so no defensible conclusion should be drawn about photographic gamut volume or color accuracy on a particular media. For AEC use, ask for a proof of your own shaded elevations, aerial imagery and color-coded coordination PDFs—the places where the last few shades of a red cloud can matter.
Estimate line-drawing production time from the verified rated speed, then add a realistic allowance for processing, media handling and finishing.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 808 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
How it sits within the HP range
The T2530 is a sensible fit when A0 output, color plans and scan-capable document work are central, but wider output is not. Firms whose standard deliverables extend beyond this format should consider the wider HP DesignJet T1600 36-in or HP DesignJet T1700 44-in according to their required width and workflow. Those are not automatic upgrades; they become more compelling when larger sheets are routine rather than occasional.
Where roll changes interrupt an active plan room, the HP DesignJet T2600dr 36-in merits a closer look because it is identified as a dual-roll, scanner/MFP option. The HP T2500 36-in is the nearer same-width scanner/MFP alternative. Compare the T2530 with the HP DesignJet T2600dr 36-in around the jobs that actually create delays: mixed sheet sizes, multiple media types and repeated copy/scan requests.
Related evaluation tools
HP DesignJet T2600dr 36-inReview the dual-roll scanner/MFP alternative for higher-interruption environments.HP DesignJet T1600 36-inConsider a wider-format option when larger drawings are part of the regular workload.Wide-format class rankingSee how this product is positioned within its catalog class.How we assess wide-format printersRead the framework behind workflow-oriented product evaluation.
The read
The HP T2530 is most persuasive for an AEC office or departmental print room that needs color A0 drawings, direct PDF/CAD-oriented output, roll and cut-sheet flexibility, and practical scanning. It is less appropriate when wider sheets or dual-roll continuity are routine operational requirements. Its stated footprint—55.1″ wide, 36.1″ deep and 43.7″ high—also deserves a real room-layout check, including loading access and operator space. Use HP 727 inks and the HP 727 printhead as the established consumable reference point, and verify local service response, network configuration and your actual drawing files before treating a rated specification as a workflow guarantee.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 12 compared
Class best 82 — Epson SureColor T5770DR
86% spec coverage
- This printer
- Epson SureColor T5770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Print technology | Thermal inkjet |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, TIFF, URF |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.5 mm |
| Ethernet | Yes |
| Sound level (printing) | 47 dB |
| Power consumption | 120 W |
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, TIFF, URF |
| Print speed (line, black, economy mode, A1) | 120 pph |
Performance
| Certification | USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS) |
|---|---|
| Storage media | HDD |
| Maximum internal memory | 128 MB |
| Internal storage capacity | 500 GB |
| Sound power level (standby) | 6.5 dB |
| Sound pressure level (printing) | 47 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media thickness | 0.5 mm |
| Roll top margin | 0.118" (3 mm) |
| Print margin roll | 0.118" (3 mm) |
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Matte paper, Satin paper, Semi-glossy paper |
| Print margin cut-sheet | 3 x 22 x 3 x 3 |
| ISO A-series sizes (A0…A9) | A0 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
Weight & dimensions
| Depth | 36.1" (916 mm) |
|---|---|
| Width | 55.1" (1399 mm) |
| Height | 43.7" (1110 mm) |
| Weight | 246.9 lbs (112 kg) |
Power
| Power consumption (standby) | 1.3 W |
|---|---|
| Power consumption (typical) | 120 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Vinyl media | Yes |
|---|
Scanning
| Scan speed (color) | 2.5 ips |
|---|
Packaging data
| Package depth | 30.7" (781 mm) |
|---|---|
| Package width | 59.1" (1500 mm) |
| Package height | 32.1" (815 mm) |
| Package weight | 319.7 lbs (145 kg) |
| Drivers included | Yes |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the HP DesignJet T2530
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
18 ink cartridges · 2 accessories
HP DesignJet T2530 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T2530 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 18
HP 727 300-ml Matte Black Ink Cartridge
HP 727 130-ml Cyan Ink Cartridge
HP 727 130-ml Gray Ink Cartridge
HP 727 130-ml Yellow Ink Cartridge
HP 727 130-ml Photo Black Ink Cartridge
HP 727 130-ml Magenta Ink Cartridge
HP 727 300-ml Photo Black Ink Cartridge
HP 727 300-ml Yellow Ink Cartridge
HP 727 300-ml Magenta Ink Cartridge
HP 727 300-ml Gray Ink Cartridge
HP 727 300-ml Cyan Ink Cartridge
HP 727 130-ml Matte Black Ink Cartridge
HP 727B 130-ml Photo Black Ink Cartridge
HP 727B 130-ml Matte Black Ink Cartridge
HP 727B 130-ml Gray Ink Cartridge
HP 727B 300-ml Photo Black Ink Cartridge
HP 727B 300-ml Matte Black Ink Cartridge
HP 727B 300-ml Gray Ink CartridgeAccessories 2
Questions
Straight answers
What AEC work is the HP T2530 suited to?
It fits CAD drawings, PDF plan sets, coordination sheets, GIS maps and presentation-oriented documents up to A0. Its color capability is particularly relevant where discipline colors, markups and shaded graphics need to remain distinct.
How fast is the HP T2530 for plan printing?
HP rates it at 120 pph for black A1 line drawings in Economy mode. That rating does not include the full operational effects of file processing, media changes, collation or finishing.

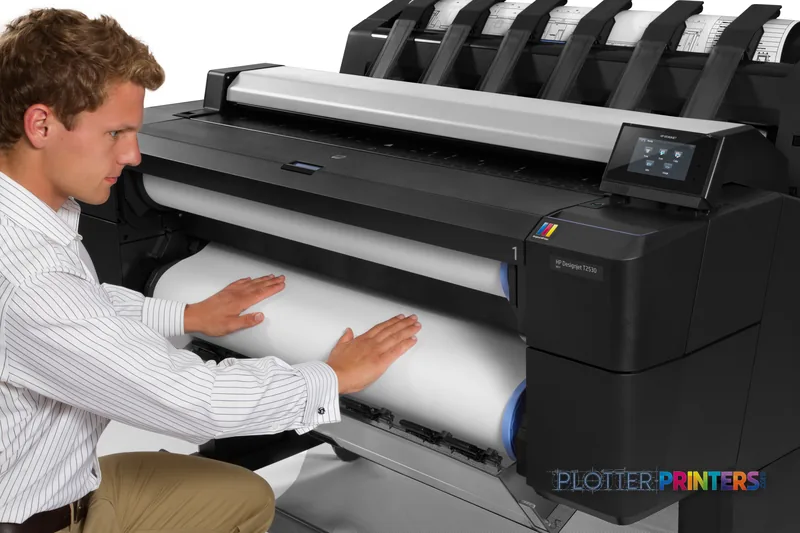

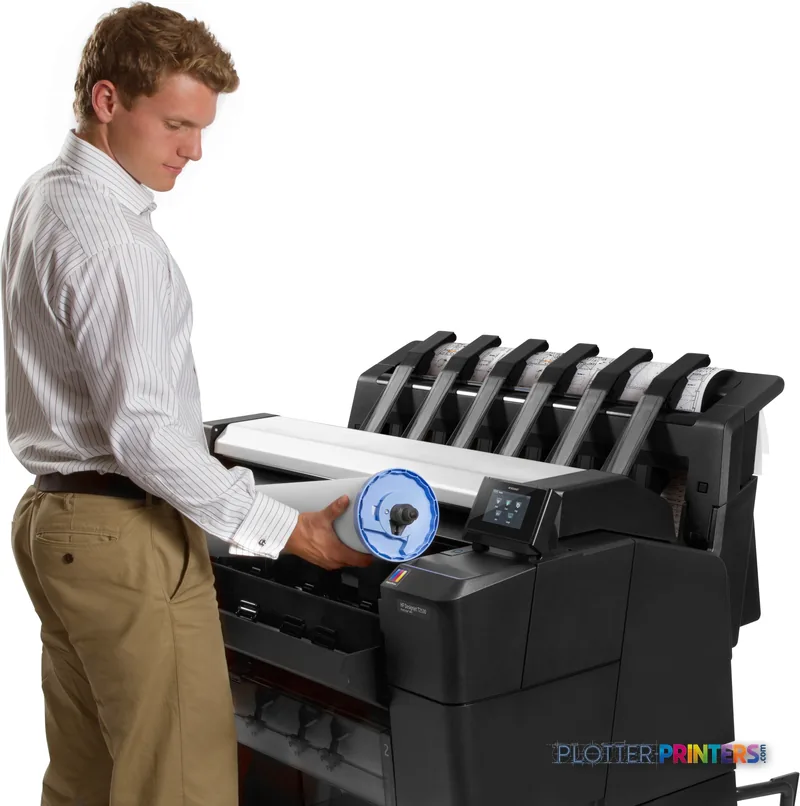

Can the HP T2530 handle both rolls and sheets?
Yes. The supplied product data lists both roll paper and cut sheets, with supported tray media including bond, coated, glossy, matte, satin and semi-glossy paper.
Does it support direct PDF and CAD-oriented file workflows?
It supports direct printing and lists HP-GL/2, HP-RTL, PDF 1.7 and TIFF among its page-description languages. Confirm actual submission behavior with the files, drivers and permissions used by your team.
When should I consider the HP DesignJet T2600dr 36-in instead?
Consider it when dual-roll operation and scanner/MFP capability are operational priorities. That difference matters most where changing media interrupts frequent project-document production.
Which consumables should buyers confirm for this machine?
The resolved compatible supply families include HP 727 inks, HP 727B 130-ml Gray DesignJet Ink Cartridge, HP 727B 300-ml Gray DesignJet Ink Cartridge and the HP 727 printhead.
