HP · Wide-Format Plotter

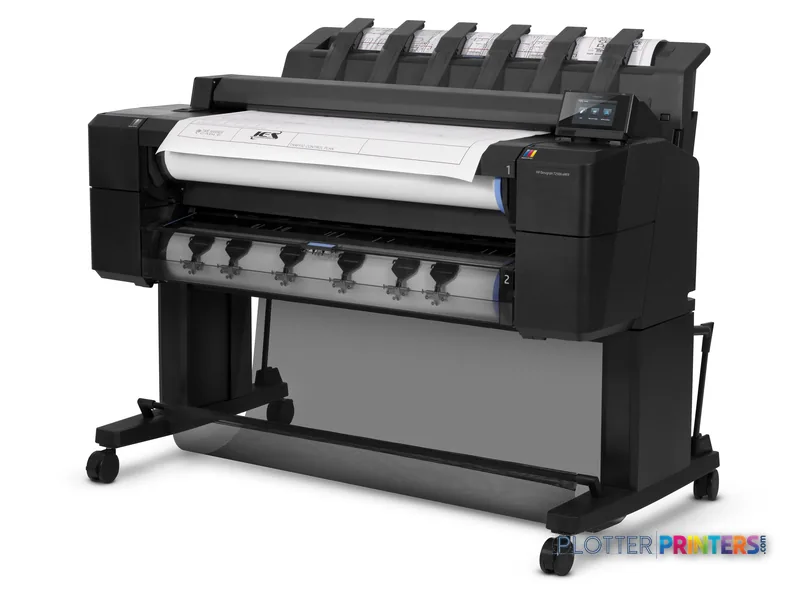

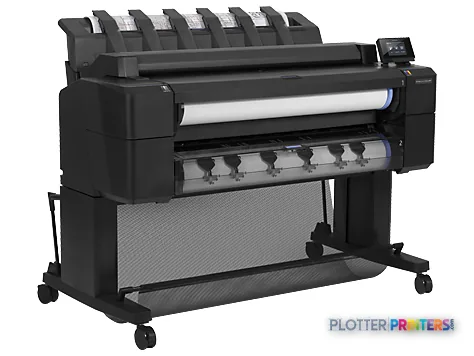

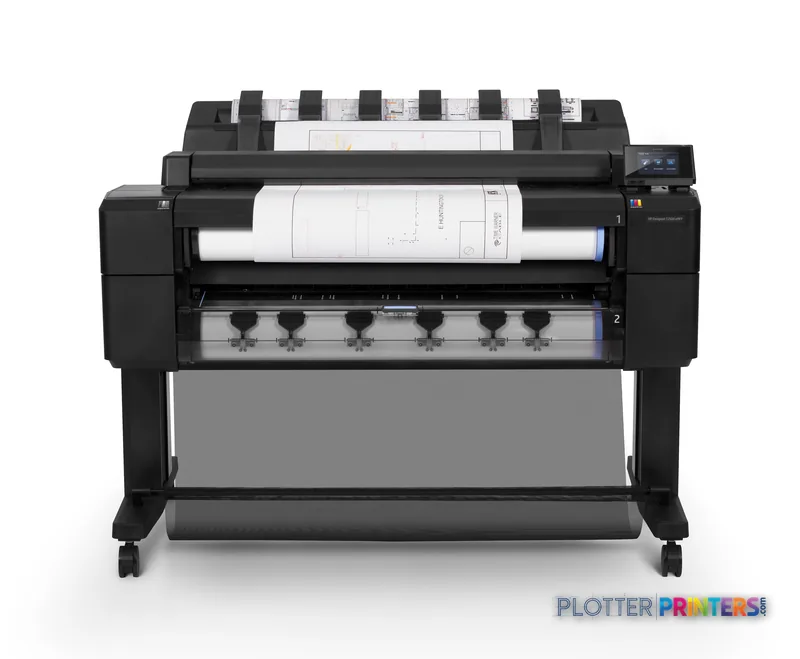

HP DesignJet T2500 eMFP
36" color graphics & photo printer
- ModelT2500 eMFP
- Prints36" wide
- Score66/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The HP T2500 36-in combines 36-inch color wide-format output with an eMFP-oriented AEC workflow.
- Its stated +/- 0.1% line accuracy and 0.000787" minimum line width are directly relevant to detailed technical drawings.
- HP rates normal-quality output at 60 x A0 pph, but finished-set throughput depends on files, media handling, and operator intervention.
Not sure if the T2500 eMFP is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Gray, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 66/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T2500 36-in eMFP, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, HP-RTL, PCL 3, PDF 1.7, TIFF, UFRII-LT, Black, Cyan, Gray, Magenta, Matte black, Photo black, Yellow, 60 x A0 pph, 9632 nzl.
- 36″Max print width
- 808 ft²/hRated speed
- 7Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The HP T2500 36-in combines 36-inch color wide-format output with an eMFP-oriented AEC workflow.
- Its stated +/- 0.1% line accuracy and 0.000787" minimum line width are directly relevant to detailed technical drawings.
- HP rates normal-quality output at 60 x A0 pph, but finished-set throughput depends on files, media handling, and operator intervention.
- HP-GL/2, HP-RTL, PDF 1.7, TIFF, PCL 3, and UFRII-LT support suit varied CAD and document-control inputs.
- The HP DesignJet T2600dr 36-in is the in-family alternative to assess when dual-roll handling is more important to the workflow.
On a coordination drawing, the eye goes first to the cyan edge of a revised duct run, then to the fine black annotation that tells the crew what changed. The HP T2500 36-in is built for that practical AEC mix: color CAD sheets, PDF plan sets, GIS maps, presentation material, and the scan/copy work that still accompanies marked-up paper drawings.
This 36-inch thermal-inkjet eMFP accepts rolls and cut sheets, supports HP-GL/2, HP-RTL, PCL 3, PDF 1.7, TIFF, and UFRII-LT, and connects through Gigabit Ethernet. Its stated 2400 x 1200 DPI resolution, seven-ink system, and +/- 0.1% line accuracy are relevant on drawings where a tiny dimension string must remain readable rather than merely look sharp at arm’s length.
A0 (33" x 47" (841 x 1189 mm))Maximum print sizeA practical format for full-size AEC drawing output.
60 x A0 pphRated normal-quality speedHP’s stated normal-quality rate; actual set throughput also depends on files, media changes, and operator handling.
+/- 0.1%Line accuracyA specification worth considering for dimensioned plans and survey output.
320 GBInternal storageLocal storage can be useful in a shared print-room workflow.
Where it fits in an AEC print room
The HP T2500 36-in is particularly well suited to an architecture, engineering, contractor, or survey office that needs one networked device for recurring wide-format output and paper-document handling. Roll support and cut-sheet capability give an operator a sensible choice between routine plan production and occasional presentation or report sheets. The supported media range of 60 – 328 g/m² also gives the team latitude to move beyond ordinary bond when a deliverable calls for coated, glossy, photo, vinyl, or roll-up film media.
Its page-description-language support matters more than a brochure checklist suggests. HP-GL/2 and HP-RTL remain familiar territory for CAD-oriented output, while PDF 1.7 and TIFF support are useful when drawings arrive from BIM, document-control, scanning, or field-review workflows. The built-in HDD and LCD provide a more self-contained operating posture than a printer dependent entirely on a workstation at the moment a job is released.
Linework, color, and the operational trade-off
For technical drawing work, the minimum stated line width of 0.000787″ (0.0200 mm) and rated +/- 0.1% line accuracy are the more useful starting points than resolution alone. The seven listed colors—Black, Cyan, Gray, Magenta, Matte black, Photo black, and Yellow—give this machine a broader ink set than a strictly monochrome plotter, supporting color-coded coordination drawings and maps alongside conventional black-line sheets. There is no measured ICC gamut data in the supplied record, so it would be inappropriate to make a stronger editorial claim about photographic or brand-color fidelity.
The trade-off is that a rated 60 x A0 pph does not describe every real print-room hour. Complex PDFs, mixed sheet sizes, roll changes, scanning, job collation, and the human pause before a permit set leaves the room all affect productive throughput. At 65 dB while printing, it also merits placement consideration in a quiet design studio. For routine use, specify HP 727 inks and retain the appropriate media and spindle setup for the rolls your team actually uses.
Estimate rated plot time for an A0 run, then allow operational time for file processing, media handling, and set management.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 808 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
How it sits within the family
If 36-inch output and an eMFP workflow are the requirement, compare the HP DesignJet T2600 36-in as a nearby in-family alternative. Firms that need less operator intervention around media should also examine the HP DesignJet T2600dr 36-in, which is identified in the catalog as a dual-roll scanner/MFP model. That distinction can matter more than a headline speed figure when teams alternate constantly between bond plan sets and another roll type.
For the newer-generation MFP in the same 36-inch format, the HP DesignJet T2530 is the relevant in-family move. Conversely, this machine may be less appropriate for an office that only occasionally needs wide-format output, has no paper-document workflow to support, or cannot accommodate a unit measuring 55.1″ wide, 36.1″ deep, 43.7″ high, and 246.9 lbs. Use the T2500 and T2600dr comparison to keep the decision tied to media workflow rather than model-name familiarity.
Continue the evaluation
The read
The HP T2500 36-in makes the strongest case for AEC teams that need a 36-inch, Ethernet-connected color eMFP with CAD- and PDF-oriented language support, roll and cut-sheet flexibility, and technical line specifications that fit disciplined drawing output. It becomes more compelling where scan/copy activity is part of the same daily operation. It is not automatically the right answer for every plotter replacement: teams with frequent media switching should weigh the dual-roll HP DesignJet T2600dr 36-in, while those driven by larger sheet formats should look toward the HP T2530 36-in.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 12 compared
Class best 82 — Epson SureColor T5770DR
86% spec coverage
- This printer
- Epson SureColor T5770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 36 in |
|---|---|
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Black, Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, TIFF, UFRII-LT |
| Maximum print size | A0 (841 x 1189 mm) |
| Ethernet | Yes |
| Sound level (printing) | 65 dB |
| Power consumption | 260 W |
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ColorColor
ConnectivityEthernet (Gigabit LAN)
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | 9632 nzl. |
| Printing colors | Black, Cyan, Gray, Magenta, Matte black, Photo black, Yellow |
| Print technology | Thermal inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, TIFF, UFRII-LT |
| Print speed (normal quality) | 60 x A0 pph |
| Print speed (normal quality, A1) | 120 pph |
Performance
| Display | LCD |
|---|---|
| Certification | WEEE; EU RoHS; REACH; FEMP |
| Storage media | HDD |
| Built-in display | Yes |
| Internal storage capacity | 320 GB |
| Sound pressure level (printing) | 65 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Roll top margin | 0.197" (5 mm) |
| Maximum print size | A0 (841 x 1189 mm) |
| Maximum roll length | 3582.7" (91 m) |
| Recommended media weight | 60 – 328 g/m² |
Ports & interfaces
| USB port | No |
|---|---|
| Ethernet LAN | Yes |
| RJ-45 ports quantity | 1 |
| Ethernet LAN data rates | 1000Base-T |
Weight & dimensions
| Depth | 36.1" (916 mm) |
|---|---|
| Width | 55.1" (1399 mm) |
| Height | 43.7" (1110 mm) |
| Weight | 246.9 lbs (112 kg) |
Power
| Power consumption (off) | 0.1 W |
|---|---|
| Power consumption (typical) | 260 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Photo paper | Yes |
|---|---|
| Vinyl media | Yes |
| Coated paper | Yes |
| Glossy paper | Yes |
| Roll-up film | Yes |
| Line accuracy | +/- 0.1% |
| Minimum line width | 0.000787" (0.0200 mm) |
| High resolution paper | Yes |
Packaging data
| Package depth | 29.9" (759 mm) |
|---|---|
| Package width | 59.1" (1502 mm) |
| Package height | 32.5" (825 mm) |
| Package weight | 303.1 lbs (137.5 kg) |
| Drivers included | Yes |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the HP DesignJet T2500 eMFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
18 ink cartridges · 3 accessories
HP DesignJet T2500 eMFP ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T2500 eMFP 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 18
HP 727 Cyan Ink Cartridge, 40 ml (B3P13A)
HP 727 Photo Black Ink Cartridge, 40 ml (B3P17A)
HP 727 Yellow Ink Cartridge, 40 ml (B3P15A)
HP 727 Gray Ink Cartridge, 40 ml (B3P18A)
HP 727 Magenta Ink Cartridge, 40 ml (B3P14A)
HP 727 300-ml Matte Black Ink Cartridge
HP 727 130-ml Cyan Ink Cartridge
HP 727 130-ml Gray Ink Cartridge
HP 727 130-ml Yellow Ink Cartridge
HP 727 130-ml Photo Black Ink Cartridge
HP 727 130-ml Magenta Ink Cartridge
HP 727 300-ml Photo Black Ink Cartridge
HP 727 300-ml Yellow Ink Cartridge
HP 727 300-ml Magenta Ink Cartridge
HP 727 300-ml Gray Ink Cartridge
HP 727 300-ml Cyan Ink Cartridge
HP 727 130-ml Matte Black Ink Cartridge
HP 727 Matte Black Ink Cartridge, 69 ml (C1Q11A)
Questions
Straight answers
What AEC files can the HP T2500 36-in handle?
The listed page-description languages are HP-GL/2, HP-RTL, PCL 3, PDF 1.7, TIFF, and UFRII-LT. That covers common CAD-oriented and PDF-based document paths, although individual application and driver workflows should still be validated in the buyer’s environment.
Is this suitable for full-size architectural and engineering plans?
Yes. Its maximum print size is A0 (33″ x 47″ (841 x 1189 mm)), and it supports roll paper as well as cut sheets. The stated line accuracy is +/- 0.1%.
How fast is the HP T2500 36-in?
The stated normal-quality rate is 60 x A0 pph and 120 pph for A1. Those are rated print speeds; actual production time can also include processing, roll changes, scanning, and set handling.
What ink family does this model use?
Use HP 727 inks. The listed ink colors are Black, Cyan, Gray, Magenta, Matte black, Photo black, and Yellow.
Does it support a networked office deployment?
Yes. It has one RJ-45 port and lists Ethernet LAN data rates of 1000Base-T. It also has 320 GB of internal storage.
When should a buyer consider the HP DesignJet T2600dr 36-in instead?
Consider it when the operational value of a dual-roll scanner/MFP configuration outweighs the simplicity of the T2500 setup. This is most relevant where teams regularly change between media types or sizes.
