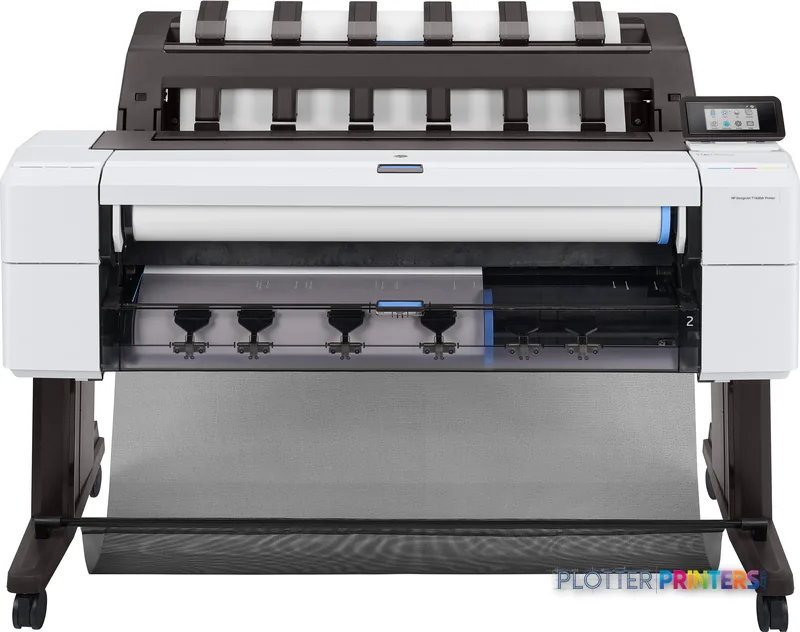

HP DesignJet T1600dr

This is particularly well suited to an architecture, engineering, surveying, or construction office that needs one shared color device for everyday drawings, review sets, GIS maps, and occasional presentation output. The 36-inch format covers common large-sheet work, and the supported A0 through A4 sizes also make it relevant where project teams alternate between full-size plans and smaller supporting documents.

Direct printing, Wi-Fi Direct, and HP ePrint provide several submission paths for distributed teams. For managed environments, the included HP Web Jetadmin and HP Security Manager put administration and security tools into the documented software set; IT should still validate authentication, network policy, and job-accounting requirements in its own environment. HP Click App, HP Click Driver for Windows 11, HP App, HP Build Workspace, and optional HP SmartStream broaden the available workflow choices rather than forcing every user into one submission method.

For teams comparing configurations, the HP DesignJet T1600 36-in is the closer in-family alternative when the dual-roll arrangement is not a requirement. A firm that routinely needs wider sheets should consider the HP DesignJet T1700dr 44-in instead. The trade-off is straightforward: choose the 36-inch device when its format matches the actual drawing set, rather than treating extra width as automatically useful.

The T1600dr uses six colors—cyan, photo black, matte black, magenta, yellow, and gray—and specifies up to 2400 x 1200 DPI. On an AEC sheet, that specification matters most when it helps preserve the visual separation between a light gray existing-condition layer and a darker proposed route: the cyan edge should remain intelligible, not merely colorful.

Resolution is not a measured statement of color gamut, tonal accuracy, or line quality on every paper. No measured ICC gamut data is provided here, so it would be hand-waving to promise a particular photographic or corporate-color result. Evaluate the actual bond, coated, matte, satin, glossy, or photo media you plan to use, especially where client-facing boards matter. The supported media list is broad, but media choice remains part of the output decision.

HP 730 inks and the HP 727 printhead are the compatible supply families identified for this model. Dynamic security is supported, so procurement teams should confirm their cartridge policy and approved-supply process before standardizing a fleet.

The machine measures 54.7 inches wide, 29.9 inches deep, and 42.5 inches high, with a listed weight of 187.4 pounds. That is office-capable equipment, but it is not invisible equipment: plan a stable location, network connection, access for supplies, and clear working space around the stand and media bin.

It may be less appropriate for a team whose work regularly exceeds 36 inches wide, or for an operation that needs scanning and copying as part of the same device workflow; neither capability is stated in the supplied configuration. It is also not a substitute for validating a high-volume print-room process around actual file mix, operator intervention, output handling, and local service support. For a direct market comparison, use the T1600dr and Canon GP-300 36-in comparison.
