HP DesignJet 4000ps

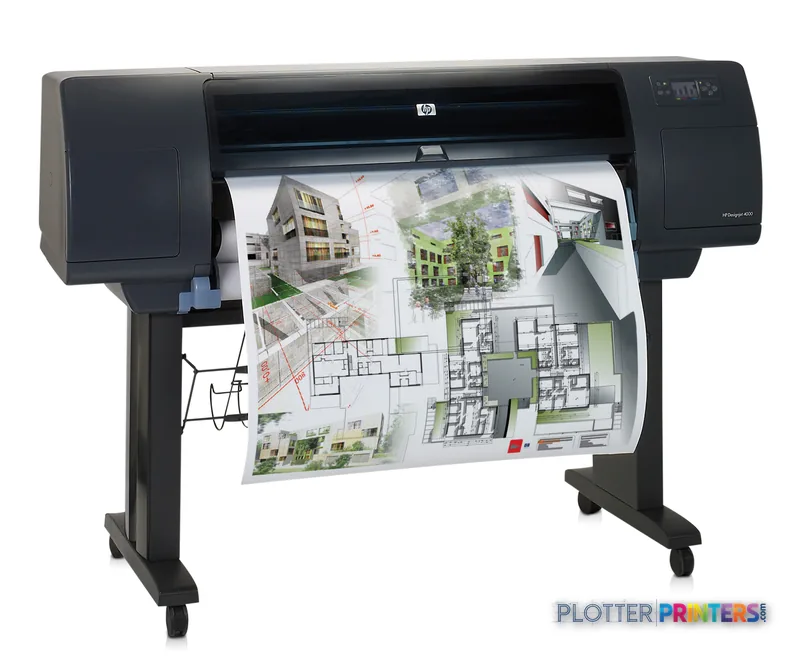

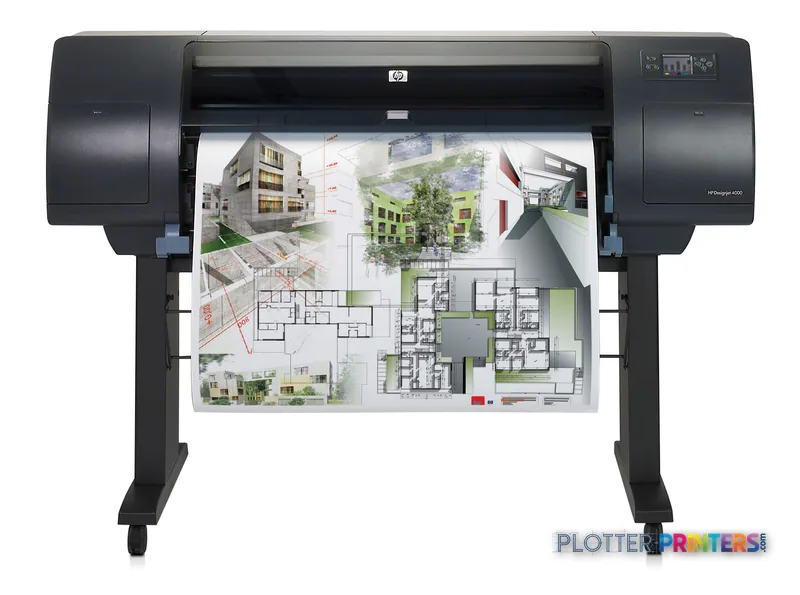

The 42-inch width is the center of this machine’s AEC case. It can render drawings up to 42 by 75 inches, giving architects, engineers, surveyors, and construction teams room for wide plans, exhibits, and color-coded review sheets. HP lists line accuracy at +/- 0.1%; that figure deserves context, because file preparation, media behavior, and the drawing’s scale still determine whether a plotted document is appropriate for the intended field or review use.

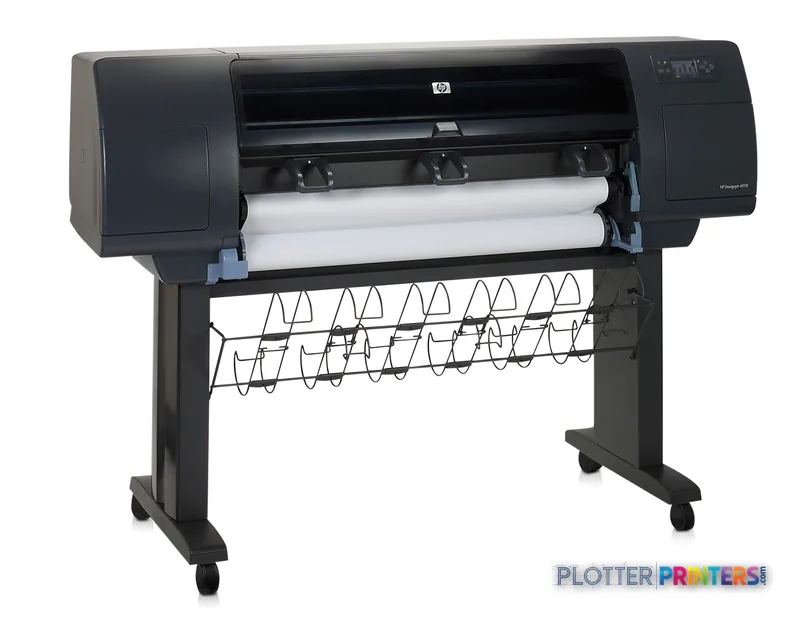

The four-color system—black, cyan, magenta, and yellow—supports color documents on bond, plain, coated, and glossy papers. On a coordination plan, the distinction is often most visible at the cyan edge where services overlap: color needs to separate disciplines clearly, not merely look vivid. There is no measured ICC gamut data in the supplied record, so no broader claim about photographic or brand-color fidelity is warranted. The device supports media from 0.002 to 0.018 inches thick, with both rolls and cut sheets available for day-to-day flexibility.

Its 40 GB internal HDD, 256 MB memory, Intel Celeron processor, and listed normal-quality speed of 25 pps describe an older embedded platform. Productive throughput will depend on file complexity, processing, media changes, and operator handling—not the rated figure alone. See its position in our wide-format class ranking.

For legacy AEC workflows, the file-language support is a genuine advantage. HP-GL/2 and HP-RTL remain relevant to CAD plotting, while PDF 1.5 and TIFF support common document-distribution and raster-map paths. Ethernet LAN is 10/100Base-T Fast Ethernet, and the machine also has one USB 2.0 Type-A port. An optional HP Jetdirect 40d Gigabit Print Server is listed among compatible accessories, but buyers should validate the intended network configuration before treating it as a modern managed-print endpoint.

The larger constraint is workstation compatibility. The supplied list includes Windows NT 4.0, ME, 98, 2000, XP, and 2003, plus Mac OS 9.1 through 10.3. That does not establish support for current desktop operating systems, authentication practices, or contemporary security requirements. IT teams should test the actual driver, submission path, and network controls with their current CAD-to-PDF workflow before committing this printer to shared production.

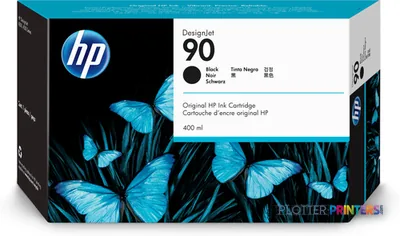

At 76 by 31.5 by 53.1 inches and 253.5 lbs, it is a print-room machine rather than an unobtrusive studio peripheral. Its HP 90 inks and compatible HP 90 printheads should also be confirmed as part of a realistic continuity plan, alongside the applicable maintenance supplies.

The catalog’s listed in-family comparison is the HP DesignJet T918 36-in, which is identified there as discontinued and includes scanner/MFP capability. It is narrower than this 42-inch printer, so it is not a simple step-up for full-width plan output; it may instead suit workflows where integrated scanning and copying matter more than maximum width. Use our side-by-side comparison to keep that trade-off visible.

The HP Designjet 4000ps Printer is most credible where a firm has established legacy-compatible submission methods, needs 42-inch color output, and can support its physical and consumables requirements. It becomes less appropriate for organizations seeking evidence of current operating-system compatibility, newer network-management expectations, or integrated scanning. The specification sheet supports a capable document device; it does not by itself answer the service, driver, and workflow questions that decide whether the device will be dependable in a live AEC office.
