Epson SureColor SC-T5200D MFP PS

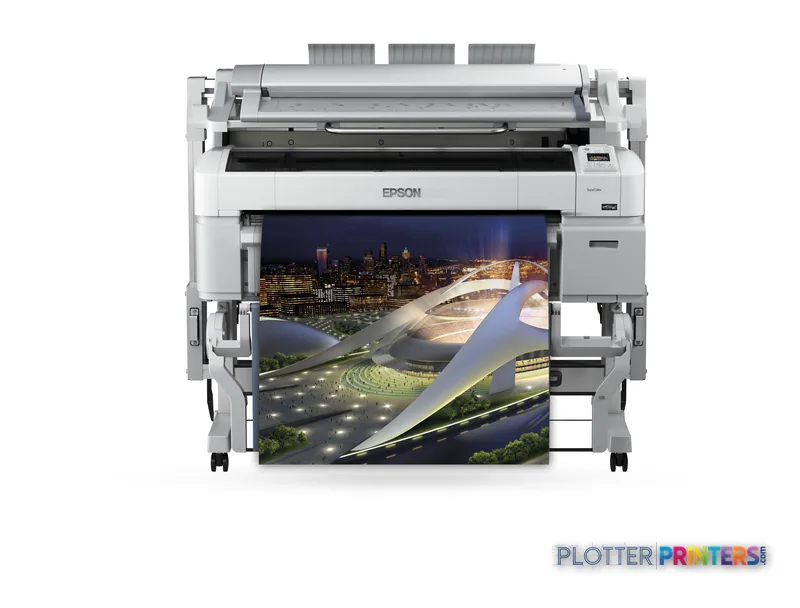

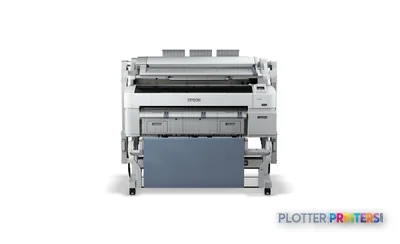

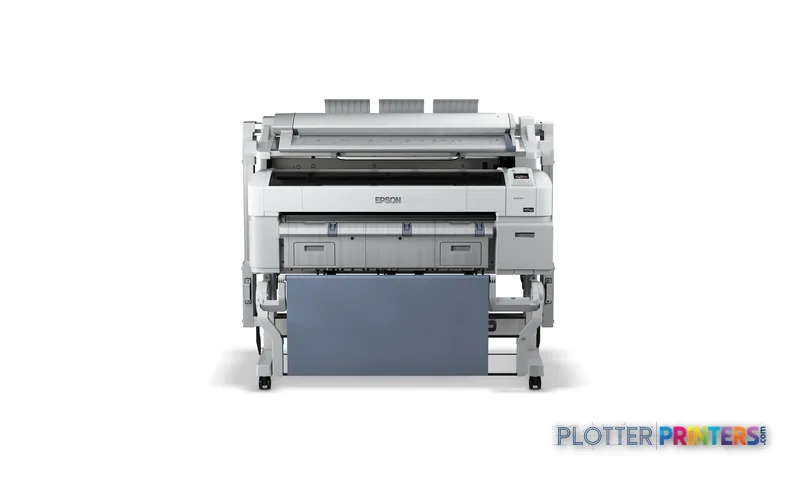

Every AEC print operation eventually hits the same wall: someone needs a full-size D or E plot, the file is a 40-layer coordination sheet, and the plotter three desks over is either busy, out of the right roll, or belongs to another department entirely. The Epson SureColor T5200D is Epson’s answer to the second problem — a compact 36-inch dual-roll machine built to sit inside a firm rather than in a dedicated print room.

The “D” is the point. Two rolls mean you can keep bond loaded for check prints and coated stock loaded for the presentation set, and let the printer choose without an operator walking over to swap media. That saves minutes, and minutes are money.

Line quality and the daily grind

The engine is PrecisionCore TFP with Variable-Sized Droplet Technology and Auto Head Alignment, running Epson UltraChrome XD pigment ink across five cartridges (CMYK plus a second black feed). For AEC work that translates to the two things that actually matter: crisp fine lines on ordinary bond, and pigment black that survives a rolled-up as-built in a job-site trailer.

Epson rates dimensional accuracy at 0.2%, which is the spec surveyors and civil engineers should read twice — a scaled plat or a site plan that prints long is a plan that gets re-plotted. It handles media from 0.003″ to 0.059″ thick and cut sheets as well as roll, so it isn’t limited to bond.

On the plumbing side it speaks HP-GL/2, HP-RTL and PostScript 3, with 1024 MB of memory, Ethernet and a USB Type-A port. That covers legacy AutoCAD driver output and modern PDF-from-Bluebeam workflows without a separate RIP for most firms.

How it sits in the family

Think of the T5200D as the productivity-minded 36-inch option. If your volume is lighter and single-roll suits you, the [[product:24591478|Epson T5270]] covers the same 36-inch width without the second roll. Step down further in width and the [[product:37634333|Epson T3200]] handles 24-inch work for firms whose sheets rarely exceed C-size.

Going the other way, when 36 inches stops being wide enough — large presentation boards, GIS wall maps, or genuine reprographics volume — the family’s dual-roll 44-inch machines are the honest upgrade. The [[product:30069118|Epson SureColor T7072DR]] and the [[product:97815520|Epson T7770DR 44-in]] give you the extra width and roll capacity. And if scanning and copying belong on the same box, the [[product:69065351|Epson SC-T7200D]] MFP folds that in. [[compare:37634340,24591478|Compare the T5200D against the single-roll T5270]] before you decide the second roll is worth the footprint.

IT, security and the boring costs

This is where firms under-budget. The T5200D lands on the network via a single RJ-45 Gigabit-class port with an onboard LCD for local jobs and USB Type-A for walk-up plotting. There is no scanner and no copy function on this model — if legacy drawing capture matters, that stays a separate line item.

Plan for the recurring items: Epson UltraChrome XD ink across five slots and the Epson C13S042332WB maintenance box, which is a consumable, not an accessory. Draw your dealer into a conversation about ink accounting and firmware management before signing, because a plotter with no user authentication is a plotter every project charges to whoever plotted last.

The T5200D is a well-judged in-firm plotter: dual-roll convenience, dependable pigment line work, and enough language support to drop into an existing CAD/PDF workflow without drama. It is not a reprographics department, and it does not scan. Choose the T5200D if you plot D/E sheets regularly and want bond and coated stock live at once without an operator babysitting media. Choose the single-roll [[product:24591478|T5270]] if one media type covers your week. Move up to a 44-inch dual-roll machine like the [[product:97815520|T7770DR 44-in]] if width or volume is your real constraint — and add the [[product:69065351|SC-T7200D]] instead if scan-to-file has to live on the same box. Buy for the workflow you have, not the brochure’s.
