Epson SureColor SC-T5000

technical / CAD plotter

ModelC11CC16001A0
Score56/100

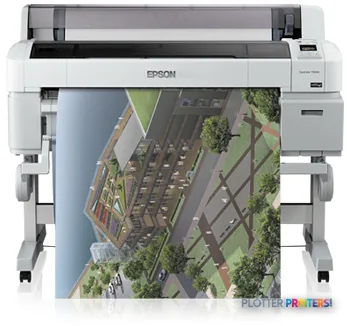

Epson SureColor SC-T5000 large-format printer with aerial architectural rendering printing

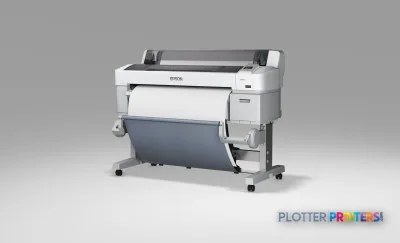

Epson SureColor SC-T5000 large-format printer product image showing front view with white and gray body and roll feed

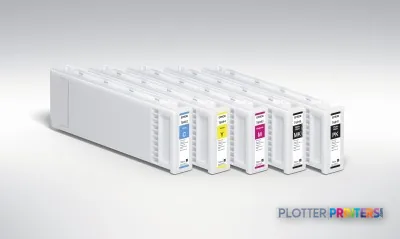

Epson SureColor SC-T5000 product image showing five ink cartridges in cyan, yellow, magenta, black, and gray

Epson SureColor SC-T5000 product image showing compact printer with blue top panel and white base unit

Epson SureColor SC-T5000 product image showing the blue paper feed mechanism and media handling assembly

Epson SureColor SC-T5000 product image showing two black and gray ink cartridge components with internal mechanisms visible

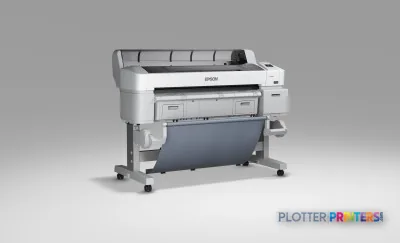

Epson SureColor SC-T5000 large-format printer product image showing front view with white upper body and gray lower panel

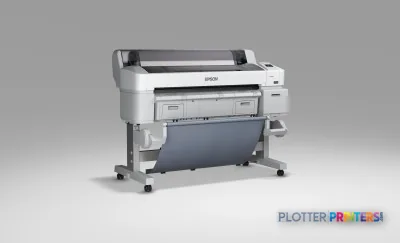

Epson SureColor SC-T5000 large-format printer product image showing front view of white and gray device

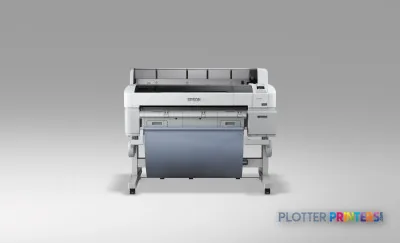

Epson SureColor SC-T5000 large-format printer front view with white body and open paper roll compartment

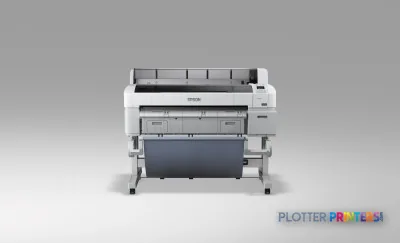

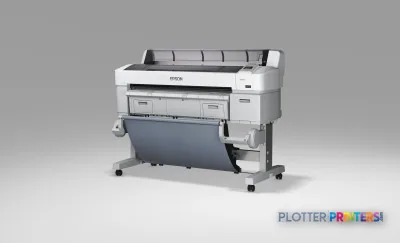

Epson SureColor SC-T5000 large-format printer product image showing front view with white and gray body

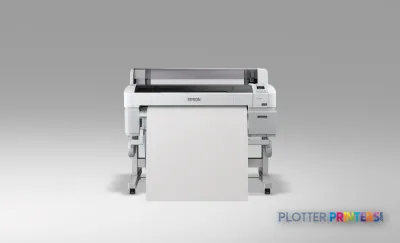

Epson SureColor SC-T5000 large-format printer front view with white paper loaded

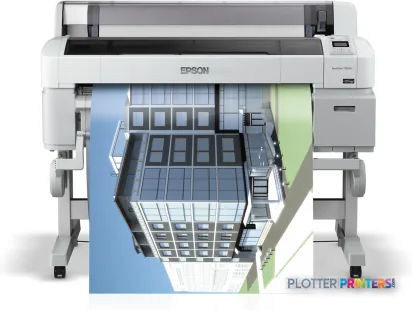

Epson SureColor SC-T5000 large-format printer with architectural blueprint sample output displayed

Authorized Epson dealerGenuine hardware & ink

Manufacturer warrantyExtension plans available

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Analyst take

Five-color UltraChrome XD pigment ink gives crisp, water-resistant linework on ordinary bond — the trait that matters most for job-site paper.
Dual Photo black and Matte black inks keep blacks dense across both matte bond and glossy photo media.
A0 (33" x 47") maximum print size covers standard architectural and engineering sheet needs.

Not sure if the C11CC16001A0 is right for you?

Compare key specs and an AI analyst read-out against similar models.

Compare printers →

Fine detail 2880 x 1440 DPI maximum resolution for crisp line work.
Ink platform Photo black, Matte black, Cyan, Yellow, Magenta.
Analyst score Scores 56/100 in our class-relative rating.

Overview

Built for the work

Epson SureColor SC-T5000, 2880 x 1440 DPI, Photo black, Matte black, Cyan, Yellow, Magenta, A0 (841 x 1189 mm), A0, A1, A2, A3, A4, B2, B3, B4, LCD

Spec Analysis
overall

Where it performs best

Size / Fit 86

Print Cost 81

Print Quality 72

How we grade →

Expert analysis

What you should know

By Ray KowalczykSenior Technical Editor — CAD & Technical Printing

Key takeaways

Five-color UltraChrome XD pigment ink gives crisp, water-resistant linework on ordinary bond — the trait that matters most for job-site paper.
Dual Photo black and Matte black inks keep blacks dense across both matte bond and glossy photo media.
A0 (33" x 47") maximum print size covers standard architectural and engineering sheet needs.
Single-roll design means manual swaps on mixed-size plan sets — plan for operator time or step up to a dual-roll model.
The optional Hard Disk Unit enables reprinting and re-queuing sets at the machine without re-sending files.
At 50 dB while printing, it is quiet enough to live in an office rather than a dedicated plot room.

Every AEC firm reaches the same fork in the road: the plot queue is backing up, the old plotter is dropping lines on 24×36 sheets, and someone in accounting wants to know why the print room has become a bottleneck. The Epson SureColor SC-T5000 is one answer to that question — a five-color, aqueous pigment wide-format printer built to turn CAD files and PDF bid sets into readable paper without drama.

It is not the flashiest machine in Epson’s T-line, and that is rather the point. It is a workhorse: A0-capable, sharp enough for fine linework, and quiet enough to live in an office rather than a sealed plot room.

A0 (33" x 47" (841 x 1189 mm))Max print sizeFull architectural D/E-equivalent output

2880 x 1440 DPIMax resolutionAmple for hairline CAD detail

Photo black, Matte black, Cyan, Yellow, MagentaInk setDual-black five-color pigment

50 dBPrinting noiseSound pressure level while printing

What it actually does well

The SC-T5000 runs Epson’s UltraChrome XD pigment inks, and that ink choice matters more than the headline resolution number. Pigment on ordinary bond gives you crisp black linework and text that survives a highlighter and a damp job-site trailer. For the daily reality of an AEC shop — permit sets, redlines, coordination drawings, the occasional presentation board — that durability is the feature you notice, even if nobody puts it on a spec sheet.

The two-black setup (Photo black and Matte black) is the second quiet advantage. Matte black handles bond and coated stock without the muddy, washed-out blacks you get when a single black ink is forced to cover both matte and glossy media. Feed it Epson Bond Paper White 80 or Coated Paper 95 for everyday plots, and switch to photo stock when a client wants a rendering that looks like money.

The system around the machine

A plotter is one node in a workflow of files, networks and people, and this is where buyers under-plan. Two considerations decide whether the SC-T5000 saves you time or just relocates the bottleneck:

Job storage. The optional Hard Disk Unit SureColor T Series lets operators re-queue and reprint sets without re-sending from a workstation — meaningful when a bid set gets one more revision at 4:45 PM.
Roll handling. This is a single-roll machine. Mixed-size plan sets that swing between 24-inch and 36-inch rolls mean manual swaps, and manual swaps mean operator minutes. Money is minutes.
IT manageability. With 256 MB of internal memory and standard network submission, it slots into a managed print environment cleanly enough; confirm driver support and authentication needs with your IT lead before you commit.

If your volume is steady but not punishing, the single roll is a fair trade. If it isn’t, keep reading.

Where it stops being the right tool

The SC-T5000 tops out at A0 width and a single roll, and those two limits define its edges. High-volume engineering departments that live on unattended, mixed-size runs should look at the dual-roll members of the same family — the Epson SureColor T5270DR 36-in eliminates the roll-swap tax, and the wider Epson T7770DR 44-in adds both dual rolls and 44-inch media for oversized site plans and GIS maps.

If scanning and copying are part of your day, this printer alone won’t cover it; the Epson SC-T5200 36-in MFP configuration folds a scanner into the same footprint. And if your needs are lighter, the Epson SC-T5100 36-in is the leaner step-down. Worth a side-by-side: SC-T5000 vs the dual-roll T5270DR.

Keep researching

Epson SureColor T5270DR 36-inDual-roll sibling for unattended mixed-size runs Epson SC-T5200 36-inMFP variant with integrated scanning and copying How this class ranksSee where the SC-T5000 sits among wide-format peers

The read

The SC-T5000 is a sound choice for a small-to-mid AEC studio that needs dependable A0 output with pigment durability and doesn’t run enough mixed-size volume to justify dual rolls. Choose it if your plot queue is steady, your sets are mostly one roll width, and quiet office operation matters. Choose the T5270DR or T7770DR if roll-swapping is eating operator hours, and the SC-T5200 MFP if you’d otherwise buy a scanner too. Buy the machine for the workflow you have, not the one the brochure imagines.

Spec analysis

How the specs grade

Overall performance

within technical / CAD plotters

76% spec coverage

This printer

How it scores

Media Handling43

Print Quality72

Print Cost81

Color36

SpeedNot enough spec data

Connections67

Workflow30

Size / Fit86

WarrantyNot enough spec data

Graded on a curve against the best published spec among the wide-format printers we track — 100 = the catalog’s gold standard for that metric (the finest droplet, the longest warranty, the fastest rated speed actually on the market). Every input is a manufacturer-published spec; rated speeds are shown as listed, not timed throughput. Ticks mark the class best. How we grade →

Verified specifications

The specs that decide it

Maximum resolution	2880 x 1440 DPI
Printing colors	Photo black, Matte black, Cyan, Yellow, Magenta
Internal memory	256 MB
Maximum print size	A0 (841 x 1189 mm)
Sound level (printing)	50 dB
Power consumption	65 W

Specifications

Full technical detail

Max resolution2880 x 1440 DPI

ColorColor

Use caseCAD / Technical

Printing

Color	Yes
Printing colors	Photo black, Matte black, Cyan, Yellow, Magenta
Maximum resolution	2880 x 1440 DPI

Performance

Display	LCD
Internal memory	256 MB
Built-in display	Yes
Country of origin	Japan
Sound power level (standby)	6.8 dB
Sound pressure level (printing)	50 dB

Paper handling

Maximum print size	A0 (841 x 1189 mm)
ISO A-series sizes (A0…A9)	A0, A1, A2, A3, A4
ISO B-series sizes (B0…B9)	B2, B3, B4

Weight & dimensions

Depth	32" (813 mm)
Width	55.3" (1405 mm)
Height	44.4" (1128 mm)
Weight	17.6 lbs (8 kg)

Power

Power consumption (off)	0.4 W
Power consumption (standby)	0.4 W
Power consumption (typical)	65 W

Logistics data

Quantity per pack	1 pc(s)

Packaging data

Package depth	69.9" (1775 mm)
Package width	32.1" (815 mm)
Package height	41.3" (1050 mm)
Package weight	277.8 lbs (126 kg)

Everything that fits the Epson SureColor SC-T5000 POS

The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.

47 ink cartridges · 79 paper & media items · 4 accessories

Epson SureColor SC-T5000 POS ink and paper →

Supplies

Compatible ink, printheads & media

Genuine consumables that fit the Epson SureColor SC-T5000 — only the cartridges, printheads and media compatible with this model.

Questions

Straight answers

Can the SC-T5000 print full-size architectural and engineering drawings?

Yes. It supports up to A0 (33″ x 47″, 841 x 1189 mm), which covers standard D- and E-equivalent sheet sizes for permit sets, bid sets and coordination drawings.

Does it handle both matte and glossy media well?

It carries both Matte black and Photo black inks, so it produces dense blacks on bond and coated stock as well as glossy photo media without a manual black-ink swap penalty on quality.

What inks and everyday media does it use?

It runs Epson UltraChrome XD pigment inks. For daily plotting, Epson Bond Paper White 80 and Coated Paper 95 are common choices; photo and proofing stocks are available for presentation work.

Does it support multiple rolls for mixed-size jobs?

No — the SC-T5000 is a single-roll machine, so mixed-width sets require manual roll changes. If unattended mixed-size production matters, consider a dual-roll family member such as the Epson SureColor T5270DR 36-in or the 44-inch Epson T7770DR.

Can it scan and copy?

This model is a printer only. For integrated scanning and copying in a similar footprint, look at the Epson SC-T5200 36-in MFP configuration.

Can operators reprint sets without re-sending from a workstation?

With the optional Hard Disk Unit SureColor T Series installed, yes — jobs can be stored, re-queued and reprinted at the machine, which helps with last-minute revisions.
