Epson · Wide-Format Plotter

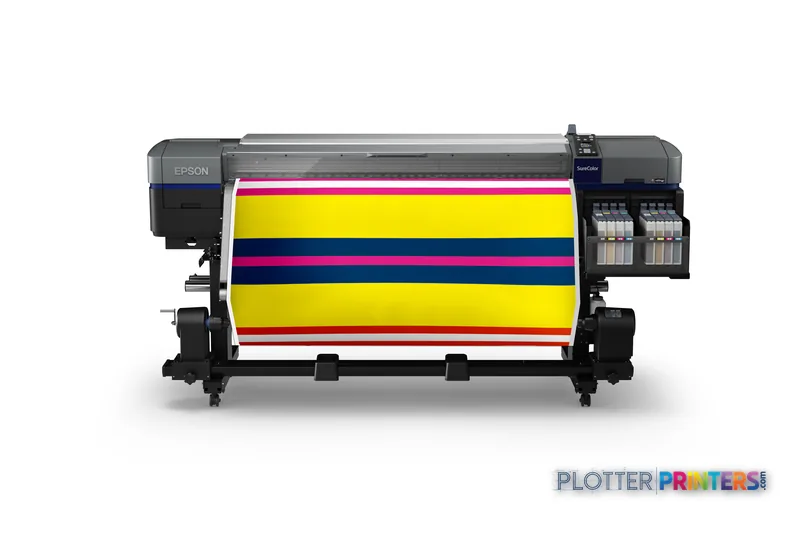

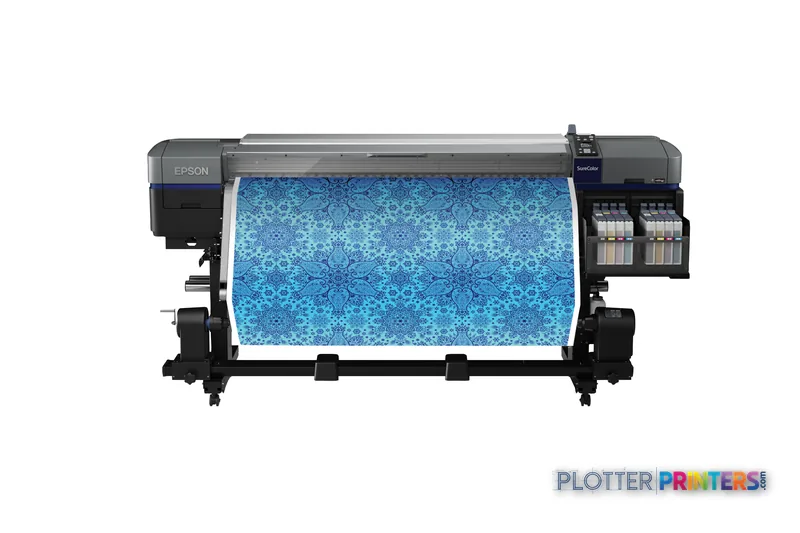

Epson SureColor SC-F9300
color graphics & photo printer
- ModelSC-F9300
Authorized Epson dealerGenuine hardware & ink
Manufacturer warrantyExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson SC-F9300 supports roll paper and a maximum A0 output size of 33" x 47".
- Its 720 x 1440 DPI maximum resolution should be evaluated with real AEC PDFs and intended media, not treated as a complete measure of drawing quality.
- The machine has no scanning or copying capability, so it is not a standalone walk-up plan-room multifunction device.
Not sure if the SC-F9300 is right for you?
Compare key specs and an AI analyst read-out against similar models.
Overview
Built for the work
Epson SureColor SC-F9300, 720 x 1440 DPI, Black, Cyan, Magenta, Yellow, TFP, A0 (841 x 1189 mm), A0, A1, A2, 0.4 mm
Expert analysis
What you should know
Key takeaways
- The Epson SC-F9300 supports roll paper and a maximum A0 output size of 33" x 47".
- Its 720 x 1440 DPI maximum resolution should be evaluated with real AEC PDFs and intended media, not treated as a complete measure of drawing quality.
- The machine has no scanning or copying capability, so it is not a standalone walk-up plan-room multifunction device.
- The listed Windows support makes workstation-based deployment the most clearly documented submission path.
- The Epson SC-F9400 64-in is the wider listed in-family alternative, while the Epson SC-F6300 44-in is the narrower one.
- Color-critical teams should conduct their own media and file testing because no measured gamut data is supplied.
On a coordination drawing, color has a practical job: it separates systems before the field team mistakes one for another. The Epson SC-F9300 brings color roll-media output to that conversation, with a TFP print head, up to 720 x 1440 DPI resolution, and support for A0, A1, and A2 ISO sizes. It is a substantial device at 103.1" wide and 639.3 lbs, so it belongs in a planned print-room location rather than an improvised project-office corner.
For AEC teams, its fit is strongest where roll-based color output is part of a controlled production workflow and Windows workstations are the standard submission point. The specification supports Windows 7 and Windows 10 variants, provides an LCD display, and uses eight print cartridges. The visual result will still depend on file preparation, media, and the color-management discipline around the device; resolution alone does not tell the whole story.
A0 (33" x 47" (841 x 1189 mm))Maximum print sizeSupports A0, A1, and A2 ISO sizes.
720 x 1440 DPIMaximum resolutionTFP print head.
8Installed print cartridgesPrinting colors listed as Black, Cyan, Magenta, Yellow.
570 WTypical power consumptionOff-mode consumption is 1 W.
Where it belongs in an AEC environment
The SC-F9300 is worth considering for teams that need color output from roll paper and have room for a dedicated production device. Its listed maximum output is A0, which aligns with common large-format drawing and presentation-sheet handling. The machine accepts roll paper and media up to 0.016" thick, giving document-control teams a defined media boundary to test before committing a project workflow.
It is not a multifunction plan-room device. There is no scanning or copying capability, and no USB port is listed. That makes it less appropriate where walk-up scan-to-file, legacy drawing capture, or quick copy-and-markup cycles are central to the department. In those environments, the surrounding workflow must supply those functions.
Color, files, and operating discipline
AEC color is often functional rather than decorative: utility layers, phasing, disciplines, hazards, and review comments all need to remain distinct. The SC-F9300 lists Black, Cyan, Magenta, and Yellow among its printing colors, but the data supplied does not provide measured ICC gamut or color-accuracy results. That absence matters. Before standardizing it for color-critical renderings or branded presentation material, test the actual PDF or CAD-derived files on the intended media—especially where the cyan edge of a utility overlay meets fine black annotation.
The listed compatible supply family is Epson UltraChrome DS, with an Epson Waste ink bottle for waste handling. Several compatible Epson printhead assemblies are also listed, including Epson CP04OSSECG44 and Epson CP05OSWHCG44. Confirm the dealer’s maintenance process, supply availability, and responsibility for color troubleshooting before deployment.
Position within the listed Epson family
The practical comparison is largely one of format. The Epson SC-F9400 64-in is the wider listed in-family alternative, while the Epson SC-F6300 44-in is the narrower option. Both listed alternatives carry the same stated 720 x 1440 DPI maximum resolution, so width and the actual media workflow should lead the discussion rather than resolution alone.
For a side-by-side review of the wider option, use the SC-F9300 and SC-F9400 64-in comparison. Neither comparison substitutes for a live test with the firm’s normal PDFs, layer colors, lineweights, and media.
Continue evaluating
The read
The SC-F9300 fits an AEC organization that needs a dedicated, roll-fed color-output device up to A0 and can support it with a disciplined Windows-based submission and media workflow. Its trade-off is clear: it does not add scanning or copying, and the supplied data does not establish measured color-gamut performance. Choose it for its format and production role, not as a catch-all plan-room replacement. Buyers should validate their own drawing sets, color conventions, media, service response, and consumable process before making it a department standard.
Spec analysis
How the specs grade
Overall performance
—Not enough data for an overall score
Individual dimensions are shown where the specs support them.
- This printer
- Epson SureColor T5770DR
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum resolution | 720 x 1440 DPI |
|---|---|
| Printing colors | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 8 |
| Internal memory | 512 MB |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.4 mm |
| Maximum roll diameter | 0.197" (5 mm) |
| Scanning | No |
| Power consumption | 570 W |
Specifications
Full technical detail
Max resolution720 x 1440 DPI
ColorColor
Use caseGraphics / Production
Printing
| Color | Yes |
|---|---|
| Print head | TFP |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Maximum resolution | 720 x 1440 DPI |
| Number of print cartridges | 8 |
Performance
| Display | LCD |
|---|---|
| Product color | Black |
| Internal memory | 512 MB |
| Built-in display | Yes |
| Country of origin | China |
Paper handling
| Roll paper | Yes |
|---|---|
| Media thickness | 0.4 mm |
| Maximum print size | A0 (841 x 1189 mm) |
| Maximum roll diameter | 0.197" (5 mm) |
| ISO A-series sizes (A0…A9) | A0, A1, A2 |
Ports & interfaces
| USB port | No |
|---|
Weight & dimensions
| Depth | 52.4" (1332 mm) |
|---|---|
| Width | 103.1" (2620 mm) |
| Height | 36.8" (934 mm) |
| Weight | 639.3 lbs (290 kg) |
Power
| Power consumption (off) | 1 W |
|---|---|
| Power consumption (typical) | 570 W |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Manual | Yes |
|---|---|
| Package depth | 125.2" (3180 mm) |
| Package width | 67.3" (1710 mm) |
| Package height | 43.3" (1100 mm) |
| Package weight | 1069.2 lbs (485 kg) |
| Cartridge(s) included | Yes |
System requirements
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64 |
|---|
Everything that fits the Epson SureColor SC-F9300
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
3 ink cartridges · 1 accessory · 8 coverage plans
Epson SureColor SC-F9300 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor SC-F9300 — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 3
Accessories 1
Coverage & Support Plans 8
Epson 04 years CoverPlus Onsite service excluding Print Heads for SureColor SC-F9300
Epson 04 years CoverPlus Onsite service including Print Heads for SureColor SC-F9300
Epson 05 years CoverPlus Onsite service excluding Print Heads for SureColor SC-F9300
Epson 05 years CoverPlus Onsite service including Print Heads for SureColor SC-F9300
Epson 1E years extension to CoverPlus Onsite service excluding Print Heads for SureColor SC-F9300
Epson 4/5E years extension to CoverPlus Onsite service including Print Heads for SureColor SC-F9300
Epson 5E years extension to CoverPlus Onsite service including Print Heads for SureColor SC-F9300
Epson 4E years extension to CoverPlus Onsite service including Print Heads for SureColor SC-F9300Questions
Straight answers
Can the Epson SC-F9300 scan marked-up drawings or make copies?
No. The supplied specifications list no scanning and no copying capability. A separate scanner or multifunction workflow is required for scan-to-file and copy-led plan-room tasks.
What is the largest listed output size?
The maximum listed print size is A0, or 33″ x 47″ (841 x 1189 mm). The supported ISO A-series sizes listed are A0, A1, and A2.
Is this a suitable machine for color-coded AEC drawings?
It can be considered where color roll-media output is needed, with Black, Cyan, Magenta, and Yellow listed among its printing colors. The supplied data includes no measured gamut or color-accuracy results, so firms should test their own coordination drawings and media.
What consumables should a buyer plan around?
The compatible consumables listed include Epson UltraChrome DS ink and an Epson Waste ink bottle. Compatible Epson printhead assemblies are also listed; confirm the service provider’s replacement and maintenance process.
How does it compare with the nearby Epson alternatives?
The Epson SC-F9400 64-in is the wider listed in-family option, and the Epson SC-F6300 44-in is narrower. All three are listed with a 720 x 1440 DPI maximum resolution, making format needs an important comparison point.
