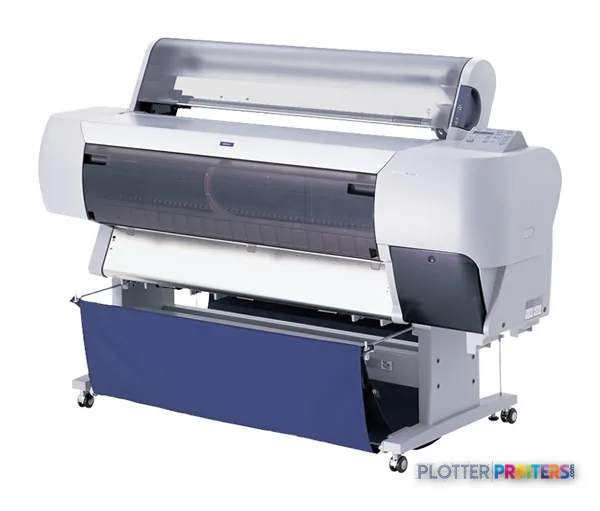

Epson Stylus Pro 10600

The 44-inch roll width is practical for common drawing-sheet work, while the specified media support includes double rolls, a single roll and single cut sheets from A4 through B0+. That flexibility matters in a mixed day: a permit drawing from a roll, a revised exhibit on a sheet, then a color coordination plan without rebuilding the queue. Fast Ethernet supports a shared-network placement, although there is no USB port listed, so direct local USB submission is not part of the machine’s stated interface.

For design teams, the value is primarily in color technical communication. Six cartridges and UltraChrome Ink support a broader role than monochrome-only plan production, particularly where phasing, utilities, discipline overlays or site-map layers need visual separation. There is no measured ICC gamut data in the supplied record, however, so it would be a mistake to infer proofing-level color accuracy from ink count or resolution alone. In AEC terms, judge it first on the media and files your team actually uses—the cyan edge between two utility layers is often more consequential than an impressive-looking specification.

The manufacturer-listed normal-quality speed range is 2,5 – 20 m2 per hour; best-quality output is listed at 4.6 m2 per hour. Those figures describe printing speed, not the elapsed time for a complete, collated construction issue. Firms should allow for PDF processing, roll selection, sheet handling and any review step before treating rated output as a production commitment.

The 128 MB internal memory and the stated Windows 95/98/NT4.0/2000/ME/XP and Macintosh 8.1-or-later compatibility place this machine most naturally in an established environment with a compatible workflow. Current IT teams should validate driver availability, network policy and job-submission behavior before relying on it for project-critical output. Its specified operating range is 10 – 35 °C and 20 – 80% relative humidity; those limits are relevant in a print room near loading docks, field offices or seasonal temporary spaces.

No in-family step-up or step-down model is provided in this catalog set, so a family ladder cannot be stated responsibly. Among the listed cross-brand comparisons, the Canon GP-4000 44-in and Canon GP-4600S 44-in are both 44-inch alternatives with listed 2400 x 1200 DPI resolution. Resolution alone does not settle the decision: linework, media behavior, driver workflow, local support and the condition of the existing environment deserve a hands-on test.

For an existing installed base, the sensible question is not whether a newer specification looks higher on paper, but whether this machine still supports the firm’s files, media routines and continuity requirements. Use the side-by-side comparison to frame the specification review, then test representative PDFs: dense structural sheets, redlined MEP coordination drawings and color GIS maps. The class ranking page can add context, but it cannot replace a job-specific evaluation.
