Epson · Wide-Format Plotter

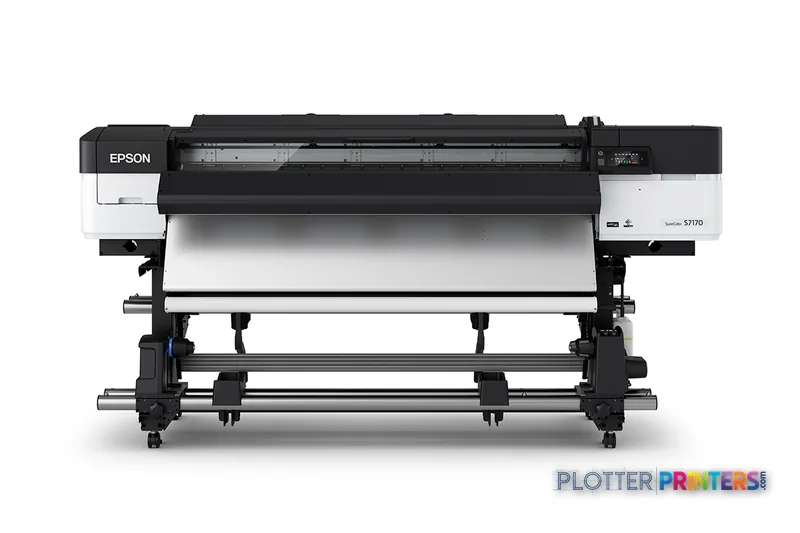

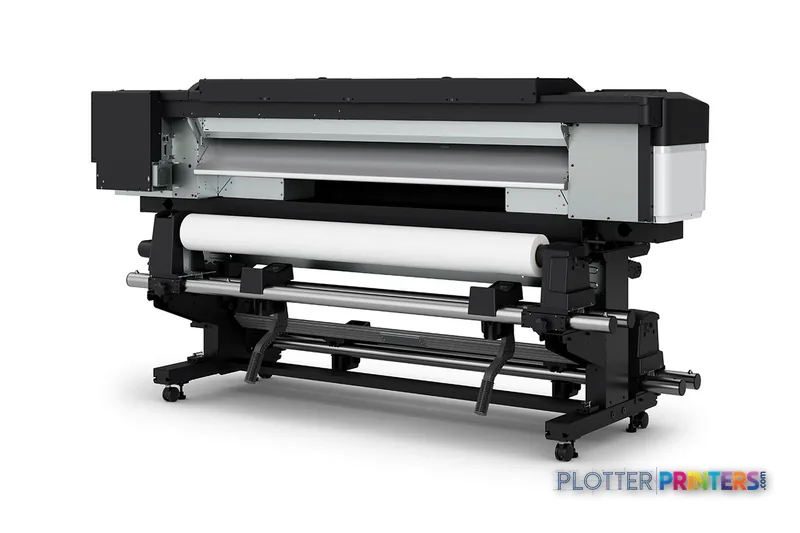

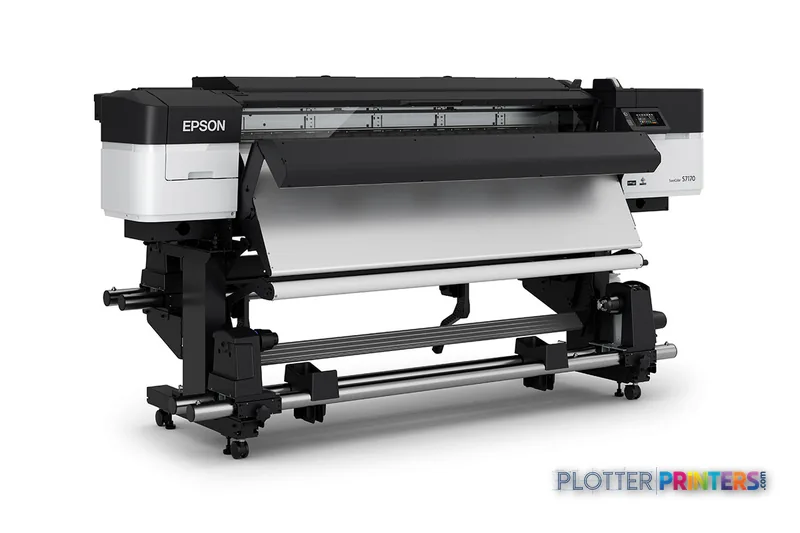

Epson SureColor S SCS7170PE
64" technical / CAD plotter
- ModelSCS7170PE
- Prints64" wide
- Score44/100
Authorized Epson dealerGenuine hardware & ink
1-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson SCS7170PE is a color roll-fed inkjet with a maximum resolution of 1200 x 1200 DPI.
- It connects by Ethernet LAN or USB, but it does not offer Wi-Fi.
- There is no scanning or copying capability, so legacy conversion and walk-up copy workflows require separate equipment or process.
Not sure if the SCS7170PE is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 64" wide on rolls and sheets.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Magenta, Yellow, Black.
- Connectivity Ethernet for shared team printing.
- Verified specs 10 specs checked against the manufacturer datasheet.
- Analyst score Scores 44/100 in our class-relative rating.
Overview
Built for the work
Epson SCS7170PE, Inkjet, 1200 x 1200 DPI, ESC P, Cyan, Magenta, Yellow, Black, Banner, Roll, 9.84" (25 cm)
- 64″Max print width
- 4Ink channels
- 1,200 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The Epson SCS7170PE is a color roll-fed inkjet with a maximum resolution of 1200 x 1200 DPI.
- It connects by Ethernet LAN or USB, but it does not offer Wi-Fi.
- There is no scanning or copying capability, so legacy conversion and walk-up copy workflows require separate equipment or process.
- Its one input tray accepts roll and banner media, making media-change planning important for mixed-job environments.

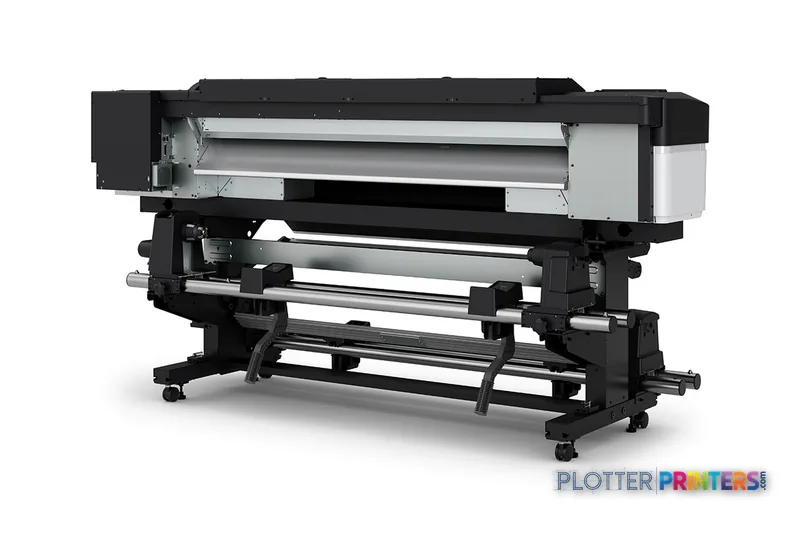

- The rear roll can weigh 99.2 lbs (45 kg), so loading procedures and operator access matter.
- The listed HP DesignJet Z6 64-in and HP DesignJet Z9+ 64-in provide cross-brand comparison points, not automatic replacements.

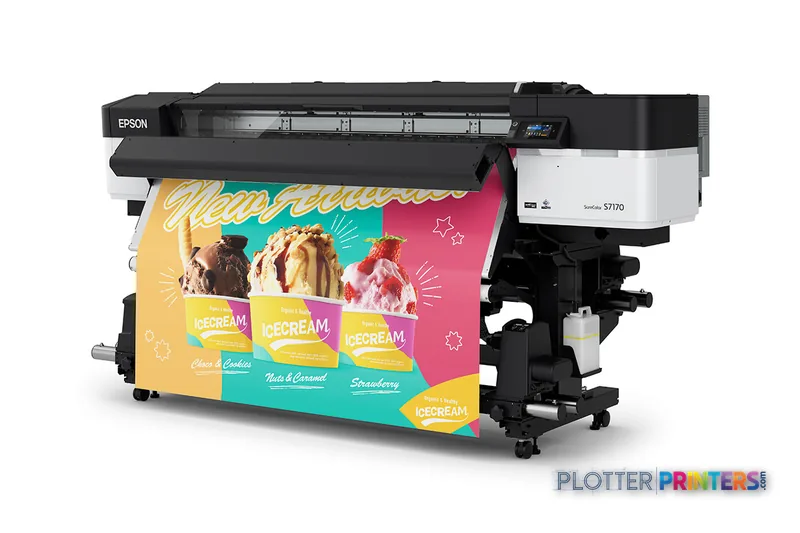

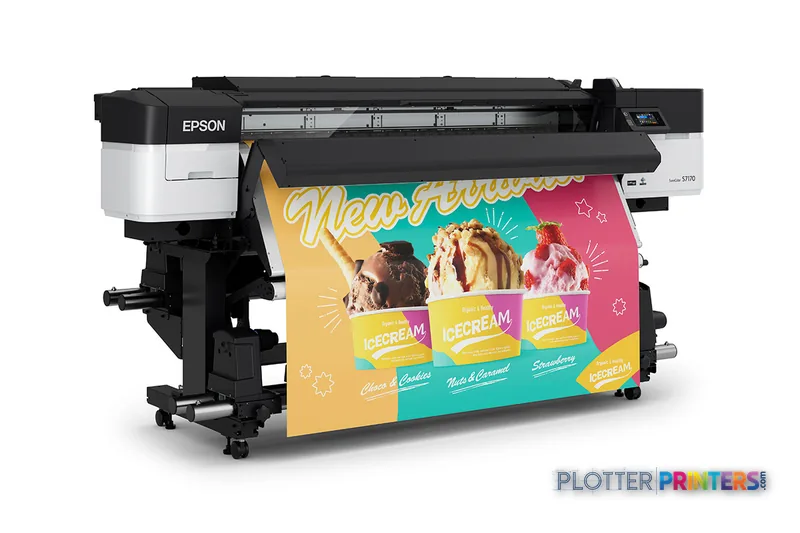

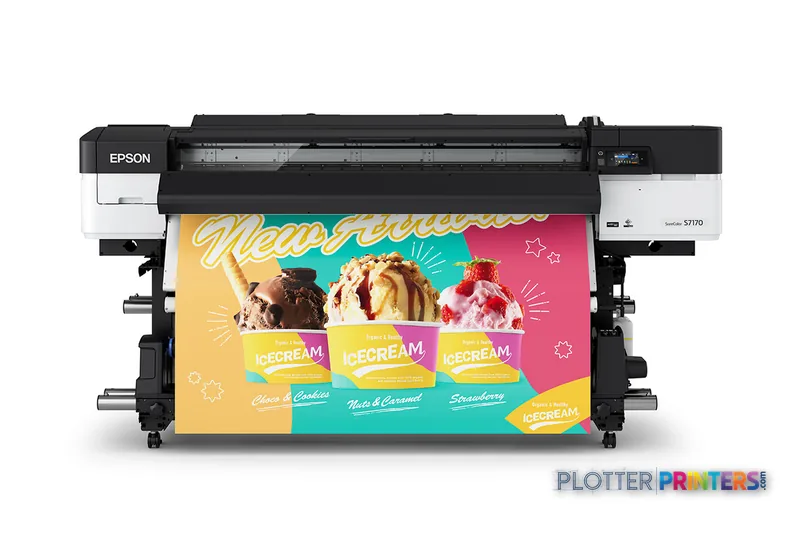

At 4:45 p.m., somebody needs a readable color plan, a coordination drawing, or a banner out of the print room before the meeting starts. The Epson SCS7170PE is a roll-fed color inkjet built for that sort of output: networked printing, touch control at the machine, and four-color imaging at up to 1200 x 1200 DPI.
It is not a multifunction device. There is no scanner or copier hiding in the fine print. That matters for AEC teams replacing an older wide-format MFP and expecting walk-up scan, copy, markup capture, or archive work. Here, the job is print production. Keep the workflow honest and it is easier to live with.
1200 x 1200 DPIMaximum resolutionFor detailed color and technical output.

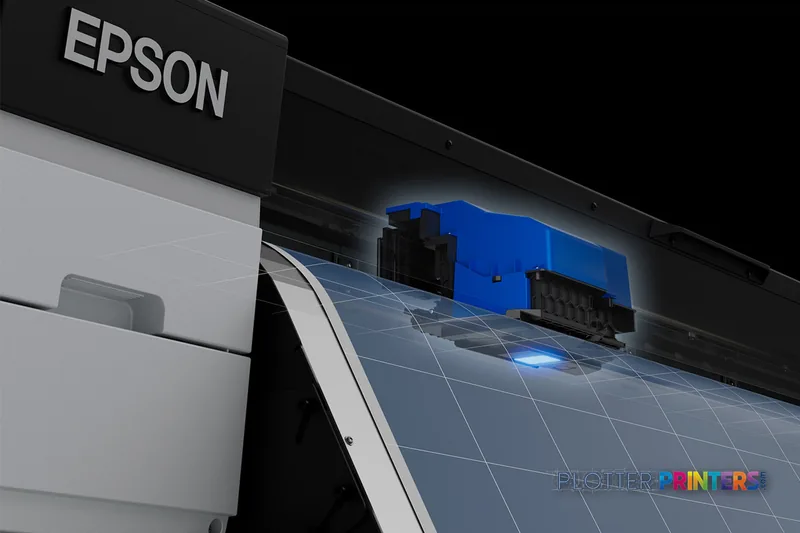

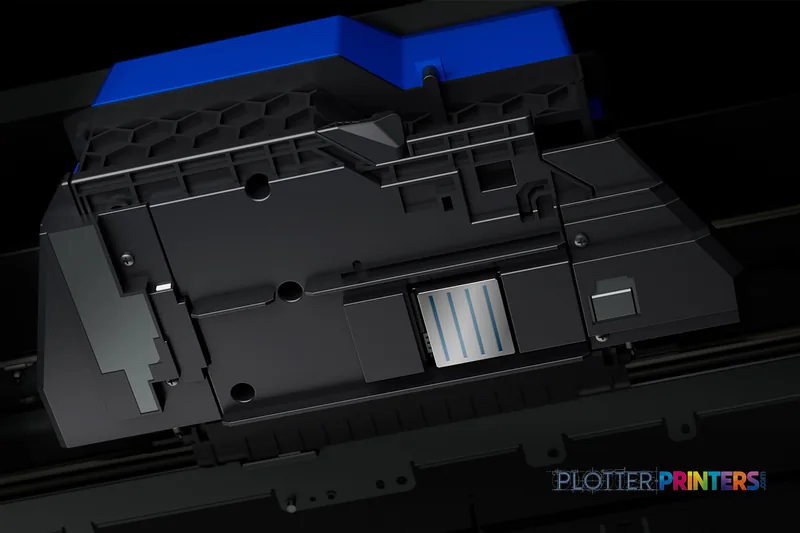

3,200 nozzles: 800 nozzles x 4 colorsPrinthead configurationCyan, Magenta, Yellow, and Black.
99.2 lbs (45 kg)Rear-roll weightRoll changes are a real handling task, not a one-hand errand.
1100 WTypical power consumptionPlan the electrical and heat load as part of the print-room setup.
Where it fits in an AEC print room

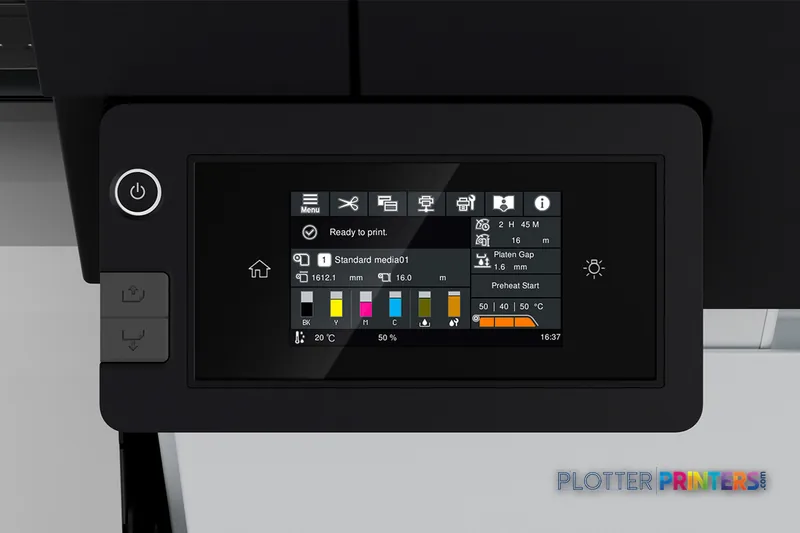

This printer fits firms that submit PDF, CAD, BIM exports, GIS maps, color-coded coordination sheets, and presentation-oriented technical graphics to a dedicated wide-format device. Ethernet supports 100 and 1000 Mbit/s connections, while the built-in 4.3-inch touch display gives operators a local control point when a deadline is already breathing down their neck.

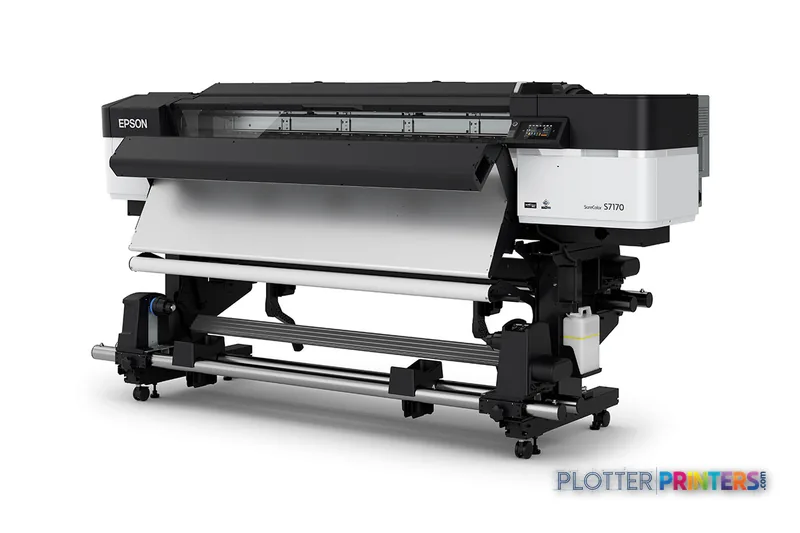

The single input tray handles roll and banner media. That is straightforward for a steady run of similarly prepared output. The trade-off is operational flexibility: teams that regularly shift between multiple loaded media types or need a second roll ready for a different job should examine that workflow closely before assuming one roll path will cover it.
Bottom line: It makes sense when the print room needs color roll output, not scan-and-copy service.
Network and file-submission reality
The Epson SCS7170PE has Ethernet LAN and USB, but no Wi-Fi. That will suit many managed AEC networks, particularly where IT wants a fixed wired connection rather than another wireless endpoint to document. It supports Windows 8.1 x64, Windows 10, and Windows 11, plus the listed Mac OS versions through Mac OS X 15.0 Sequoia.
Its page-description language is ESC P. For construction-document teams, the practical question is not whether a driver installs; it is whether your actual PDFs and CAD exports arrive correctly at scale, with the line weights and color conventions your reviewers expect. Run representative permit sheets, markups, and dense coordination PDFs before acceptance. A calm Tuesday test beats a Friday bid panic. I have learned that one the expensive way.
Bottom line: Wired network fit is clear; production-file testing still belongs in the evaluation.
What it does not replace
Do not buy this machine expecting copying or scanning. It has neither capability. Firms digitizing legacy drawings, copying marked-up plans, or handling walk-up contractor requests will need a separate scanning process or a different equipment approach.
There is also no in-family step-up or step-down model identified in the available catalog. For cross-brand context, the HP DesignJet Z6 64-in and HP DesignJet Z9+ 64-in are listed alternatives with 64-inch media capability, thermal inkjet technology, and 2400 x 1200 DPI resolution. Those specifications alone do not settle suitability. Compare the machines against your media, file mix, local service arrangement, and operator workload using the comparison tool.
Bottom line: A higher listed resolution or a wider format does not solve a workflow problem you have not defined.
Useful evaluation tools
The read
The Epson SCS7170PE is a dedicated color, roll-fed inkjet for AEC teams that need wired network printing and do not need scan or copy functions at the device. Its four-color configuration, touch display, USB connection, and Ethernet LAN make the role clear. Keep a compatible Epson Waste ink bottle on the operating checklist, and review the available epson PSS7170S1, epson PSS7170S2, and epson PSS7170S4 warranty options with the supplier. Bottom line: Buy it for dedicated print output, not as a substitute for a wide-format document center.
Spec analysis
How the specs grade
Overall performance
within technical / CAD plotters
72% spec coverage
- This printer
Verified specifications
The specs that decide it
| Maximum roll width | 64 inmanufacturer-verified |
|---|---|
| Maximum resolution | 1200 x 1200 dpi |
| Print head nozzles | 3200 nozzles: 800 x 4 colors |
| Ink cartridge capacity | 800 mLmanufacturer-verified |
| Roll width range | 11.8 in to 64 inmanufacturer-verified |
| Ethernet LAN | 100 Base-TX/1000 Base-T |
| USB port | SuperSpeed USB 3.0 |
| Display | 4.3" Optical Touch Color LCD |
| Weight | 632.7 lb (287 kg)manufacturer-verified |
| Warranty | 1-year limitedmanufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution1200 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseGraphics / Production
Printing
| Color | Yes |
|---|---|
| Printing colors | Cyan, Magenta, Yellow, Black |
| Print technology | Inkjet |
| Maximum resolution | 1200 x 1200 DPI |
| Print head nozzles | 3,200 nozzles: 800 nozzles x 4 colors |
| Number of print cartridges | 4 |
| Page description languages | ESC P |
Performance
| Display | LCD |
|---|---|
| Control type | Touch |
| Product color | Black |
| Internal memory | 1000 MB |
| Built-in display | Yes |
| Display diagonal | 4.3" |
| Country of origin | China |
| Built-in processor | Yes |
| Sound pressure level (printing) | 61 dB |
Paper handling
| Maximum roll diameter | 9.84" (25 cm) |
|---|---|
| Paper tray media types | Banner, Roll |
| Roll weight (rear roll) | 99.2 lbs (45 kg) |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
Power
| AC input voltage | 100 – 120/200 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 3 W |
| Power consumption (typical) | 1100 W |
Operational conditions
| Storage temperature (T-T) | -20 – 60 °C |
|---|---|
| Operating temperature (T-T) | 15 – 35 °C |
| Storage relative humidity (H-H) | 5 – 85% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Processor frequency | 3 GHz |
|---|
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
System requirements
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
|---|---|
| Windows operating systems supported | Windows 8.1 x64, Windows 10, Windows 11 |
Input & output capacity
| Total number of input trays | 1 |
|---|
Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor S SCS7170PE 64-in — only the cartridges, printheads and media compatible with this model.
Questions
Straight answers
Can the Epson SCS7170PE scan marked-up plans or copy drawings?
No. The product data lists no scanning and no copying capability. It should be treated as a dedicated printer.
How does it connect to an AEC network?
It supports Ethernet LAN at 100 and 1000 Mbit/s and has a USB port. Wi-Fi is not available.
What operating systems are supported?
The listed Windows support includes Windows 8.1 x64, Windows 10, and Windows 11. Listed Mac support runs from Mac OS X 10.7 Lion through Mac OS X 15.0 Sequoia.
What media arrangement should a buyer plan around?
It has one input tray and supports roll and banner media. The maximum roll diameter is 9.84 inches (25 cm), and the rear roll weight is listed as 99.2 lbs (45 kg).
What consumable and support items should be included in the operating plan?
The resolved compatible consumable is the Epson Waste ink bottle. Available warranty entries include epson PSS7170S1, epson PSS7170S2, and epson PSS7170S4; confirm the coverage terms with the supplier.
