Dietzgen · Paper & Media

20 lb Bond Paper High Bright

Model431

Representative product photograph of a roll of wide-format media beside a PlotterPrinters shipping carton. Generic image, not a photograph of this product.

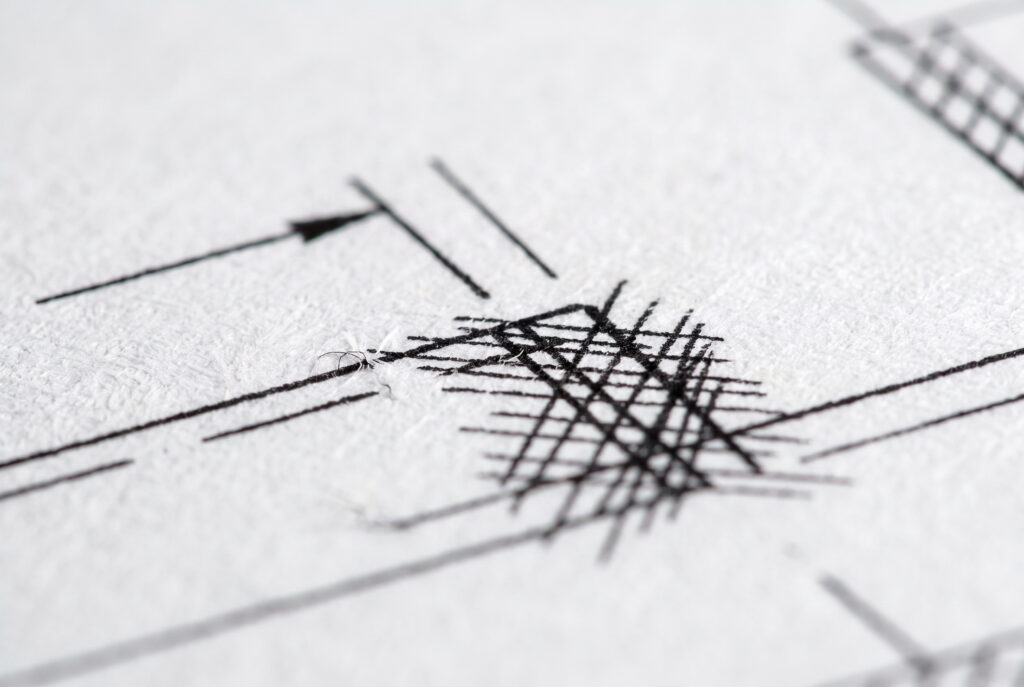

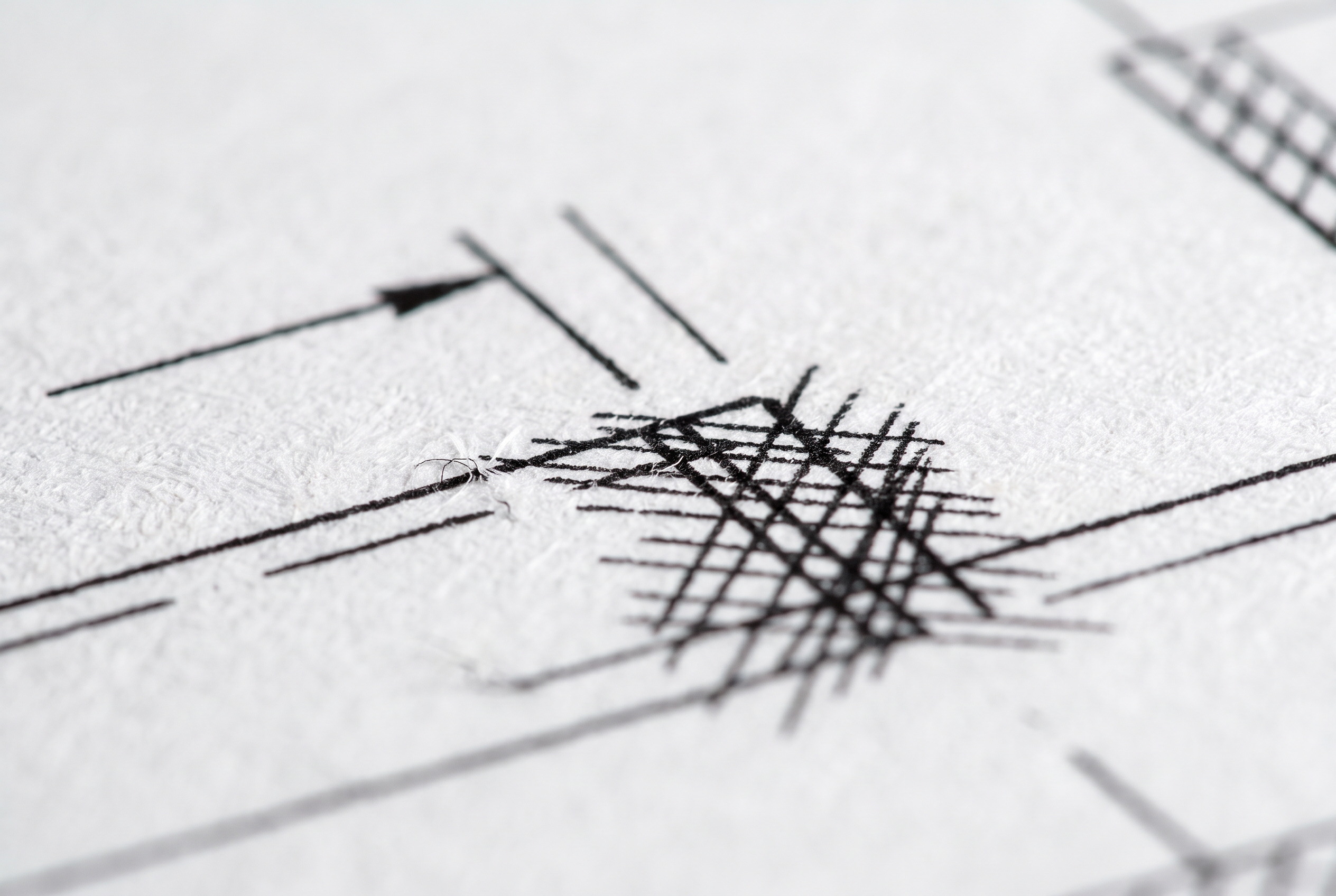

20LB Bond Paper High Bright print closeup

Representative imageA generic photograph of wide-format roll media and our shipping carton. It is not a photograph of this product, and it does not show the pack quantity, roll length, width or colour you are ordering — those are in the title and the size options below.

Genuine OEM hardwareAuthorized U.S. distribution

Manufacturer warrantyExtension plans available

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Price range: $409.95 through $12,977.95

In stock

Clear

Request a Quote

Datasheet (PDF)

Specifications

Dye· GOODPigment· GOODLatex· GOODUV· GOODPageWide· BESTToner LED· BEST3″ core

A 4-mil, 20 lb (75 gsm) uncoated production bond run at a higher brightness than Dietzgen's standard engineering bond — 96 rather than 92, at the same 145 whiteness. Rated BEST for toner and for HP PageWide inks, and compatible with common stapling and binding equipment. Rolls 22 to 36 inches.

Media type	Bond & Uncoated › Engineering Bond
Finish	Matte
Thickness	4 mil
Weight	75 gsm (20 lb bond)
Core size	3" core

Available sizes

30" x 500' (3" core) — 44 rolls/skid
36" x 500' (3" core) — 2 rolls/carton
36" x 500' (3" core) — 44 rolls/skid
22" x 500' (3" core)
24" x 500' (3" core)
30" x 500' (3" core) — taped, 2 rolls/carton
34" x 500' (3" core)
36" x 500' (3" core) — taped, 2 rolls/carton

Manufacturer datasheet (PDF)

Overview

Built for the work

Expert analysis

What you should know

Dietzgen 431 is a 20 lb (75 gsm) uncoated production bond, 4 mil thick and matte, and the number that separates it from the rest of the engineering-bond range is brightness: 96, where Dietzgen’s standard 20 lb bond measures 92. Whiteness is the same 145 and opacity the same 88%, so this is the identical weight of paper made to read brighter under the same light.

What Dietzgen 20LB Bond Paper High Bright (431) is used for

Everyday production engineering and CAD plotting
High-volume reprographics runs
Check prints and hand-marked redlines
Stapled or bound plan sets

The brightness buys contrast rather than durability. On a drawing that is mostly line work with occasional colour fills, a brighter sheet makes the black read blacker, which is worth something on a set that will be presented rather than filed. Everything else behaves like production stock: the surface takes pen and pencil, so redlines and field notes go directly onto the print, and the sheet runs through common stapling and binding equipment when plan sets are assembled by hand.

Ink compatibility

Dietzgen rates 431 BEST on toner and BEST on HP PageWide. Aqueous dye, aqueous pigment, latex and UV inks are each rated GOOD, so it will run across a mixed fleet, but the surface is tuned for toner adhesion and PageWide output rather than for photographic colour.

Working with it

Overlamination is not required. Where prints will be handled in the field, Dietzgen states that 431 accepts pressure-sensitive, heat-assist and thermal overlaminates for additional protection against dirt, abrasion and moisture. At 88% opacity it is intended as a single-sided print. It is supplied in roll form only, 22 to 36 inches wide, on 3-inch cores — a narrower range than the standard 20 lb bond carries, which is worth checking against your plotter before you switch stock.

Specifications

Full technical detail

Printers this media fits

Checked against every wide-format printer we track: 188 can run it — HP 99 · Epson 55 · Canon 34. Compatibility is resolved from the printer’s published media handling (roll width, core size and the roll diameter the spindle holds), not from a marketing list.

The list starts from the maker’s own ink ratings for this media — rated BEST for PageWide, Toner LED; GOOD for Dye, Pigment, Latex, UV ink. A printer only appears here if its ink chemistry is one of those.
