Canon imagePROGRAF TM-340

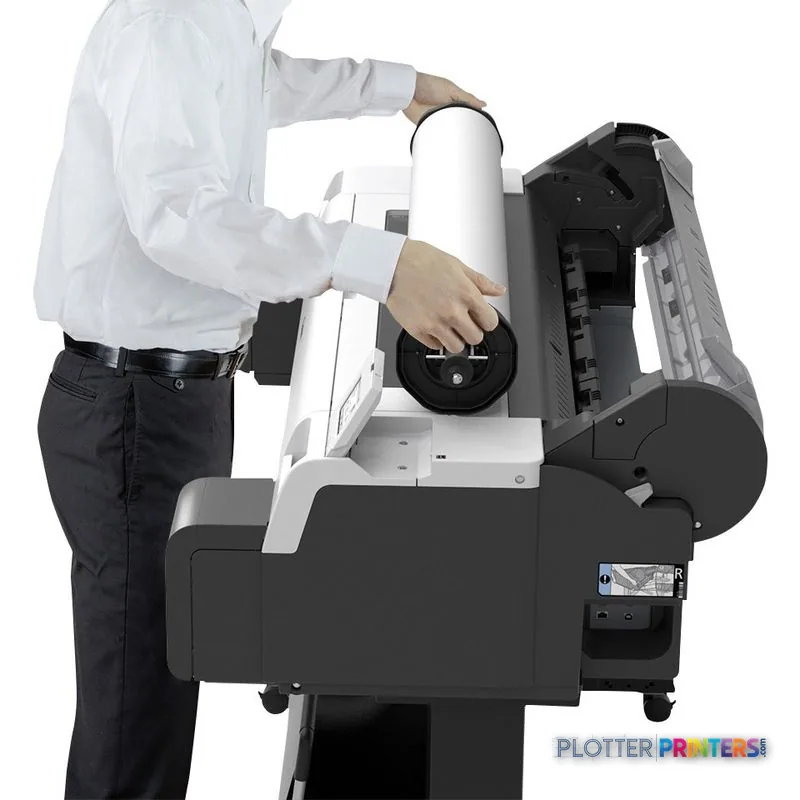

The useful part of this machine is its combination of full-size output, roll capability and cut-sheet support. A project team can keep drawing paper loaded for routine plan output, then use cut sheets when the job calls for a different sheet format. The maximum roll length is 708.7 in., with a maximum roll diameter of 5.91 in. That does not eliminate paper handling. Nothing does. But it gives a small print room a sensible way to keep technical output moving without treating every sheet as a special event.

Its language support includes HP-GL/2, HP-RTL, CALS G4 and JPEG. That is relevant for organizations with established CAD and technical-document workflows. Network choices include Gigabit Ethernet, Wi-Fi and USB Type-B. Apple AirPrint is also listed. For IT, the practical question is not whether the printer can join the network; it is whether the team has standardized drivers, permissions and job-submission habits before deadline week arrives. Bottom line: the TM-340 suits distributed technical printing better than a printer that lives only beside one workstation.

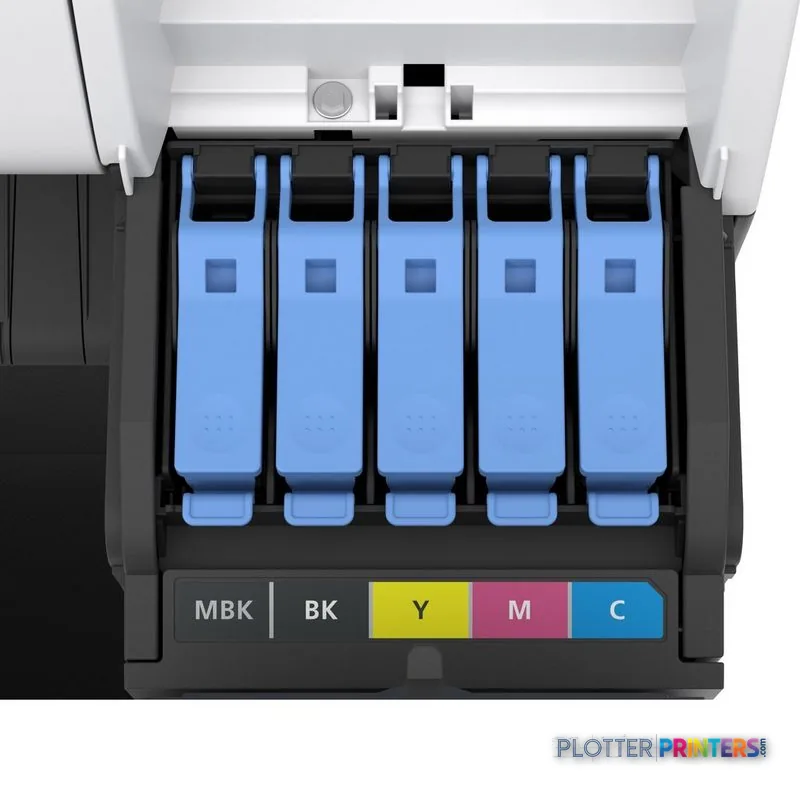

The 2400 x 1200 DPI maximum resolution and five printing colors make the TM-340 a reasonable fit for color-coded construction documents, GIS-style mapping output, design-review sheets and presentation-oriented technical graphics. The separate black and matte black inks are worth noting because AEC pages often combine dense annotation with color linework. A machine can look fine on a bright rendering and still make small notes unpleasant to read. Technical documents are less forgiving.

The trade-off is plain: this model has no scanning and no copying. Firms still receiving marked-up paper sets, archiving legacy drawings, or making walk-up copies should not pretend that a printer will become an MFP by force of optimism. Look instead at the Canon TM-340 36-in scanner/MFP configuration listed in the same family. If full-size output is unnecessary, the Canon TM-255 24-in is the narrower-format alternative in the catalog. For a comparison view, use Canon TM-340 versus Canon TM-350 36-in. Bottom line: buy this configuration when printing is the job; add scanning only when scanning is actually the job.

At 50.6 in. wide, 29.8 in. deep and 41.7 in. high, the TM-340 needs a deliberate place in the office. It weighs 130.5 lbs, so this is not a machine to tuck into a corner and relocate after somebody notices the doorway is blocked. Its listed printing sound pressure level is 39 dB and standby level is 35 dB, which supports office placement, provided the output area has room for operators to load media and collect drawings without creating a traffic jam.

Confirm the supply plan before installation. The supported service items listed here are the Canon PF-06 printhead, Canon MC-31 maintenance cartridge, Canon RH2-35 Roll holder and Canon CT-08 accessory. Ask the supplier who handles service, how quickly they respond locally, and who owns routine operator tasks. Also ask your IT team to test the intended Windows or Mac workflow rather than relying on a successful test page. A test page has never had to survive a permit deadline. Bottom line: the machine is straightforward; the operating plan around it still decides whether it earns its floor space.
