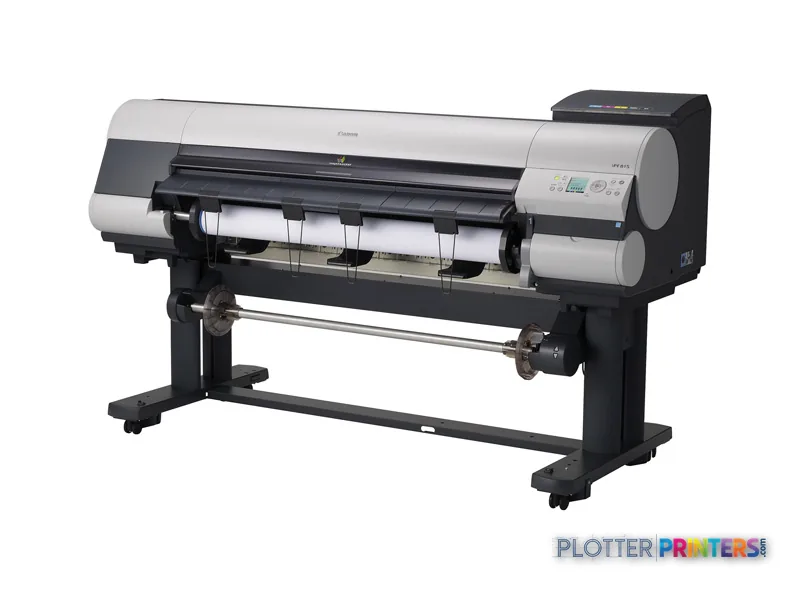

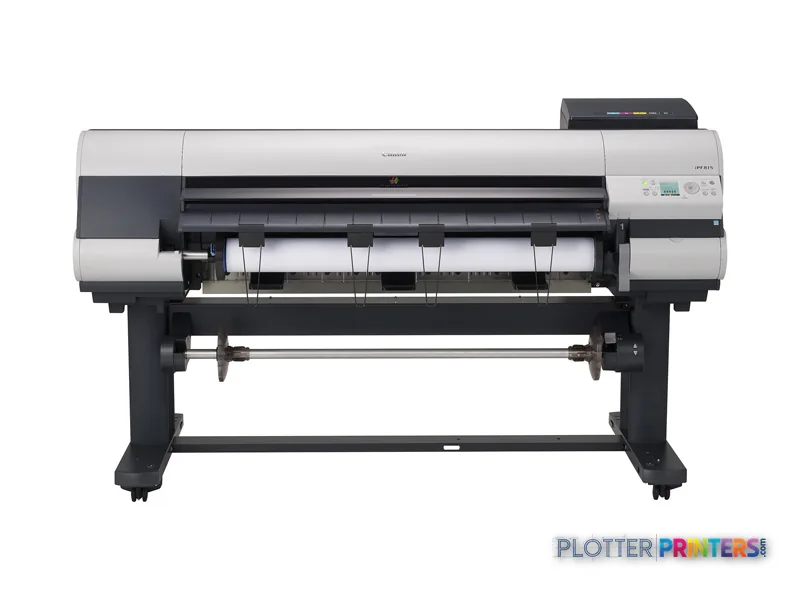

Canon imagePROGRAF iPF815
44" wide-format inkjet printer
- ModeliPF815
- Prints44" wide
Genuine OEM hardwareAuthorized U.S. distribution
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The iPF815 prints in color on roll paper and cut sheets up to 44 inches wide.
- Its 2400 x 1200 DPI maximum resolution is relevant to fine CAD lines, notes, and color coordination graphics.
- It supports common ANSI AEC sheet sizes through 34 x 44 inches.
Not sure if the iPF815 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 44" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Connectivity Ethernet for shared team printing.
Overview
Built for the work
Canon imagePROGRAF iPF815, 2400 x 1200 DPI, PF-05, A0 (841 x 1189 mm), Matte paper, Plain paper, A0, A1, A2, A3, A4, B0, B1, B2, B3, B4
Expert analysis
What you should know
Key takeaways
- The iPF815 prints in color on roll paper and cut sheets up to 44 inches wide.
- Its 2400 x 1200 DPI maximum resolution is relevant to fine CAD lines, notes, and color coordination graphics.
- It supports common ANSI AEC sheet sizes through 34 x 44 inches.
- The supplied data does not identify scanning capability, so scan-heavy plan-room workflows need another solution.
- The 315.3 lb machine and 74.5 x 38.4 x 45 inch footprint require a planned print-room location.
- Verify the apparent PF-05 versus Canon PF-03 printhead data discrepancy before ordering supplies.
It is 4:45 p.m., the civil set needs to go out, and somebody needs a 36-inch plan that is readable when it lands on the table. The Canon iPF815 is a 44-inch color wide-format printer for that sort of AEC duty: CAD sheets, permit drawings, marked-up PDFs, GIS maps, and occasional presentation output on media beyond ordinary bond.
It handles roll paper and cut sheets from 10 to 44 inches wide, with support for common ANSI sizes through 34 x 44 inches. The 2400 x 1200 DPI maximum resolution gives the machine the detail headroom that fine linework and small annotation demand. That matters more than a glossy brochure sample when the reviewer is hunting for a revision cloud.
10"–44" (254 – 1117.6mm)Maximum print widthCovers common 24-, 30-, 36-, 42- and 44-inch AEC formats.
2400 x 1200 DPIMaximum resolutionUseful detail capacity for linework, notes, and color overlays.
80 GBInternal storageProvides onboard job storage capacity.
74.5 x 38.4 x 45" (1893 x 975 x 1144 mm)Machine footprintMeasure the print room before delivery day does it for you.
Where it earns its floor space
The iPF815 fits a team that needs wide output in-house but does not want every plan issue routed through a central reprographics room. Its roll and cut-sheet support is useful for mixed work: a 24-inch detail, a 30-inch engineering sheet, then a 34 x 44-inch construction drawing. Media support also extends to coated, glossy, photo, proofing, opaque, vinyl, and roll-up film media. That makes it more flexible than a bond-only plan printer when a project manager suddenly wants color-coded logistics maps or a client-facing board.
Network connection is straightforward in older office environments, with Fast Ethernet and USB 2.0 available. It also has an LCD and built-in 80 GB storage. Those are practical conveniences for a shared print area, though IT should review the supported protocol list against current network policy rather than assuming an older device belongs on every segment.
Bottom line: This is a sensible 44-inch output device for AEC teams that print varied sheet sizes and occasionally need more than black lines on bond.
The limits to understand before relying on it
This is not a scanner/MFP in the supplied configuration. Firms copying marked-up plans, digitizing archive drawings, or producing walk-up scan-to-file work should not treat a printer-only device as a substitute for a document-capture workflow. The listed 50 dB printing sound-pressure level and 315.3 lb weight also argue for a deliberate location, with clearance for loading media and collecting long sheets.
Media thickness is specified from 0.003 to 0.031 inches. That is useful range, but it is still worth testing the actual stock used for presentation boards or specialty film. “Supported” is not the same as “nobody has to nurse it at 4:45.”
The catalog lists the 44-inch Canon iPF820 44-in as the immediate same-width step-up option. A firm whose work is mainly 36-inch drawings may instead find the narrower Canon iPF785 36-in a better physical fit. Compare the two 44-inch models directly with the iPF815 and iPF820 comparison tool.
Bottom line: Buy around the actual output and scan workflow, not the maximum width alone.
Service and supplies deserve a fact check
For an existing iPF815, verify supply availability and service support before making it the only machine carrying a deadline. The resolved compatibility list includes Canon 2957B001, Canon 2958B001, Canon 2963B001, the Canon PF-03 printhead, Canon CT-06 media, and the Canon RH2-44 accessory.
There is one item to clarify with the supplier: the product data identifies a PF-05 print head, while the resolved compatible-consumables list identifies Canon PF-03. Do not order a head on confidence and caffeine alone. Confirm the installed configuration and compatible part with the service provider.
For a broader position against similar devices, use the 44-inch class ranking as a starting point, then put local service coverage and your actual file mix ahead of a neat-looking comparison table.
Bottom line: On a legacy-style fleet, the local technician and the correct consumable often matter more than the badge on the front panel.
The read
The Canon iPF815 makes sense for an AEC office needing 44-inch color CAD and PDF output across bond, coated media, film, and presentation-oriented stocks. It is less appropriate when scanning is central to the workflow, when office space is tight, or when the machine cannot be supported with verified supplies and local service. Treat it as a production tool with a defined job: get readable drawings out before the deadline, then let the next problem arrive on schedule.
Spec analysis
How the specs grade
Overall performance
—Not enough data for an overall score
Individual dimensions are shown where the specs support them.
- This printer
Verified specifications
The specs that decide it
| Maximum print width | 44 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.07 – 0.8 mm |
| Ethernet | Yes |
| Sound level (printing) | 50 dB |
| Power consumption | 190 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width44"
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | PF-05 |
| Maximum resolution | 2400 x 1200 DPI |
Performance
| Display | LCD |
|---|---|
| Storage media | HDD |
| Built-in display | Yes |
| Internal storage capacity | 80 GB |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 50 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media thickness | 0.07 – 0.8 mm |
| Roll top margin | 0.787" (2 cm) |
| ANSI paper sizes | 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 x 40", 34 x 44" |
| Maximum print size | A0 (841 x 1189 mm) |
| Architectural sizes | 24", 30", 36", 10", 14", 16", 17", 42", 44" |
| Maximum media width | 254 – 1117.6mm |
| Maximum roll length | 708.7" (18 m) |
| Media width (rolls) | 254 – 1117.6 mm |
| Paper tray media types | Matte paper, Plain paper |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
| ISO B-series sizes (B0…B9) | B0, B1, B2, B3, B4 |
| ISO C-series sizes (C0…C9) | C0, C1, C2, C3, C4 |
| JIS B-series sizes (B0…B9) | B0, B1, B2, B3, B4 |
| Photo paper sizes (imperial) | 10×12,10×15,12×16,14×17,16×20,18×22,20×24 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10Base-T, 100base-TX |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPX/SPX, HTTP, TCP/IP, AppleTalk |
Weight & dimensions
| Weight | 315.3 lbs (143 kg) |
|---|---|
| Size (imperial) | 44" |
| Dimensions (WxDxH) | 74.5 x 38.4 x 45" (1893 x 975 x 1144 mm) |
Power
| Power requirements | AC 100-240V (50/60 Hz) |
|---|---|
| Power consumption (off) | 1 W |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 190 W |
Operational conditions
| Storage temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
Other features
| Opaque film | Yes |
|---|---|
| Photo paper | Yes |
| Vinyl media | Yes |
| Coated paper | Yes |
| Glossy paper | Yes |
| Opaque paper | Yes |
| Roll-up film | Yes |
| Proofing paper | Yes |
| High resolution paper | Yes |
| Compliance industry standards | IEEE 802.3, 802.3u |
Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Canon imagePROGRAF iPF815 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 3
Printheads 1
Questions
Straight answers
What AEC work suits the Canon iPF815?
It suits in-house printing of CAD drawings, PDF plan sets, color-coded coordination sheets, GIS maps, and occasional presentation output where widths up to 44 inches are needed.
Can the iPF815 print standard architectural and engineering sheet sizes?
Yes. The supplied data lists architectural widths including 24, 30, 36, 42, and 44 inches, plus ANSI sizes from 8.5 x 11 inches through 34 x 44 inches.
Does this machine support both rolls and cut sheets?
Yes. It supports roll paper and cut sheets, with roll media widths from 10 to 44 inches.
Is the iPF815 a suitable replacement for a scanning and copying workflow?
Not on the supplied specification. No scanner or MFP capability is identified, so firms that regularly scan redlines or archive drawings should plan separate capture equipment or a different workflow.
What should IT review before connecting an iPF815?
Review its Fast Ethernet, USB 2.0, and listed network protocols—IPX/SPX, HTTP, TCP/IP, and AppleTalk—against current network and security requirements.
Which consumables should a buyer verify?
The resolved list includes Canon 2957B001, Canon 2958B001, Canon 2963B001, Canon PF-03, Canon CT-06, and Canon RH2-44. Confirm the printhead requirement because the product data separately identifies PF-05.
