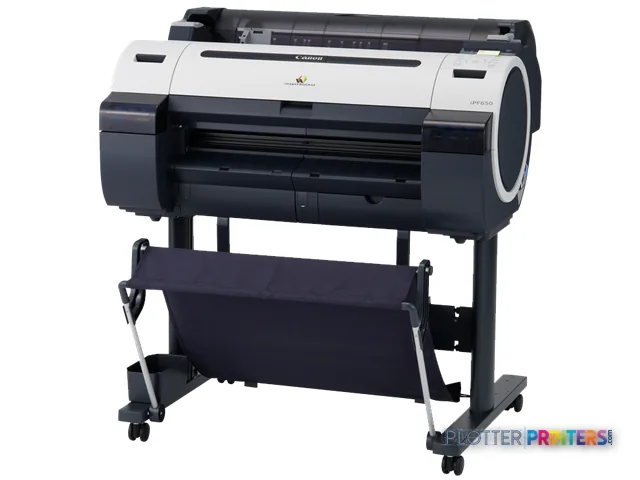

Canon imagePROGRAF iPF650
24" technical / CAD plotter
- ModeliPF650
- Prints24" wide
Genuine OEM hardwareAuthorized U.S. distribution
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The iPF650 is a 24-inch, four-color printer for AEC drawings, maps, markups, and presentation-oriented output.
- Its stated +/-0.1% line accuracy is directly relevant to readable CAD lines, dimensions, and grids.
- Roll and cut-sheet support make it practical for ordinary bond plotting and occasional coated or glossy work.
Not sure if the iPF650 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Magenta, Yellow.
- Connectivity Ethernet for shared team printing.
Overview
Built for the work
Canon imagePROGRAF iPF650, 2400 x 1200 DPI, GARO, HP-RTL, Black, Cyan, Magenta, Yellow, PF-04, A1 (594 x 841 mm), Banner, Matte paper, Plain paper
Expert analysis
What you should know
Key takeaways
- The iPF650 is a 24-inch, four-color printer for AEC drawings, maps, markups, and presentation-oriented output.
- Its stated +/-0.1% line accuracy is directly relevant to readable CAD lines, dimensions, and grids.
- Roll and cut-sheet support make it practical for ordinary bond plotting and occasional coated or glossy work.
- It is better suited to shared office plotting than to a central room producing mixed-size sets without operator attention.
- The Canon iPF770 36-in is the more relevant family alternative when wider sheets and integrated scan/copy work are required.
It is 4:45 p.m., the permit set needs one more corrected sheet, and somebody is waiting by the output tray. The Canon iPF650 is built for that sort of 24-inch AEC work: drawing sheets, markups, coordination plans, GIS maps, and color-coded PDFs up to A1/ANSI D-size territory.
The catalog lists this as a current four-color wide-format printer. It handles roll paper and cut sheets, supports HP-RTL and GARO, and connects through Fast Ethernet or USB. Its ±0.1% line accuracy matters when fine dimensions, grids, and revision clouds must remain readable rather than merely colorful.
24"Maximum print widthSuited to common small-format and ANSI D-size plan output.
2400 x 1200 DPIMaximum resolutionUseful for fine CAD lines, small notes, and detailed map layers.
+/-0.1%Line accuracyRelevant when plotted dimensions and alignment need close control.
95.7 lbs (43.4 kg)Printer weightPlan the bench, stand, and delivery route before it arrives.
Where the iPF650 earns its space
This is a sensible fit for an architecture studio, engineering satellite office, survey team, or jobsite support room that regularly prints 24-inch drawings but does not need a scanner/MFP in the same chassis. It accepts media from 10 to 24 inches wide and supports plain, matte, coated, glossy, photo, proofing, and opaque papers. That gives an AEC team room to print working plans on ordinary bond, then produce a coated presentation sheet when the client meeting changes the rules.
Its 256 MB of internal memory and LCD make it a straightforward shared-device candidate, but workflow discipline still matters. Send clean PDFs or properly configured HP-RTL jobs. A bad plot file does not become a good plot file because the printer has an Ethernet jack. I have watched that theory fail under deadline pressure.
Bottom line: The iPF650 fits everyday 24-inch plotting where line work and occasional color communication matter more than integrated scan-and-copy production.
Media, output, and the practical limits
The machine supports rolls up to 708.7 inches long and media thickness from 0.003 to 0.031 inches. That is useful for a run of plan sheets or a banner-style notice, but it does not turn a compact plotter into a central reprographics department. If several people need mixed-size sets at once, operator attention, job release habits, and paper loading become the bottleneck before the published resolution does.
The footprint is 39.3 x 27.5 x 20 inches. It is manageable in a design-office print corner, though the room still needs clearance for loading media and collecting output. During printing, the stated sound pressure level is 47 dB. Not a jackhammer. Also not invisible when the meeting room is quiet.
Bottom line: Give it a clear spot, a defined paper routine, and a realistic role as a shared 24-inch plotter rather than an unattended set-production line.
Family position and buying checks
Within the listed Canon family, the Canon iPF655 24-in has the same 24-inch width and 2400 x 1200 DPI specification. The supplied data does not establish a meaningful workflow advantage between the two, so ask for a side-by-side demonstration using your PDFs, CAD drivers, and media. The Canon iPF770 36-in changes the conversation: it is a 36-inch scanner/MFP model, making it more relevant where scan, copy, and wider sheets are part of daily work. Compare the iPF650 against the iPF770 before assuming width alone is the deciding factor.
For service planning, confirm local support, parts availability, driver support for the operating systems on your network, and the exact supplies included in the agreement. Listed supplies include Canon 0894B001, Canon PFI-102BK ink cartridge Original Black, Canon PFI-102C ink cartridge Original Cyan, Canon PFI-102Y ink cartridge Original Yellow, Canon PFI-104M ink cartridge Original Magenta, Canon MC-10, and Canon CT-06.
Bottom line: Buy this machine for its established 24-inch plotting role, not because a neighboring model number sounds like an automatic upgrade.
Compare the right next questions
The read
The Canon iPF650 is for the team that needs dependable 24-inch color drawings close to the people issuing them. Its media range, HP-RTL support, Fast Ethernet connection, and stated line accuracy fit ordinary AEC plotting well. It becomes less appropriate when scan/copy work, 36-inch sheets, or high-touch mixed-set production dominate the day. In that case, look hard at the wider Canon iPF770 36-in and at the actual workflow around it. The tray does not care what the brochure promised. It cares what lands there before close of business.
Verified specifications
The specs that decide it
| Maximum print width | 24 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Page description languages | GARO, HP-RTL |
| Internal memory | 256 MB |
| Maximum print size | A1 (594 x 841 mm) |
| Media thickness | 0.07 – 0.8 mm |
| Ethernet | Yes |
| Sound level (printing) | 47 dB |
| Power consumption | 140 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width24"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | PF-04 |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | GARO, HP-RTL |
Performance
| Display | LCD |
|---|---|
| Internal memory | 256 MB |
| Built-in display | Yes |
| Sound power level (standby) | 35 dB |
| Sound pressure level (printing) | 47 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media thickness | 0.003"–0.031" (0.07 – 0.8 mm) |
| Roll top margin | 0.787" (2 cm) |
| ANSI paper sizes | 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34" |
| Maximum print size | A1 (23" x 33" (594 x 841 mm)) |
| Architectural sizes | 24" 10", 14", 16", 17 |
| Maximum media width | 10"–24" (254 – 609.6mm) |
| Maximum roll length | 708.7" (18 m) |
| Media width (rolls) | 10"–24" (254 – 609.6 mm) |
| Paper tray media types | Banner, Matte paper, Plain paper |
| ISO A-series sizes (A0…A9) | A1, A2, A3, A4 |
| ISO C-series sizes (C0…C9) | C2, C3, C4 |
| JIS B-series sizes (B0…B9) | B2, B3, B4 |
| Photo paper sizes (imperial) | 10×12,10×15,12×16,14×17,16×20,18×22,20×24 |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| RJ-45 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10Base-T, 100base-TX |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPX/SPX, HTTP, TCP/IP, AppleTalk |
Weight & dimensions
| Weight | 95.7 lbs (43.4 kg) |
|---|---|
| Size (imperial) | 24" |
| Dimensions (WxDxH) | 39.3 x 27.5 x 20" (997 x 698 x 507 mm) |
Power
| Power requirements | AC 100-240V (50/60 Hz) |
|---|---|
| Power consumption (off) | 1 W |
| Power consumption (standby) | 6 W |
| Power consumption (typical) | 140 W |
Operational conditions
| Storage temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
Other features
| Photo paper | Yes |
|---|---|
| Coated paper | Yes |
| Glossy paper | Yes |
| Opaque paper | Yes |
| Line accuracy | +/-0.1% |
| Proofing paper | Yes |
| High resolution paper | Yes |
| Compliance industry standards | IEEE 802.3, 802.3u |
Packaging data
| Package weight | 138.9 lbs (63 kg) |
|---|---|
| Package dimensions (WxDxH) | 44.4 x 32.7 x 30" (1127 x 830 x 762 mm) |
System requirements
| Mac compatibility | Yes |
|---|---|
| Compatible operating systems | Windows: 2000 (32)/XP (32, 64)/ Server 2003 (32, 64)/ Server 2008 (32, 64)/ Vista (32, 64) Macintosh: OS X (32, 64) |
Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Canon imagePROGRAF iPF650 large format printer Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 4
Paper & Media 12
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image20LB Inkjet Bond Paper (Tinted) (732)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Questions
Straight answers
What AEC sheet sizes can the Canon iPF650 handle?
It supports media widths from 10 to 24 inches. Listed ANSI sizes include 8.5 x 11, 8.5 x 14, 11 x 17, 13 x 19, 17 x 22, and 22 x 34 inches, with a maximum print size of A1.
Is the iPF650 suitable for CAD and PDF plotting?
It supports GARO and HP-RTL page-description languages, which are relevant to technical drawing workflows. Test your own CAD exports and PDF sets before standardizing a driver configuration.
Can it print color coordination drawings and presentation sheets?
Yes. It prints in Black, Cyan, Magenta, and Yellow and supports coated, glossy, photo, proofing, matte, and plain papers. Whether that is enough for a particular presentation standard should be judged on your actual files and media.
Does the iPF650 scan or copy drawings?
The supplied specifications identify the iPF650 as a printer with roll and cut-sheet support; they do not identify an integrated scanner/MFP function. Teams needing that workflow should consider the Canon iPF770 36-in, which is listed as a scanner/MFP.
How does it connect to an office network?
It has one RJ-45 Fast Ethernet port supporting 10Base-T and 100base-TX, plus USB 2.0. Listed network protocols include TCP/IP, HTTP, IPX/SPX, and AppleTalk.
