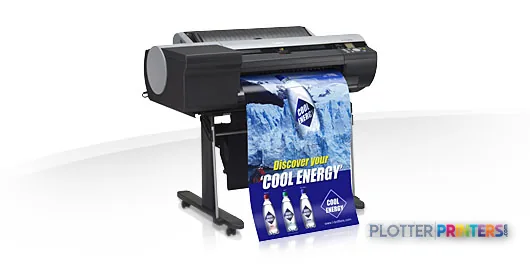

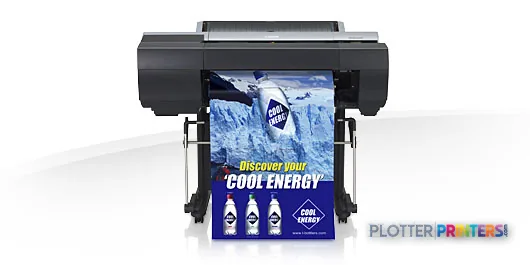

Canon imagePROGRAF iPF6400

The iPF6400 makes the most sense where drawing output is important but not relentless: an architect checking a colored PDF set before issue, an engineer producing marked-up A1 or A2 sheets, or a construction manager needing a readable coordination plan without dedicating a large print-room footprint. It accepts cut sheets and rolls, with roll widths from 8 to 24 inches, so an operator can move between smaller review pages and wider drawings without changing technologies.

Its listed inks include black, matte black, gray, photo gray, cyan, photo cyan, magenta, photo magenta, yellow, red, green, and blue. That broad color set is relevant when a document relies on discipline colors, phasing overlays, renderings, or map layers. There is no measured ICC gamut data in the supplied record, however, so color-critical teams should evaluate output on their own approved media rather than treating the ink count as proof of a particular color space. See the way we assess image quality for the distinction between specification and measured behavior.

The machine uses GARO as its listed page-description language and has one USB 2.0 port with a USB Type-A connector. The supplied record lists Ethernet interface details but also identifies Ethernet LAN as unavailable; buyers planning shared print-room access should confirm the exact connectivity configuration before treating it as a network printer. Its LCD and built-in display provide local machine status, while 384 MB of internal memory is listed.

The physical footprint is 48.3 inches wide by 27.6 inches deep and 13.5 inches high, at 119 lbs. That is a workable scale for an office, but it still deserves a properly supported surface and room to load roll media. The specified 47 dB sound pressure level while printing is another reason to consider location in a quiet design area. For maintenance planning, the resolved supplies are Canon PFI-106 and Canon PFI-206 inks, the Canon PF-05 printhead, and the Canon MC-16 maintenance cartridge.

The Canon iPF6400 is a 24-inch option. If your recurring work includes wider civil plans, larger boards, or sheets that should not be reduced to fit a 24-inch roll, the Canon iPF6300 33-in and Canon iPF9400 60-in establish wider in-family alternatives. The trade-off is straightforward: wider output capability generally asks for more room and is only worthwhile when the source documents genuinely require it.

For a same-width comparison, the Canon iPF6450 24-in is the closest listed family alternative to put beside this model in a demonstration. The available catalog facts do not establish a meaningful step-up or step-down hierarchy between the two, so evaluate the actual driver workflow, media you use, local support arrangement, and output from your own files. Teams considering another 24-inch color inkjet can also use the side-by-side comparison with the Epson SureColor P7300 24-in as a structured starting point.
