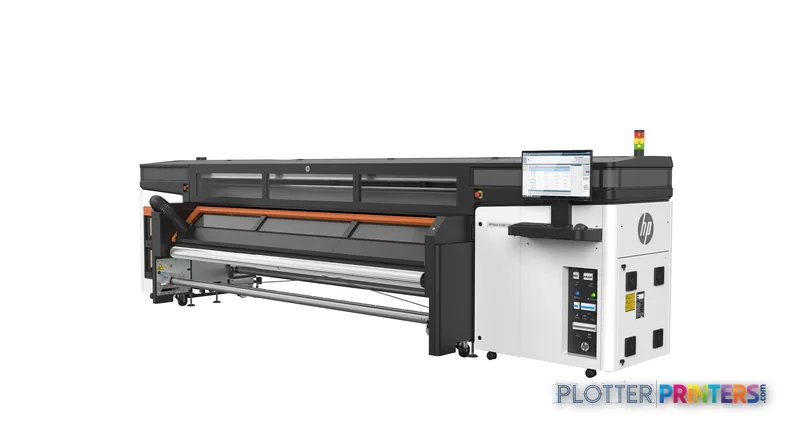

HP Stitch S1000

The key capability is width. A maximum 126-inch roll width gives a central print room room to produce oversized color work without breaking a graphic into panels. That matters for construction-site communication, large-format mapping, design presentations, and project displays where seams are both ugly and, occasionally, where the argument starts.

• Oversized GIS maps, site plans, and public-meeting graphics.
• Color-coded coordination displays for multidisciplinary project teams.
• Large presentation pieces and project-room visual materials.
• Centralized output where Gigabit Ethernet fits the firm’s network approach.

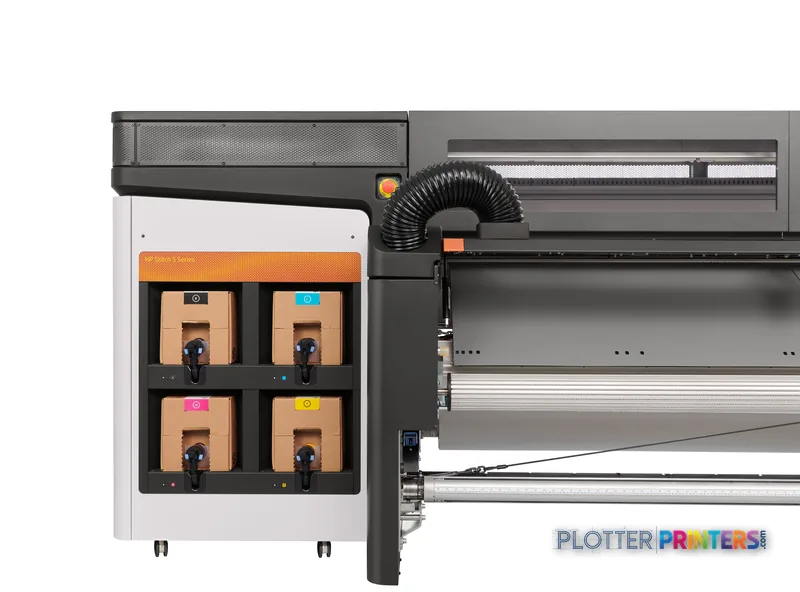

Its four-color configuration uses black, cyan, magenta, and yellow. The listed maximum resolution is 1200 x 600 DPI. Those figures establish the device’s output framework, but they do not replace a file-and-media proof for fine CAD annotation, screened fills, or a client-facing color standard.

Bottom line: This is for wide color output that benefits from staying in one piece.

This is not a multifunction CAD plotter. It has no scanning and no copying, so it will not replace the walk-up machine used to copy marked-up drawings or archive legacy sheets. It also has no Wi-Fi or USB port. Submission is built around its Gigabit Ethernet connection, and the supplied equipment includes an HP Internal Print Server and monitor.

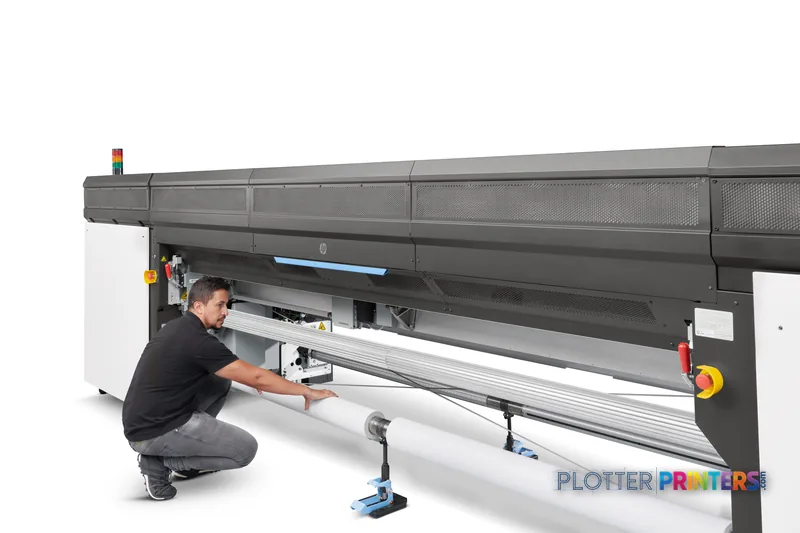

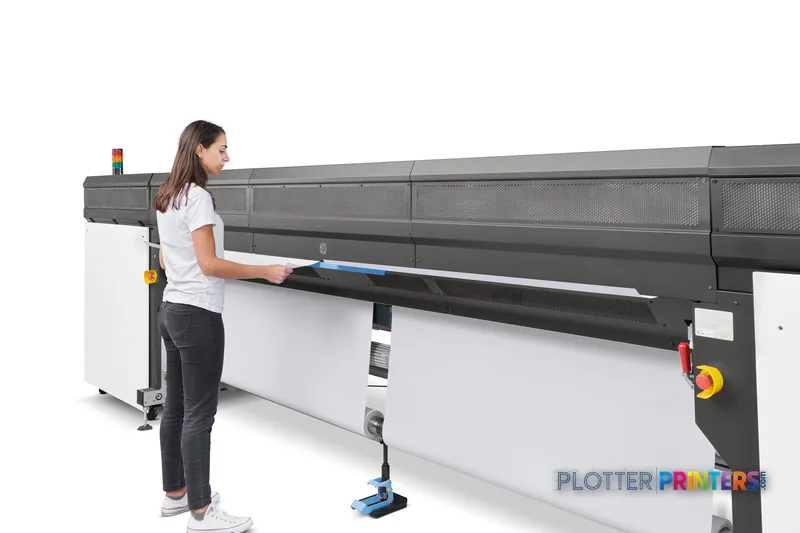

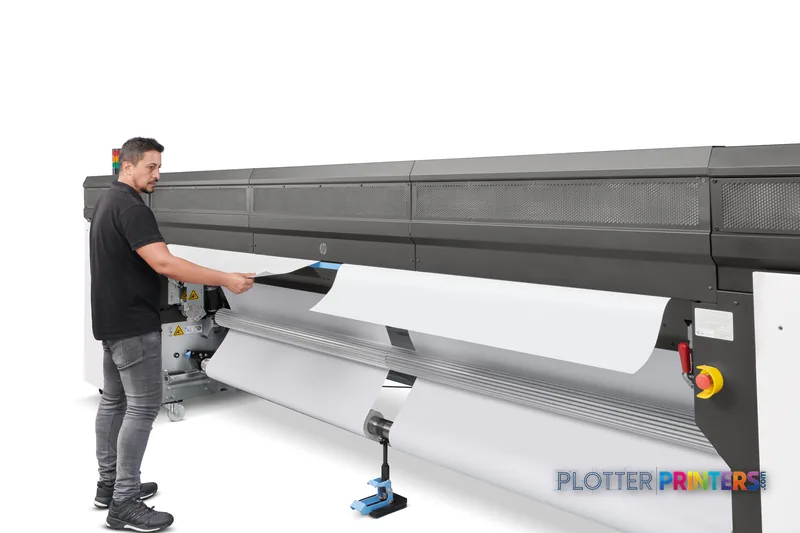

The printer accepts roll media from 25 inches to 126 inches wide and lists a maximum media thickness of 0.02 inches. Two 126-inch spindles are included in the box, along with spreader rollers, media edge holders, an ink collector, cleaning supplies, and an aerosol extractor channel. Those details point to a machine that deserves a defined operating routine, not a spare corner near the break room.

Environmental conditions matter. The specified operating range is 15 – 30 °C and 20 – 70% relative humidity. Keep that in the facilities conversation, especially for print rooms that share space with loading, storage, or temporary construction operations.

Bottom line: Buy it for dedicated wide-format production, not for scan-copy convenience.

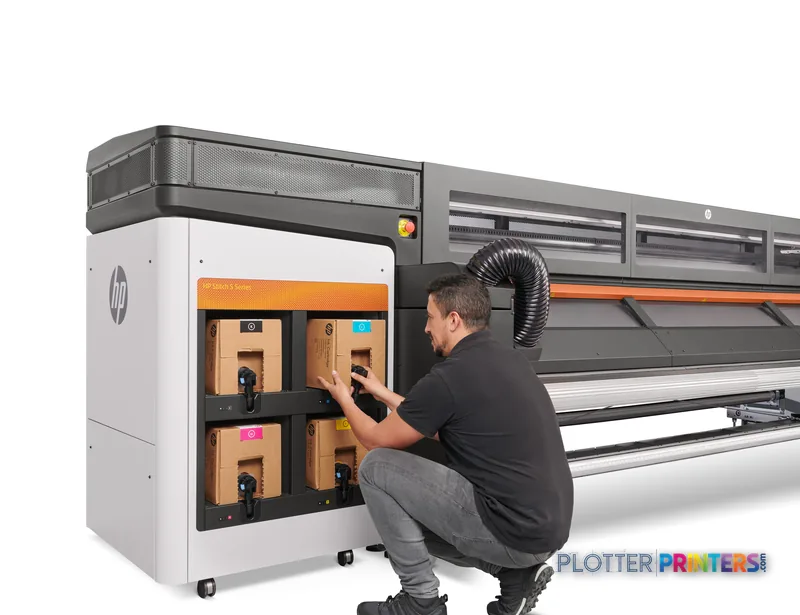

Compatible supplies listed for this printer include HP 4TA09A and HP 638 inks, plus HP 618 printheads. Listed media includes HP 126, HP CZ059A, and HP T0F91A. HP Large Format Onyx Thrive RIP Software is also listed as a compatible option. Confirm media, file-processing, and color-control requirements against the actual work your team sends, rather than buying around a single attractive sample.

No in-family step-up, step-down, or cross-brand comparison model is identified in the available catalog data. That is worth saying plainly. Evaluate this printer against the practical alternative: a narrower device, a device built around scanning and copying, or outsourced oversized output. The right answer depends on whether 126-inch color work is recurring work or an occasional emergency.

For context on category positioning, review the wide-format printer class ranking and how we assess print technology.

Bottom line: If oversized color output is occasional, a machine this large can become an expensive piece of furniture with a beacon.
