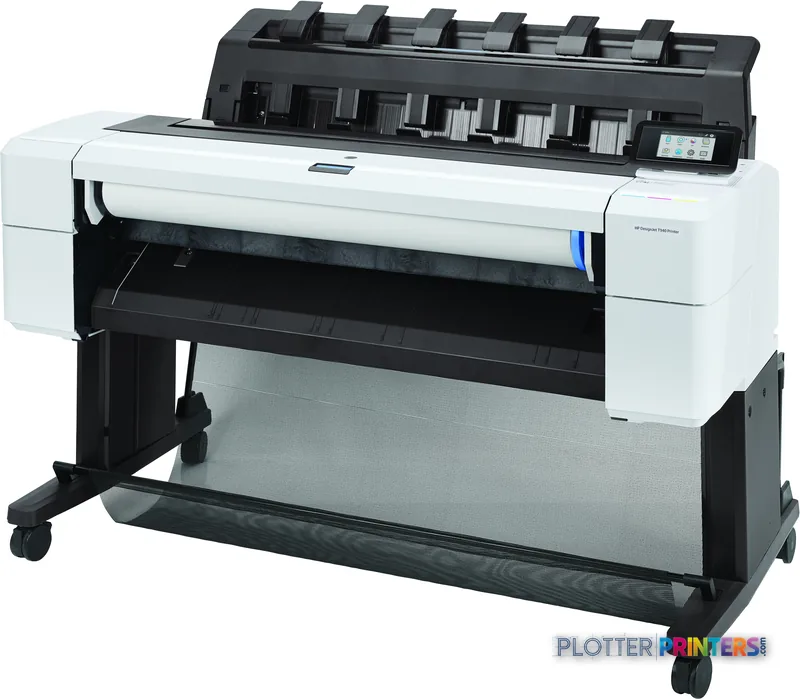

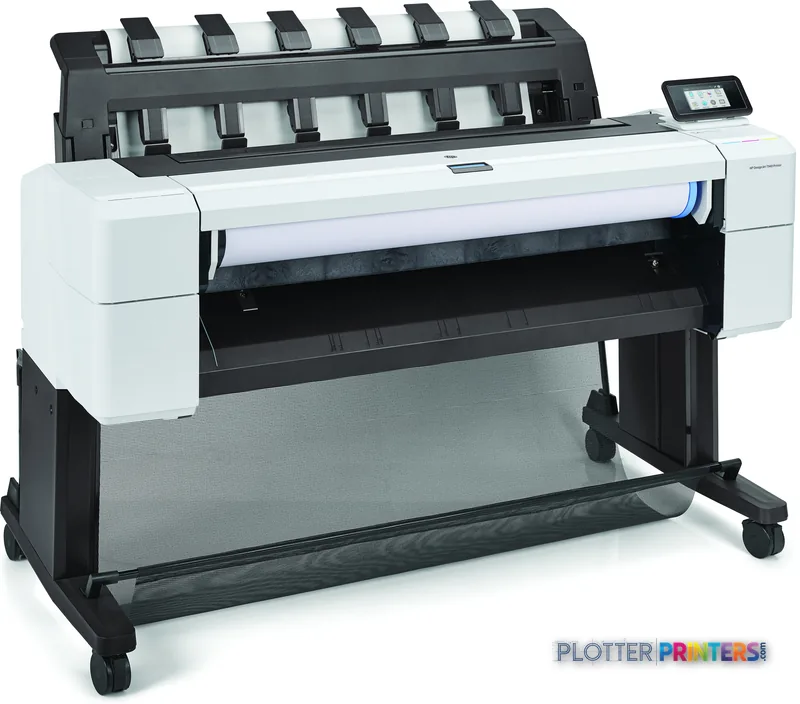

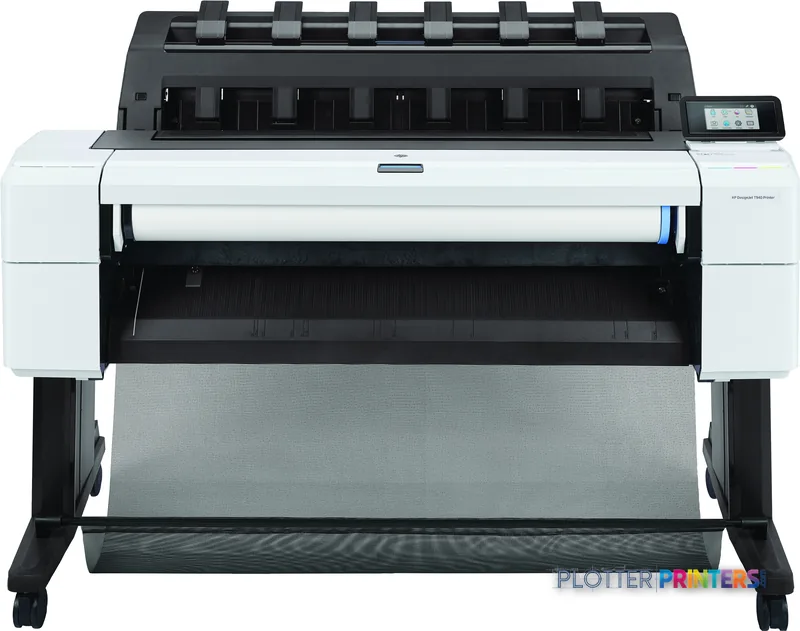

HP DesignJet T940

This machine suits an architecture studio, engineering department, survey team, or construction office that needs regular 36-inch color plans but does not require scanning or copying at the device. It accepts roll media and cut sheets, supports media from 60 to 328 g/m², and can render A0 through A4 ISO sizes. That range is useful when a permit drawing, a color-coded MEP coordination sheet, and a smaller review page share the same working day.

The six-color system uses cyan, magenta, yellow, matte black, photo black, and gray. That is a more considered ink set than a basic four-color arrangement for gray-toned drawings and presentation material, though this page has no measured ICC gamut data. Color fidelity should therefore be assessed with the firm’s own PDFs and the bond or coated media it actually uses; the difference often lives at the cyan edge of a dense utility map.

For managed AEC environments, the T940 offers Gigabit Ethernet, USB, HP ePrint, direct printing, and HP Web Jetadmin support. Its 500 GB internal storage can be relevant where larger drawing files or repeated submissions need to be handled at the device. Native support for HP-GL/2, HP-RTL, CALS G4, JPEG, and TIFF aligns it with established CAD, technical-document, and raster-map workflows.

The integrated stacker is the operational feature most likely to be noticed after the first week: it can reduce the loose-sheet handling that interrupts a short issue run. There is no Wi-Fi, scanning, copying, or MFP function. Firms that still mark up paper plans, archive legacy drawings, or need walk-up copy workflows should look instead at the HP DesignJet T950 36-in or HP DesignJet T850 36-in, both catalogued with scanner/MFP capability.

The T940 is a sensible middle ground when 36-inch output and a stacker are more important than capture capability or dual-roll flexibility. A firm with compact, predominantly 24-inch work may find the HP DesignJet T870 24-in a closer physical and media-width fit. Conversely, a print room that regularly alternates between two roll types or wants greater unattended flexibility should examine the HP DesignJet T1600dr 36-in, which is catalogued as a dual-roll model.

For buyers comparing adjacent choices, use the T940 and T950 comparison to keep the decision tied to actual workflow differences rather than specification-sheet habit. The T940’s 29.9-inch depth, 42.5-inch height, and 180.8 lb weight also deserve a site check before delivery, particularly in a crowded project room.

The T940 uses HP 727 inks and an HP 727 printhead. An HP Designjet 36-in Spindle and HP DesignJet 3-in Core Adapter are compatible accessories for media handling. Its stated 42 dB printing sound pressure level supports placement nearer to project teams than a conventional reprographics room, provided the roll-loading area and output path remain clear.

There is no basis here to predict ink usage, real-world throughput, or service experience. Those depend on drawing coverage, paper choice, job mix, maintenance terms, and the local support organization. Ask for a demonstration using a line-dense plan, a gray-heavy civil sheet, and the PDF submission path your users rely on.
