HP DesignJet T830 MFP with Rugged Case
36" wide-format MFPs
- ModelT5D67A
- Prints36" wide
- Score53/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Not sure if the T5D67A is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Matte black, Magenta, Yellow.
- Scan & copy Integrated scanner for digitizing and sharing sets.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Analyst score Scores 53/100 in our class-relative rating.
Overview
Built for the work
HP Designjet T830 MFP with Rugged Case, Thermal inkjet, 2400 x 1200 DPI, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF, Cyan, Matte black, Magenta, Yellow, 2400 x 1200 DPI, 82 pph
- 552 ft²/hRated speed
- 4Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Spec analysis
How the specs grade
Overall performance
within wide-format MFPs
100% spec coverage
- This printer
Verified specifications
The specs that decide it
| Print technology | Thermal inkjet |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Matte black, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
| Internal memory | 1024 MB |
| Media thickness | 0.3 mm |
| Maximum roll diameter | 3.94" (10 cm) |
| Scanning | Color scanning |
| Wi-Fi | Yes |
| Ethernet | Yes |
| Power consumption | 35 W |
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Cyan, Matte black, Magenta, Yellow |
| Print technology | Thermal inkjet |
| Resolution color | 2400 x 1200 DPI |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
| Print speed (line, black, economy mode, A1) | 82 pph |
Performance
| HP segment | Business |
|---|---|
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Product color | Black |
| Internal memory | 1024 MB |

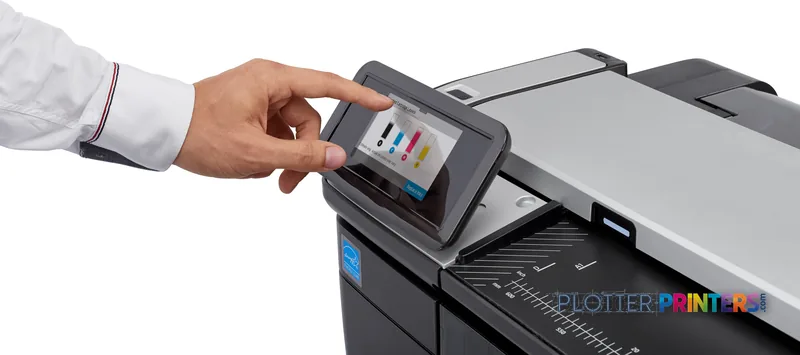

| Built-in display | Yes |
| Maximum internal memory | 1024 MB |
Paper handling
| Media thickness | 0.3 mm |
|---|---|
| Custom media sizes | Input tray: 210 x 279 to 330 x 482 mm; manual feed: 330 x 482 to 914 x 1897 mm; roll: 279 to 914 mm |
| Maximum roll width | 36" (91.4 cm) |
| Maximum roll diameter | 3.94" (10 cm) |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Recycled paper, Matte paper, Heavy paper, Satin paper |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| RJ-45 ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Mobile printing technologies | HP ePrint, Apple AirPrint |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
Technical details
| Box contents | HP DesignJet T830 36-in MFP; rugged case; printhead; ink cartridges; printer stand; spindle; quick reference guide; setup poster; startup software; power cord; refeed preventers |
|---|
Weight & dimensions
| Depth | 24.8" (629 mm) |
|---|---|
| Width | 55.2" (1403 mm) |
| Height | 45.5" (1155 mm) |
| Weight | 204.8 lbs (92.9 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 3.5 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212110 |
|---|---|
| All-In-One-multitasking | Yes |
| Maximum internal memory | 1 GB |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
Copying
| Copying | Color copying |
|---|---|
| Copier resize | 50 – 400% |
| Maximum copy resolution | 600 x 600 DPI |
| Maximum number of copies | 99 copies |
Scanning
| Scan to | E-mail, USB |
|---|---|
| Scanning | Color scanning |
| Scan technology | CIS |
| Maximum scan width | 36" (91.4 cm) |
| Maximum scan length | 109.1" (2.77 m) |
| Maximum scan resolution | 600 x 600 DPI |
| Optical scanning resolution | 600 x 600 DPI |
Packaging data
| Package depth | 22.4" (570 mm) |
|---|---|
| Package width | 62.1" (1578 mm) |
| Package height | 50.4" (1279 mm) |
| Package weight | 271.2 lbs (123 kg) |
| Bundled software | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) |
| Sustainable technologies and materials | Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR certified; EPEAT registered |
Brand-specific features
| HP dynamic security | Yes |
|---|
Everything that fits the HP DesignJet T830 MFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
12 ink cartridges · 27 paper & media items · 3 accessories · 13 coverage plans
HP DesignJet T830 MFP ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T830 MFP with Rugged Case 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 12
HP 728 300-ml Yellow Ink Cartridge
HP 728 300-ml Magenta Ink Cartridge
HP 728 300-ml Cyan Ink Cartridge
HP 728 40-ml Yellow Ink Cartridge
HP 728 40-ml Magenta Ink Cartridge
HP 728 40-ml Cyan Ink Cartridge
HP 728 69-ml Matte Black Ink Cartridge
HP 728 300-ml Matte Black Ink Cartridge
HP 728 130-ml Magenta Ink Cartridge
HP 728 130-ml Yellow Ink Cartridge
HP 728 130-ml Cyan Ink Cartridge
HP 728 130-ml Matte Black Ink CartridgePaper & Media 12
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image20LB Inkjet Bond Paper (Tinted) (732)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Accessories 1
Coverage & Support Plans 7
Hp 2 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS8E)
Hp 3 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS5E)
Hp 5 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS6E)Hp 2Y Nbd T830 Mfp Hw Support (U8TY8E)Hp 3Y Nbd T830 Mfp Hw Support (U8PH3E)
Hp 4Y Nbd T830 Mfp Hw Support (U8TY9E)Hp 5Y Nbd T830 Mfp Hw Support (U8PH4E)Questions
Straight answers
What ink and printhead does the HP T830 use?
It uses HP 728 inks across four cartridges (Cyan, Magenta, Matte black, Yellow) and the HP 729 printhead. Matte black on bond gives clean CAD line work.
Can it handle a full plan set unattended?
Only within limits. It is a single-roll machine, so any media or size change requires a manual swap. For unattended, mixed-size production runs, the dual-roll HP DesignJet T1600dr 36-in is the better fit.
How good is the scanner for as-builts and redlines?
Its CIS scanner offers color scanning at 600 x 600 DPI optical resolution, with scan-to-email and scan-to-USB. That’s well suited to digitizing markups and record copies, less so to reproduction-grade imagery.
Will it fit in a small office or a job trailer?

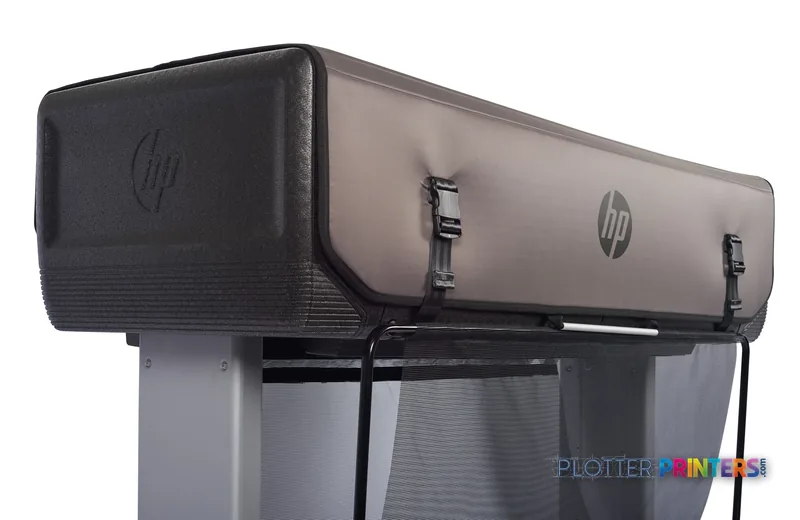

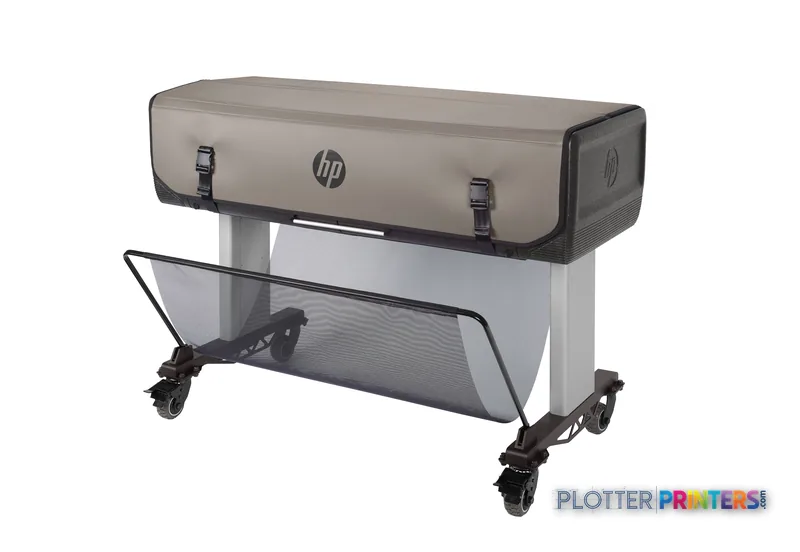

Yes. At 55.2 inches wide, 24.8 inches deep and 204.8 lbs, it fits a print corner. The optional HP DesignJet Rugged Case supports field and trailer use.
How does it connect and how much power does it draw?
It offers Wi-Fi, Gigabit Ethernet and a front USB Type-A port for walk-up jobs. Typical power consumption is 35 W, and the unit is ENERGY STAR certified.
What's the closest current HP alternative if I need more?
For the same 36-inch format with an integrated scanner, look at the HP DesignJet T850 36-in. For high-volume dual-roll production, step up to the HP DesignJet T1600dr 36-in; for plotter-only, consider the HP T920 36-in.
