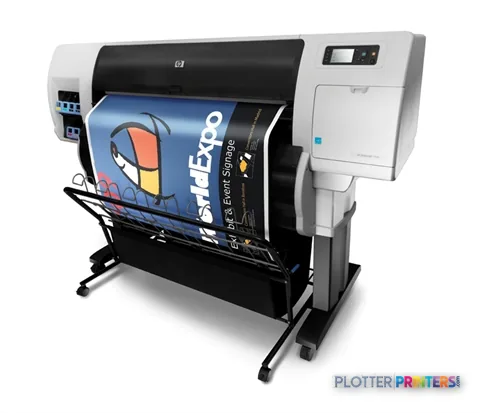

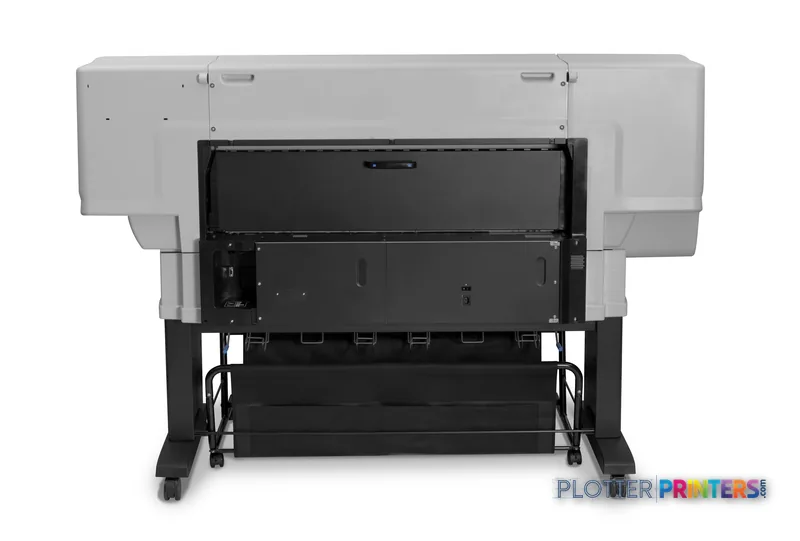

HP DesignJet T7100

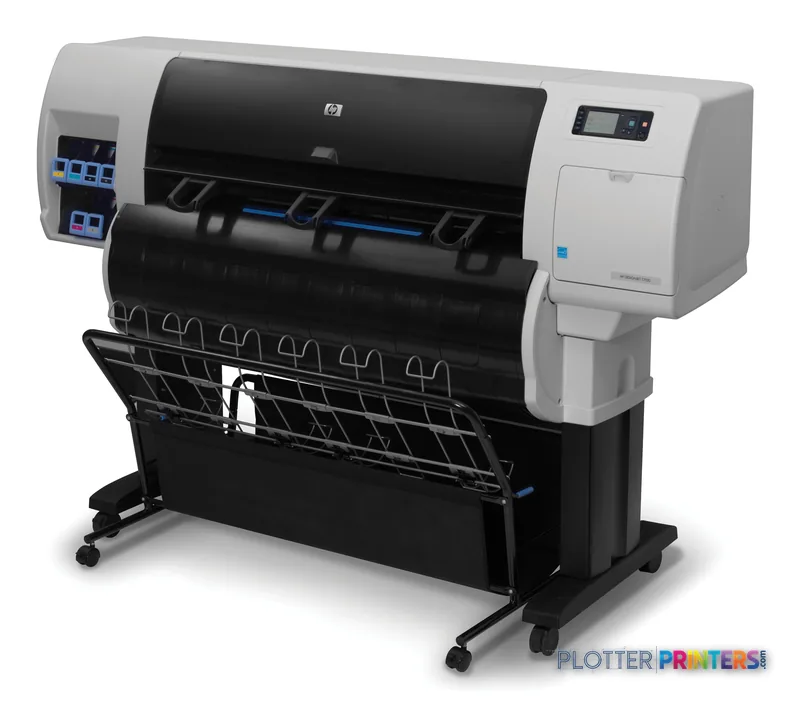

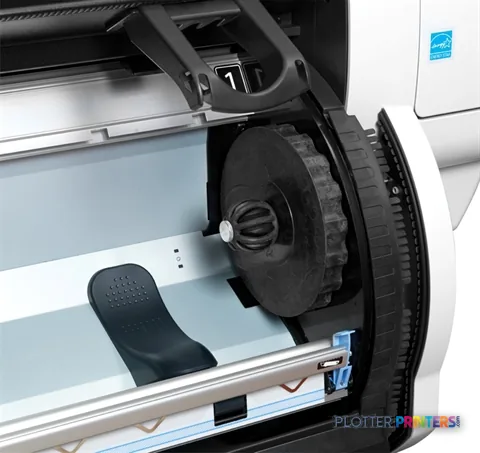

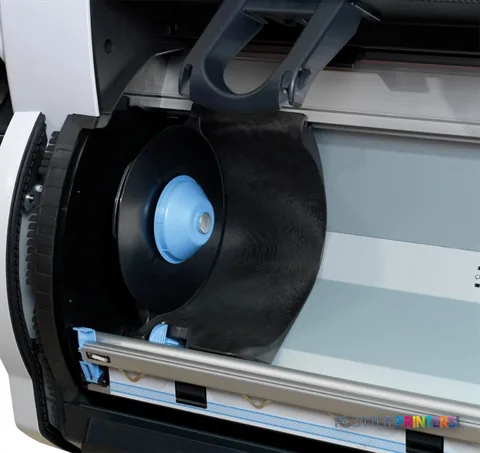

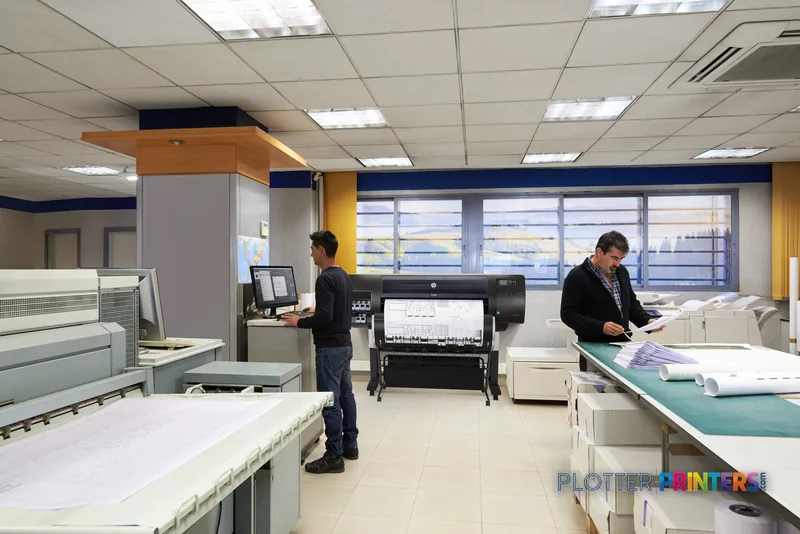

The T7100 is most persuasive in a shared technical-document environment that needs to keep several media rolls available. With a maximum of three rolls, it can suit teams alternating among drawing sizes or between plain bond and a coated stock, rather than stopping to reload for every change in output. Its stated media range is 70–328 g/m², with a paper-path thickness limit of 0.016 in (0.4 mm).

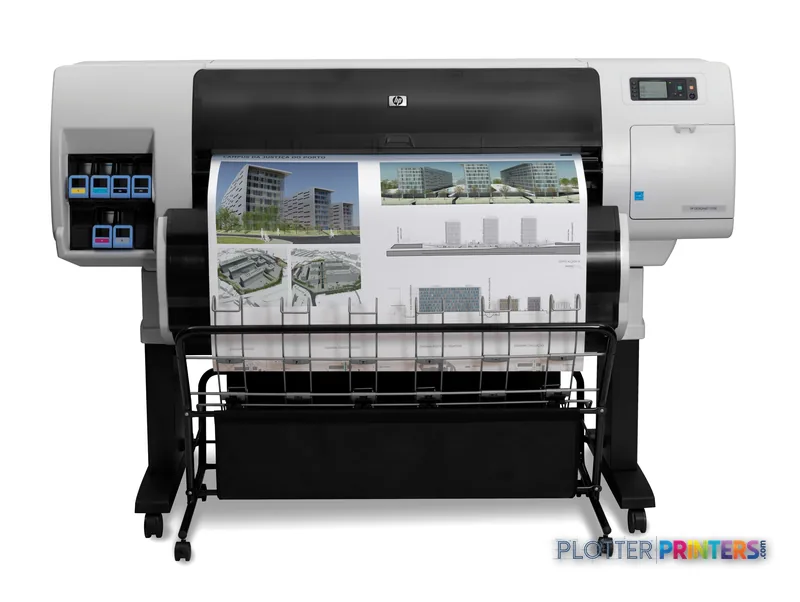

For CAD and PDF plotting, the relevant foundations are clear: a 2,112-nozzle printhead, a minimum line width of 0.00236 in (0.0600 mm), and specified line accuracy of +/- 0.1%. Those are useful signals for construction documents, but they do not replace checking an office’s own title-block text, dense hatch patterns and scaled details. A cyan utility overlay should not turn into a hard edge against the linework.

Networked deployment is straightforward in principle through Gigabit Ethernet, one RJ-45 connection, USB Type-A and USB 2.0. IT teams should note that the listed operating-system compatibility is centered on Windows 7, Windows Vista, Windows XP, Windows Server 2003/2008, Mac OS X v10.5/v10.6 and Citrix environments. That makes driver and workflow validation essential before placing it into a newer managed desktop estate.

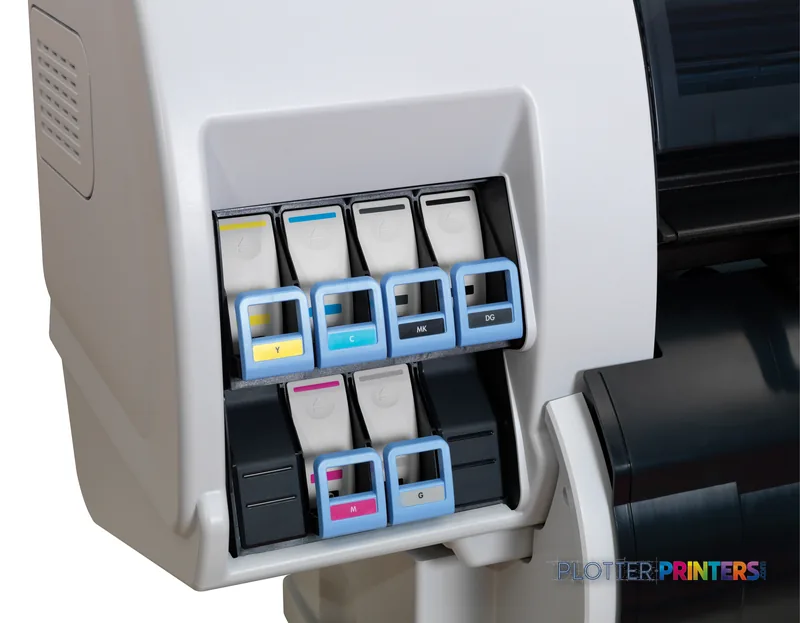

HP specifies 6 pl drops for cyan, magenta, dark gray and gray, and 9 pl drops for yellow and matte black. The ink set uses dye-based cyan, magenta, yellow, gray and dark gray inks, plus pigment-based matte black. That is a meaningful configuration detail for mixed technical and color-document work, not a promise of a particular color match: no measured ICC gamut data is supplied here, so there is no responsible basis for claiming gamut coverage or photographic accuracy.

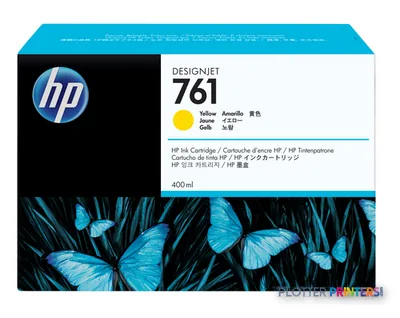

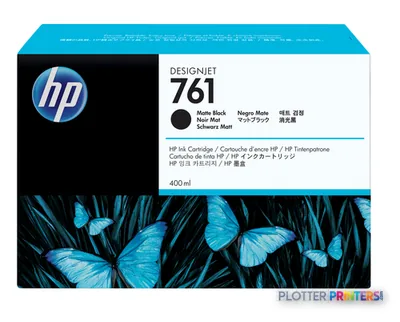

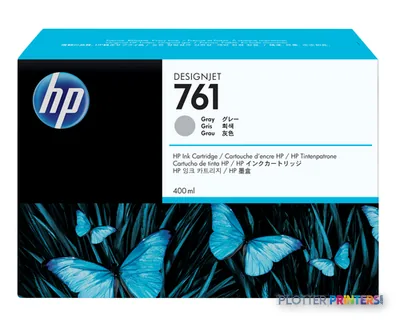

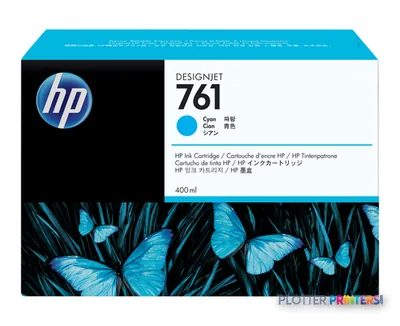

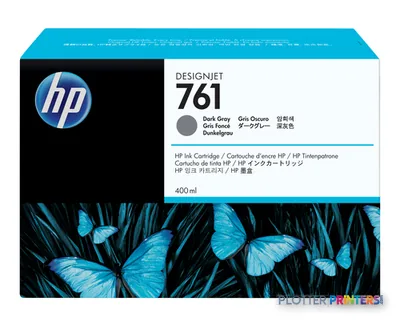

The printer supports HP 761 inks, and the catalog also identifies compatible large-format media and printing films. For teams that routinely render glossy presentation material, photo paper, vinyl or film, test the exact project stock before standardizing it. The specification deserves context: supported media categories establish compatibility, while the finished look of a color-coded BIM sheet depends on the file, driver settings and chosen substrate.

HP rates normal-quality print speed at 123.3 m²/h, plus draft A1 plain-paper line-drawing figures of 163 A1 in color and 165 A1 in black and white. Those are rated figures, not a guarantee of sustained bid-set throughput; real output also includes job preparation, nesting choices, roll switching and the person collecting the drawings.

The T7100 is the better fit when the priority is production-oriented plotting with multiple rolls and no stated need to scan or copy at the printer. If a department needs an integrated scan/copy workflow for marked-up plans, archived drawings or field redlines, the HP DesignJet T2600dr 36-in is explicitly listed as a dual-roll scanner/MFP. That distinction matters more than headline resolution when the print room is also the document intake point.

For a different HP alternative, review the HP DesignJet T1600 36-in against the actual media, workflow and support requirements rather than assuming that shared 2400 x 1200 DPI specifications make the machines interchangeable. The side-by-side comparison is a sensible starting point for teams weighing plotting capacity against integrated scanning. For broader positioning, see the wide-format class ranking.
