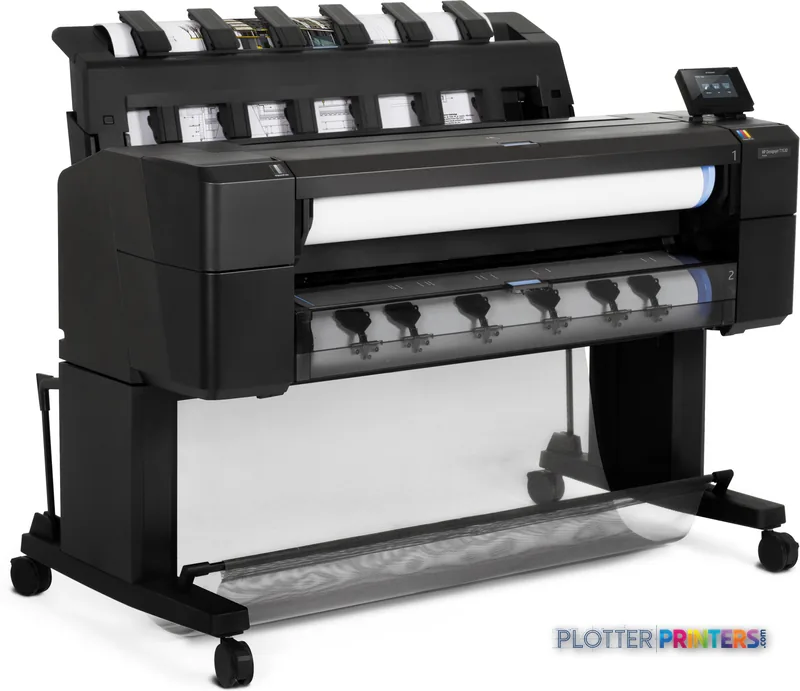

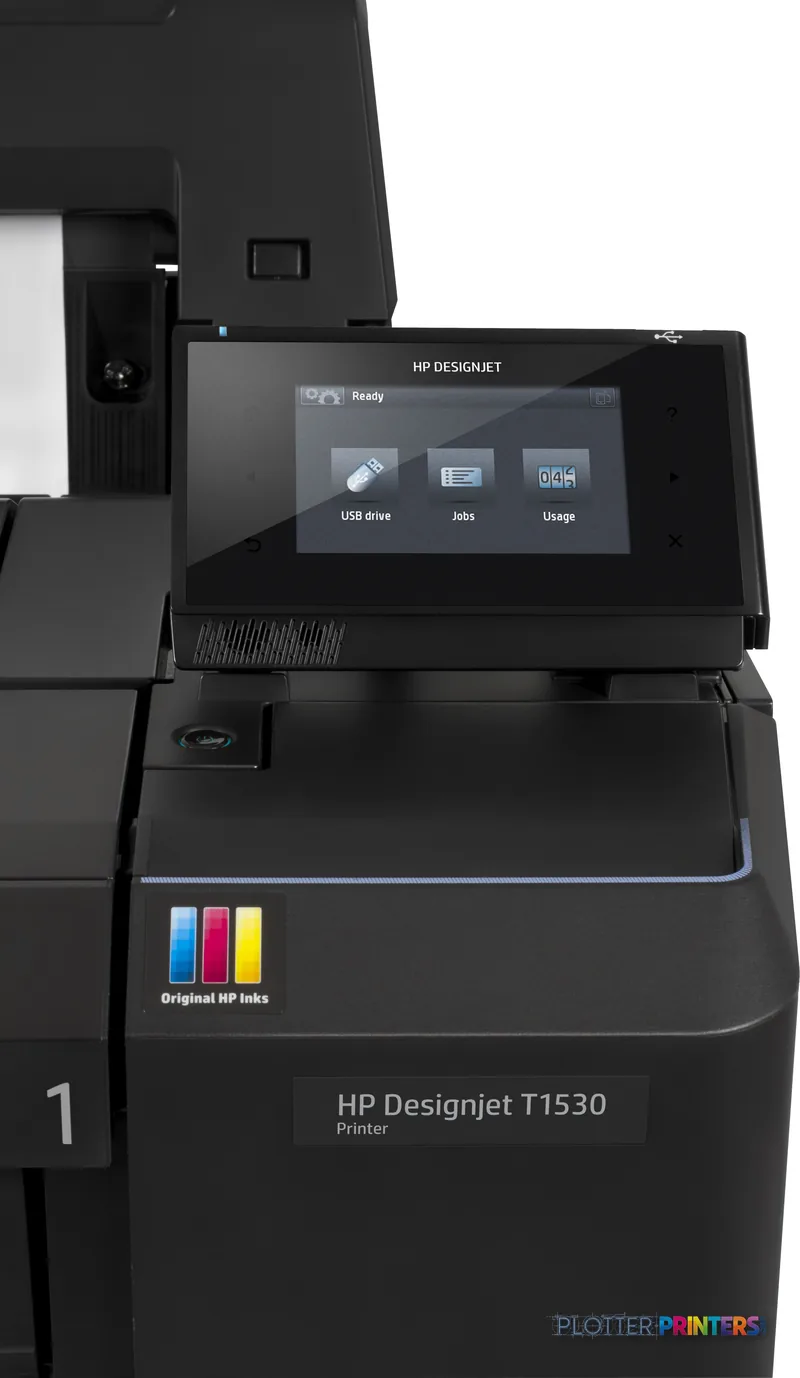

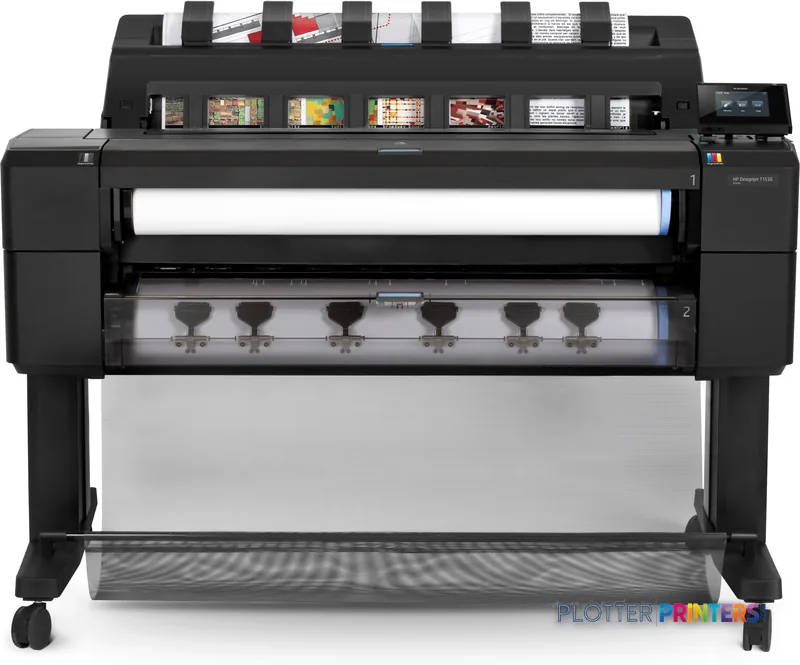

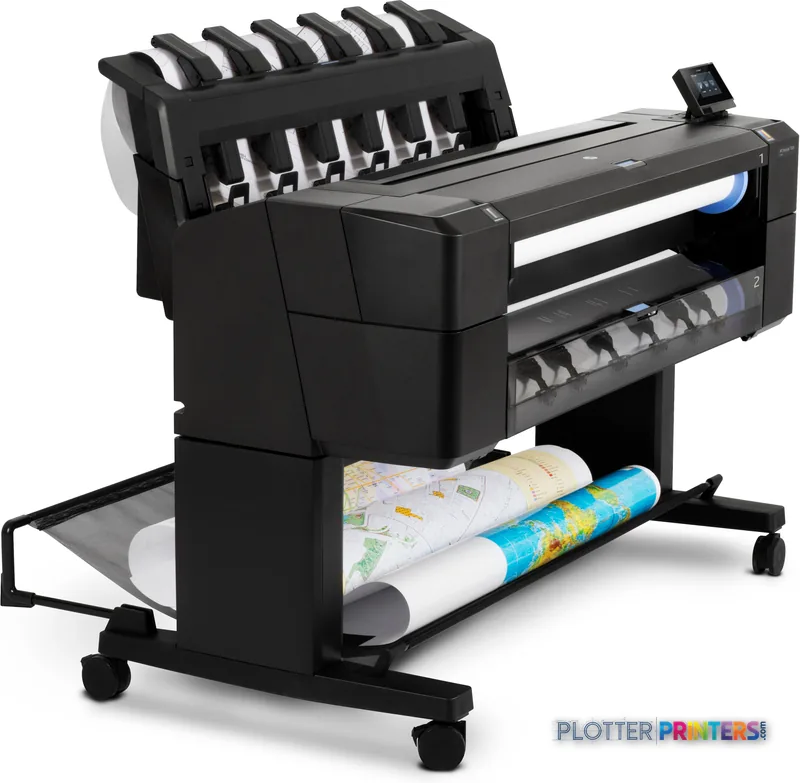

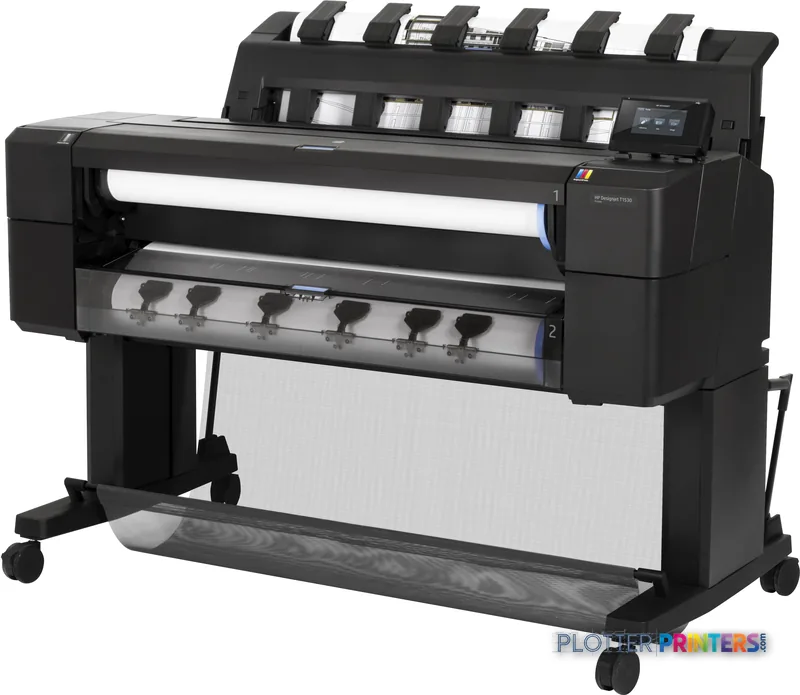

HP DesignJet T1530

The T1530 is particularly well suited to teams that need one shared device for roll-based drawing output and occasional cut sheets. It accepts both roll paper and cut sheets, supports media up to 0.02 inches thick, and lists bond, coated, glossy, matte, satin, and semi-glossy papers among its supported tray media types. That range matters when a civil plan set on bond sits beside a client-facing rendered site plan.

For submission, the supplied language support includes HP-GL/2, HP-RTL, TIFF, and URF. Gigabit Ethernet, a USB Type-A connector, direct printing, and a 500 GB hard drive give print-room staff several practical paths for handling files. Those are useful workflow foundations, but they do not by themselves confirm compatibility with every cloud platform, authentication scheme, or project-accounting package; IT should validate the intended submission route before standardizing on it.

The T1530 uses six cartridges and thermal inkjet technology. The paired matte-black and photo-black inks, plus gray, are relevant to AEC work because drawings often contain both dense black annotation and lighter screening; color coordination overlays add another layer of visual responsibility. Think of the cyan edge of a utility overlay: it needs to remain distinct without taking command of the sheet.

There is no measured ICC-gamut data in the supplied record, so a broad color-fidelity claim would be hand-waving. Firms reproducing brand-critical presentation work should request output on the actual bond or coated stock they plan to use, with their own PDF exports. For plans and general color documents, the available media support and 2400 x 1200 DPI specification indicate a flexible office plotting platform rather than a substitute for a fully characterized proofing workflow.

This is a 36-inch single-roll-oriented choice for organizations whose normal work stays within A0 output. If unattended work depends on keeping two media types loaded—such as bond for issue sets and coated stock for review graphics—the HP DesignJet T1600dr 36-in is the clearer in-family step-up because it is identified as dual-roll. If project work regularly demands a wider sheet, consider the HP DesignJet T1700 44-in instead.

The T1530 may be less appropriate for a central reprographics department where mixed-size production, collated set handling, and continuous operator-light output dominate the day. Its stated 120 pph figure is specifically for normal-quality black A1 line printing; it should not be read as a promise for full-color PDFs, mixed media, or real-world completed plan sets. Its 47 dB printing sound-pressure specification and 194 lb weight also support planning for a dedicated, stable location rather than treating it as a desktop peripheral.
