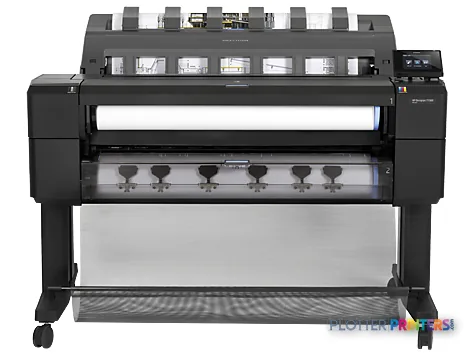

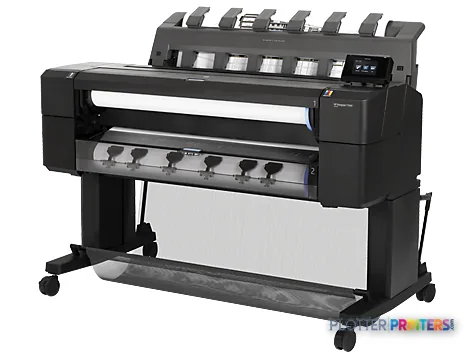

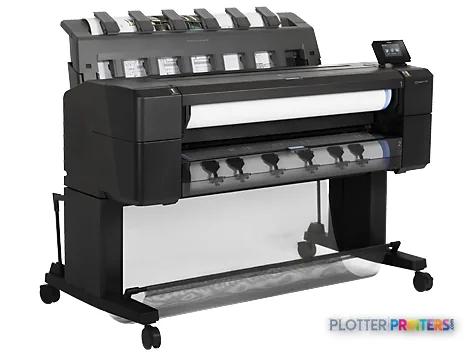

HP DesignJet T1500

This machine is particularly well suited to project teams that need color and monochrome drawings from a shared network device rather than an occasional presentation print. It accepts both cut sheets and roll paper, supports recommended media from 60 to 328 g/m², and accommodates media thickness up to 0.02 in. That range gives an office useful latitude between ordinary bond plans and coated or glossy sheets for client-facing graphics.

The six printing colors—cyan, gray, magenta, matte black, photo black, and yellow—matter because AEC color is often functional: discipline overlays, utility routes, phasing, safety notation, and review clouds must separate cleanly without overwhelming the black linework. There is no measured ICC gamut information in the supplied record, so color claims should remain application-specific rather than speculative. For firms comparing a newer listed 36-inch alternative, see the HP DesignJet T1600 36-in; the supplied catalog data confirms the same listed maximum resolution, but does not establish a broader feature-for-feature advantage here.

The T1500 has a 320 GB internal hard drive and supports HP-GL/2, HP-RTL, PCL 3, and TIFF. That is a sensible foundation for conventional CAD and PDF-centered environments, especially where plot files originate from established driver workflows. The LCD display and built-in display are useful at the device, while the RJ-45 Gigabit Ethernet connection supports placement on an office network. A 47 dB printing sound-pressure specification suggests an office-oriented device, although acoustics are only one part of suitability alongside placement, foot traffic, and service access.

The specification deserves context on paper handling. A roll margin of 0.197 in can help conserve media at the edge, but it does not eliminate the need to verify title-block placement and border requirements on the actual sheet size. Likewise, the listed maximum print size is A1, while tray media is listed up to 36 x 48 in; buyers should validate their exact sheet, roll, and application settings with a representative drawing before standardizing a workflow.

The T1500 is a reasonable fit where 36-inch output, conventional roll-and-sheet work, and detailed technical line reproduction are the core requirement. It may be less appropriate where the operation needs a documented dual-roll configuration; within the listed family, the HP DesignJet T1600dr 36-in is explicitly identified as dual-roll. That distinction can matter more than headline resolution when teams regularly alternate between bond plan sets and specialty media.

For a broader shortlist, compare the HP T1500 36-in and Canon GP-300 36-in in the configured comparison view, and use the 36-inch class ranking as a navigation aid rather than a substitute for output samples. The supplied catalog record does not document scanning, copying, user authentication, job accounting, automatic roll switching, finishing, or cloud-workflow features for this model. Those are questions to settle with the supplying dealer, along with local service coverage and the intended media profile. Compatible supplies include HP 727 inks and a range of listed HP media and maintenance items.
