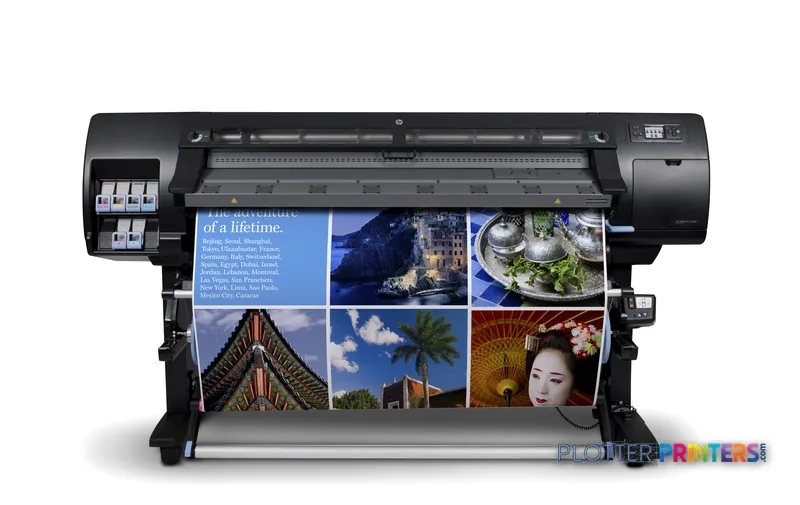

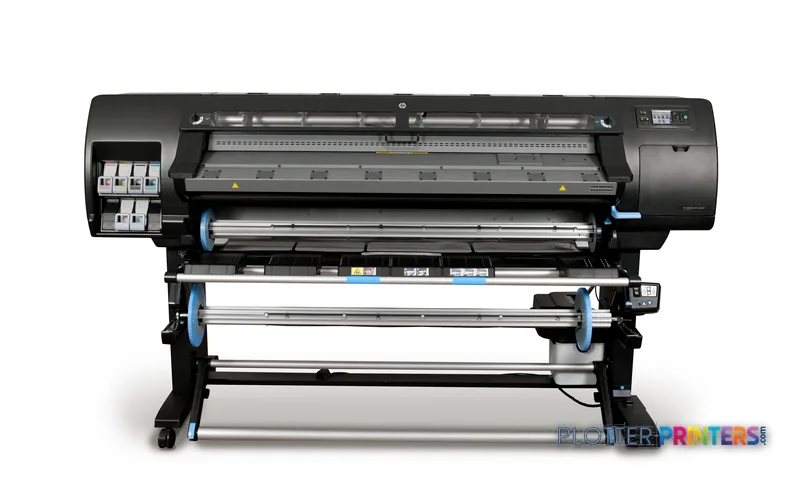

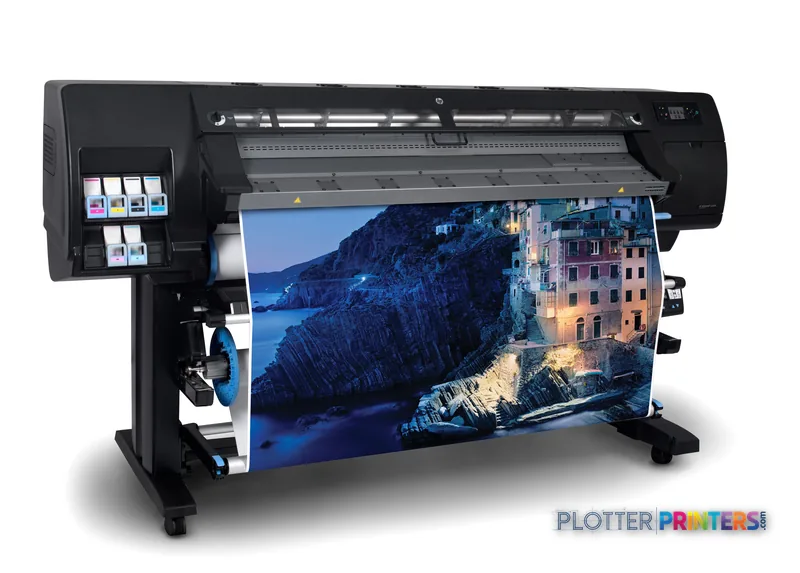

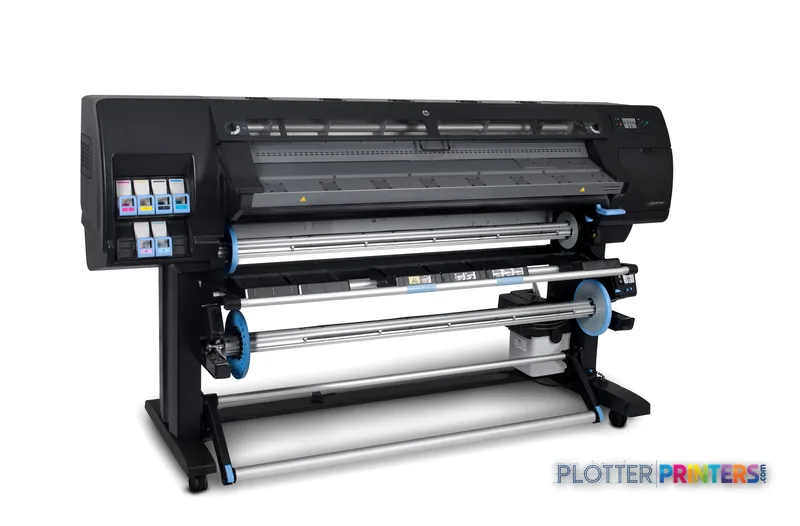

HP DesignJet L26500

This machine makes the most sense where a team needs more than black-line plan sets. It can serve architects rendering presentation graphics, engineers issuing color-coded coordination drawings, surveyors producing map-based exhibits, and construction teams preparing site signage or visual communication on compatible vinyl and film media. Its single input tray and roll-media support point toward a managed roll workflow rather than a mixed-media office printer.

The 512 MB of internal memory and Ethernet LAN connection make it suitable for shared network use, but buyers should validate their own PDF, CAD, and BIM output path before committing. A complex, image-heavy PDF can behave very differently from a clean vector plan file. There is no USB port listed, so direct walk-up USB submission should not be assumed. For placement in a studio or print room, note the listed 57 dB sound-pressure level while printing and the 445.3 lb weight.

The six-color configuration is the material distinction for teams whose documents carry visual information: shaded site plans, GIS layers, renderings, and safety graphics. Maximum resolution is listed at 1200 x 1200 DPI, but resolution alone does not establish color fidelity, line sharpness, or consistency on every substrate. There is no measured ICC gamut data in the supplied record, so a color-critical buyer should request output on the actual media and files used in the office—where deep teatime shadows and close corporate colors reveal the real behavior.

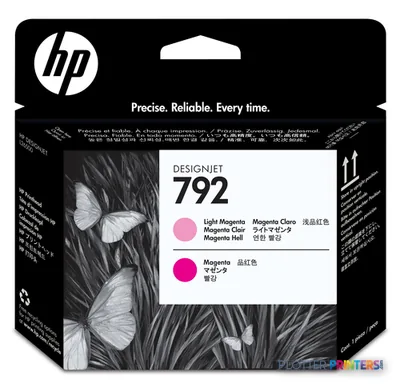

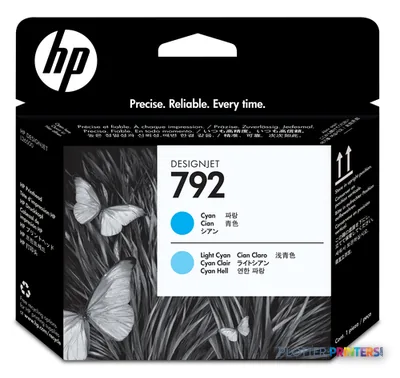

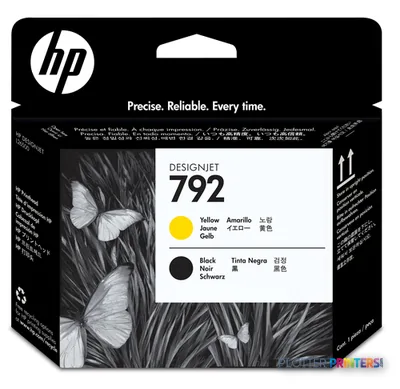

Compatible supplies include HP 792 inks and HP 792 printheads, plus the HP DesignJet L2x500 User Maintenance Kit. The listed maximum roll length is 1181.1" (30 m), with a maximum roll diameter of 7.09" (18 cm). Confirm the rolls your team normally buys fit those limits, and confirm service support for an older installed machine before relying on it for deadline-sensitive issue work.

The HP L26500 is not described here as a scanner or multifunction device, so firms that routinely copy marked-up plans, scan archive drawings, or need one walk-up device for print-and-scan workflows should treat that as a separate requirement. The catalog’s related HP DesignJet T918 36-in is identified as a discontinued scanner/MFP, which may be relevant to firms comparing older multifunction workflows. Its suitability still depends on condition, support, and the scanning requirements of the actual department.

Nor should its rated speed be read as evidence that it is the right answer for unattended, heavily collated plan-set production. A central reprographics operation, or a contractor issuing frequent mixed-size sets, should examine loading, output handling, operator time, and continuity planning alongside speed. Use the product comparison tool to keep the feature discussion tied to the two catalog records, and consult the class ranking page for broader catalog context.
