Epson · Wide-Format Plotter
Epson SureLab SL-D800
color graphics & photo printer
- ModelSL-D800
- Score68/100
Authorized Epson dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson SureLab SL-D800 is a narrow-format roll-fed photo printer, not a replacement for a wide-format CAD plotter.
- Its 8.3-inch maximum media width suits site photographs, presentation images, and visual documentation rather than plan sets.
- Six inks support photographic color output, but no measured ICC gamut data is provided for this machine.
Not sure if the SL-D800 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Fine detail 1400 x 720 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow.
- Verified specs 9 specs checked against the manufacturer datasheet.
- Analyst score Scores 68/100 in our class-relative rating.
Overview
Built for the work
Epson SureLab SL-D800, Inkjet, 1400 x 720 DPI, Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow, 180 pph – 15 x 10 cm ( 6 x 4 "), 360 pph – 15 x 10 cm ( 6 x 4 "), 200 ml
- 2,894 ft²/hRated speed
- 6Ink channels
- 1,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The Epson SureLab SL-D800 is a narrow-format roll-fed photo printer, not a replacement for a wide-format CAD plotter.
- Its 8.3-inch maximum media width suits site photographs, presentation images, and visual documentation rather than plan sets.
- Six inks support photographic color output, but no measured ICC gamut data is provided for this machine.
- USB connectivity and the absence of Ethernet LAN and Wi-Fi favor a dedicated local workstation workflow.
- There is no scanning or copying capability, so redlines and legacy drawings require a separate device.
Not every AEC image needs to become a plan set. Site-progress photographs, finish samples, inspection records, client presentation strips, and job-board imagery often need a compact, repeatable color device rather than a 36-inch plotter. The Epson SureLab SL-D800 is that kind of machine: a roll-fed inkjet printer for narrow-format photographic media, with borderless output and support for glossy, lustre, and matte stocks.
Its value in an architecture, engineering, or construction environment is specific. It can bring visual documentation in-house where the cyan edge of a hard hat or the deep shadow beneath a façade needs to remain readable. It is not a replacement for a CAD plotter, scanner, copier, or networked plan-production MFP. The 8.3-inch maximum media width sets that boundary clearly.

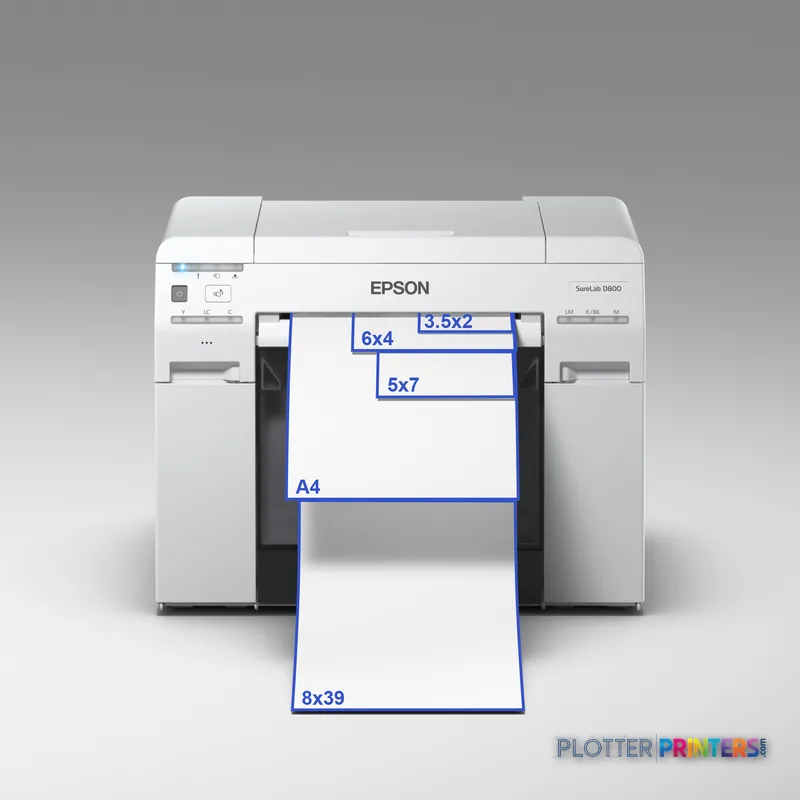

8.3" (210 mm)Maximum media width
1400 x 720 DPIMaximum resolution
430 pph – 15 x 10 cm ( 6 x 4 ")Rated print speedManufacturer-rated speed; actual throughput depends on job setup and media handling.
18.1" (460 mm)Printer dimensions
Where it fits in an AEC document environment
The SL-D800 fits best as a visual-output complement to a plotting fleet. Construction managers can use it for labeled site photographs and closeout records; design teams can create small presentation images; survey and infrastructure groups can prepare photographic field documentation. The supported roll widths span 3.5 through 8 inches, with a maximum roll length of 66 m, so repetitive image output is a more natural assignment than occasional hand-fed sheets.
Color is handled through six inks—black, cyan, light cyan, light magenta, magenta, and yellow—with 2.5 ink drops specified. That configuration is relevant where photographic gradients and color-coded visual evidence matter, but there is no measured ICC gamut data in the supplied record. In other words, the color promise should be validated on the glossy, lustre, or matte media your team actually uses, rather than inferred from an ink count alone.
For replenishment, the appropriate ink families are Epson T43U Black SURELAB SL-D800, Epson T43U Cyan SURELAB SL-D800, Epson T43U Light Cyan SURELAB SL-D800, Epson T43U Light Magenta SURELAB SL-D800, Epson T43U Magenta SURELAB SL-D800, and Epson T43U Yellow SURELAB SL-D800.
Workflow and IT boundaries to acknowledge early
This is a USB-connected device with no Ethernet LAN or Wi-Fi listed. That makes it most straightforward beside a dedicated workstation, lab station, reception-area computer, or supervised print-room position. The bundled software is a printer driver, and the listed operating-system support includes Windows 7 through Windows 10 and specified Mac OS X releases. Organizations with centrally managed queues, user authentication, or project-based chargeback should confirm the intended host-computer and security workflow before deployment.
There is no scanning or copying function, so marked-up drawings, legacy plans, and field redlines require another device. The built-in LED display and separate LED controls for roll paper and ink support local operation, but they do not turn the SL-D800 into an unattended departmental document hub. At 50.7 lbs and 18.1 × 16.9 × 13.9 inches, it is comparatively easy to place where photographs are reviewed and issued.
Use the estimator as a planning aid for repeated small-format image jobs; allow additional time for file preparation, roll changes, and operator handling.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 2,894 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
How it relates to plotters in the same buying conversation
The SL-D800 should not be evaluated as a smaller substitute for a 36-inch CAD printer. A model such as the Canon GP-300 36-in serves a fundamentally different width requirement, while the Canon iPF770 36-in is also listed with scanner/MFP capability. Those machines belong in a plan, map, and drawing-production discussion; the SL-D800 belongs in a photographic-output discussion. Use the comparison tool to keep that distinction visible.
No in-family step-up or step-down model is listed in this catalog. If your requirement grows toward full-width drawings, mixed sheet sizes, scan-to-copy work, or shared network access, the appropriate next move is a wider AEC-oriented device rather than stretching this compact photo printer beyond its media width and connectivity design.
Continue evaluating
The read
The Epson SureLab SL-D800 is a sensible specialist device for AEC teams that routinely distribute small photographic images on roll media and want that work close to the project team. Its compact footprint, borderless capability, six-color ink set, and rated small-photo output speed support that role. The trade-off is decisive: no scanning, copying, Ethernet LAN, Wi-Fi, or wide-format drawing width is listed. For photographs, presentation details, and visual field records, it is focused. For permit sets, bid documents, GIS maps, or full-size markups, it is simply the wrong tool.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers
68% spec coverage
- This printer
Verified specifications
The specs that decide it
| Maximum media width | 8.3 in |
|---|---|
| Maximum print length | 39.3 inmanufacturer-verified |
| Maximum resolution | 1440 x 720 dpi |
| Print technology | On-demand ink jet |
| Number of print cartridges | 6manufacturer-verified |
| Ink cartridge capacity | 200 mlmanufacturer-verified |
| Interface | USB 2.0 (no Ethernet, no Wi-Fi)manufacturer-verified |
| Print speed (draft) | 430 pph – 6 x 4 in |
| Weight | 50.7 lb (23 kg) |
| Dimensions (W x D x H) | 18.1 x 16.9 x 13.9 in |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution1400 x 720 DPI
ColorColor
ConnectivityUSB
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Print speed | 430 pph – 15 x 10 cm ( 6 x 4 ") |
| Printing colors | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Print technology | Inkjet |
| Maximum resolution | 1400 x 720 DPI |
| Borderless printing | Yes |
| Number of print cartridges | 6 |
| Print speed (best quality) | 180 pph – 15 x 10 cm ( 6 x 4 ") |
| Print speed (normal quality) | 360 pph – 15 x 10 cm ( 6 x 4 ") |
| Print cartridge volume (metric) | 200 ml |
| Mean cycles between failures (MCBF) | 200000 |
Performance
| Display | LED |
|---|---|
| Product color | Black, White |
| Built-in display | Yes |
| Country of origin | China |
| Sound pressure level (standby) | 43 dB |
| Sound pressure level (printing) | 50 dB |
Paper handling
| Roll paper | Yes |
|---|---|
| Photo paper sizes | 8.9×5,21×100 cm |
| Maximum print size | 2100 x 1000 mm |
| Maximum roll width | 7.99" (20.3 cm) |
| Maximum media width | 210 mm |
| Maximum roll length | 2598.4" (66 m) |
| Media width (rolls) | 210 mm |
| Maximum roll diameter | 6.69" (17 cm) |
| Media types supported | Glossy, Lustre, Matte |
| Roll widths supported | 102 mm (4 inch), 127 mm (5 inch), 152 mm (6 inch), 203 mm (8 inch), 89mm (3.5inch) |
| Paper tray media types | Glossy paper, Semi-glossy paper, Matte paper |
| Roll weight (rear roll) | 8.82 lbs (4 kg) |
| Roll core diameter (rear roll) | 2.99" (7.6 cm) |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | No |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Depth | 16.9" (430 mm) |
|---|---|
| Width | 18.1" (460 mm) |
| Height | 13.9" (354 mm) |
| Weight | 50.7 lbs (23 kg) |
Power
| AC input voltage | 100-240 V |
|---|---|
| AC input frequency | 50 – 60 Hz |
| Power consumption (sleep) | 6 W |
| Power consumption (standby) | 60 W |
| Power consumption (typical) | 120 W |
Operational conditions
| Storage temperature (T-T) | -20 – 40 °C |
|---|---|
| Operating temperature (T-T) | 10 – 35 °C |
| Storage relative humidity (H-H) | 5 – 85% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Ink drop | 2.5 |
|---|---|
| Other hardware | Control LED for roll paper and ink |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Logistics data
| Pallet weight | 0 oz (0 g) |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet weight (UK) | 0 oz (0 g) |
| Quantity per pallet | 6 pc(s) |
| Quantity per pallet (UK) | 6 pc(s) |
| Quantity per pallet layer | 2 pc(s) |
| Quantity per pallet layer (UK) | 2 pc(s) |
Packaging data
| Manual | Yes |
|---|---|
| Package depth | 26.8" (680 mm) |
| Package width | 20.9" (530 mm) |
| Package height | 23.2" (590 mm) |
| Package weight | 60.8 lbs (27.6 kg) |
| Bundled software | Printer Driver |
| Drivers included | Yes |
System requirements
| Compatible operating systems | Mac OS 10.5+, Windows 10 (32/64 bit), Windows 7, Windows 7, 64-Bit-Version, Windows 8 (32/64 Bit), Windows 8.1, Windows 8.1 x64 Edition |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64 |
Everything that fits the Epson SureLab SL-D800
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
11 ink cartridges · 22 paper & media items · 4 accessories · 4 coverage plans
Epson SureLab SL-D800 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureLab SL-D800 — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 11
Epson T43U Light Magenta SURELAB SL-D800
Epson T43U Magenta SURELAB SL-D800
Epson T43U Yellow SURELAB SL-D800
Epson T43U Cyan SURELAB SL-D800
Epson T43U Light Cyan SURELAB SL-D800
Epson T43U Black SURELAB SL-D800
Epson T43U Light Magenta SURELAB SL-D800
Epson T43U Yellow SURELAB SL-D800
Epson T43U Magenta SURELAB SL-D800
Epson T43U Cyan SURELAB SL-D800
Epson T43U Black SURELAB SL-D800Paper & Media 22
Epson SureLab Pro Paper ArtMatte A4x65 1 roll
Epson SureLab Pro Paper ArtMatte 8×65 1 roll
Epson SureLab Pro Paper ArtMatte 6×65 2 rolls
Epson SureLab Pro-S Paper Glossy BP A4x65 2 rolls
Epson SureLab Pro-S Paper Luster BP A4x65 2 rolls
Epson SureLab Pro-S Paper Glossy BP 6×65 2 rolls
Epson SureLab Pro-S Paper Glossy BP 8×65 2 rolls
Epson SureLab Pro-S Paper Luster BP 8×65 2 rolls
Epson SureLab Pro-S Paper Luster BP 6×65 2 rolls
Epson SureLab Pro-S Paper Glossy BP 4×65 2 rolls
Epson SureLab Pro-S Paper Luster BP 5×65 2 rolls
Epson SureLab Pro-S Paper Luster BP 4×65 2 rolls
Epson SureLab Pro-S Paper Glossy BP 5×65 2 rolls
Epson SureLab Pro-S Paper Luster BP 3.5×65 4 rolls
Epson SureLab Pro-S Paper Glossy BP 3.5×65 4 rolls
Epson 8" SLP-SP Luster + T43U Volume pack
Epson SureLab Photo Paper Luster (250) 3.5"x65m 4rolls
Epson 5" SLP-SP Glossy + T43U Volume pack
Epson 5" SLP-SP Luster + T43U Volume pack
Epson 6" SLP-SP Luster + T43U Volume pack
Epson 6" SLP-SP Glossy + T43U Volume pack
Epson 8" SLP-SP Glossy+ T43U Volume packAccessories 4
Coverage & Support Plans 4
Epson 1E years extension to CoverPlus Onsite service including Print Heads for SureLab D800
Epson 5E years extension to CoverPlus Onsite service including Print Heads for SureLab D800
Epson 4/5E years extension to CoverPlus Onsite service including Print Heads for SureLab D800
Epson 4E years extension to CoverPlus Onsite service including Print Heads for SureLab D800Questions
Straight answers
Can the Epson SureLab SL-D800 print architectural drawings?
Its maximum media width is 8.3 inches, so it is not suited to full-size architectural or engineering drawings. It is better positioned for small photographic and presentation output.
What AEC applications make the most sense for this printer?
Suitable uses include site-progress photographs, inspection images, closeout documentation, finish-reference images, and small client presentation graphics. Glossy, lustre, and matte media are supported.
Can it be shared over an office network?
The supplied specifications list one USB 2.0 port and no Ethernet LAN or Wi-Fi. Plan on a locally connected workstation unless your IT team provides a managed USB-host approach.
Does it scan or copy marked-up plans?
No. Scanning and copying are both listed as unavailable, so it needs to sit alongside a separate scanning or multifunction device where those tasks are required.
What inks should buyers keep available?
Use the six resolved Epson T43U SURELAB SL-D800 ink families: Black, Cyan, Light Cyan, Light Magenta, Magenta, and Yellow. Each cartridge is listed at 200 ml.
