Epson SureLab SL-D800 Media Bundle

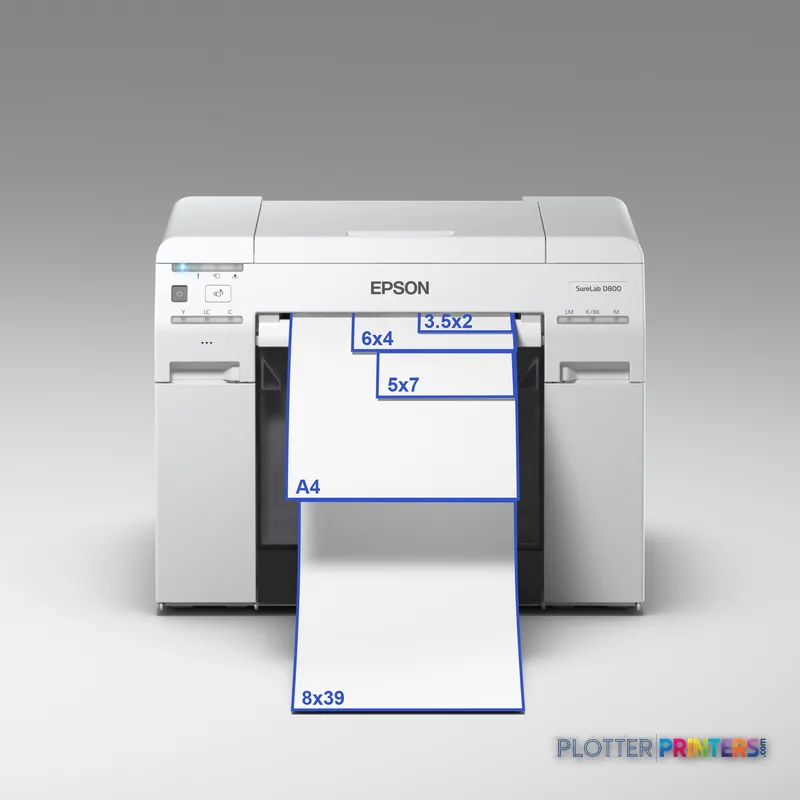

The SL-D800 is well matched to repeatable small-format color output: construction-photo logs, asset-condition records, punch-list images, materials boards, wayfinding proofs, and presentation photographs. It supports borderless printing and roll widths from 3.5 to 8 inches, alongside cut sheets. Glossy, semi-glossy, and matte media are listed for the paper tray, giving a team some latitude to choose a surface appropriate to the audience rather than treating every image as office-paper output.

The printer uses six cartridges—black, cyan, light cyan, light magenta, magenta, and yellow—with 200 ml cartridge volume stated in the supplied specifications. For continued operation, the resolved ink family is Epson T43U Black SURELAB SL-D800 and its corresponding cyan, light cyan, light magenta, magenta, and yellow variants. Teams should confirm availability of the particular media finish they standardize on before committing a recurring documentation process to the device.

Epson lists normal-quality output at 360 pph and best-quality output at 180 pph, both for 6 x 4 inch photographs. Those figures describe a highly specific image size and quality setting, not a measure of plan throughput. In a real project office, image selection, file preparation, roll changes, trimming, sorting, and attaching prints to reports will shape the useful pace of work.

The physical footprint—18.1 inches wide, 16.9 inches deep, and 13.9 inches high—can suit a constrained counter or documentation station. Its typical power consumption is listed as 120 W and sleep consumption as 6 W. The limitation is connectivity: one USB 2.0 Type-A port is listed, with no Ethernet LAN or Wi-Fi. That may be perfectly workable for a controlled, single-workstation process; it is less attractive for shared, network-managed output where IT needs centralized access, authentication, and broad job submission.

Do not buy this machine for full-size permit sets, bid packages, GIS sheets, marked-up drawings, or mixed-size plan collation. Its 8.3-inch maximum media width rules it out before line quality or resolution becomes the deciding question. It also has no scanner or copying function, so it cannot serve as an archive, redline-copy, or field-plan capture station.

For firms that need 36-inch technical output, a machine such as the Canon GP-300 36-in is in a fundamentally different category of equipment. It is a meaningful comparison only because it illustrates the width and workflow step required for drawings, not because it is a direct substitute for compact photographic output. Use the comparison tool to keep that distinction visible, and review the class ranking alongside the specific media and connectivity requirements of your office.
