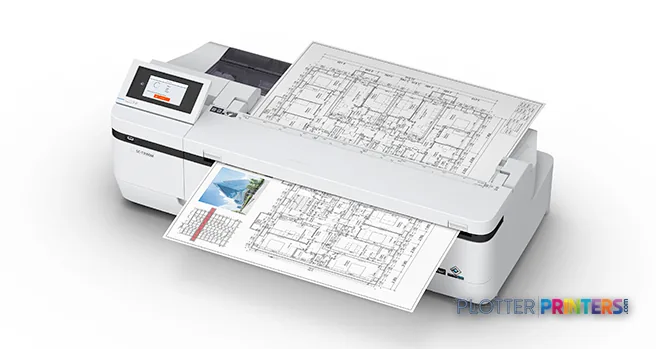

Epson SureColor T3160M

This machine is particularly well suited to teams producing A1-size plan sheets, color-coded coordination drawings, GIS outputs, site documentation, and internal review copies. HP-GL/2 support matters for many established CAD submission paths, while ESC/P-P provides an additional printer language option. Ethernet, Wi-Fi, Wi-Fi Direct, USB, and Apple AirPrint give users several ways to submit work, which can reduce the ritual of moving files between the job trailer, the project manager’s laptop, and the office workstation.

The integrated scanner and copier are useful when paper redlines or reference sheets must become digital files or revised copies. Copy resize ranges from 25 to 400%, with up to 99 copies specified. That is useful for controlled document handling; it is not evidence of a high-volume reprographics workflow. The scanner is free. The person standing at it is not.

For offices that need a wider device, compare the Epson T3160M with the Epson SC-T5100M 36-in. The latter’s 36-inch format changes what can be printed, which is often more consequential than a modest feature difference.

The 23-by-33-inch maximum output is the central boundary. Firms regularly issuing larger construction sheets, full-width engineering plans, or mixed-format sets should start with a wider platform rather than asking this device to stretch beyond its stated format. The Epson T5770DR 36-in is the more relevant in-family move when wider output and dual-roll operation are required.

The product data identifies roll media in the paper tray and support for cut sheets, with a maximum rear-roll diameter of 4.33 inches and rear-roll weight of 9.26 pounds. That points toward a managed office device, not unattended central-repro production. Epson does not provide a rated print-speed figure in the supplied product data, so buyers should have the dealer demonstrate their own PDFs, HP-GL/2 files, and typical media before treating any timing estimate as a capacity plan.

Resolution is specified at 2400 by 1200 DPI, but AEC output quality is more than a headline number. Bring fine-line details, small annotation text, screened fills, and color-coded MEP overlays to the demonstration. A plotter that saves thirty seconds a plot buys you nothing if the file spends four minutes finding it.

For IT, the useful basics are present: Gigabit Ethernet, Wi-Fi, Wi-Fi Direct, USB connectivity, and 1,024 MB of internal memory. Supported Windows versions listed are Windows 7 through Windows 10; listed Mac support ranges from Mac OS X 10.7 Lion through Mac OS X 12.0 Monterey. Those lists should be checked against the firm’s deployed operating systems before purchase, particularly where standardized drivers and managed endpoints are involved.

Security and accounting requirements need a separate conversation. The supplied data does not specify user authentication, audit logging, secure-release controls, or departmental chargeback features. A construction manager may be content with direct network printing; a public-sector team or a firm with project-code billing may need documented answers before the device is placed on a managed network. Review the wide-format class ranking alongside local service coverage, response commitments, and the practical process for replacing consumables and resolving driver issues.
