Epson Stylus Pro 4800

This is a reasonable fit for an architect’s studio, engineering discipline lead, survey team, or construction office that needs occasional A3 and A2 color output close to the desk. Roll support is useful for repeat layouts and presentation graphics, while cut-sheet capability suits one-off detail sheets, meeting boards, and controlled proofing. The supported media-thickness range is 0.003″–0.02″ (0.08–0.50 mm), giving the operator latitude beyond plain office paper.

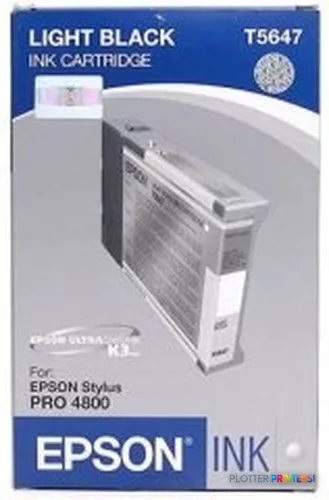

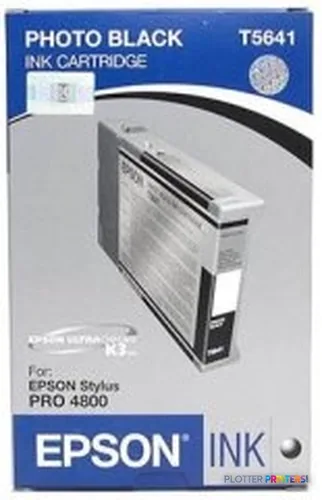

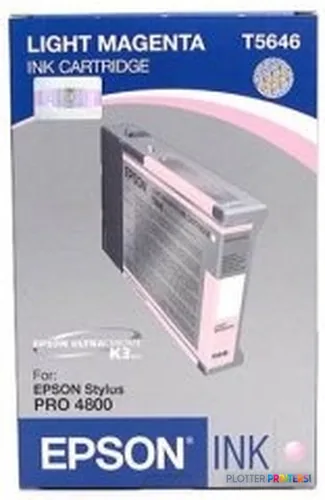

The nine-cartridge configuration is relevant when drawings rely on distinct color layers. It is not a guarantee of color accuracy on every paper; no measured ICC gamut data is supplied here, so there is no basis for broad claims about gamut or ΔE. For color-critical renderings, establish a media-specific proofing routine before treating output as an approval standard.

The 17-inch width is decisive. It accommodates A2 work, but it does not address the common need for larger architectural or engineering sheets, nor does the supplied data establish automated collation, scanning, copying, or Ethernet networking. Connection is by USB 2.0, with one USB Type-A connector and one FireWire (IEEE 1394) port listed. That makes it better considered a directly attached workstation device than a shared network plotter.

Its listed compatible operating systems are Windows 98/2000/XP and Mac OS X/OS 9. Modern IT teams should therefore validate host connectivity, driver availability, security policy, and job-submission workflow before deployment. The 50 dB printing sound-pressure specification also suggests placing it where normal print-room activity is acceptable rather than assuming silent desktop use.

There is no listed in-family step-up or step-down model in this catalog, so a clean same-family migration path cannot be identified from the available data. The more useful question is whether your documents have outgrown the 17-inch format and direct-connect workflow. If they have, a wider, network-oriented device may be the appropriate category change rather than a marginal specification change.

Within the listed cross-brand alternatives, the Canon iPF500 17-in shares the 17-inch class, while the Canon iPF5000 17-in and Canon iPF-510 17-in are other catalogued points of comparison. Resolution figures alone do not settle an AEC purchase: compare media behavior, current software support, local service, and the way your own PDFs render. Use the side-by-side comparison and the class ranking as structured starting points, then test the files that cause trouble in your office.
