Epson · Wide-Format Plotter
44" dye-sublimation printer
Analyst take
Not sure if the SCF6470PE is right for you?
Compare key specs and an AI analyst read-out against similar models.
Overview
Epson SCF6470PE, Dye-sublimation, 1200 x 600 DPI, ESC P, Cyan, Magenta, Yellow, Black, Roll, 0.5 mm
Expert analysis
Key takeaways
AEC teams notice a drawing device’s limits long before they notice its headline resolution: a color-coded coordination sheet that needs to travel well, a branded fabric panel for a project room, or a transfer application where the cyan edge must remain clean. The Epson SCF6470PE is a 44-inch dye-sublimation printer built around four-color Cyan, Magenta, Yellow, and Black imaging—not a conventional plan-room multifunction device.
Its 1200 x 600 DPI maximum resolution and roll-fed format make it relevant where an AEC organization has a defined dye-sublimation output need. The qualification matters. This specification alone does not establish suitability for ordinary bond-paper construction sets, direct scanning, copying, or unattended multi-roll plan production. Treat it as a specialized color-output device, then test it against the actual media and finishing process your team uses.
The strongest fit is a practice, contractor, or facilities group with a specific dye-sublimation workflow adjacent to its document operation—for example, project-identification graphics or transfer-based visual materials. The 44-inch maximum roll width gives it a useful working span for that specialized output, while the stated maximum media thickness is 0.02 inches.

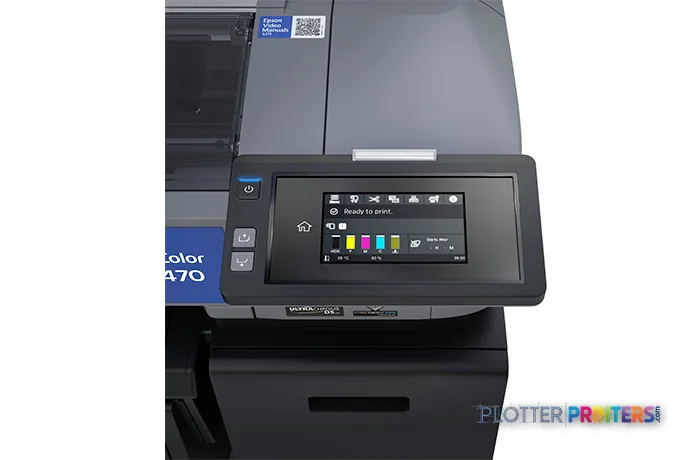

For IT, the connection picture is straightforward: the unit has Gigabit-capable Ethernet LAN, a USB port, and no Wi-Fi. It uses ESC P page-description language and has a touch control interface with a color display. Those are useful deployment facts, but they do not substitute for validating drivers, job submission behavior, authentication requirements, and file handling with the CAD and PDF workflows actually in use.
There is no scanning or copying capability. A print room that regularly captures marked-up plans, reproduces legacy sheets, or makes walk-up copies will need a separate scanning workflow rather than expecting this machine to cover those tasks.
Dye-sublimation is a process choice, not a shorthand for general-purpose AEC plotting. The eye may be drawn to a saturated project color, but output fidelity depends on the complete media, transfer, and finishing workflow. No measured ICC gamut data is supplied for this model, so there is no defensible basis here to claim a measured color-volume advantage. Ask for an application-specific demonstration using your approved media and source files.
The SCF6470PE accepts one roll input and specifies a maximum roll diameter of 5.91 inches. That makes roll loading and media-change discipline part of the operator routine. Its stated operating range is 59–95°F and 20–80% relative humidity; site conditions deserve attention where a print room is near an exterior loading area or poorly controlled project space. Printing sound pressure is specified at 54 dB, another practical consideration for an open office.
Compatible supplies include Epson Dye Sublimation Black T49N100 (140mL), Epson Dye Sublimation Cyan T49N200 (140mL), Epson Dye Sublimation Magenta T49N300 (140mL), Epson Dye Sublimation Yellow T49N400 (140mL), and Epson C13S400145 maintenance supplies.
Do not select the SCF6470PE simply because it is wide format. Compare it with the Epson SC-F6400 44-in when evaluating another 44-inch dye-sublimation option, and use the side-by-side comparison to keep the evaluation tied to published catalog data. The Epson F571 is another dye-sublimation model to consider where its format aligns with the job.
Conversely, teams whose core need is conventional technical-document output should first define required media, linework, scanning, and copying functions; this model’s supplied data does not establish those capabilities. The machine is most compelling when dye-sublimation is an intentional production process rather than an improvised substitute for a plan printer.
Related evaluation tools
The read
The Epson SCF6470PE is a focused 44-inch dye-sublimation printer for AEC organizations with a real specialty-color application and a controlled roll-media workflow. Its Ethernet connectivity, touch interface, and four-color configuration are clear operational basics. The trade-off is equally clear: no scanning, no copying, one roll input, and no supplied evidence that it should be treated as a conventional bond-paper plan-production platform. Buy it for the dye-sublimation job you can define and test—not for every wide-format task that happens to enter the print room.
Spec analysis
Overall performance
within dye-sublimation printers
66% spec coverage
Verified specifications
| Print technology | Dye-sublimation |
|---|---|
| Printing colors | C, M, Y, HDK |
| Maximum resolution | 1,200 x 600 dpi |
| Print speed (Epson-rated) | Up to 820 ft²/hrmanufacturer-verified |
| Maximum roll width | 44 in |
| Ink cartridge capacity | 1,600 mLmanufacturer-verified |
| Ethernet LAN | 1000Base-T Ethernet (1 port) |
| Scanning / Copying | No / No |
| Page description language | ESC P |
| Weight | 295 lb |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
| Color | Yes |
|---|---|
| Printing colors | Cyan, Magenta, Yellow, Black |
| Print technology | Dye-sublimation |
| Maximum resolution | 1200 x 600 DPI |
| Number of print cartridges | 4 |
| Page description languages | ESC P |
| Control type | Touch |
|---|---|
| Color display | Yes |
| Product color | Black |
| Built-in display | Yes |
| Sound pressure level (printing) | 54 dB |
| Media thickness | 0.5 mm |
|---|---|
| Maximum roll width | 44" (111.8 cm) |
| Maximum roll diameter | 5.91" (15 cm) |
| Paper tray media types | Roll |
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Depth | 44.4" (1128 mm) |
|---|---|
| Width | 63.3" (1608 mm) |
| Height | 36.1" (916 mm) |
| Weight | 308.6 lbs (140 kg) |
| AC input voltage | 220 – 240 V |
|---|---|
| AC input frequency | 50/6 Hz |
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 20 W |
| Power consumption (standby) | 36 W |
| Power consumption (typical) | 80 W |
| Operating temperature (T-T) | 15 – 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Copying | No |
|---|
| Scanning | No |
|---|
| Maximum number of input trays | 1 |
|---|
Everything that fits the Epson SureColor F SCF6470PE
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
6 ink cartridges · 1 accessory
Epson SureColor F SCF6470PE ink and paper →Supplies
Genuine consumables that fit the Epson SureColor F SCF6470PE 44-in — only the cartridges, printheads and media compatible with this model.
Questions
The supplied data identifies it as a dye-sublimation printer with roll media input, but does not establish ordinary bond-paper support or conventional plan-set workflow capability. Validate the intended media and output process before positioning it as a plan-room device.
No. The product data lists neither scanning nor copying capability, so those functions require separate equipment or a separate workflow.
It has Ethernet LAN with 10, 100, and 1000 Mbit/s data rates, plus a USB port. Wi-Fi is not listed.
The maximum roll width is 44 inches. The specified maximum media thickness is 0.02 inches and the maximum roll diameter is 5.91 inches.
The resolved ink set includes Epson Dye Sublimation Black T49N100 (140mL), Epson Dye Sublimation Cyan T49N200 (140mL), Epson Dye Sublimation Magenta T49N300 (140mL), and Epson Dye Sublimation Yellow T49N400 (140mL). Epson C13S400145 is the listed maintenance supply.
